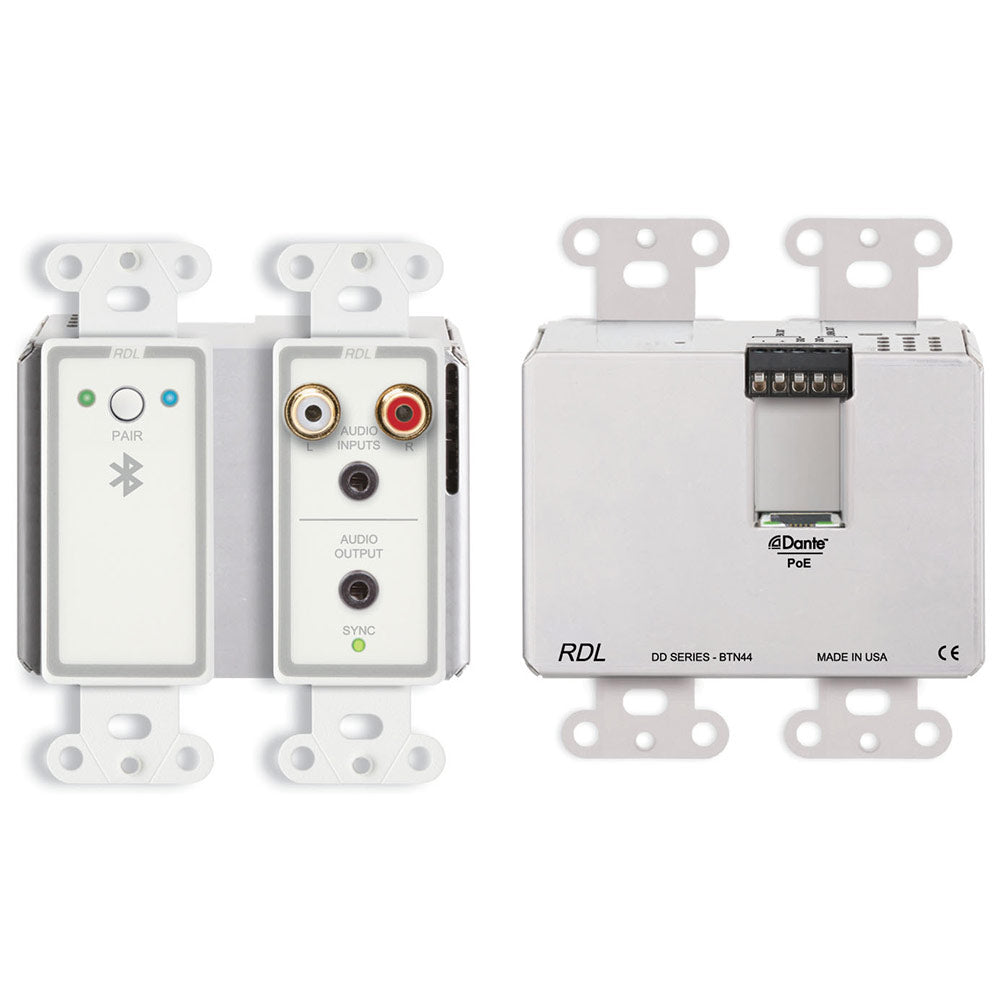

RDL DD-BTN44 Wall-Mount Bi-Direction Line-Level/Bluetooth Dante Interface - Custom Engraving Option


  • Dale #:

    RDL-DDBTN44C
  • Availability:

    Special Order Item
  • RDL offers custom engraving on most of their product line. Contact us for customization pricing and lead time.

Description

The D SERIES-BTN44 modules are Dante networked, wall-mounted audio interfaces that include bidirectional Bluetooth audio, unbalanced analog stereo or mono audio inputs and outputs, and a balanced or unbalanced line-level output. Stereo audio from a compatible Bluetooth-enabled device feeds two Da... Read More

Contact us

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The D SERIES-BTN44 modules are Dante networked, wall-mounted audio interfaces that include bidirectional Bluetooth audio, unbalanced analog stereo or mono audio inputs and outputs, and a balanced or unbalanced line-level output. Stereo audio from a compatible Bluetooth-enabled device feeds two Dante network audio channels. Stereo audio connected to a front-panel Mini-Jack or L and R RCA jacks feeds two other Dante network audio channels.

Features:

  • Bluetooth Audio Input for Dante Networked System
  • Consumer Audio Inputs on Mini-Jack or RCA Jacks
  • Return Audio Talk Channel from Dante Network to Bluetooth Connected Device
  • Consumer Audio Outputs on Mini-Jack
  • Balanced and Unbalanced Audio Line Outputs on Rear Panel
  • Intuitive Single Button Bluetooth Pairing with LED Status Indication
  • Special Software Not Required for Module Setup
  • Customize the Module ID Name and Settings through the Bluetooth Connection
  • Mono or Stereo Mode for Audio Inputs is Switch-Selectable Behind Cover Plate
  • Module is PoE Powered

If set for stereo operation, an additional Format-A source (set to Pair A) may be daisy chained with the D SERIES-BT1A to a three-pair Format-A receiver. If set for mono operation, up to three D SERIES-BT1A modules may be daisy chained to a single three-pair Format-A receiver. Connections between Format-A modules and Format-A receivers use standard CATx cable with RJ45 connectors.

Stereo audio is available to users through a front-panel Mini-Jack fed from two Dante network channels. A rear-panel terminal block provides either a balanced (+4 dBu) or unbalanced (-10 dBV) output from one Dante network channel. That output may feed a variety of RDL wall panels to provide a specific mic or line level output to users, or it may be used to feed the audio power amplifier in the associated audio zone. One Dante channel may be routed back to a connected device through the Bluetooth interface enabling full duplex communication.

The D SERIES-BTN44 modules are powered from PoE. The installer can customize the module name and programming password through the Bluetooth connection using a smartphone, computer or tablet terminal program. These modules feature studio-quality circuits and analog filters to provide audio performance exceeding expectations from consumer interface technologies. High performance, simplicity of operation and efficiency of installation make RDL the best value in professional Bluetooth interfaces.

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Radio Design Labs, Inc. is under license. Other trademarks and trade names are those of their respective owners.

More +

Product Specs

Network ConnectorRJ45 with Link and Speed indicators
Digital Audio Ethernet ProtocolDante
Transmission Rate100 Mbps
Sample Rates Supported44.1 kHz, 48 kHz (default)
Bit Depth Supported24 bits
Audio Operating Levels-20 dBFS = +4 dBu (balanced); -20 dBFS = -10 dBV (unbalanced), nominal
Bluetooth® to Network Interface Section
Frequency Response20 Hz to 20 kHz (± 0.5 dB)
THD+N< 0.1%
Noise below -20 dBFS< -70 dB
Network to Bluetooth® Interface Section
Voice signal feeding deviceOne Dante channel (mono, -20 dBFS nominal)
Network to Mini Jack Output Section
OutputStereo mini jack
Frequency Response20 Hz to 20 kHz (± 0.75)
THD+N< 0.05%
Noise below -20 dBFS< -80 dB
Crosstalk (channel to channel)< 80 dB
Network to Line Output Section
OutputsBalanced and unbalanced on detachable terminal block
Frequency Response20 Hz to 20 kHz (± 0.5 dB)
THD+N< 0.05%
Noise below -20 dBFS< -80 dB
Line Inputs to Network Interface Section
Inputs (4)Stereo Mini jack (L and R); RCA jack (L and R)
Dante channels used (2)L and R
Frequency Response20 Hz to 20 kHz (± 0.25)
THD+N< 0.05%
Noise below -20 dBFS< -75 dB
Crosstalk (channel to channel)< 75 dB
Common
Indicators (5)Bluetooth® (2), Network Sync
Power ConnectionPoE (RJ45)
Ambient Operating Environment0° C to 40° C
Power RequirementPoE
PoEClass 0, IEEE 802.3af
Dimensions3.52" (8.94 cm) W; 4.11" (10.44 cm) H; 2.09" (5.31 cm) D
Package TypeCardboard Box
Package Dimensions6.0 x 6.0 x 2.625 in.
Shipping Weight1.15 lb.
WEEE weight0.78 lbs.
Tariff code8518.50.0000
