RDL DDB-BN22 Wall Mount 2-In 2-Out Mic/Line to Dante Interface (Black) - Custom Engraving Option


  • Dale #:

    RDL-DDBBN22C
  • Availability:

    Special Order Item
  • RDL offers custom engraving on most of their product line. Contact us for customization pricing and lead time.

Description

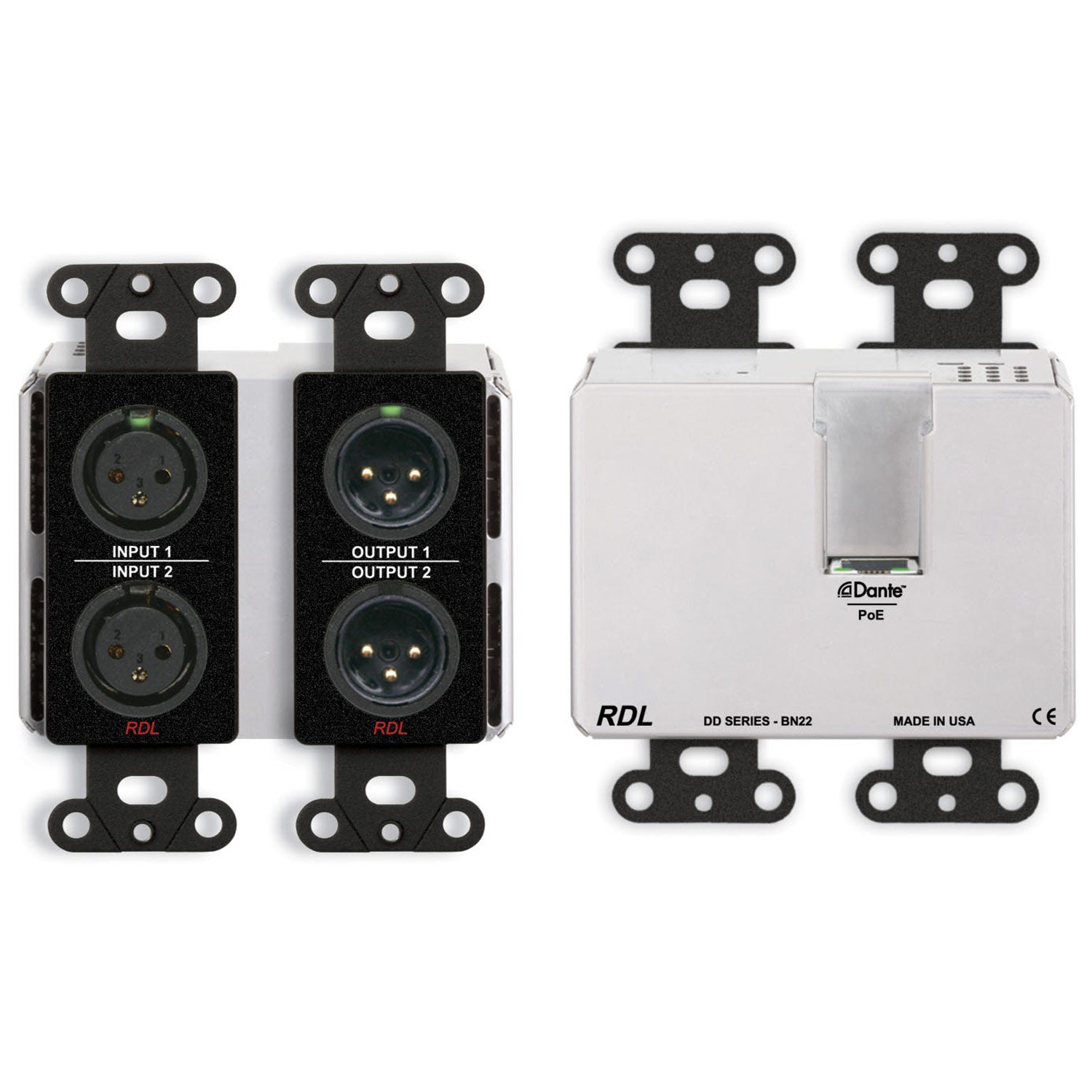

The DDB-BN22 is a complete wall-mounted Dante audio network interface. It features two XLR mic or line inputs and two XLR mic or line outputs on the front panels. Special software is not required to configure the DDB-BN22. Each XLR input provides three switches that may be set from the front of t... Read More

Contact us

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The DDB-BN22 is a complete wall-mounted Dante audio network interface. It features two XLR mic or line inputs and two XLR mic or line outputs on the front panels. Special software is not required to configure the DDB-BN22. Each XLR input provides three switches that may be set from the front of the unit when the cover plate is not installed. One switch enables or disables P48 phantom; the second switch selects the mic or line gain range; the third switch sets the gain. Each XLR output provides a switch to set the output to balanced professional line level or mic level. The DDB-BN22 fits a standard US dual-gang electrical box or an RDL WB-2 back box for installations in thinner European or equivalent walls. The DDB-BN22 is PoE powered, and is available in multiple finishes with optional customized graphics.

The two XLR inputs are each converted to a separate Dante network transmit channel. Three gain settings are switch-selectable for both the mic and line input ranges to match condenser or dynamic mic levels and standard line levels.

Two Dante audio channels are converted to balanced line level on front-panel XLR jacks. Each output provides +4 dBu balanced for a network digital audio level of -20 dBFS. Each output is equipped with a selector to set the output to line level or attenuate the output by 50 dB to mic level. These switches are located on the top of the chassis and are set by the installer prior to mounting the unit.

Valid PoE power and synchronization to the Dante network are indicated by green LEDs visible from the front of the unit.

The DDB-BN22 is a professional grade product with discrete mic preamplifiers for studio quality fidelity and low noise performance, coupled through metal XLR jacks housed in a stainless steel chassis with dual powder-coated or stainless steel Decora front plates.

The DDB-BN22's superior performance specifications make it ideally suited to the most demanding installations, and an exceptional value in commercial networked audio systems. This full-featured product is engineered and manufactured in the U.S.A for continuous duty in demanding installations. Designed to outperform. Built to last.

Features:

  • Dante Network Interface for Two Audio Inputs and Two Audio Outputs
  • Inputs and Outputs on XLR Jacks on front panels
  • Converts Two Standard Mic or Line Audio Sources to Dante Network Channels
  • Converts Two Dante Network Audio Signals to Mic or Line Level
  • Special Software Not Required for Module Setup
  • Each Input is Switch Selectable for Mic or Line
  • Switch-Selectable Mic Gain: 40 dB, 48 dB or 62 dB
  • Switch-Selectable 48 V Mic Phantom (P48)
  • Switch-Selectable Line Gain: Unity, 12 dB or 19 dB
  • Each Output is Switch Selectable for Mic or Line
  • Studio Quality, Low-Noise Performance
  • High Resolution 24 Bit Analog to Digital and Digital to Analog Conversion
  • Legendary RDL Analog Filtering Enhances Superb Audio Performance

More +

Product Specs

Network Connector RJ45 with Link and Speed indicators
Digital Audio Ethernet Protocol Dante
Transmission Rate 100 Mbps
Sample Rates Supported 44.1 kHz, 48 kHz (default)
Bit Depth Supported 24 bits
Audio Operating Level -20 dBFS = +4 dBu
Reference Level 0 dBFS = +24 dBu
Mic/Line Inputs to Network Interface
Inputs (2) XLR (female)
Gain Mic: 40 dB (LO), 48 dB (MED), 62 dB (HI); Line: Unity (LO), 8 dB (MED), 19 dB (HI)
Input Level (for +4 dBu/-20 dBFS) Mic: -36 dBu (LO), -44 dBu (MED), -58 dBu (HI); Line: +4 dBu (LO), -8 dBu (MED), -15 dBu (HI)
Input Level (maximum) Mic: -16 dBu (LO), -24 dBu (MED), -38 dBu (HI); Line: +24 dBu (LO), +12 dBu (MED), +5 dBu (HI)
Input Impedance > 2.5 k (MIC); > 5 k (LINE)
Phantom Power P48, 48 Vdc, switch-selectable
Standard for Phantom IEC 61938: 2013
Selectors per input (3) Phantom, Mic/Line, Gain
Frequency Response 20 Hz to 20 kHz (± 0.5 dB)
Equivalent Input Noise -130 dBu (62 dB gain); -132 dBu A-Weighted
Noise below -20 dBFS (20 to 20 kHz) Mic: < -72 dB (LO), < -72 dB (MED), < -68 dB (HI); Line: < -72 dB (LO), < -72 dB (MED), < -70 dB (HI)
THD+N < 0.1% (20 Hz to 20 kHz, +4 dBu/-20 dBFS); 0.015% at 1 kHz (typ)
CMRR > 65 dB (50 Hz to 120 Hz)
Crosstalk Below Noise Floor (20 Hz to 20 kHz at operating level, any input to any input, max. mic gain)
Network to Mic/Line Outputs
Outputs (2) XLR (male)
Output Level (operating) +4 dBu nominal LINE level balanced; -45 dBu nominal MIC level (into 150 )
Output Level (maximum) +24 dBu LINE level
Output Impedance 150 balanced
Selector per output Mic/Line
Frequency Response 20 Hz to 20 kHz (± 0.5 dB)
THD+N < 0.1% (20 Hz to 20 kHz,+4 dBu/-20 dBFS); 0.015% at 1 kHz (typ)
THD < 0.01% (1 kHz)
Noise < -80 dB (below +4 dBu); < -100 (below +24 dBu)
Crosstalk Below Noise Floor (20 Hz to 20 kHz at operating level, output to output)
Headroom above +4 dBu/-20 dBFS 20 dB
Indicators (4) Ethernet Link and Speed (2, rear panel); Sync and Power (2, front panel)
Ambient Operating Environment 0° C to 40° C; 30° C maximum recommended
Power Requirement PoE Class 0, IEEE 802.3af
Specification Conditions Gain/Level: ± 1 dB; Source termination: 150 ; A to D values measured in digital domain
Dimensions 3.52" (8.94 cm) W; 4.11" (10.44 cm) H; 2.09" (5.31 cm) D
Package Type Cardboard Box
Package Dimensions 3.625 x 4.625 x 2.125 in.
Shipping Weight 1.09 lbs.
WEEE weight 0.935 lbs.

More +
