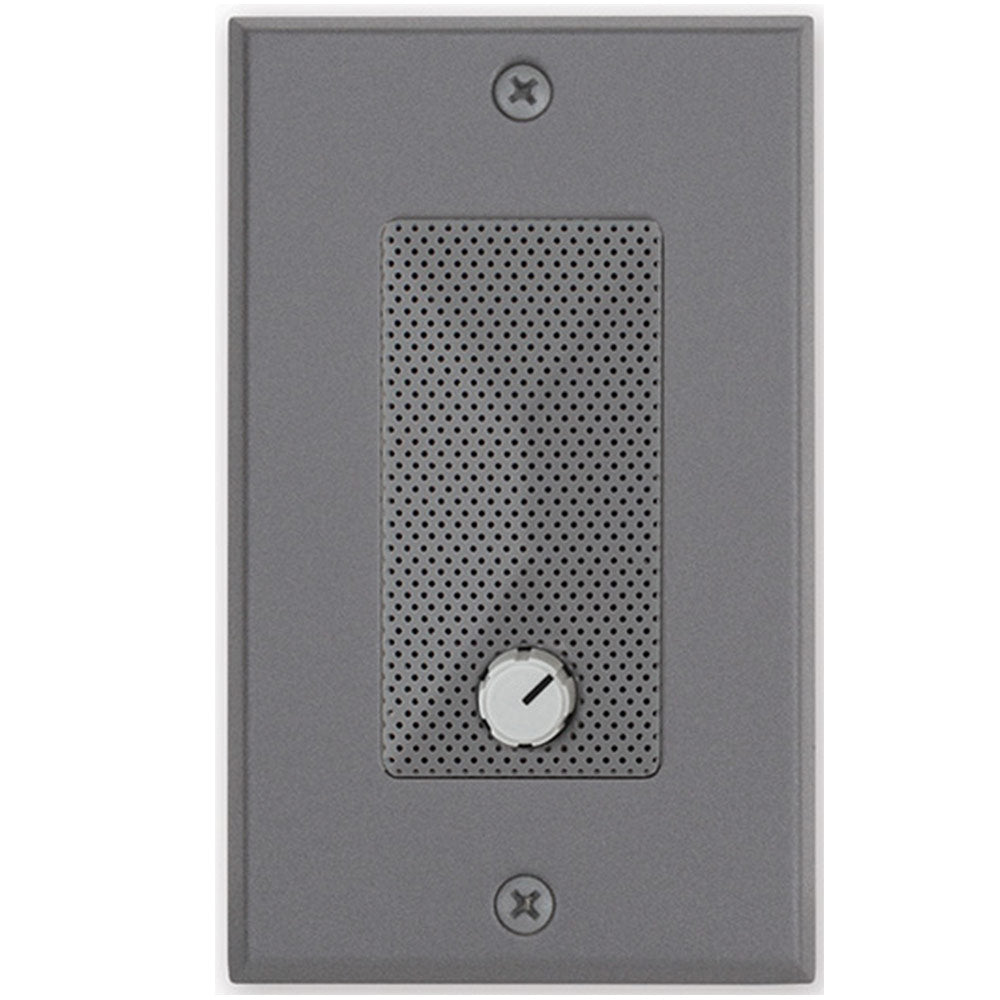

RDL DG-PSP1 Decora Mount Active Loudspeaker (Gray)


  • Dale #:

    RDL-DGPSP1
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Please Note: requires PS-24AS Power Supply (sold separately)

Description

The D SERIES-PSP1 is a compact active loudspeaker that delivers rich, detailed sound in Decora-compatible wall or chassis mounts. The input accepts either a -10 dBV unbalanced or a +4 dBu balanced signal on the rear-panel detachable terminal block. Amplification is provided by a high-efficiency C... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

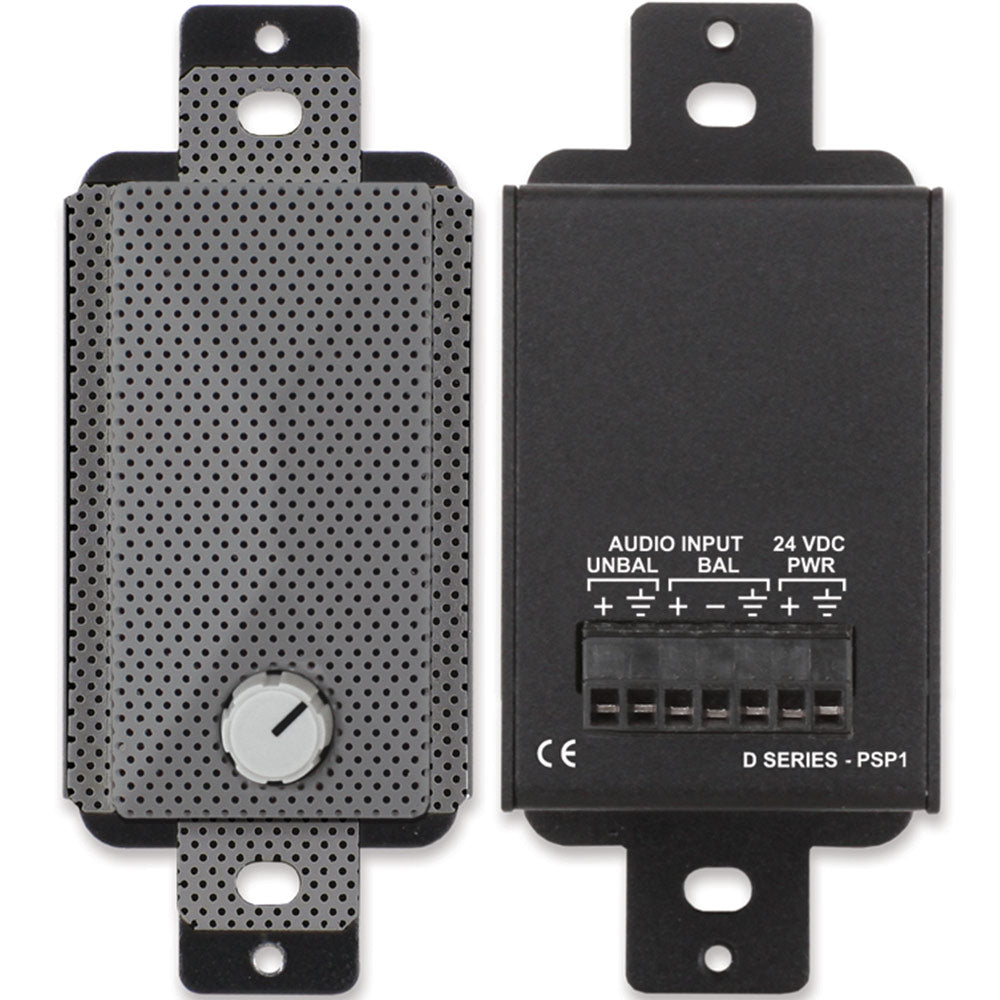

The D SERIES-PSP1 is a compact active loudspeaker that delivers rich, detailed sound in Decora-compatible wall or chassis mounts. The input accepts either a -10 dBV unbalanced or a +4 dBu balanced signal on the rear-panel detachable terminal block. Amplification is provided by a high-efficiency Class D power stage with audio filtering tailored for crisp, pleasant audio clarity. The high-efficiency Class D output stage produces negligible heat for all levels of expected voice or music modulation. The amplified output level is controlled by a front-panel volume control. The PSP1 includes an analog compressor/limiter that makes higher average sound output levels possible without clipping.

Features:

  • Exceptional Audio Quality for Ultra-Compact Size
  • 2 Watt RMS Audio Amplifier
  • Compressor/Limiter Prevents Clipping
  • Balanced +4 dBu Input on the Rear Panel
  • Unbalanced -10 dBV input on the Rear Panel
  • Front-Panel Gain Adjustment
  • Acoustically Optimized Decora Enclosure
  • Fidelity Comparable to Larger Drivers
  • Hemispherical Dispersion Mounted In Wall or Flat Surface

The driver is constructed of materials found in premium larger speakers. The unique steel enclosure provides full baffling in a tightly sealed rigid structure. This produces sonic presence within an extended frequency range expected from larger speakers. Internal filtering rolls off out-of-band frequencies to reduce distortion and increase peak power capability. Dispersion covers a spherical area of nearly 180 degrees with the speaker mounted in a wall.

Models are available with grills in black (DB-PSP1), white (D-PSP1), gray (DG-PSP1) or stainless steel (DS-PSP1).

More +

Product Specs

Inputs (2)30 k balanced or 10 k unbalanced
Input Level+4 dBu nominal (Balanced); -10 dBV nominal (Unbalanced)
Minimum Input Level-18 dBu (Balanced, Max. gain); -19 dBV (Unbalanced, Max. gain)
Maximum Input Level+22 dBu
Gain AdjustmentSingle-turn audio taper (Front-panel)
Maximum SPL81 dB
Frequency Range150 Hz to 20 kHz, nominal
CMRR> 50 dB (50 Hz to 120 Hz)
Power Requirement24 Vdc @ 55 mA (Idle); 100 mA (maximum), Ground-referenced
Ambient Operating Environment0° C to 40° C Maximum; 20° C Recommended
DimensionsHeight: 4.12 in. 10.46 cm; Width: 1.72 in. 4.37 cm; Depth: 2.64 in. 6.7 cm
Package TypeCardboard Box
Package Dimensions3.625 x 4.625 x 2.125 in.
Shipping Weight.573 lbs.
WEEE weight.435 lbs.
Tariff code8518.40.2000
