RDL DS-AVM4 Audio/Video Decora Jack Panel (Stainless) - DB15, Phono, Mini - Custom Engraving Option
Contact us
Availability:
Special Order ItemRDL offers custom engraving on most of their product line. Contact us for customization pricing and lead time.
Description
The D/S-AVM4 is the ideal choice in installations requiring a wall-mounted audio and video monitor input or output plate for computers, monitors and projectors. The panel is typically installed as an audio/video input plate, but may equally be used as an output jack panel.

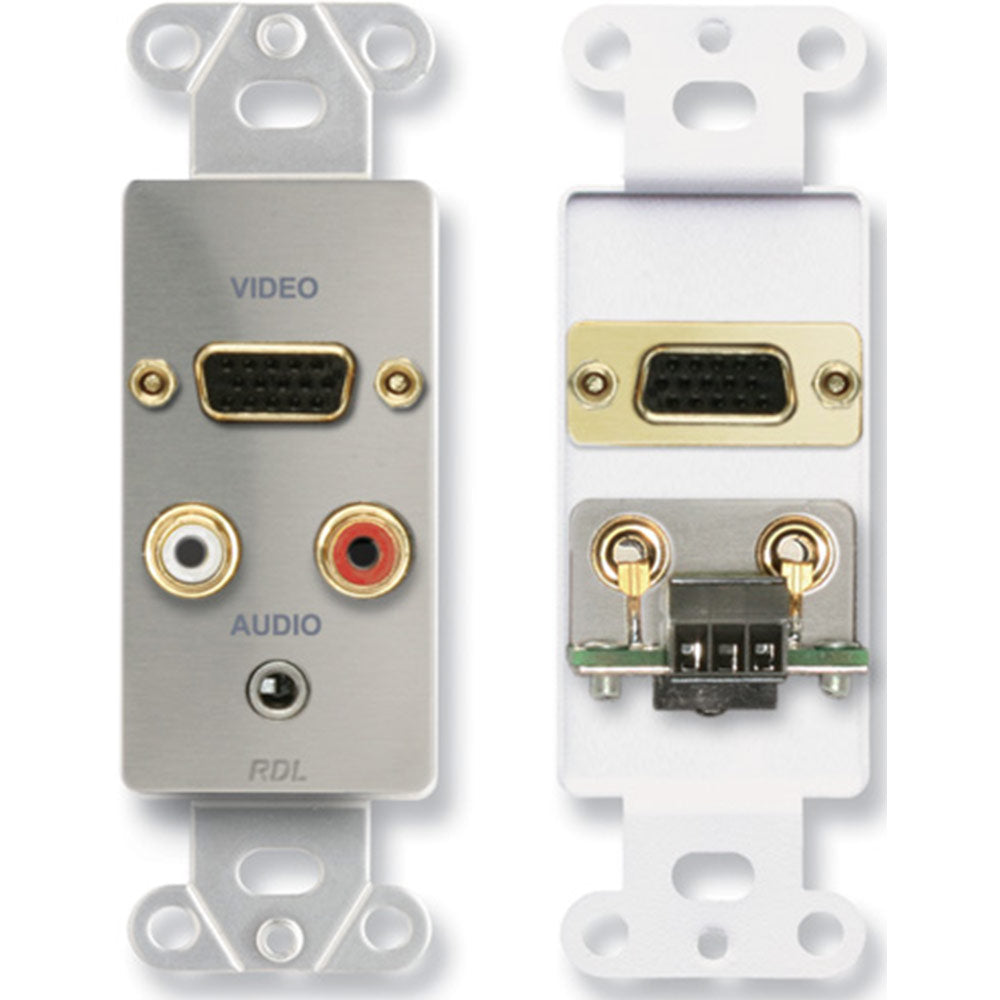

The front panel features a pass-through video monitor connector. Video connections are made on the front and rear panel using a standard DB15 video connector.The front panel features two gold plated phono jacks and a single stereo mini-jack, intended for stereo consumer line level audio sources. An input signal may be connected to either the phono jacks or to the mini-jack. The left and right signal inputs are fed to a rear-panel detachable terminal block. The audio signals are unbalanced and are intended for short wiring runs where balanced lines are not required.-
Features:
- Stereo Audio Inputs to Stereo Audio Output
- Stereo Inputs on RCA Jacks and Stereo Mini-Jack
- Unbalanced Output on Detachable Terminal Block
- Video Monitor Pass-Through Panel Connector
- Available in Stainless Steel
| Audio output connector: | Detachable terminal block (Left and Right unbalanced audio) |
| Video input connector: | Female DB15 |
| Audio input connectors (3): | RCA jacks with gold contacts (Left and Right), Mini-jack 3.5 mm (Stereo) |
| Dimensions: | Height: 4.13 in. 10.49 cm Width: 1.3 in. 3.3 cm Depth: 1.8 in. 4.57 cm |
| Video output connector: | Female DB15 (pass-through from front panel) |
| Mounting Box Minimum Depth: | 0.15 in. (0.38 cm) plus the depth of the installer-provided video connector |
The D/S-AVM4 is the ideal choice in installations requiring a wall-mounted audio and video monitor input or output plate for computers, monitors and projectors. The panel is typically installed as an audio/video input plate, but may equally be used as an output jack panel.
The front panel features a pass-through video monitor connector. Video connections are made on the front and rear panel using a standard DB15 video connector.The front panel features two gold plated phono jacks and a single stereo mini-jack, intended for stereo consumer line level audio sources. An input signal may be connected to either the phono jacks or to the mini-jack. The left and right signal inputs are fed to a rear-panel detachable terminal block. The audio signals are unbalanced and are intended for short wiring runs where balanced lines are not required.-
Features:
- Stereo Audio Inputs to Stereo Audio Output
- Stereo Inputs on RCA Jacks and Stereo Mini-Jack
- Unbalanced Output on Detachable Terminal Block
- Video Monitor Pass-Through Panel Connector
- Available in Stainless Steel
| Audio output connector: | Detachable terminal block (Left and Right unbalanced audio) |
| Video input connector: | Female DB15 |
| Audio input connectors (3): | RCA jacks with gold contacts (Left and Right), Mini-jack 3.5 mm (Stereo) |
| Dimensions: | Height: 4.13 in. 10.49 cm Width: 1.3 in. 3.3 cm Depth: 1.8 in. 4.57 cm |
| Video output connector: | Female DB15 (pass-through from front panel) |
| Mounting Box Minimum Depth: | 0.15 in. (0.38 cm) plus the depth of the installer-provided video connector |
