RDL DS-CIJ3D Consumer Input Jacks _ Stereo
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
RDL DS-CIJ3D Consumer Input Jacks _ Stereo
Sale price$126.46
Regular price$168.62
Description
The D/S-CIJ3D is the ideal choice in installations requiring stereo unbalanced line level audio sources to feed stereo balanced (or unbalanced) audio lines.

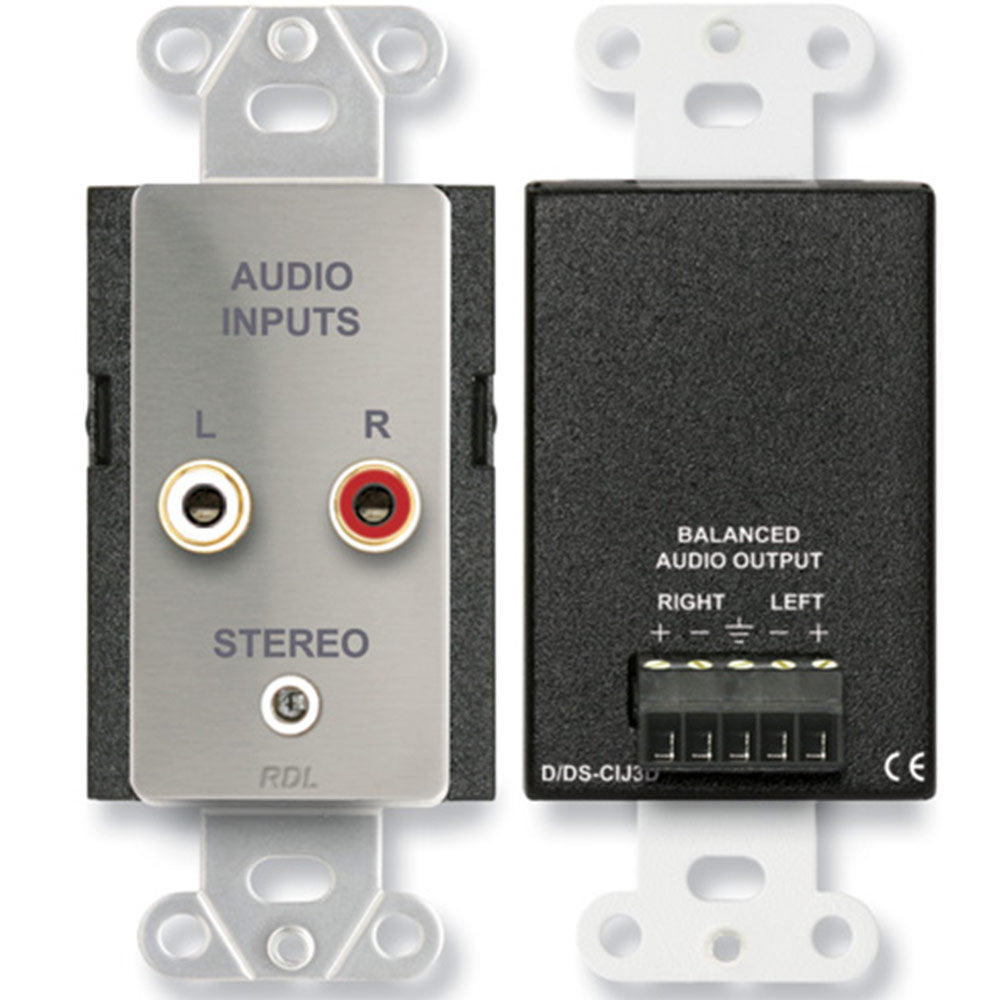

The D/S-CIJ3D is a complete unbalanced line-level audio input module. The front panel features two gold plated phono jacks and a single stereo mini-jack, intended for mono or stereo consumer level sources. An input signal may be connected to either the phono jacks or to the mini-jack. The inputs are balanced through audio transformers configured to reject induced hum. A stereo line-level output is provided on the rear-panel detachable terminal block for connection to 10 k ohm or higher input impedance line-level module or equipment inputs.-
Features:
- Stereo Inputs to Stereo Outputs
- Stereo Inputs on RCA Jacks and Stereo Mini-Jack
- Unbalanced to Balanced Conversion Without Gain
- Transformer Isolation for Unbalanced Line Inputs
- Hum Cancellation on Unbalanced Line Inputs
- Line-Level Output to Feed 10 k ohm Equipment Input
- Output Connections on Detachable Terminal Block
- Available in RDL White/Gray (D-CIJ3D)
- Available in Stainless Steel (D)
| Input connectors (3): | Phono jacks with gold contacts (Left and Right), Mini-jack 3.5 mm (Stereo) |
| Frequency response (line level): | 50 Hz to 20 kHz (۫ dB) 30 Hz to 20 kHz (۬ dB) |
| THD: | <0.2% (1 kHz) |
| Output connector: | Detachable terminal block |

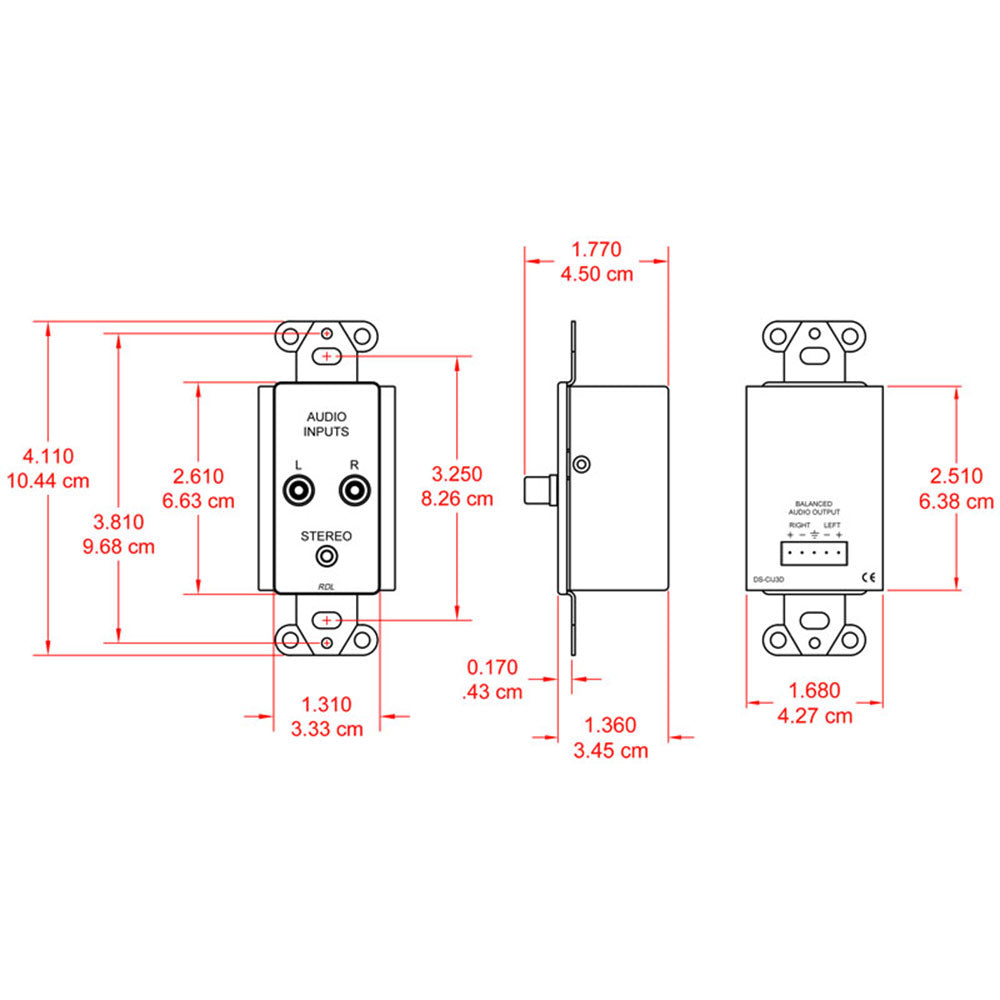

| Dimensions: | Height: 4.13 in. 10.49 cm Width: 1.7 in. 4.32 cm Depth: 2.15 in. 5.47 cm |
| Mounting Box Minimum Dimensions: | Width: 1.80 in. 4.57 cm Depth: 1.75 in. 4.45 cm |
| Crosstalk: | <-80 dB (1 kHz) <-60 dB (10 Hz to 20 kHz) |
| Ambient Operating Environment: | 0 degrees C to 55 degrees C |
