RDL DS-J2 Line Input Assembly - RCA jacks, Terminal block (Stainless) - Custom Engraving Option
Contact us
Availability:
Special Order ItemRDL offers custom engraving on most of their product line. Contact us for customization pricing and lead time.
RDL DS-J2 Line Input Assembly - RCA jacks, Terminal block (Stainless) - Custom Engraving Option
Sale price$121.57
Regular price$145.43
Description

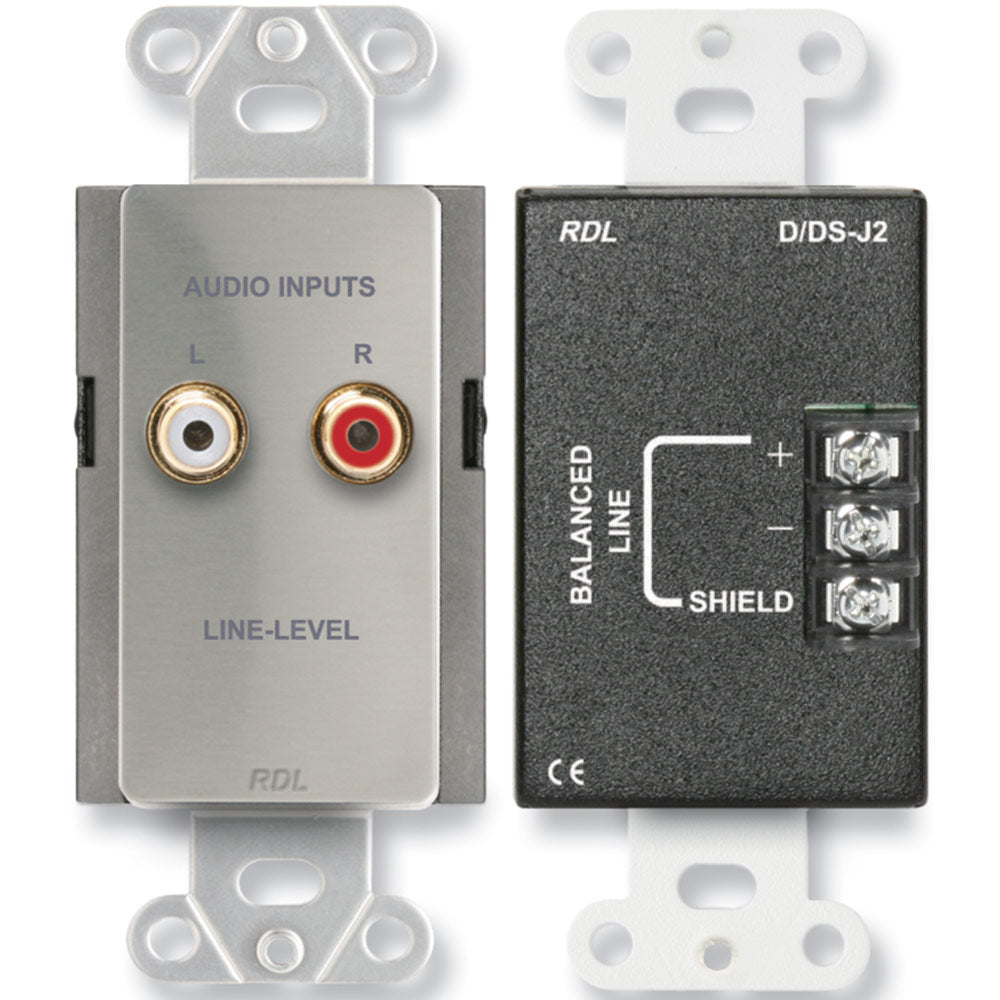

Line Input Assembly with dual RCA connectors, stainless steel.
Features:
- Wall Mounted Line-Level Audio Input Panel
- Gold Plated Phono Jacks
- Hum Cancellation on Unbalanced Line Inputs
- Transformer Isolation for Unbalanced Line Inputs
- Balanced Output for Unbalanced Line Inputs
| Input Connectors (2) | Phono jacks with gold contacts |
| Output Connector | Terminal block |
| Output Connections (3) | +, -, SHIELD |
| Frequency Response (line in) | 30 Hz to 20 kHz (±1 dB) |
| Power Requirement | Passive |

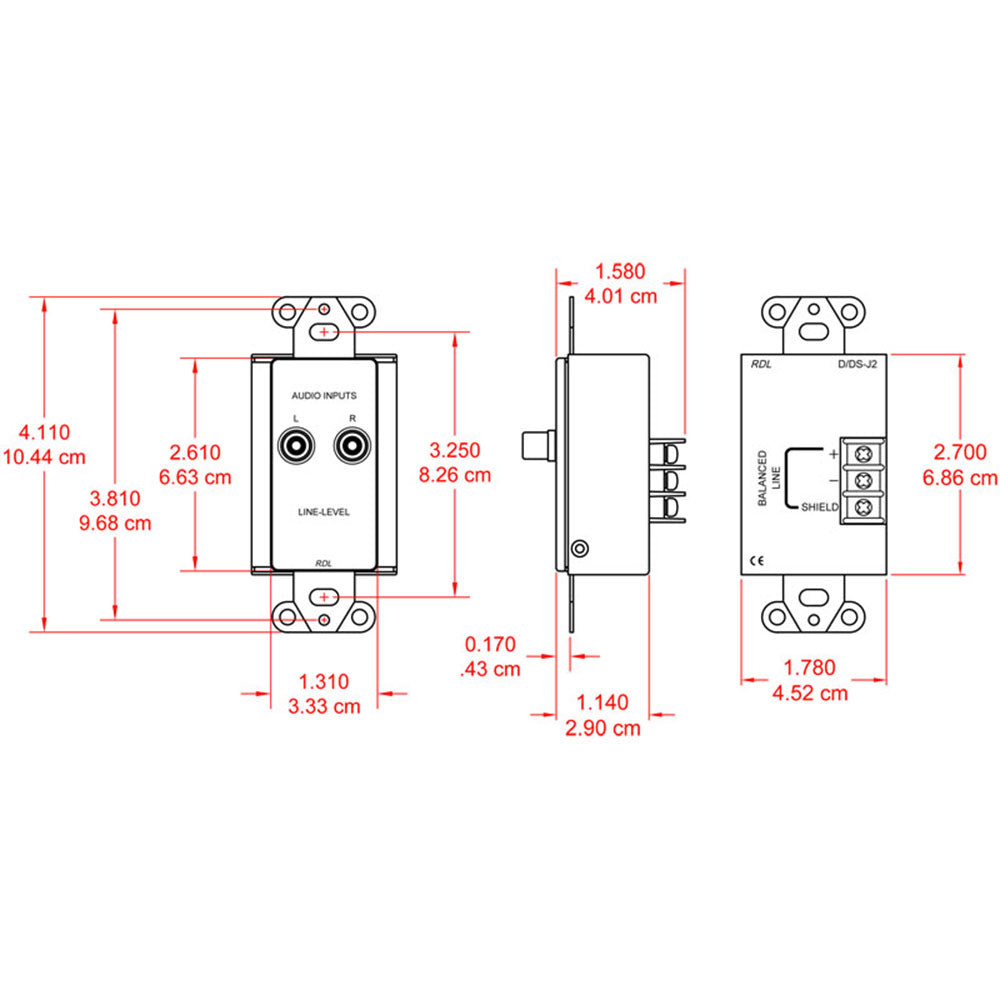

| Dimensions | Height: 4.13 in. 10.49 cm; Width: 1.7 in. 4.32 cm; Depth: 2.15 in. 5.47 cm |
| Mounting Box Req. | Width: 1.80 in. 4.57 cm; Depth: 1.75 in. 4.45 cm |
| Package Type | Cardboard Box |
| Package Dimensions | 3.625 x 4.625 x 2.125 in. |
| Shipping Weight | 0.485 lbs. |
| WEEE weight | 0.34 lbs. |
| Tariff code | 8536.69.4030 |
Line Input Assembly with dual RCA connectors, stainless steel.
Features:
- Wall Mounted Line-Level Audio Input Panel
- Gold Plated Phono Jacks
- Hum Cancellation on Unbalanced Line Inputs
- Transformer Isolation for Unbalanced Line Inputs
- Balanced Output for Unbalanced Line Inputs
| Input Connectors (2) | Phono jacks with gold contacts |
| Output Connector | Terminal block |
| Output Connections (3) | +, -, SHIELD |
| Frequency Response (line in) | 30 Hz to 20 kHz (±1 dB) |
| Power Requirement | Passive |
| Dimensions | Height: 4.13 in. 10.49 cm; Width: 1.7 in. 4.32 cm; Depth: 2.15 in. 5.47 cm |
| Mounting Box Req. | Width: 1.80 in. 4.57 cm; Depth: 1.75 in. 4.45 cm |
| Package Type | Cardboard Box |
| Package Dimensions | 3.625 x 4.625 x 2.125 in. |
| Shipping Weight | 0.485 lbs. |
| WEEE weight | 0.34 lbs. |
| Tariff code | 8536.69.4030 |
