RDL DS-RC2ST 2-Channel Remote Source Selector for STICK-ON Series (Stainless)

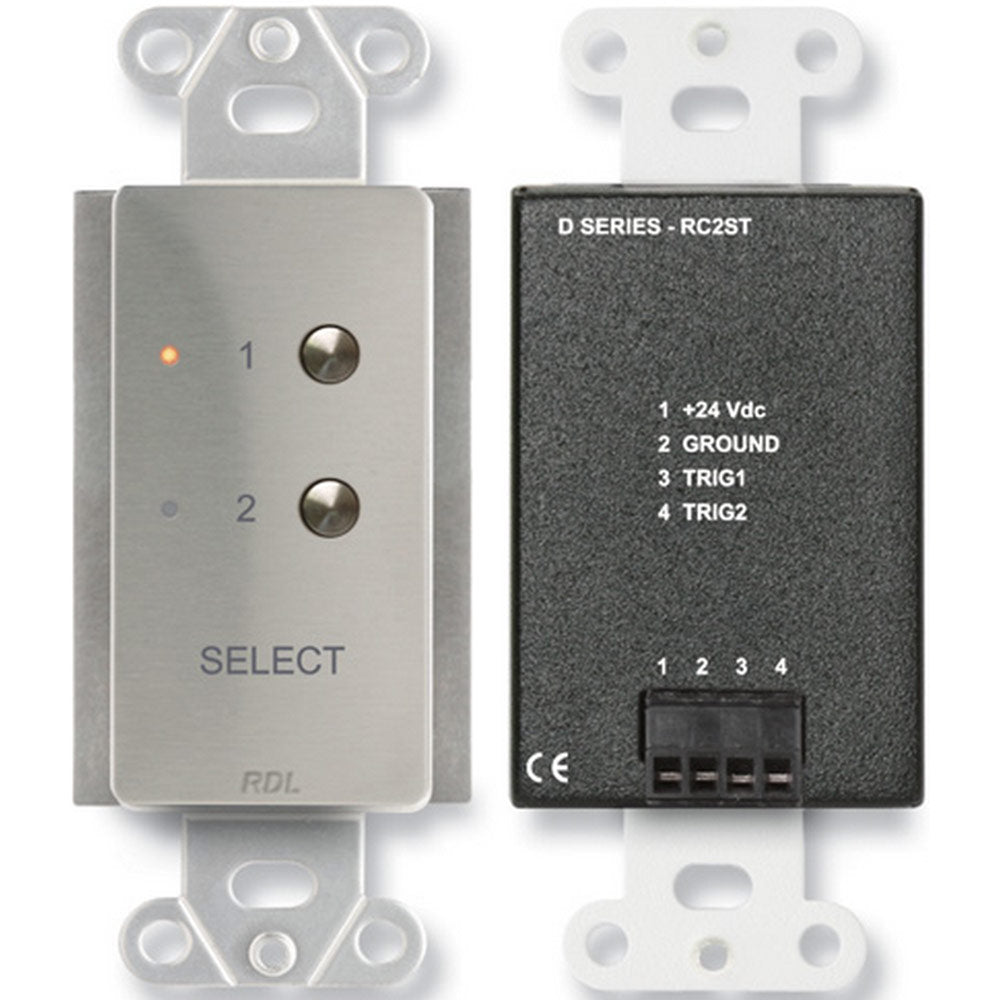

The front panel of the DS-RC2ST features two pushbuttons with two associated LEDs. Upon initial power-up, source 1 is selected. Touching the other button de-selects source 1 and immediately selects source 2. An LED adjacent to each button shows which source is selected.

In a typical installation, the DS-RC2ST may be used to select between two audio or video sources, or to route audio to two destinations. To select between two audio sources, the DS-RC2ST is connected to an RDL ST-SSR1 Solid-State Audio Switch. For video switching, an RDL TX-MVX may be used. For audio routing, an RDL ST-RX2 is used. In each of the above examples, only one output terminal is needed for triggering. Therefore a single shielded pair (or 3-conductor cable) is required for remote connection. For more complex switching networks, both outputs may be used.

In installations where ULTRASTYLE™ wall controls are preferred, use the RUC-4 Universal Remote Control.

Features:

• Remote Selection of 2 Audio Sources, Destinations or Functions
• Single-Button Selection for Each Source
• Open-collector Switching of 1 of 2 Module Functions
• 3-wire or 4-wire Remote Wiring
• Professional Aesthetic Appearance
• Companion to other RDL® Remote Controls
