RDL DS-RC4RU 4-Channel Remote Source Selector for RACK-UP (Stainless) - Custom Engraving Option
Contact us
Please Note: Orders will not be available for shipment until on or about Wednesday August, 19.
Description
The D-RC4RU is a wall-box mounted remote module designed to directly control an RDL RU-SX4A Audio Switcher Module. The RU-SX4A provides solid state switching of one of four balanced/unbalanced audio inputs to a single balanced/ unbalanced audio output. The D-RC4RU connects directly to the power and SLAVE terminals of the RU-SX4A using a 3-pair cable (or a 6-conductor cable). The D-RC4RU may be used to directly control the RDL RU-VSX4 Video Switcher.
Features:
- Remote Selection of 4 Audio Sources
- Single-Button Selection for Each Source
- Remote Selection of Balanced Audio Sources
- 3-pair (or 6 conductor) Remote Wiring
- Professional Aesthetic Appearance
- Companion to other RDL Remote Controls
- LED Indication

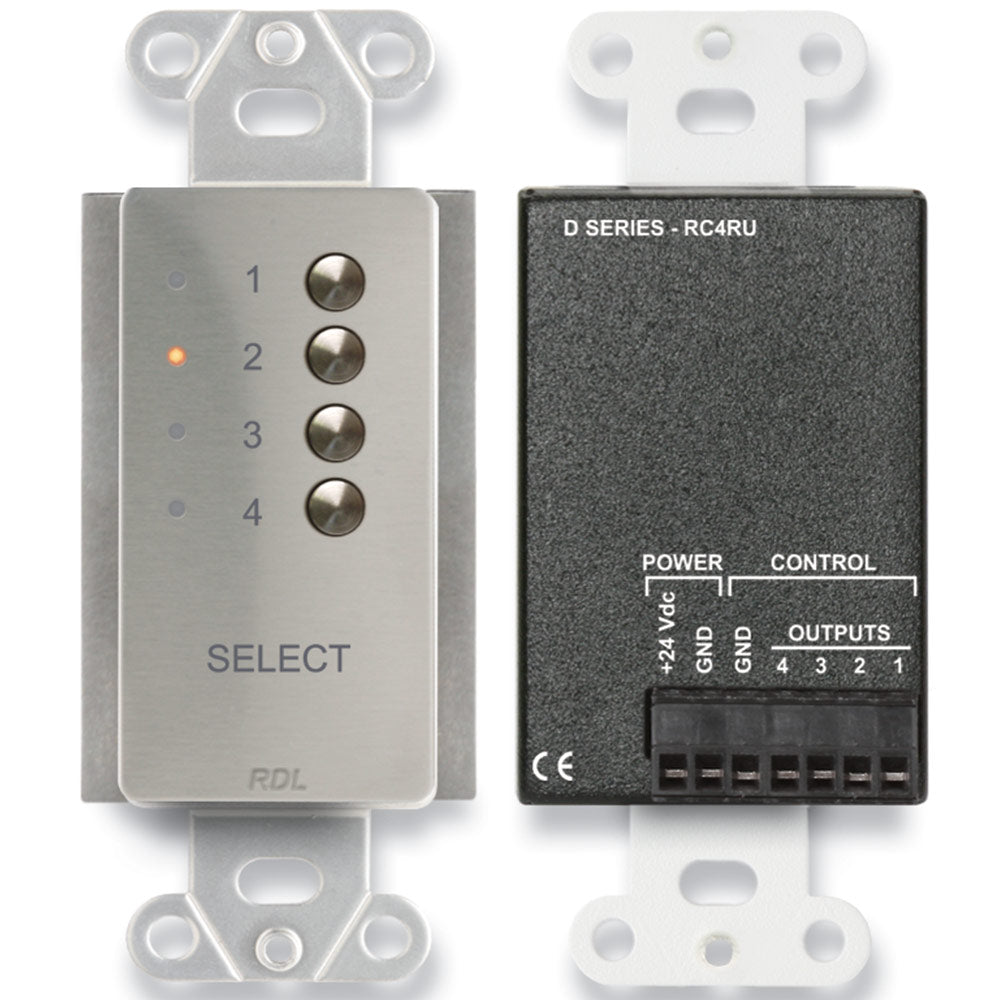

The front panel of the D-RC4RU features four pushbuttons with four associated LEDs. Upon initial application of power, source 1 is selected. Touching any of the other 3 buttons de-selects source 1 and immediately selects the source corresponding to the button pushed. An LED adjacent to each button shows which source is selected. There are 4 output terminals on the D-RC4RU. Each of these is an open-collector output, which is pulled to ground when the output is selected. For stereo installations, the D-RC4RU is capable of driving two RU-SX4As simultaneously.
In installations where ULTRASTYLE wall controls are preferred, use the RUC-4 Universal Remote Control.
| Selectors (4) | Momentary pushbuttons (1 for each channel) |
| Indicators (4) | Red LEDs, (indicates channel selected) |
| Connections | Detachable terminal block; Interfaces directly with RDL RU-SX4A |
| Ambient Operating Environment | 0¡ C to 55¡ C |
| Power Requirement | GROUND-REFERENCED, 24 Vdc @ 30 mA |

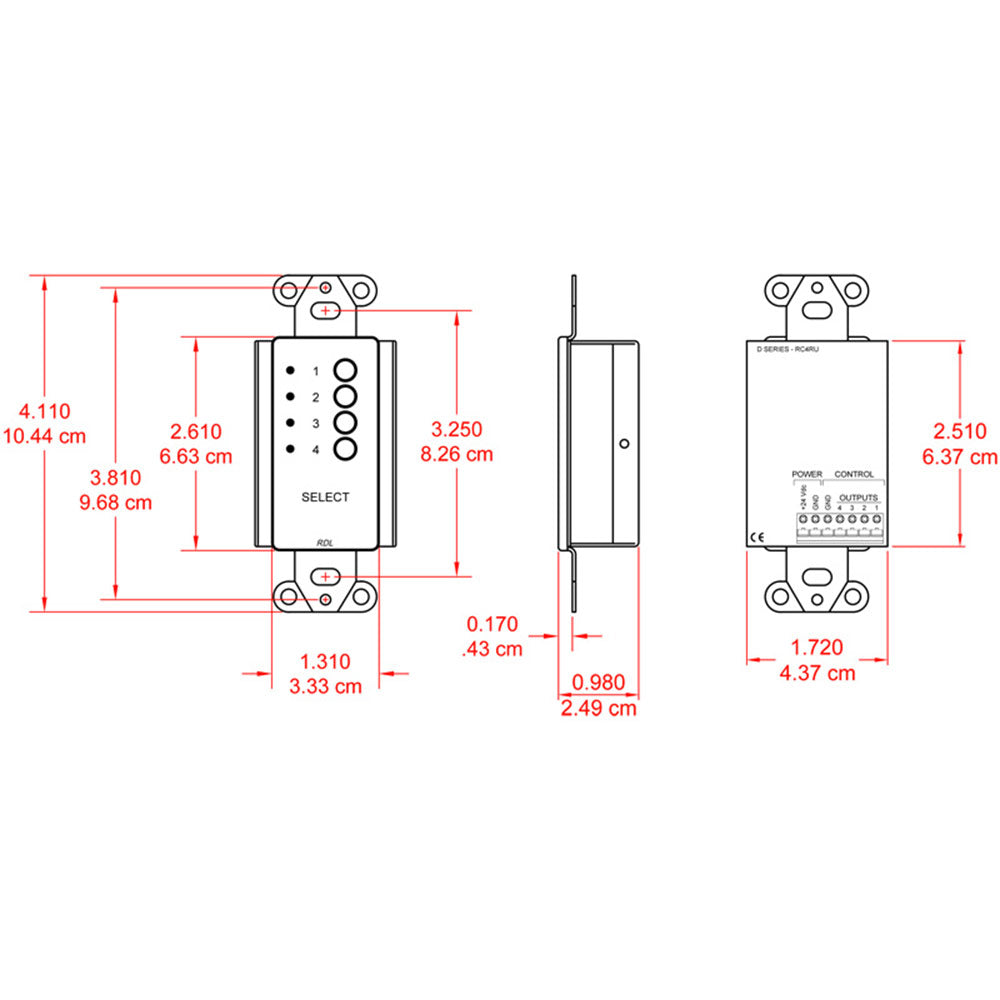

| Mounting | Mounts in standard US electrical box, RDL WB- or SMB- series boxes; cover plate available separately |
| Package Type | Cardboard Box |
| Package Dimensions | 3.625 x 4.625 x 2.125 in. |
| Shipping Weight | 0.38 lbs. |
| WEEE weight | 0.23 lbs. |
| Tariff code | 8517.62.0050 |
The D-RC4RU is a wall-box mounted remote module designed to directly control an RDL RU-SX4A Audio Switcher Module. The RU-SX4A provides solid state switching of one of four balanced/unbalanced audio inputs to a single balanced/ unbalanced audio output. The D-RC4RU connects directly to the power and SLAVE terminals of the RU-SX4A using a 3-pair cable (or a 6-conductor cable). The D-RC4RU may be used to directly control the RDL RU-VSX4 Video Switcher.
