Please Note: requires PS-24AS Power Supply (sold separately)
Description
The D-RC4ST is a wall-box mounted remote module designed to directly control an RDL ST-SX4 Audio Switcher Module. The ST-SX4 provides solid-state switching of one of four unbalanced audio inputs to a single unbalanced audio output. The D-RC4ST connects directly to the POWER and CTRL terminals of ... Read MoreRetail Price: $189.81 Our Price: $142.36
Free Shipping (Continental US)
Suggested Accessories
Description
The D-RC4ST is a wall-box mounted remote module designed to directly control an RDL ST-SX4 Audio Switcher Module. The ST-SX4 provides solid-state switching of one of four unbalanced audio inputs to a single unbalanced audio output. The D-RC4ST connects directly to the POWER and CTRL terminals of the ST-SX4 using either a 3-conductor cable or a single shielded pair.

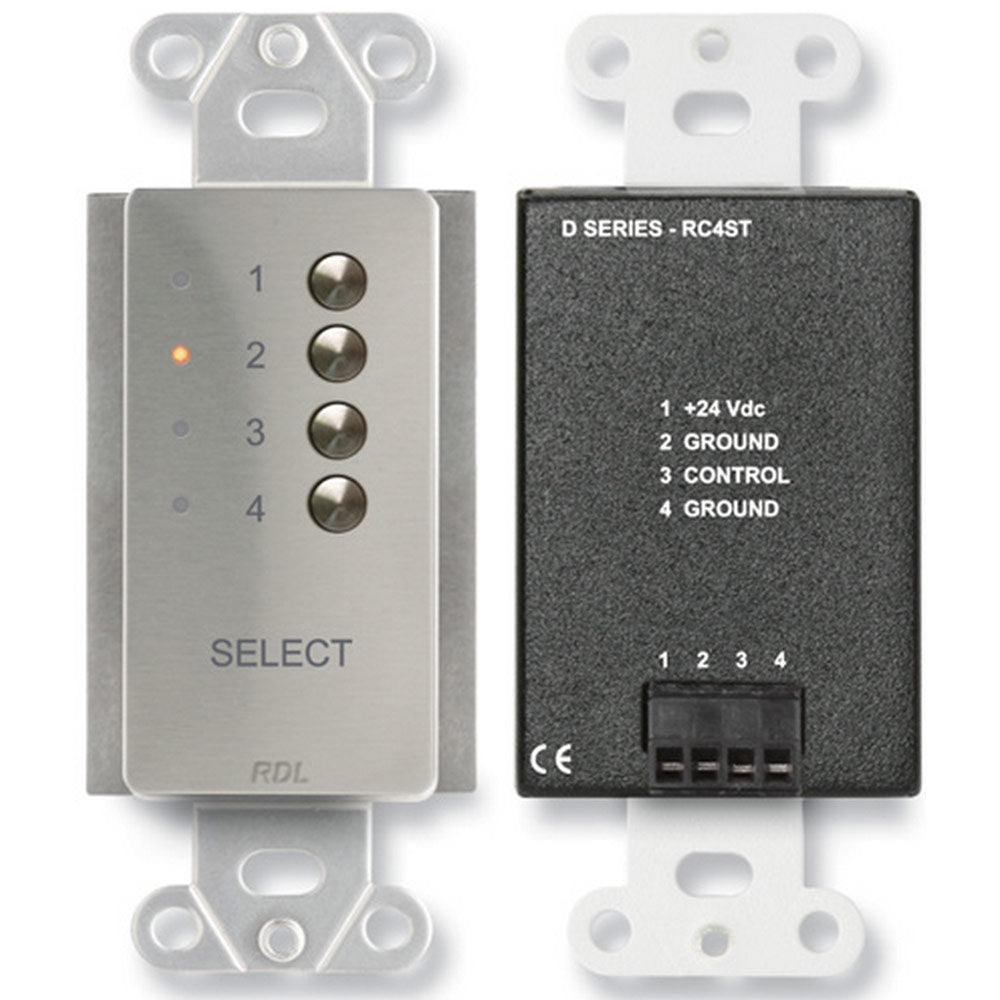

The front panel of the D-RC4ST features four pushbuttons with four associated LEDs. Upon initial application of power, source 1 is selected. Touching any of the other three buttons de-selects source 1 and immediately selects the source corresponding to the button pushed. An LED, adjacent to each button shows which source is selected. For stereo installations, the SLAVE output from the ST-SX4 is used to drive the CTRL input of an additional ST-SX4.
Features:
More +
Product Specs
Selectors (4) | Momentary pushbuttons (1 for each channel) |
Indicators (4) | Red LEDs (indicates channel selected) |
Connections | Detachable terminal block; Interfaces directly with RDL ST-SX4 |
Ambient Operating Environment | 0° C to 55° C |
Power Requirement | GROUND-REFERENCED, 24 Vdc @ 30 mA |

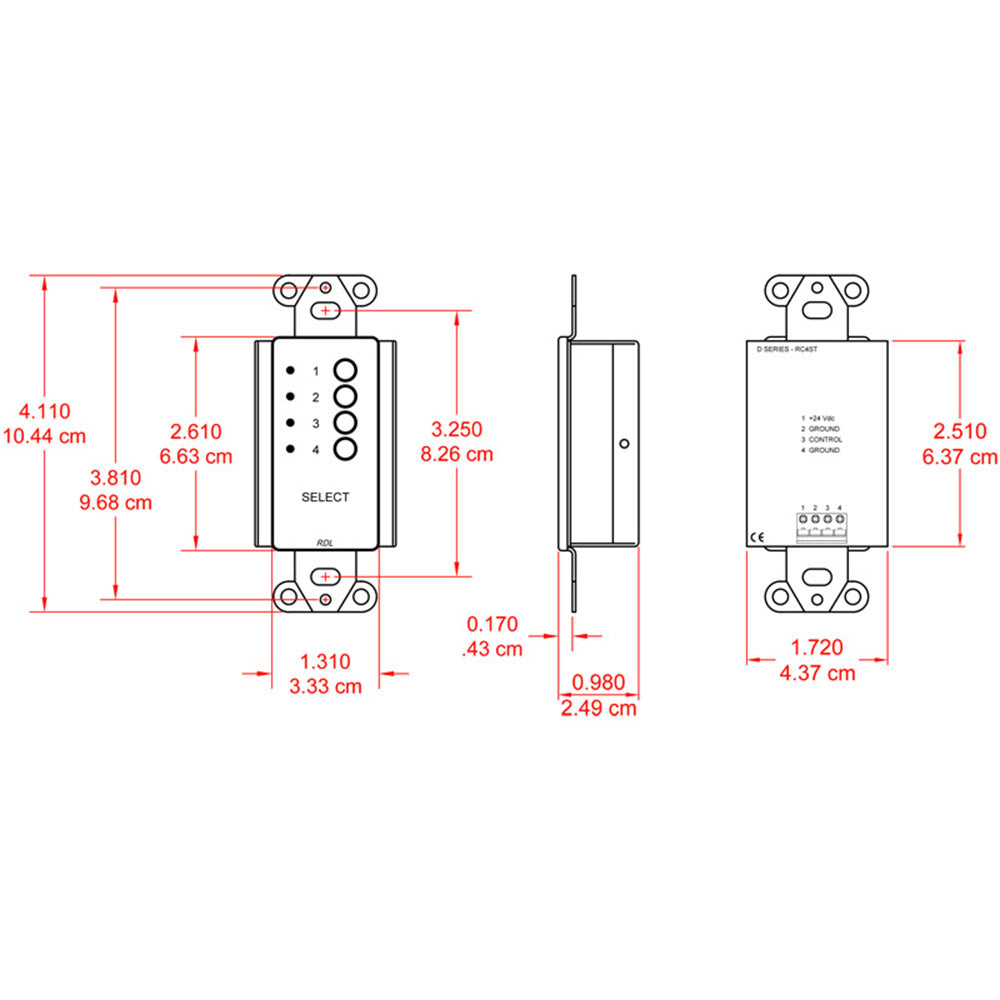

Mounting | Mounts in standard US electrical box, RDL WB- or SMB- series boxes; cover plate available separately |
Package Type | Cardboard Box |
Package Dimensions | 3.625 x 4.625 x 2.125 in. |
Shipping Weight | 0.375 lbs. |
WEEE weight | 0.22 lbs. |
Tariff code | 8517.62.0050 |
