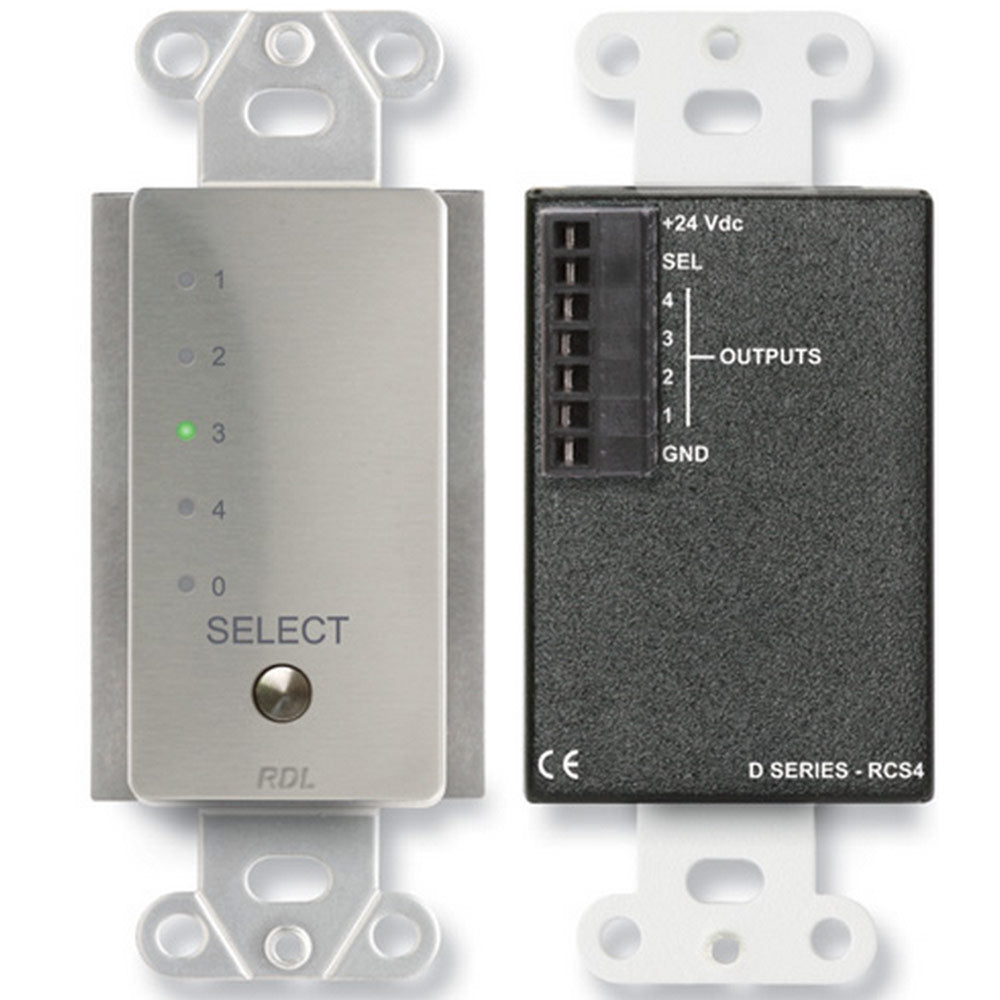

RDL DS-RCS4 4-Channel Remote Source Selector for RU-SX4A (Stainless)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The D-RCS4 is the ideal choice where sources are to be selected from a single or from multiple remote control locations, and visual indication is desired.
The D-RCS4 is designed to directly interface with RDL control modules, such as the RACK-UP® series RU-SX4A Audio Selector. The D-RCS4 momentary pushbutton sends a stepping signal back to the RDL control module. When connected to the RU-SX4A, pushing the button on the D-RCS4 causes the source to advance sequentially to the next input. The audio is muted during stepping to avoid annoying bursts of audio.
In installations where ULTRASTYLE™ wall controls are preferred, use the RUC-4 Universal Remote Control.
Features:
- Remote Control for RDL RU-SX4A Audio Selector
- Remote Source Selection Panel
- Visual Display of the Selected Source
- Multiple Control / Indication Locations
- Premium-Quality Remote Panel
- Professional Aesthetic Appearance
| LED Inputs | Grounding input activates LED; direct connection from RDL selector module |
| Indicators (5) | Green LEDs for each of 4 selected channels; red LED indicates no channel selected |
| Outputs | SEL, 15 Vdc @ 5 mA (pushbutton actuated) |
| Ambient Operating Environment | 0¡ C to 55¡ C |
| Connections | Detachable terminal block |
| Power Requirement | GROUND-REFERENCED, 24 Vdc @ 25 mA |

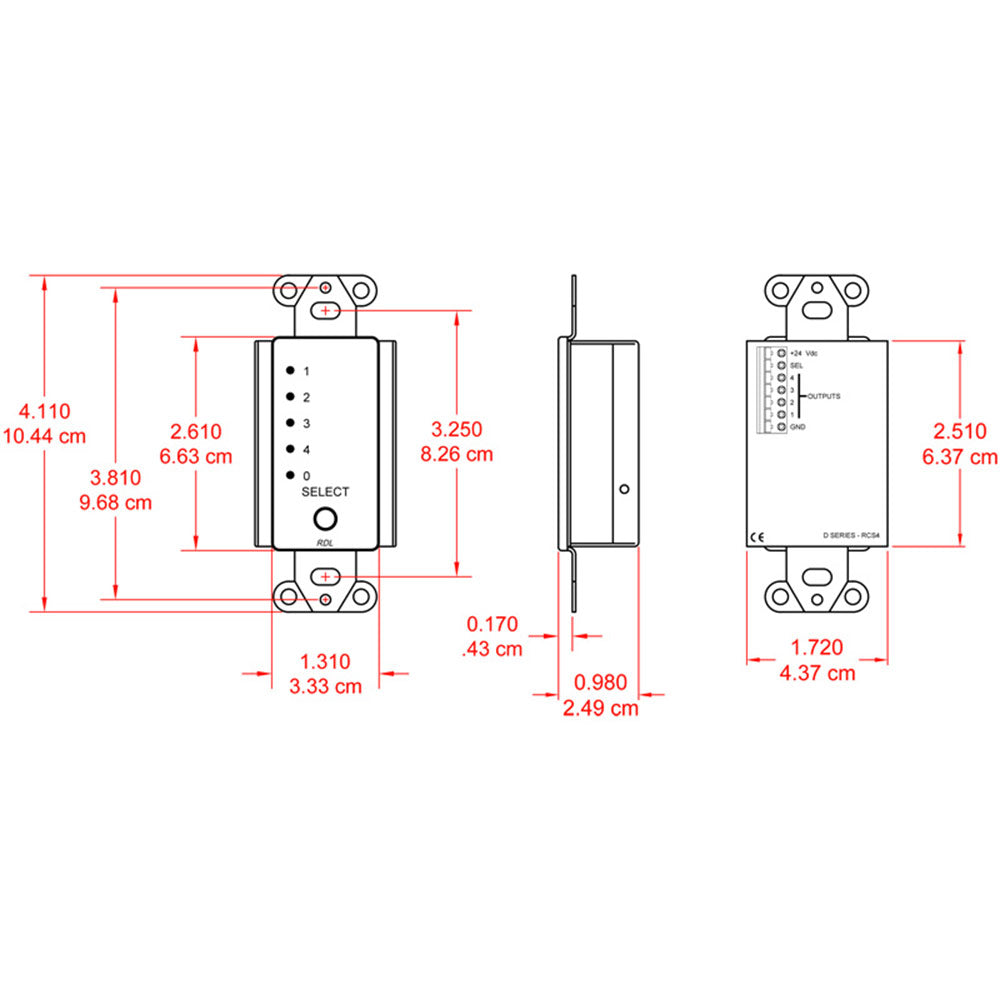

| Mounting | Mounts in US electrical box or RDL international wall boxes WB-1U, WB-2U; decorative plate available separately |
| Package Type | Cardboard Box |
| Package Dimensions | 3.625 x 4.625 x 2.125 in. |
| Shipping Weight | 0.37 lbs. |
| WEEE weight | 0.22 lbs. |
| Tariff code | 8517.62.0050 |
The D-RCS4 is the ideal choice where sources are to be selected from a single or from multiple remote control locations, and visual indication is desired.
The D-RCS4 is designed to directly interface with RDL control modules, such as the RACK-UP® series RU-SX4A Audio Selector. The D-RCS4 momentary pushbutton sends a stepping signal back to the RDL control module. When connected to the RU-SX4A, pushing the button on the D-RCS4 causes the source to advance sequentially to the next input. The audio is muted during stepping to avoid annoying bursts of audio.
In installations where ULTRASTYLE™ wall controls are preferred, use the RUC-4 Universal Remote Control.
Features:
- Remote Control for RDL RU-SX4A Audio Selector
- Remote Source Selection Panel
- Visual Display of the Selected Source
- Multiple Control / Indication Locations
- Premium-Quality Remote Panel
- Professional Aesthetic Appearance
| LED Inputs | Grounding input activates LED; direct connection from RDL selector module |
| Indicators (5) | Green LEDs for each of 4 selected channels; red LED indicates no channel selected |
| Outputs | SEL, 15 Vdc @ 5 mA (pushbutton actuated) |
| Ambient Operating Environment | 0¡ C to 55¡ C |
| Connections | Detachable terminal block |
| Power Requirement | GROUND-REFERENCED, 24 Vdc @ 25 mA |
| Mounting | Mounts in US electrical box or RDL international wall boxes WB-1U, WB-2U; decorative plate available separately |
| Package Type | Cardboard Box |
| Package Dimensions | 3.625 x 4.625 x 2.125 in. |
| Shipping Weight | 0.37 lbs. |
| WEEE weight | 0.22 lbs. |
| Tariff code | 8517.62.0050 |
