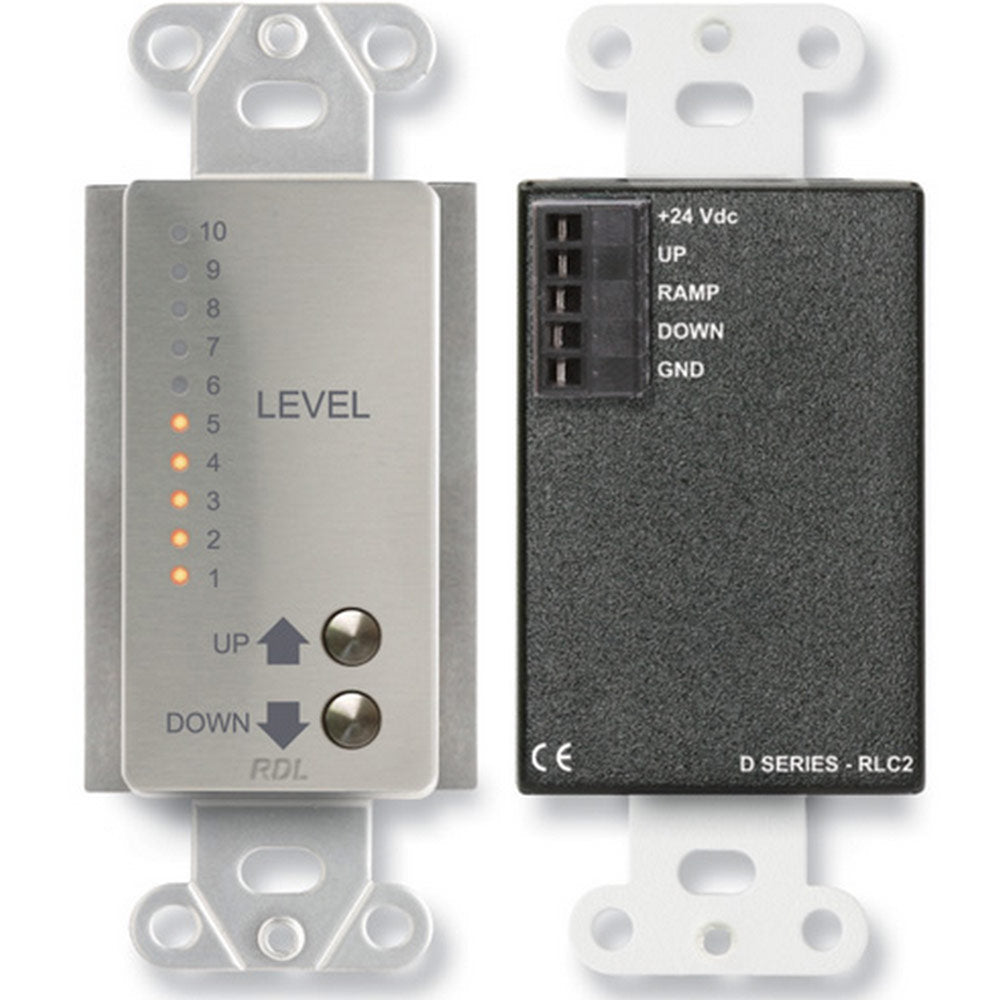

RDL DS-RLC2 Remote Level Control with Ramping (Stainless)

The D-RLC2 is the ideal choice where levels are to be controlled from a single, or from multiple control locations, and visual level indication is desired.

The D-RLC2 is designed to directly interface with RDL control modules, such as the STICK-ON® series ST-RG1 Ramp Generator, or RACK-UP® series RU-VCA2A Digitally Controlled Audio Attenuator. The D-RLC2 has two momentary pushbuttons, UP and DOWN. Pushing each button sends the appropriate signal back to the RDL control module. When connected to the RU-VCA2A, pushing both buttons on the D-RLC2 simultaneously causes the level to return to the PRESET level on the RU-VCA2A.

In installations where ULTRASTYLE™ wall controls are preferred, use the RLC-10R Rotary Level Control.

Features:

• Remote Level Control Panel
• Pushbutton UP and DOWN
• 10-segment Visual Level Display
• Multiple Control / Indication Locations
• Premium-Quality Remote Panel
• Professional Aesthetic Appearance
• Available in White, Black, and Stainless Steel
