RDL DS-RLC2 Remote Level Control with Ramping (Stainless) - Custom Engraving Option
Contact us
Availability:
Special Order ItemRDL offers custom engraving on most of their product line. Contact us for customization pricing and lead time.
Description

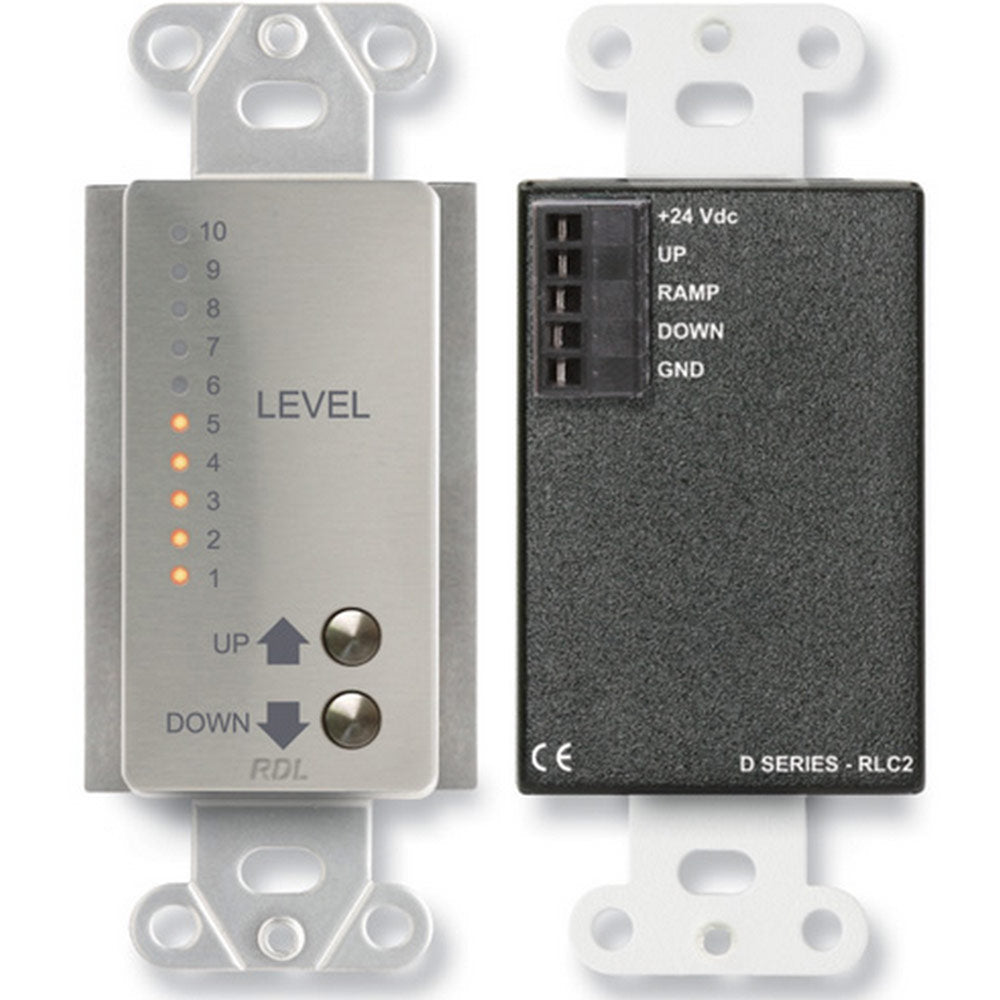

The D-RLC2 is the ideal choice where levels are to be controlled from a single, or from multiple control locations, and visual level indication is desired.
The D-RLC2 is designed to directly interface with RDL control modules, such as the STICK-ON® series ST-RG1 Ramp Generator, or RACK-UP® series RU-VCA2A Digitally Controlled Audio Attenuator. The D-RLC2 has two momentary pushbuttons, UP and DOWN. Pushing each button sends the appropriate signal back to the RDL control module. When connected to the RU-VCA2A, pushing both buttons on the D-RLC2 simultaneously causes the level to return to the PRESET level on the RU-VCA2A.
In installations where ULTRASTYLE™ wall controls are preferred, use the RLC-10R Rotary Level Control.
Features:
- Remote Level Control Panel
- Pushbutton UP and DOWN
- 10-segment Visual Level Display
- Multiple Control / Indication Locations
- Premium-Quality Remote Panel
- Professional Aesthetic Appearance
- Available in White, Black, and Stainless Steel
| Ramp Input | 0 to 10 Vdc |
| Outputs | UP and DOWN, pushbutton actuated 15 Vdc @ 5 mA |

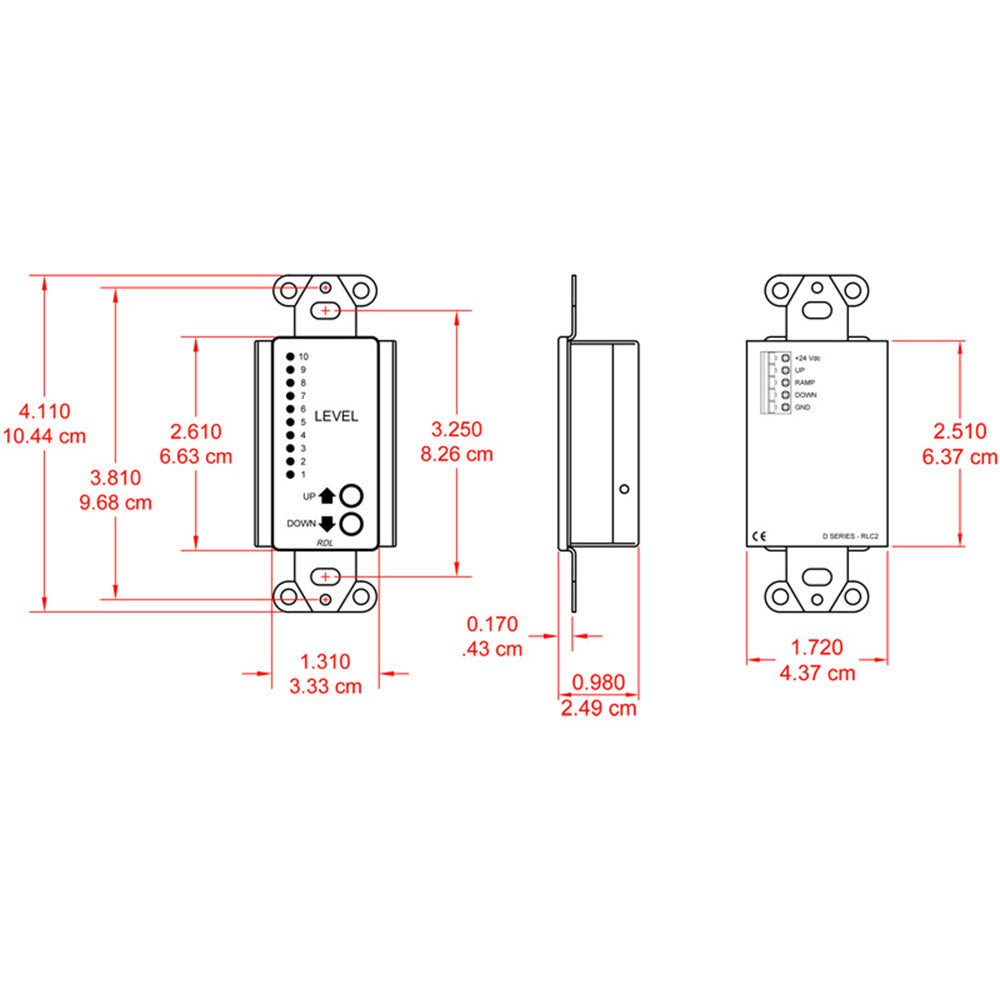

| Mounting | Mounts in standard US electrical box, RDL WB- or SMB- series boxes; cover plate available separately |
| Ambient Operating Environment | 0¡ C to 55¡ C |
| Connections | Detachable terminal block |
| Power Requirement | GROUND-REFERENCED, 24 Vdc @ 75 mA |
| Package Type | Cardboard Box |
| Package Dimensions | 3.625 x 4.625 x 2.125 in. |
| Shipping Weight | 0.365 lbs. |
| WEEE weight | 0.215 lbs. |
| Tariff code | 8517.62.0050 |
The D-RLC2 is the ideal choice where levels are to be controlled from a single, or from multiple control locations, and visual level indication is desired.
The D-RLC2 is designed to directly interface with RDL control modules, such as the STICK-ON® series ST-RG1 Ramp Generator, or RACK-UP® series RU-VCA2A Digitally Controlled Audio Attenuator. The D-RLC2 has two momentary pushbuttons, UP and DOWN. Pushing each button sends the appropriate signal back to the RDL control module. When connected to the RU-VCA2A, pushing both buttons on the D-RLC2 simultaneously causes the level to return to the PRESET level on the RU-VCA2A.
In installations where ULTRASTYLE™ wall controls are preferred, use the RLC-10R Rotary Level Control.
Features:
- Remote Level Control Panel
- Pushbutton UP and DOWN
- 10-segment Visual Level Display
- Multiple Control / Indication Locations
- Premium-Quality Remote Panel
- Professional Aesthetic Appearance
- Available in White, Black, and Stainless Steel
| Ramp Input | 0 to 10 Vdc |
| Outputs | UP and DOWN, pushbutton actuated 15 Vdc @ 5 mA |
| Mounting | Mounts in standard US electrical box, RDL WB- or SMB- series boxes; cover plate available separately |
| Ambient Operating Environment | 0¡ C to 55¡ C |
| Connections | Detachable terminal block |
| Power Requirement | GROUND-REFERENCED, 24 Vdc @ 75 mA |
| Package Type | Cardboard Box |
| Package Dimensions | 3.625 x 4.625 x 2.125 in. |
| Shipping Weight | 0.365 lbs. |
| WEEE weight | 0.215 lbs. |
| Tariff code | 8517.62.0050 |
