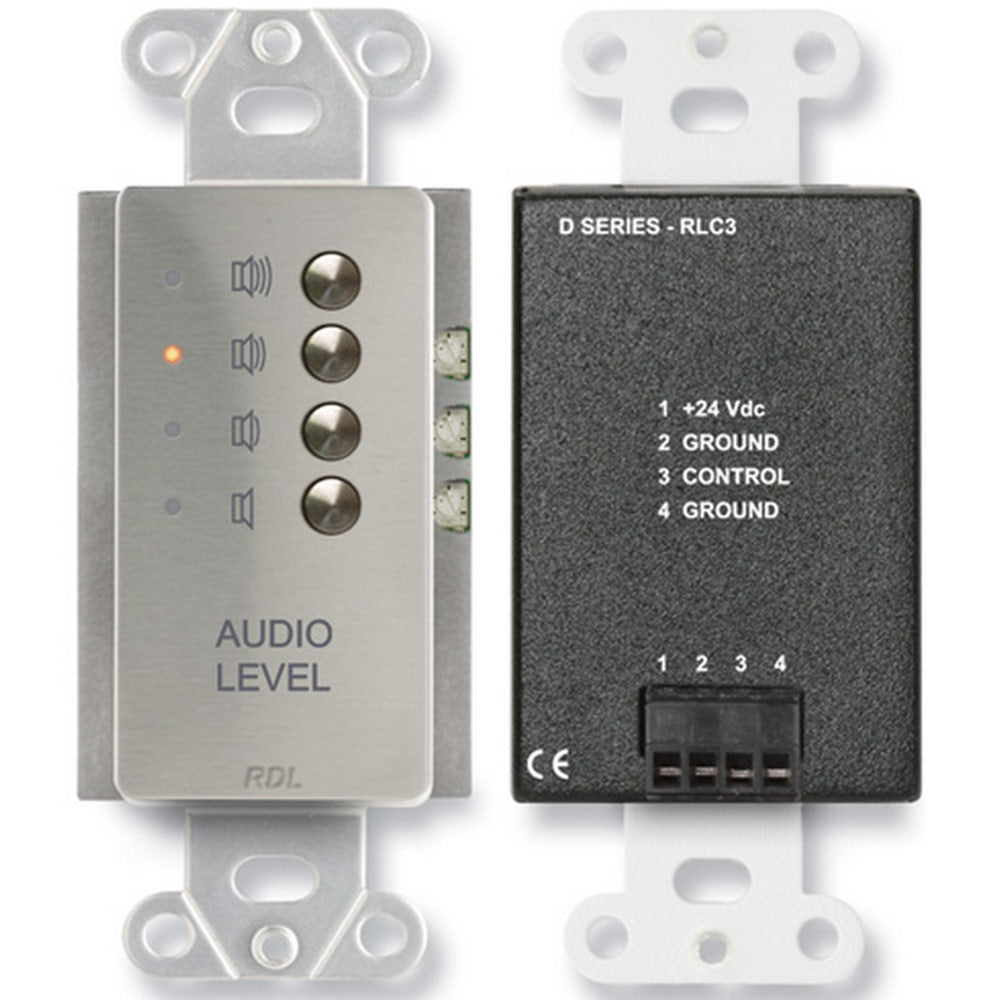

RDL DS-RLC3 Remote Level Control with Preset Levels (Stainless)


  • Dale #:

    RDL-DSRLC3
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Please Note: requires PS-24AS Power Supply (sold separately)

Description

The DS-RLC3 is designed to directly interface with RDL® control modules which feature a 0 to 10 Vdc control input utilizing an external 10 k resistive control, such as the ST-VCA3, RU-VCA2A and RU-VA6A voltage controlled amplifiers. The DS-RLC3 has four momentary pushbuttons, each corresponding t... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The DS-RLC3 is designed to directly interface with RDL® control modules which feature a 0 to 10 Vdc control input utilizing an external 10 k resistive control, such as the ST-VCA3, RU-VCA2A and RU-VA6A voltage controlled amplifiers. The DS-RLC3 has four momentary pushbuttons, each corresponding to one of four levels selected.

In a typical installation, the DS-RLC3 is wired to an RDL VCA. The DS-RLC3 runs from the same power supply as the VCA. When power is applied, the DS-RLC3 defaults to the NORM level. One higher level, HIGH, and two lower levels, LOW and MIN, are then available for selection. When the DS-RLC3 is set to the HIGHposition, the VCA is at maximum gain. The NORM, LOW, and MIN levels are each adjustable by the installer using trimpots on each side of the DS-RLC3's body. Once installed, the adjustments are concealed from the user.

Features:

  • Remote Selection of Preset Audio Levels
  • Pushbutton Level Selection
  • 4 Selectable System Levels, or 3 Levels Plus Off
  • LED Indication (Green)
  • Premium-Quality Remote Panel
  • Professional Aesthetic Appearance

More +

Product Specs

InterfaceDirect connection with RDL modules using 0 to 10 Vdc, 10 k resistive control (see ST-VCA3, RU-VCA2)
OutputSelectable resistance (CTRL Terminal ) to ground in 4 steps:
High:10 kOhm, 0 dB
Norm:Adjustable, -3 dB to -30 dB
Low:Adjustable, -5 dB to -40 dB
Min:Adjustable, -10 dB to Off
ConnectionsDetachable terminal block
Ambient Operating Environment0° C to 55° C
Power RequirementGround-referenced, 24 Vdc @ 30 mA
MountingMounts in standard US electrical box, RDL WB- or SMB- series boxes; cover plate available separately.

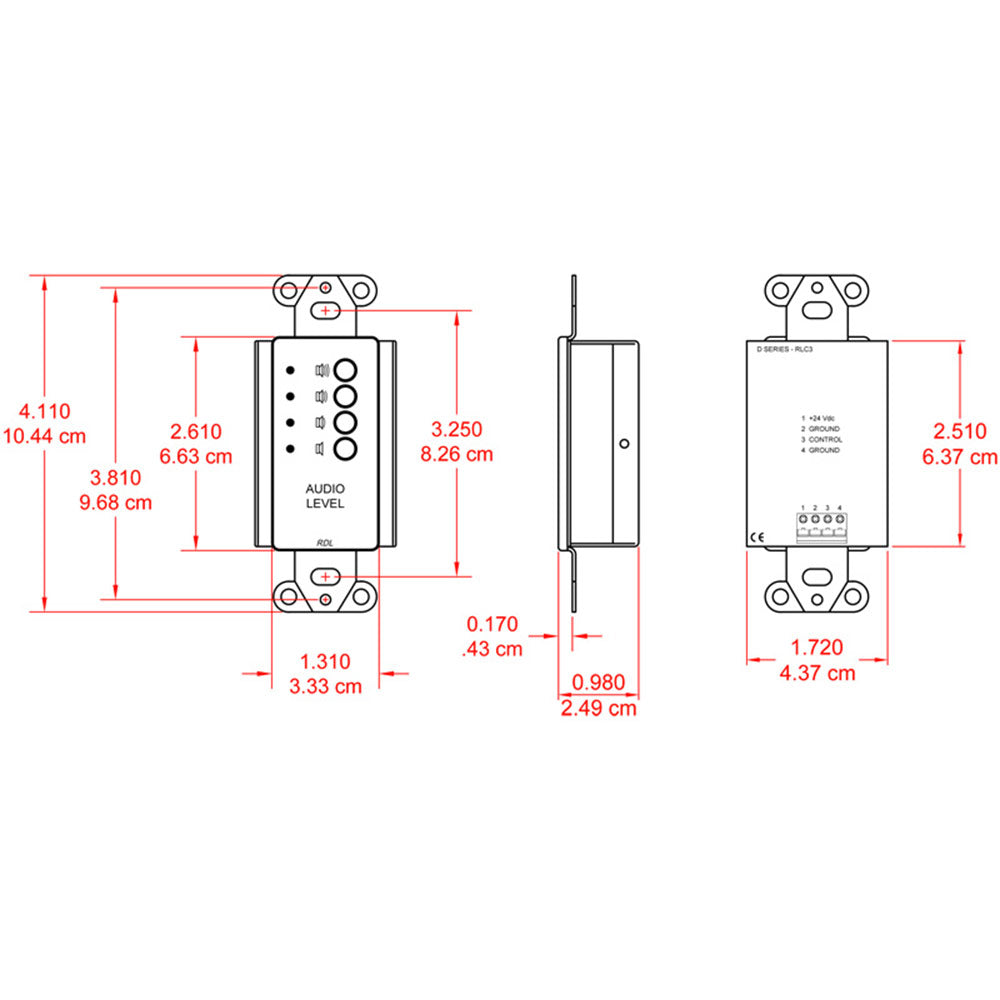

DimensionsHeight: 4.11 in. 10.44 cm; Width: 1.66 in. 4.06 cm; Depth: 1.72 in. 4.37 cm
Package TypeCardboard Box
Package Dimensions3.625 x 4.625 x 2.125 in.
Shipping Weight0.37 lbs.
WEEE weight0.22 lbs.
Tariff code8517.62.0050
