RDL DS-RT2 Remote Control Selector Plate (Stainless)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

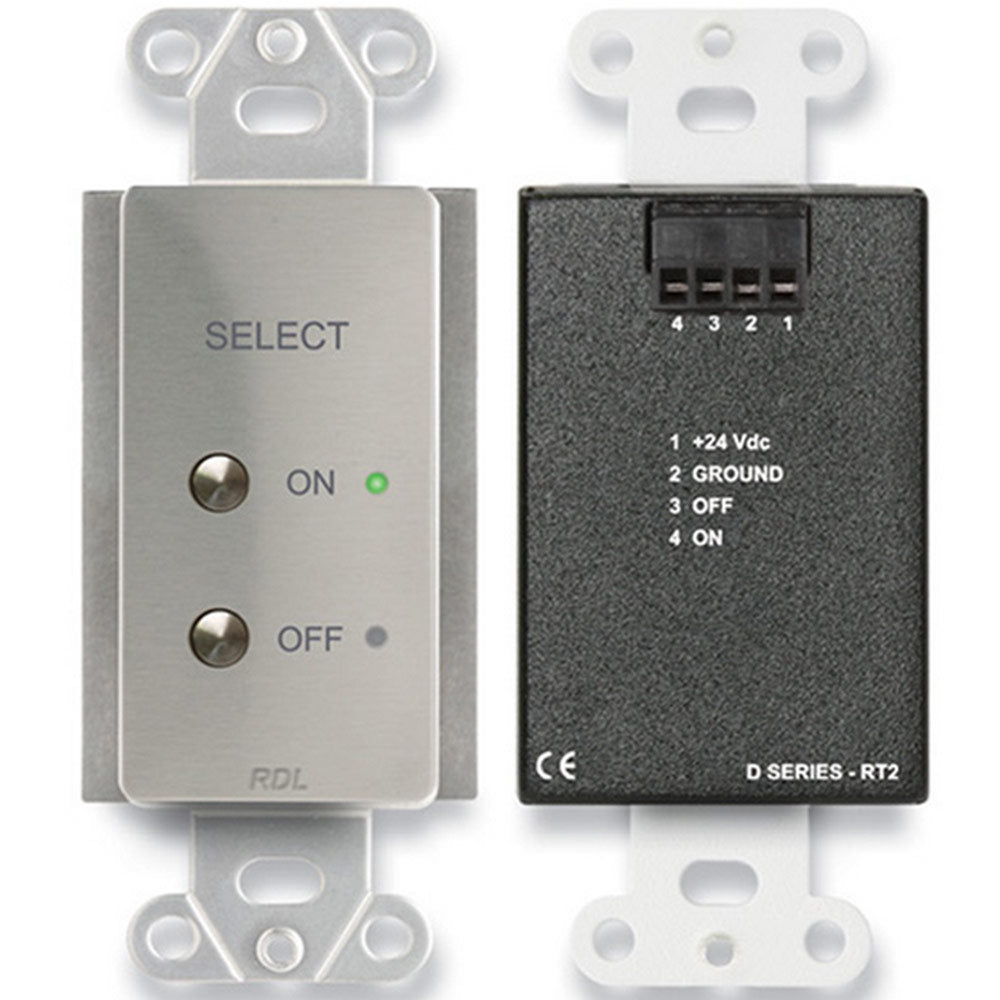

The front panel of the D-RT2 features two pushbuttons with two associated LEDs. Upon initial power-up, the OFF mode is selected. Touching the other button de-selects OFF and immediately selects ON. An LED adjacent to each button shows which mode is selected.
In a typical installation, the D-RT2 may be used to turn an audio or video source on or off. To turn on an audio source, the D-RT2 may be connected to an RDL ST-SSR1 or ST-RX2 Solid-State Audio Switch. For video switching, an RDL TX-MVX may be used. In each of the above examples, only one output terminal is needed for triggering, therefore a single shielded pair (3-conductor cable) is required for remote connection. For more complex switching networks, both outputs (ON and OFF) may be used. In an audio or video control installation, the D-RT2 may be mounted adjacent to an RDL remote volume control, such as the RLC2, RLC3 or RLC10K.
In installations where ULTRASTYLE™ wall controls are preferred, use the RUC-4 Universal Remote.
Features:
- Remote Selection of ON or OFF
- Single-Button Selection for Each Function
- Open-collector Switching
- 3-wire or 4-wire Remote Wiring
- Professional Aesthetic Appearance
- Companion to other RDL® Remote Controls
- LED Indication
- Available in White, Black, and Stainless Steel
| Selectors (2) | Momentary pushbuttons, (1 for ON, 1 for OFF) |
| Indicators (2) | Green/Red LEDs, (indicates status ON or OFF respectively) |
| Connections | Detachable terminal block; Power input; Separate open-collector outputs for ON and OFF (25 mA max.) |
| Ambient Operating Environment | 0¡ C to 55¡ C |
| Power Requirement | GROUND-REFERENCED, 24 Vdc @ 30 mA |

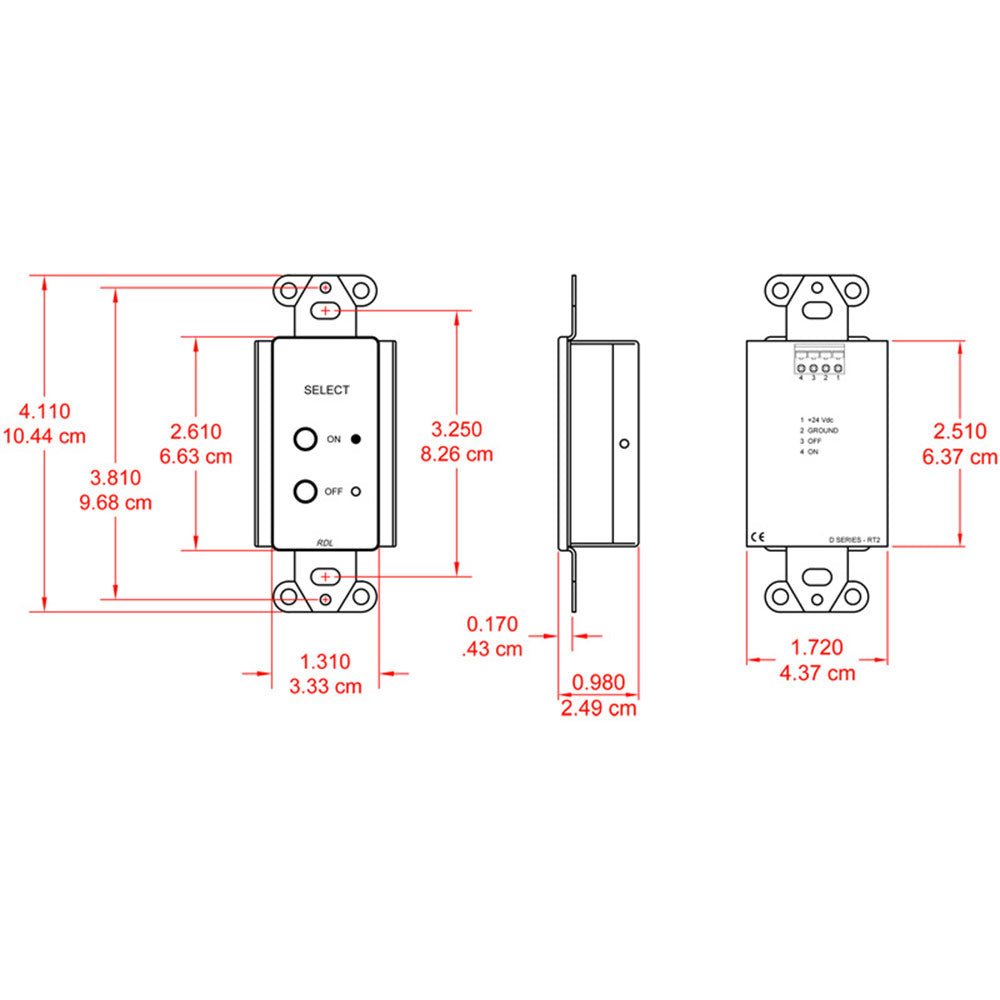

| Mounting | Mounts in standard US electrical box, RDL WB- or SMB- series boxes; cover plate available separately |
| Package Type | Cardboard Box |
| Package Dimensions | 3.625 x 4.625 x 2.125 in. |
| Shipping Weight | 0.45 lbs. |
| WEEE weight | 0.285 lbs. |
| Tariff code | 8517.62.0050 |
The front panel of the D-RT2 features two pushbuttons with two associated LEDs. Upon initial power-up, the OFF mode is selected. Touching the other button de-selects OFF and immediately selects ON. An LED adjacent to each button shows which mode is selected.
In a typical installation, the D-RT2 may be used to turn an audio or video source on or off. To turn on an audio source, the D-RT2 may be connected to an RDL ST-SSR1 or ST-RX2 Solid-State Audio Switch. For video switching, an RDL TX-MVX may be used. In each of the above examples, only one output terminal is needed for triggering, therefore a single shielded pair (3-conductor cable) is required for remote connection. For more complex switching networks, both outputs (ON and OFF) may be used. In an audio or video control installation, the D-RT2 may be mounted adjacent to an RDL remote volume control, such as the RLC2, RLC3 or RLC10K.
In installations where ULTRASTYLE™ wall controls are preferred, use the RUC-4 Universal Remote.
Features:
- Remote Selection of ON or OFF
- Single-Button Selection for Each Function
- Open-collector Switching
- 3-wire or 4-wire Remote Wiring
- Professional Aesthetic Appearance
- Companion to other RDL® Remote Controls
- LED Indication
- Available in White, Black, and Stainless Steel
| Selectors (2) | Momentary pushbuttons, (1 for ON, 1 for OFF) |
| Indicators (2) | Green/Red LEDs, (indicates status ON or OFF respectively) |
| Connections | Detachable terminal block; Power input; Separate open-collector outputs for ON and OFF (25 mA max.) |
| Ambient Operating Environment | 0¡ C to 55¡ C |
| Power Requirement | GROUND-REFERENCED, 24 Vdc @ 30 mA |
| Mounting | Mounts in standard US electrical box, RDL WB- or SMB- series boxes; cover plate available separately |
| Package Type | Cardboard Box |
| Package Dimensions | 3.625 x 4.625 x 2.125 in. |
| Shipping Weight | 0.45 lbs. |
| WEEE weight | 0.285 lbs. |
| Tariff code | 8517.62.0050 |
