RDL DS-SFRC8L Audio Source Selector for SourceFlex System (Stainless)


  • Dale #:

    RDL-DSSFRC8L
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The D SERIES-SFRC8L Audio Selector is a SourceFlex module for wall mounting in a room, providing source selection from up to 8 audio sources. A numeric display shows the selected source. There are two line-level audio outputs on the rear of the unit, balanced and unbalanced, to feed an external p... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

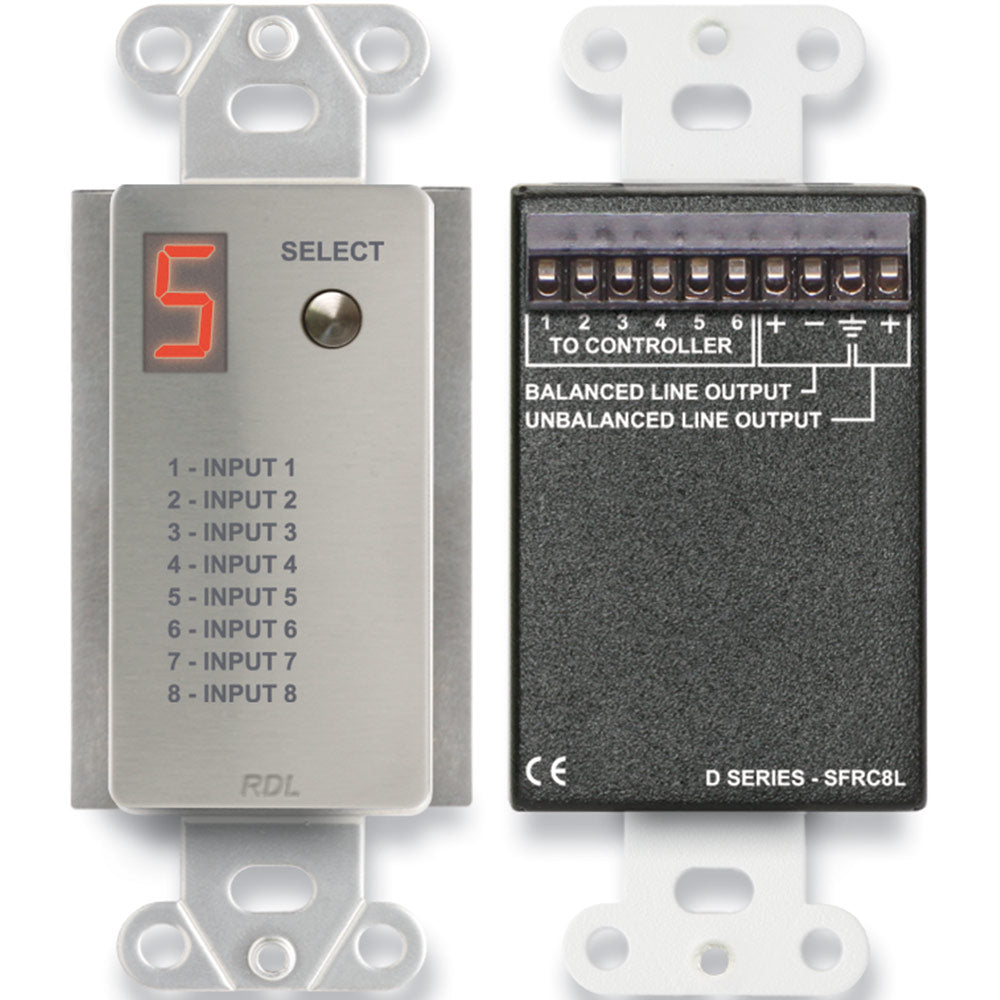

The D SERIES-SFRC8L Audio Selector is a SourceFlex module for wall mounting in a room, providing source selection from up to 8 audio sources. A numeric display shows the selected source. There are two line-level audio outputs on the rear of the unit, balanced and unbalanced, to feed an external power amplifier.

The balanced line output level is +4 dBu nominal. The unbalanced output is -10 dBV.

The D SERIES-SFRC8L is designed to be mounted in a wall box. Wiring is connected through a rear-panel detachable terminal block. The -SFRC8L is ideal for office distributed sound systems with background music and a paging source.

Features:

  • Single Room Listening Station with In-Wall Controls
  • Source Selection Pushbutton
  • Selection From up to 8 Audio Sources
  • Line-Level Audio Output
  • Mounts In Wall Using US Single Gang Electrical Box or RDL® WB-1U
  • Compatible with Other RDL Wall Plates and Controls
  • Ideal for Office Distributed Sound Systems with Music and Paging
  • Available in White, Black, and Stainless Steel Finishes

More +

Product Specs

Input10-position detachable terminal block
Display7-segment red LED (0 = off or Paging; 1 through 8 = selected channel)
SelectorMomentary button channel SELECT
Frequency Response20 Hz to 20 kHz (±0.1 dB)
THD+N< 0.1% (20 Hz to 20 kHz)
Noise< -85 dB (Below +4 dBu)
Control Signalsdc (DISPLAY RAMP and CONTROL conductors between remote Listening Station and Controller)
Line Outputs (2)+4 dBu balanced, -10 dBV unbalanced, nominal
Power Requirement24 Vdc @ 30 mA, Supplied from SourceFlex controller
Ambient Operating Environment0° C to 50° C Maximum; 20° C Recommended

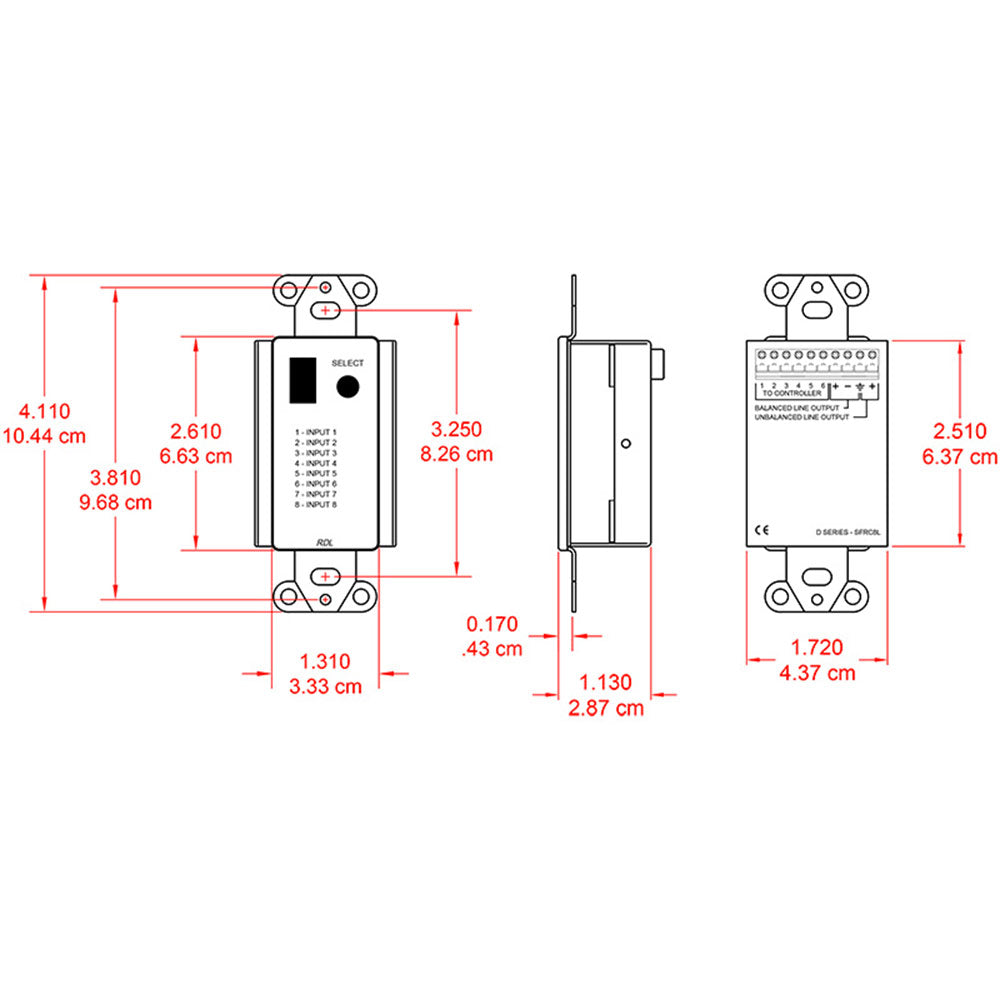

DimensionsHeight: 4.13 in. 10.49 cm; Width: 1.7 in. 4.32 cm; Depth: 2.05 in. 5.21 cm
Package TypeCardboard Box
Package Dimensions3.625 x 4.625 x 2.125 in.
Shipping Weight.44 lbs.
WEEE weight0.305 lbs.
Tariff code8518.40.2000
