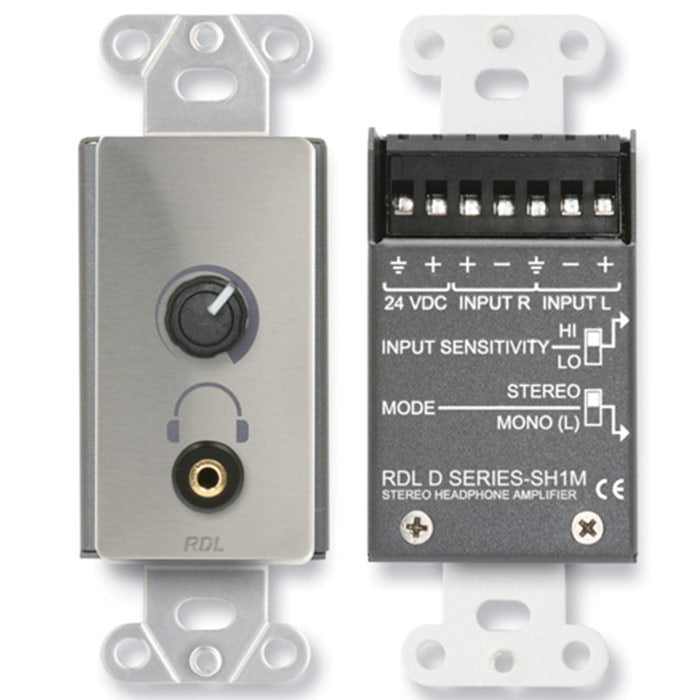

RDL DS-SH1M Stereo Headphone Amp Decora panel w/ user level control - Custom Engraving Option


  • Dale #:

    RDL-DSSH1MC
  • Availability:

    Special Order Item
  • RDL offers custom engraving on most of their product line. Contact us for customization pricing and lead time.

Description

The D/M is used in applications requiring headphones of any impedance to be driven from consumer or professional audio sources. It is ideally suited to applications as diverse as language translation, museums, interview studios and music stores. The -SH1 is a dual channel headphone amplifier with... Read More

Contact us

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The D/M is used in applications requiring headphones of any impedance to be driven from consumer or professional audio sources. It is ideally suited to applications as diverse as language translation, museums, interview studios and music stores. The -SH1 is a dual channel headphone amplifier with balanced/unbalanced left and right inputs. Each input accepts operating levels between -20 dBV and +20 dBu. Two recessed slide switches located on the side of the rear enclosure are set prior to mounting the module. One switch is provided for setting the input sensitivity. The mode switch selects between stereo and mono operation. In the mono position, the left input is used to drive both output channels. When the module is used in a monaural system, only the left channel input must be wired. The front panel level control is a long life potentiometer controlling matched VCAs. Audio does not pass through this control, assuring years of noise free level adjustment. The output amplifiers deliver more than 50 mW into either high or low impedance headphones. Module operation is from a 24 Vdc ground referenced power supply.

    Features:
  • Integral Long-Life VCA Stereo Level Control
  • Balanced or Unbalanced Inputs
  • Switch-Selectable Input Sensitivity
  • Switch-Selectable Mono (Left) or Stereo Operation
  • Amplifier to Drive High or Low Impedance Headsets
  • Output: Mini-Jack

More +

Product Specs

Inputs (2):10 k balanced or unbalanced bridging
Input Level:+4 dBu nominal (Low input sensitivity)
-15 dBV nominal (High input sensitivity)
Maximum Input Level:+21 dBu (Low input sensitivity)
+3 dBu (High input sensitivity)
Output Signal:10 mW into 100 (normal rated) 50 mW into 100 (maximum)
THD+N:< 0.5% @ 1 kHz
Frequency Response: 30 Hz to 20 kHz (۬ dB)
Noise:< -70 dB below normal operating level
Gain:User-adjustable on front panel 18.5 dB (maximum, High input sensitivity)
Unity (maximum, Low input sensitivity)
CMRR:> 60 dB (50 to 120 Hz)
Crosstalk:Below noise floor (20 Hz to 20 kHz)
Power Requirement:GROUND-REFERENCED, 24 to 33 Vdc @ 50 mA
