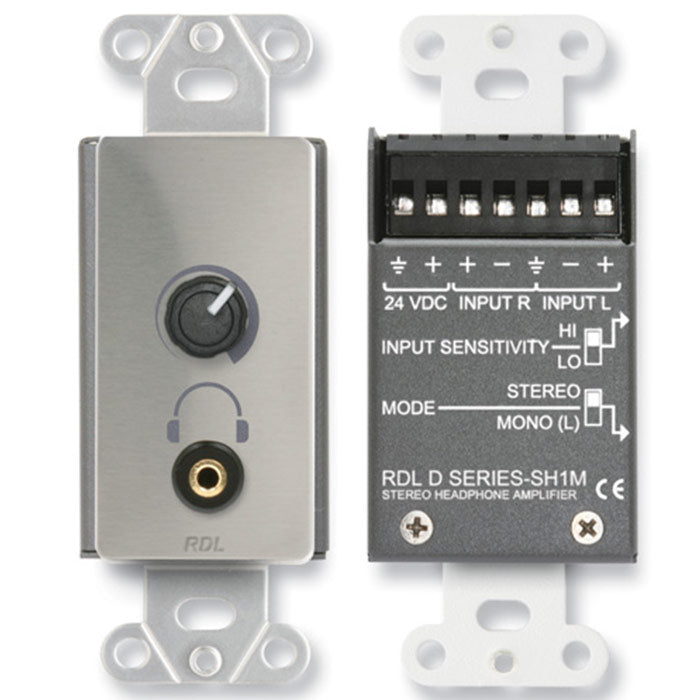

RDL DS-SH1M Stereo Headphone Amplifier - Stainless Decora panel with user level control

The D/M is used in applications requiring headphones of any impedance to be driven from consumer or professional audio sources. It is ideally suited to applications as diverse as language translation, museums, interview studios and music stores. The -SH1 is a dual channel headphone amplifier with balanced/unbalanced left and right inputs. Each input accepts operating levels between -20 dBV and +20 dBu. Two recessed slide switches located on the side of the rear enclosure are set prior to mounting the module. One switch is provided for setting the input sensitivity. The mode switch selects between stereo and mono operation. In the mono position, the left input is used to drive both output channels. When the module is used in a monaural system, only the left channel input must be wired. The front panel level control is a long life potentiometer controlling matched VCAs. Audio does not pass through this control, assuring years of noise free level adjustment. The output amplifiers deliver more than 50 mW into either high or low impedance headphones. Module operation is from a 24 Vdc ground referenced power supply.

Features:
• Integral Long-Life VCA Stereo Level Control
• Balanced or Unbalanced Inputs
• Switch-Selectable Input Sensitivity
• Switch-Selectable Mono (Left) or Stereo Operation
• Amplifier to Drive High or Low Impedance Headsets
• Output: Mini-Jack
