RDL DS-TPA1A Decora Mount 3.5-Watt Format-A Headphone Amplifier (Steel) - Custom Engraving Option


  • Dale #:

    RDL-DSTPA1AC
  • Availability:

    Special Order Item
  • RDL offers custom engraving on most of their product line. Contact us for customization pricing and lead time.

Description

The -TPA1A modules are two pair audio amplifier modules compatible with RDL Format A twisted pair products. Each -TPA1A receives stereo audio and 24 Vdc power through a rear-panel RJ45 jack. The left and right audio signals received on pairs B and C of the twisted pair cable are summed to mono an... Read More

Contact us

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

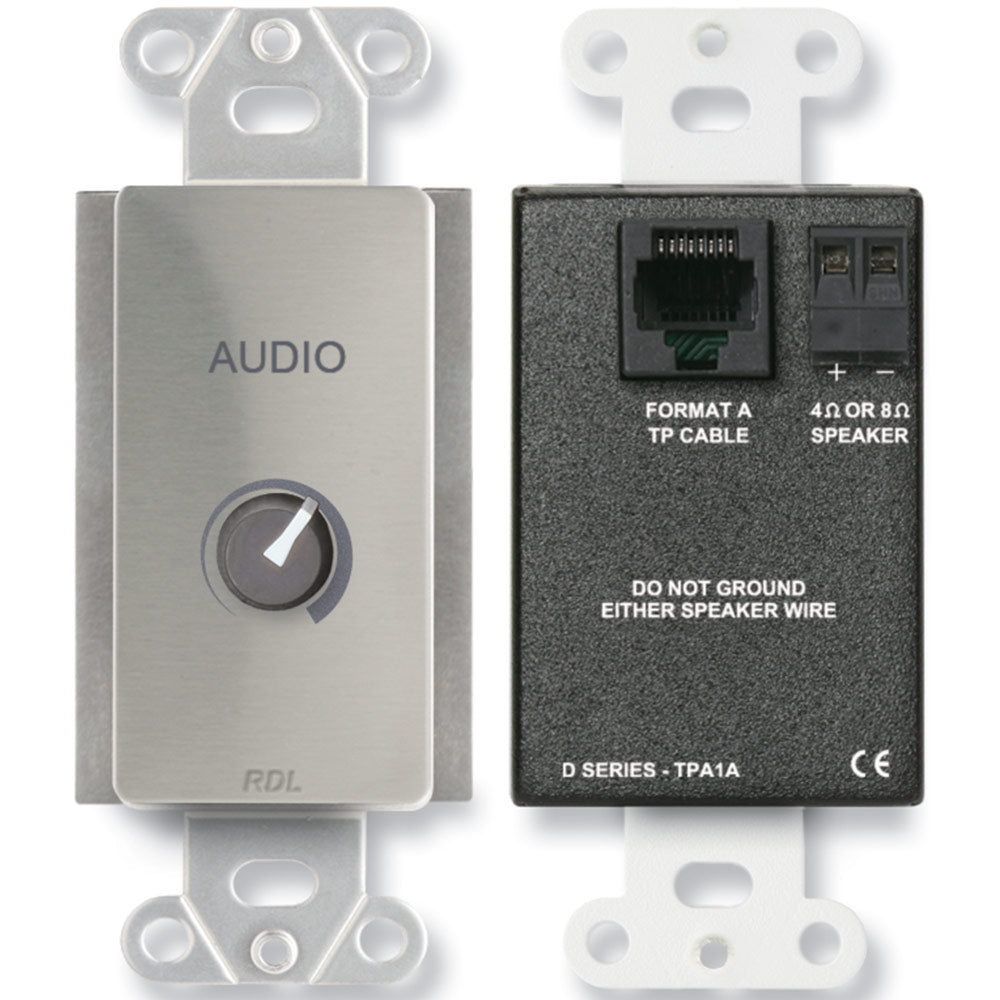

The -TPA1A modules are two pair audio amplifier modules compatible with RDL Format A twisted pair products. Each -TPA1A receives stereo audio and 24 Vdc power through a rear-panel RJ45 jack. The left and right audio signals received on pairs B and C of the twisted pair cable are summed to mono and amplified. The amplified output level is set by an internal VCA which is controlled by a front-panel volume control. The VCA attenuator provides years of scratch-free gain adjustment.

Features:

  • 3.5 Watt RMS Audio Amplifier into 8 Ohms
  • 6.5 Watt RMS Audio Amplifier into 4 Ohms
  • Output Drives 4 or 8 Ohm Speaker
  • Setting Level to Minimum Activates Energy-Saving Sleep Mode
  • High-Efficiency Class D Operation
  • VCA Level Adjustment for Scratch-Free Long Life
  • Input and Power Connection on RJ45
  • Connects to Format-A Sender using Twisted-Pair Cable
  • Powered from RDL Twisted Pair Format-A Sender
  • Speaker Output Connection on Detachable Terminal Block
  • Ultra-Compact All Metal Construction
  • Thermal and Short-Circuit Protection

The -TPA1A circuits are all designed for low power consumption. Amplification is provided by a high-efficiency Class D power stage with audio filtering tailored for crisp, pleasant audio clarity. The high-efficiency Class D output stage produces negligible heat for all levels of expected voice or music modulation. When the user reduces the audio level to minimum, the class D output stage is switched off. This sleep mode remains active until the user turns up the output level.

The output drives either a 4 Ohm or 8 Ohm speaker. The speaker cable connects to the module using a detachable terminal block.

The front panel does not include any illuminated indicators, making the -TPA1A ideally suited to installation in dark rooms or areas. Installation is simple and quick, requiring only the connection of the speaker leads and the twisted pair RJ45.

The -TPA1A may be fed and powered from any RDL Format-A sender, and is ideal in hospitality installations fed from a sender connected to a TV monitor (for example: FP-TPS4A Audio Sender from TV with fixed audio output level).

Use the -TPA1A wherever a single speaker user-adjustable wall mounted amplifier is needed. Combine the amplifier with other RDL Format-A products for a cost-effective, high-performance audio system.

More +

Product Specs

InputRDL Format-A
Input ConnectorRJ45
Gain AdjustmentSingle turn audio taper, VCA attenuator
Frequency Response50 Hz to 20 kHz (± 1.5 dB)
THD+N< 0.1% (@ 1 kHz, 1 W)
Noise<-70 dB (below 1 W RMS)
CMRR> 60 dB (50 Hz to 120 Hz)
Output Power3.5 W RMS (max., into 8 Ohms); 6.5 W RMS (max., into 4 Ohms)
Power Consumption45 mA (idle), 95 mA (1 W into 8 Ohms), 150 mA (1 W into 4 Ohms), 215 mA (3.5 W into 8 Ohms)
Sleep Mode Power Consumption< 0.3 W
Sleep Mode EnableActive at audio gain <-60 dB
Ambient Operating Environment0° C to 40° C Maximum; 20° C Recommended

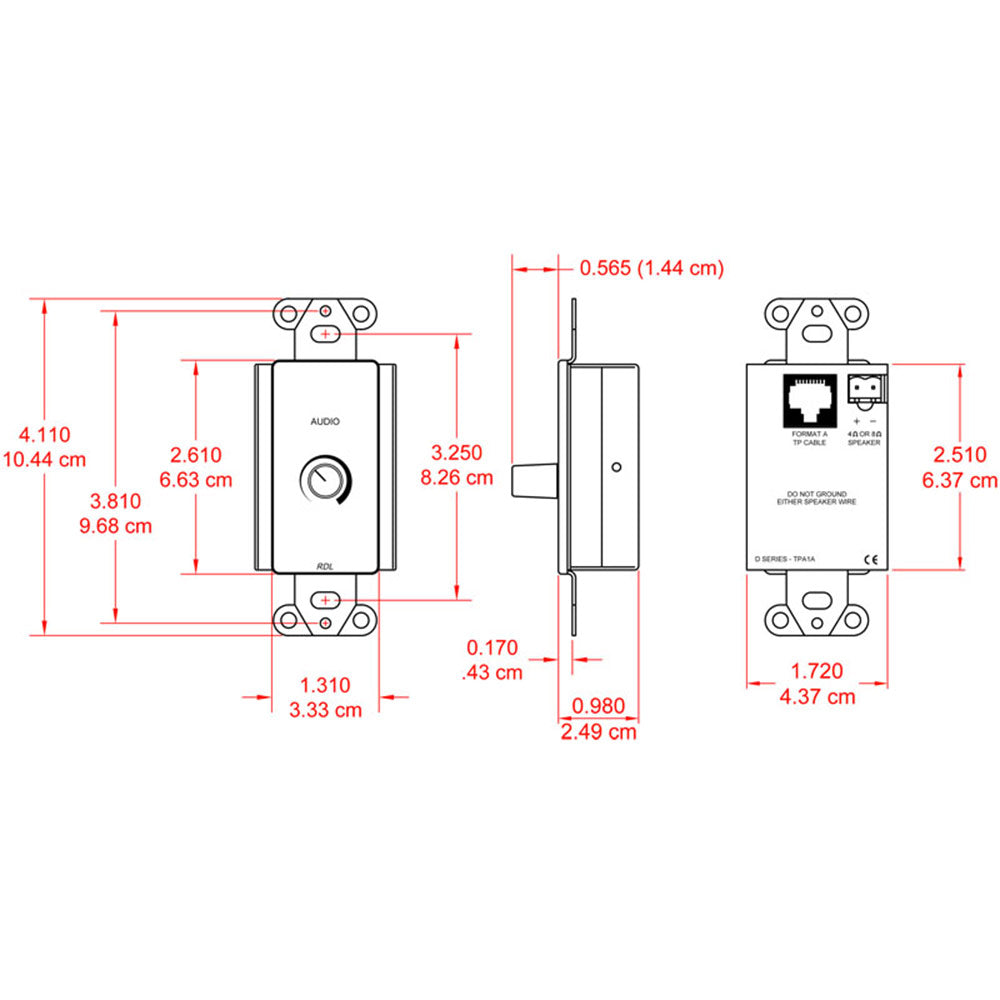

DimensionsHeight: 4.13 in. 10.49 cm; Width: 1.7 in. 4.32 cm; Depth: 2.15 in. 5.47 cm
Package TypeCardboard Box
Package Dimensions3.625 x 4.625 x 2.125 in.
Shipping Weight0.395 lbs.

More +
