RDL DS-TPRX3A Decora Mount 3-Channel Format-A Source Selector (Stainless)


  • Dale #:

    RDL-DSTPRX3A
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Please Note: requires PS-24AS Power Supply (sold separately)

Description

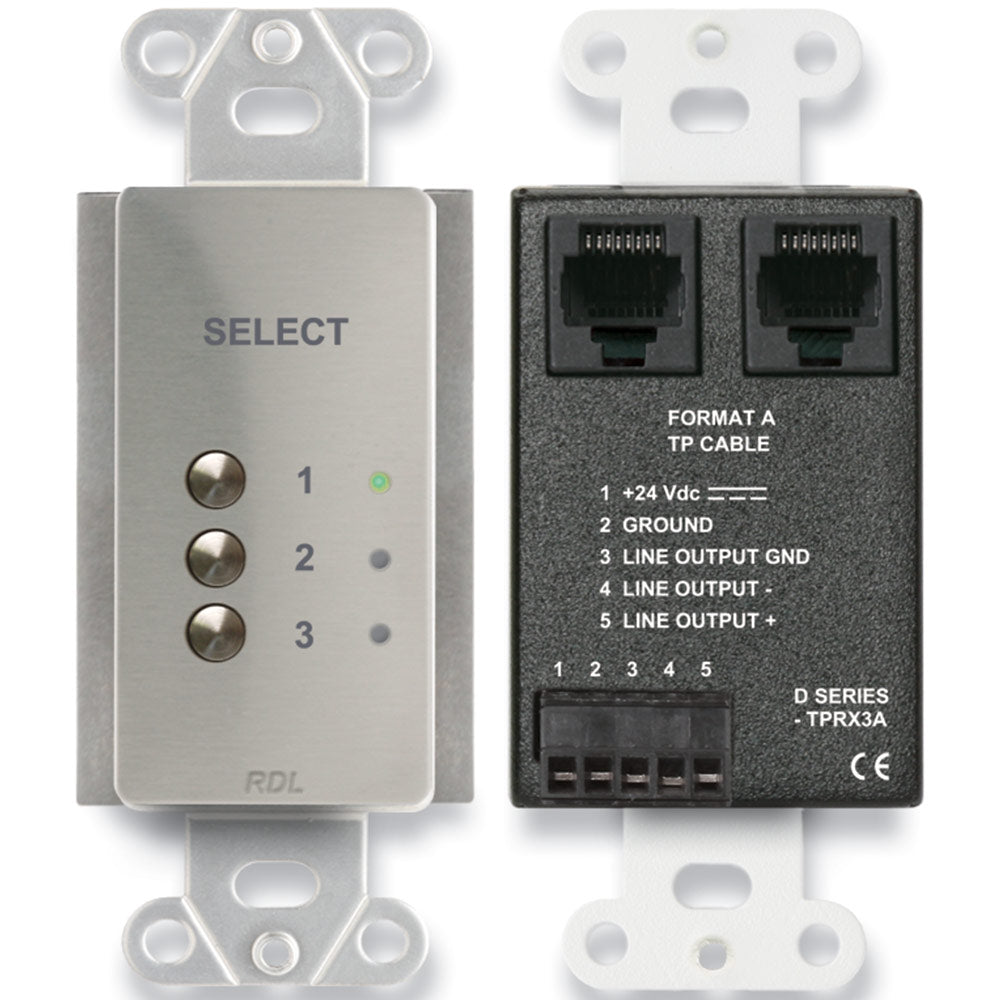

The D SERIES-TPRX3A is a three-pair audio receiving and switching module compatible with RDL Format-A twisted pair products. Three audio sources are available, corresponding to the three signal pairs A, B and C. The front panel of the -TPRX3A features three pushbuttons, each corresponding to one ... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The D SERIES-TPRX3A is a three-pair audio receiving and switching module compatible with RDL Format-A twisted pair products. Three audio sources are available, corresponding to the three signal pairs A, B and C. The front panel of the -TPRX3A features three pushbuttons, each corresponding to one of three inputs. When a button is pushed, the corresponding audio input is fed to the output and any previously selected source is shut off. Only one source may be selected at a time. If the button for a selected source is pushed again, all inputs are turned off. An LED adjacent to each button shows which source is selected.

Features:

  • Remote Selection from 3 Sources that Correspond to 3 Format-A Pairs
  • Single-Button Selection for Each Source
  • LED Indication
  • Line-Level Balanced Output on Detachable Terminal Block
  • Display is Bright During Adjustment
  • Display Dims After Adjustment
  • Remote Powering through Twisted Pair Cable
  • Fused Local Power Feeds all Connected Modules
  • Local Power Input on Terminal Block
  • Studio-Quality Precision Active Balanced Circuitry
  • All-Metal Construction
  • Available in Stainless Steel, Black and White

When a -TPRX3A is not being used, its display switches to a dim intensity to avoid being a visual distraction. The display returns to a bright intensity when a button is pushed. In the event of power loss, internal non-volatile memory stores the last source selected. When power is restored, the -TPRX3A will return to the source that was active when power was lost.

The D SERIES-TPRX3A was designed for absolute silent switching of audio signals. It provides a balanced line-level output that may be connected unbalanced.

The -TPRX3A features bridging inputs, allowing it to be connected to the LOOP OUT jack of other receivers. The bridging input circuits used in all FORMAT-A twisted pair receivers allow connection of up to 10 receivers for each cable pair. The possibility of multiple receiver locations adds enormous flexibility in the design of audio monitoring systems using RDL FORMAT-A products.

The -TPRX3A may be powered directly from a 24 Vdc power supply using either the power jack or the detachable terminal block. Local power connected to the module is also fed to all modules connected to the INPUT RJ45 jack. The -TPRX3A may be remotely powered through the twisted pair cable from any other module, signal distributor or RDL power inserter connected to the same twisted pair cable.

The D SERIES-TPRX3A remote controls are constructed on a steel frame. The electronics are fully protected within the rear enclosure. Use them with RDL wall-mounted accessories as part of a complete audio/video system.

More +

Product Specs

InputRDL FORMAT-A
Input ConnectionRJ45
Format-A Signal Pairs Used (3)A, B, C
Front-Panel SwitchesMomentary pushbuttons (3, 1 per input)
Front-Panel Indicators (3)Selected channel
Output150 balanced
Output ConnectionDetachable terminal block
Output Level+4 dBu Line level, nominal
Format-A OutputRJ45 (loop-through)
Frequency Response10 Hz to 20 kHz (± 0.5 dB)
THD+N< 0.005% (1 kHz); <0.05% (20 Hz to 20 kHz)
Noise below +4 dBu< -85 dB
Off Attenuation< 90 dB (1 kHz); < 70 dB (20 Hz to 20 kHz)
Headroom above +4 dBu> 18 dB
CMRR> 80 dB (50 Hz to 150 Hz)
Power Connections (2)Detachable terminal block; RJ45
Ambient Operating Environment0° C to 55° C
Power Requirement24 Vdc @ 45 mA plus connected loads

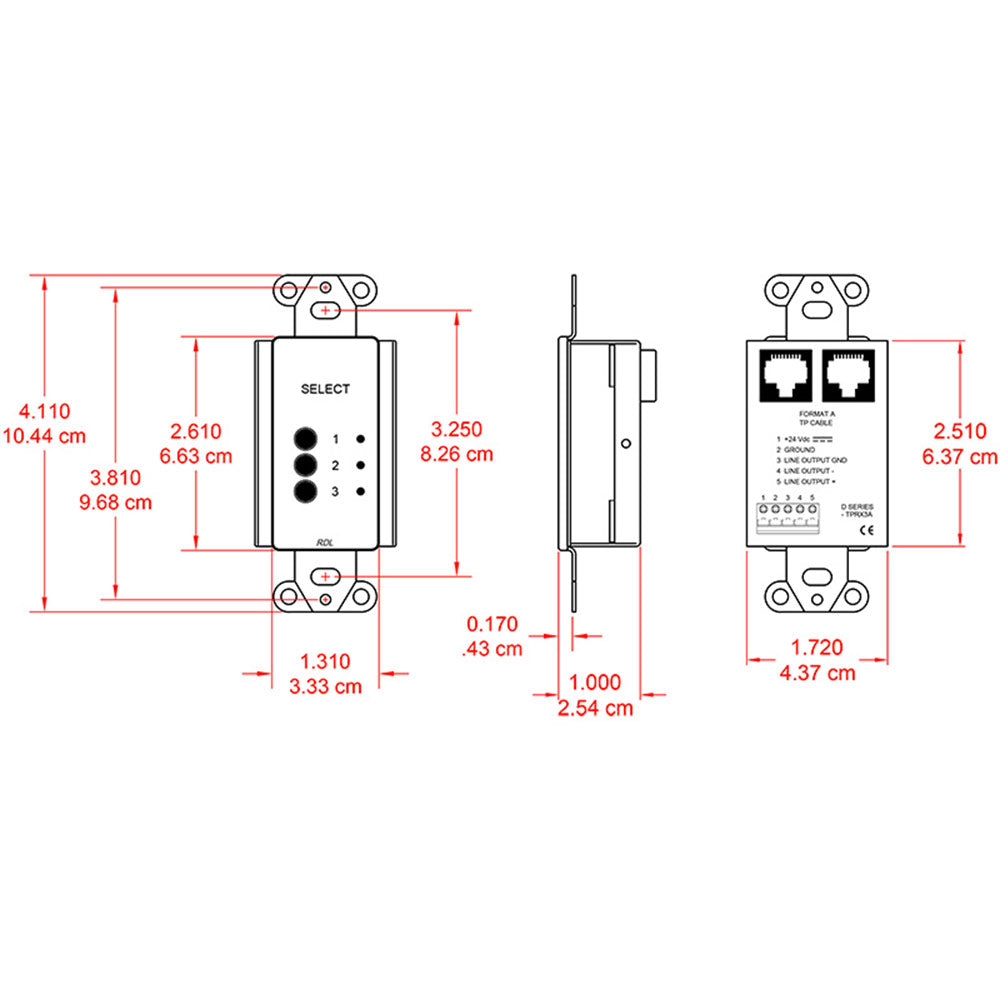

Dimensions1.6" (4.06 cm) W; 4.11" (10.45 cm) H; 1.89" (4.8 cm) D
Mounting Box Minimum Depth2.4"
Package TypeCardboard Box
Package Dimensions3.625 x 4.625 x 2.125 in.
Shipping Weight.385 lbs
WEEE weight.245 lbs.
Tariff code8518.14.2000
