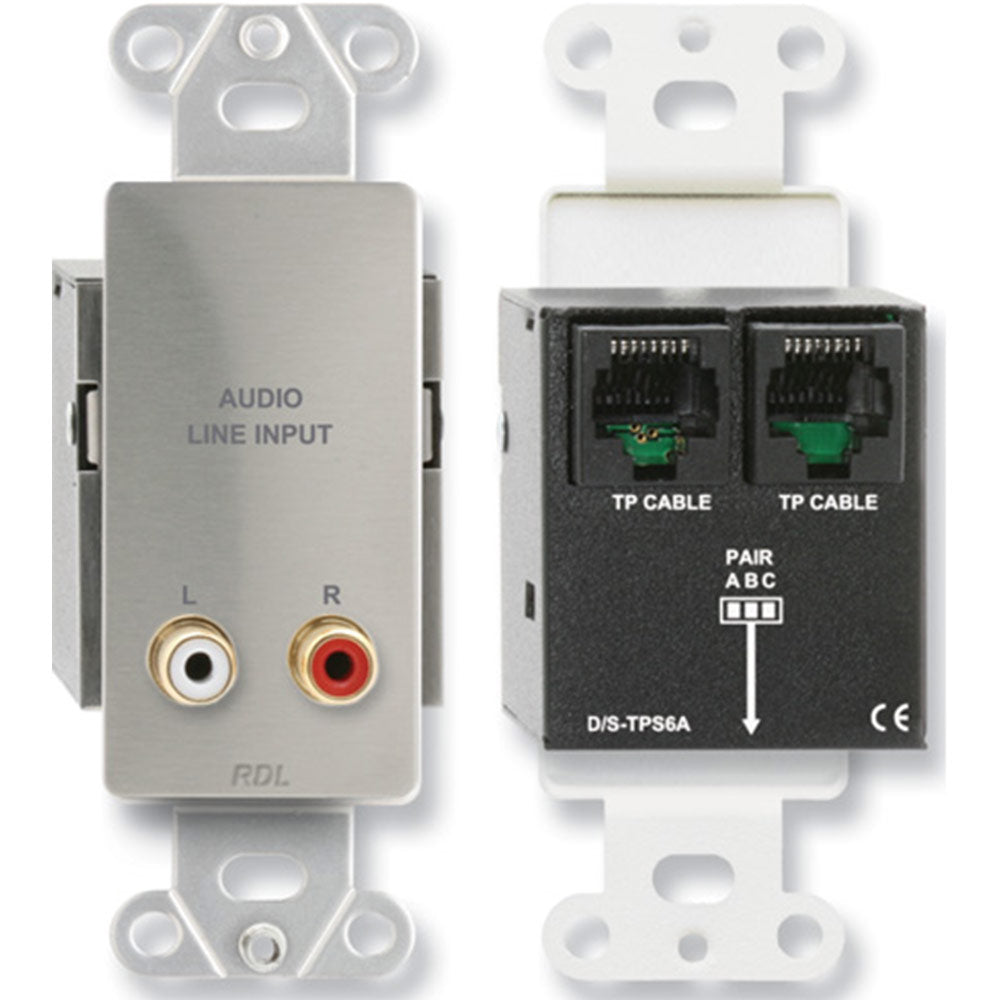

RDL DS-TPS6A Passive Single-Pair Sender - Stainless


  • Dale #:

    RDL-DSTPS6A
  • Availability:

    Reserve Yours Now
  • This item usually ships within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Description

The D-RLC3 is designed to directly interface with RDL® control modules which feature a 0 to 10 Vdc control input utilizing an external 10k ohm resistive control, such as the ST-VCA3, RU-VCA2A and RU-VA6A voltage controlled amplifiers. The D-RLC3 has four momentary pushbuttons, each corresponding ... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The D-RLC3 is designed to directly interface with RDL® control modules which feature a 0 to 10 Vdc control input utilizing an external 10k ohm resistive control, such as the ST-VCA3, RU-VCA2A and RU-VA6A voltage controlled amplifiers. The D-RLC3 has four momentary pushbuttons, each corresponding to one of four levels selected.

In a typical installation, the D-RLC3 is wired to an RDL VCA. The D-RLC3 runs from the same power supply as the VCA. When power is applied, the D-RLC3 defaults to the NORM level. One higher level, HIGH, and two lower levels, LOW and MIN, are then available for selection. When the D-RLC3 is set to the HIGH position, the VCA is at maximum gain. The NORM, LOW, and MIN levels are each adjustable by the installer using trimpots on each side of the D-RLC3´s body. Once installed, the adjustments are concealed from the user.

Features:

  • Remote Selection of Preset Audio Levels
  • Pushbutton Level Selection
  • 4 Selectable System Levels, or 3 Levels Plus Off
  • LED Indication (Green)
  • Premium-Quality Remote Panel
  • Professional Aesthetic Appearance
  • Available in White, Black, and Stainless Steel

More +

Product Specs

Input:2 RCA jacks, unbalanced stereo combined to mono
Input Level:-10 dBV, +22 dBu max
Format-A Signal Pair Used:Switch-selectable A, B, or C (rear-panel switch)
Format-A Input:RJ45 TP CABLE
Ouput:RJ45 TP CABLE, RDL TP Format-A
Frequency Response:20 Hz to 20 kHz (۪.5 dB)
THD:< 0.1% (50 Hz to 20 kHz) ɘ.001% (1 kHz typ)
Power Requirement:Passive

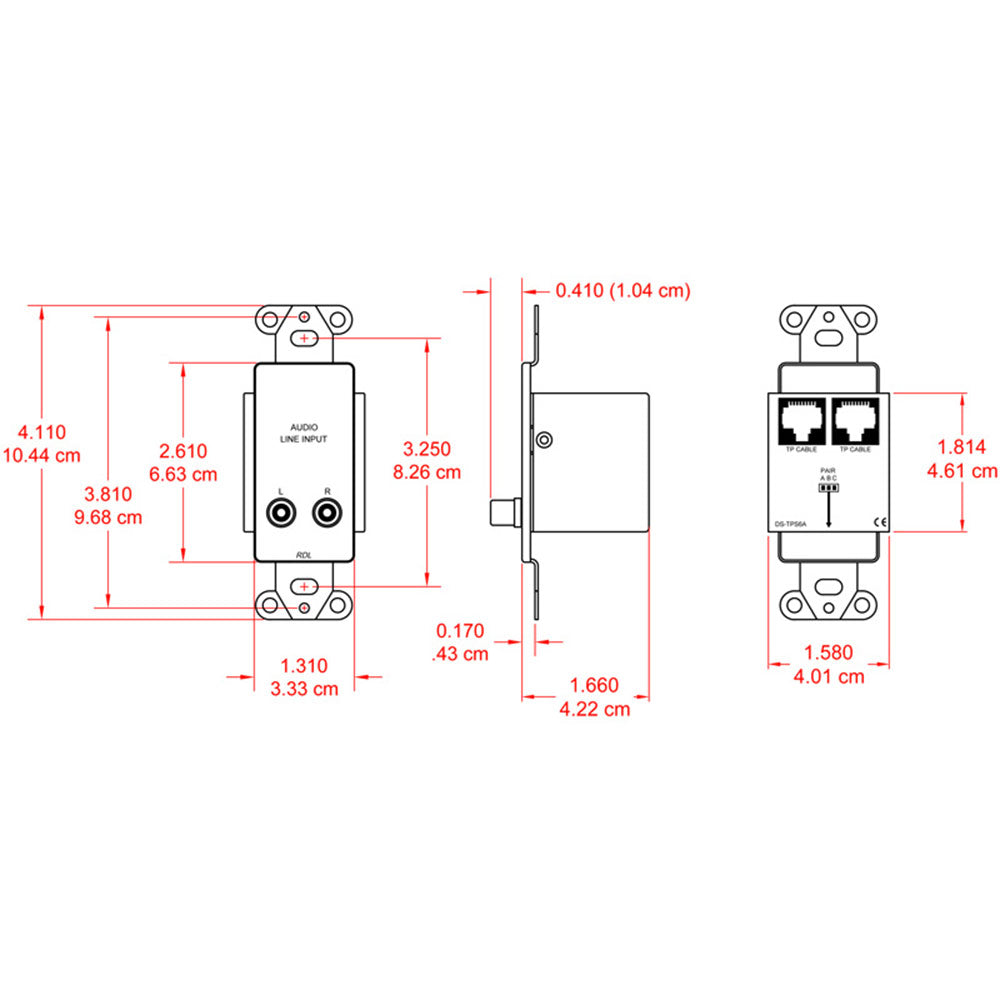

Dimensions:1.6 (4.06 cm) W
4.11 (10.45 cm) H
1.89 (4.8 cm) D
