888-462-7828Dale #:
RDL-DSTPS6ACAvailability:
Special Order ItemRDL offers custom engraving on most of their product line. Contact us for customization pricing and lead time.
Description
The D-RLC3 is designed to directly interface with RDL® control modules which feature a 0 to 10 Vdc control input utilizing an external 10k ohm resistive control, such as the ST-VCA3, RU-VCA2A and RU-VA6A voltage controlled amplifiers. The D-RLC3 has four momentary pushbuttons, each corresponding ... Read MoreSuggested Accessories
Description
The D-RLC3 is designed to directly interface with RDL® control modules which feature a 0 to 10 Vdc control input utilizing an external 10k ohm resistive control, such as the ST-VCA3, RU-VCA2A and RU-VA6A voltage controlled amplifiers. The D-RLC3 has four momentary pushbuttons, each corresponding to one of four levels selected.
In a typical installation, the D-RLC3 is wired to an RDL VCA. The D-RLC3 runs from the same power supply as the VCA. When power is applied, the D-RLC3 defaults to the NORM level. One higher level, HIGH, and two lower levels, LOW and MIN, are then available for selection. When the D-RLC3 is set to the HIGH position, the VCA is at maximum gain. The NORM, LOW, and MIN levels are each adjustable by the installer using trimpots on each side of the D-RLC3´s body. Once installed, the adjustments are concealed from the user.
Features:
More +
Product Specs

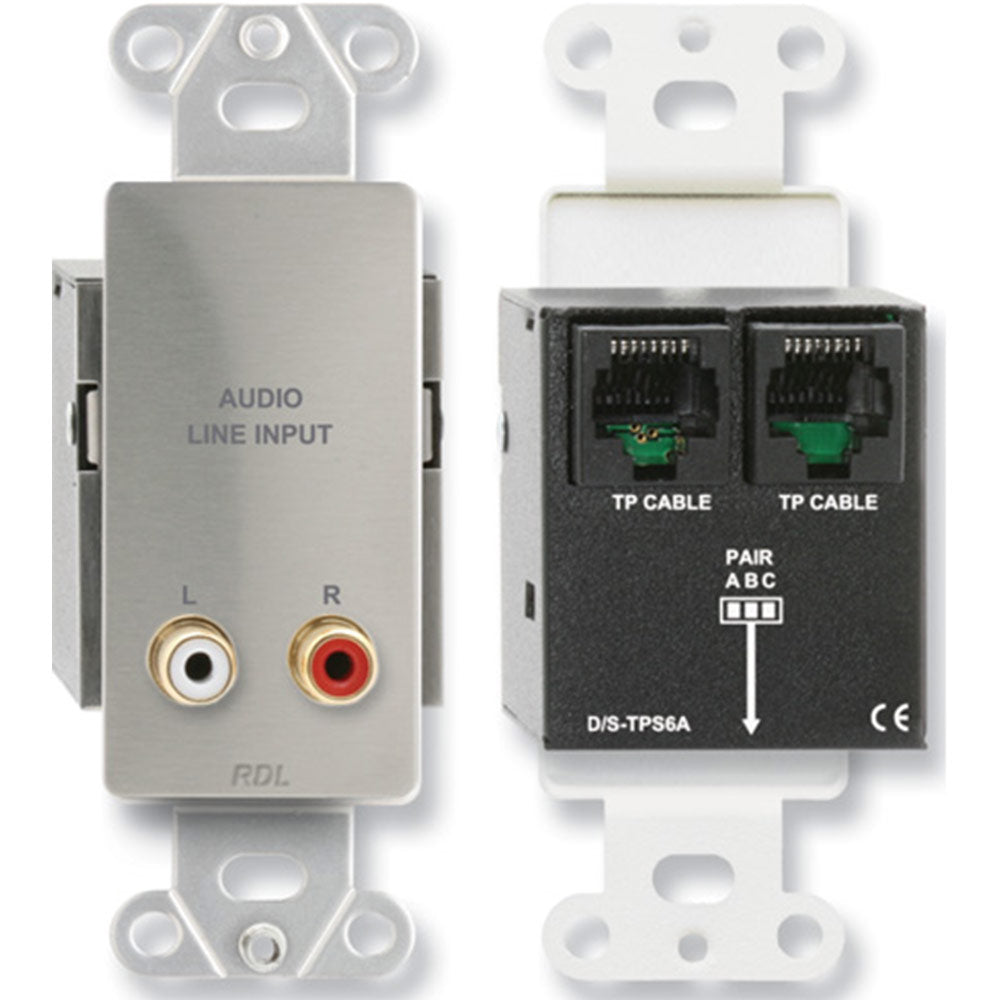

Input: | 2 RCA jacks, unbalanced stereo combined to mono |
Input Level: | -10 dBV, +22 dBu max |
Format-A Signal Pair Used: | Switch-selectable A, B, or C (rear-panel switch) |
Format-A Input: | RJ45 TP CABLE |
Ouput: | RJ45 TP CABLE, RDL TP Format-A |
Frequency Response: | 20 Hz to 20 kHz (۪.5 dB) |
THD: | < 0.1% (50 Hz to 20 kHz) ɘ.001% (1 kHz typ) |
Power Requirement: | Passive |

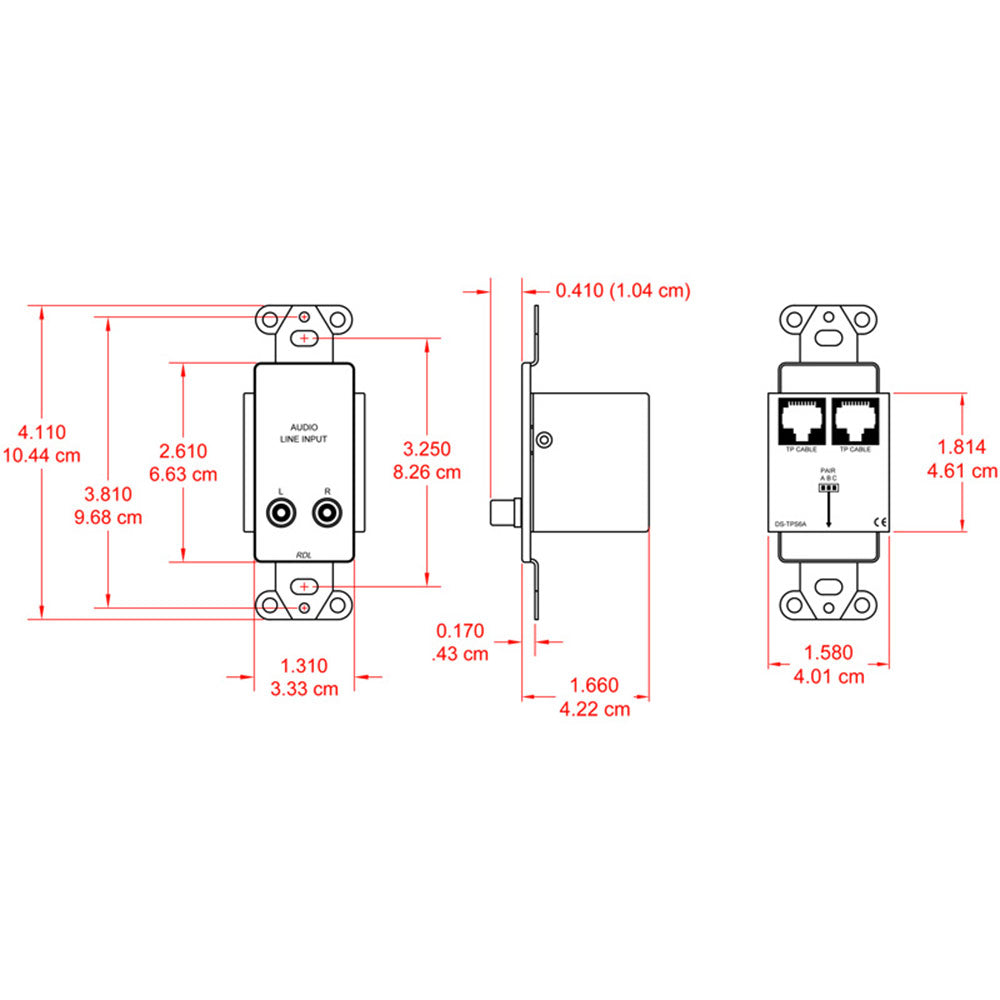

Dimensions: | 1.6 (4.06 cm) W 4.11 (10.45 cm) H 1.89 (4.8 cm) D |
