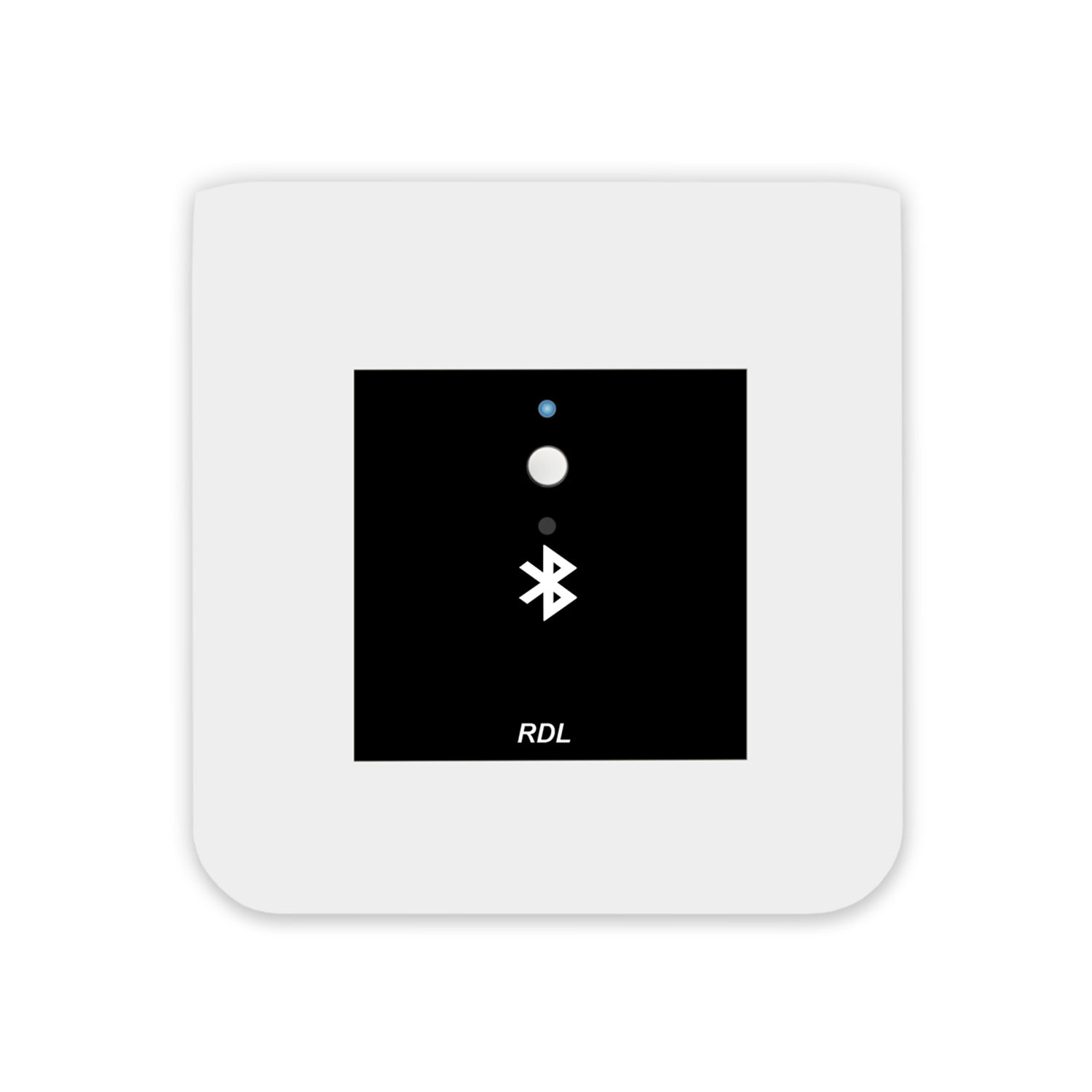

RDL EU-BTN21 - Bluetooth Audio Dante Network Interface
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The EU-BTN21 modules are Dante or AES67 networked, wall-mounted audio interfaces that provide bidirectional Bluetooth audio. The modules are configurable using RDL CONSOLE software. The module multicasts Bluetooth media data and module function status for use with RDL CONSOLE software and other compatible software. Stereo or summed mono audio is available to users through two Dante network channels. Stereo or mono audio may be selected using RDL CONSOLE software or by remote control commands. One Dante channel may be routed back to a connected device through the Bluetooth interface enabling full duplex communication.
The installer can customize the module Bluetooth name using RDL CONSOLE software. The default module name is EU_BTN21_G2. Additional settings include the LED dim intensity and the timeout to dim the LEDs. The default timeout is 30 seconds.
The EU-BTN21 modules are PoE-powered.
High performance, simplicity of operation and efficiency of installation make RDL the best value in professional Bluetooth interfaces. Note: Black cover plate not included.
Features:
- Bluetooth Audio Input for Dante or AES67 Networked System
- Bluetooth Stereo or Mono Sum Feeds Two Network Channels
- Return Audio Talk Channel from Dante Network to Bluetooth-Connected Device
- Intuitive Single Button Bluetooth Pairing with LED Status Indication
- Bluetooth Functions are Controllable in RDL CONSOLE Software
- Q-SYS Plug-In Available for Configuring in Q-SYS Environment
- Controllable Functions Include Pairing/Un-pairing, Media Source Track Selection and Level
- Bluetooth Track Title and Artist Data are Multicast on the Network to Compatible Devices
- Customize the Module ID Name, Settings and Mono/Stereo Mode using RDL CONSOLE Software
- White Faceplate Laminate is Installed, Field-Replaceable Black Laminate Included
- European 45 mm x 45 mm Chassis Fits in a Standard 60 mm Deep EU Junction Box
- Module is PoE Powered
| Network Connector: | RJ45 with Link and Speed indicators |
| Digital Audio Ethernet Protocol: | Dante or AES67 |
| Transmission Rate: | 100 Mbps |
| Sample Rates Supported: | 48 kHz |
| Bit Depth Supported: | 24 bits |
| Audio Operating Levels: | -20 dBFS = +4 dBu (balanced); -20 dBFS = -10 dBV (unbalanced), nominal |
| Common | |
| Indicators (Front Panel): | Bluetooth®, Network Sync |
| Power Connection: | PoE (RJ45) |
| Ambient Operating Environment: | 0° C to 40° C |
| Power Requirements: | PoE |
| PoE: | Class 0, IEEE 802.3af |
| Dimensions: | 1.77” (4.50 cm) W; 1.77” (4.50 cm) H; 1.86” (4.73 cm) D |
| Package Type: | Cardboard Box |
| Package Dimensions: | 2.25 x 4.3 x 4.9 in. |
| Shipping Weight: | 0.520lb. |
| WEEE weight: | 0.375 lbs. |
| US Tariff Code: | 8543.70.9100 |
| EU Tariff Code: | 85437006 |
