Description

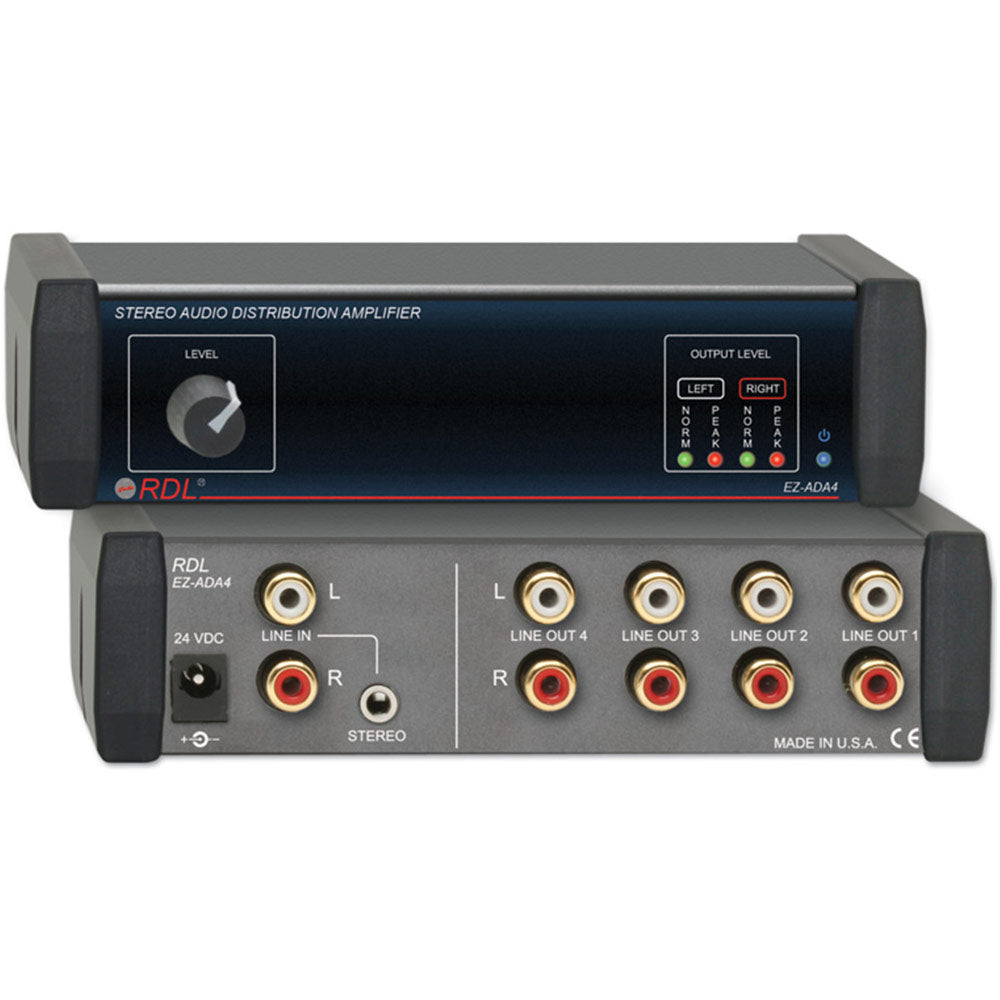

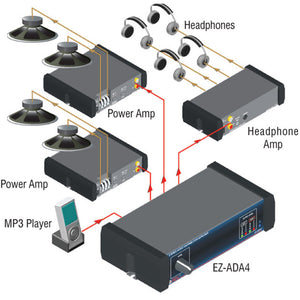

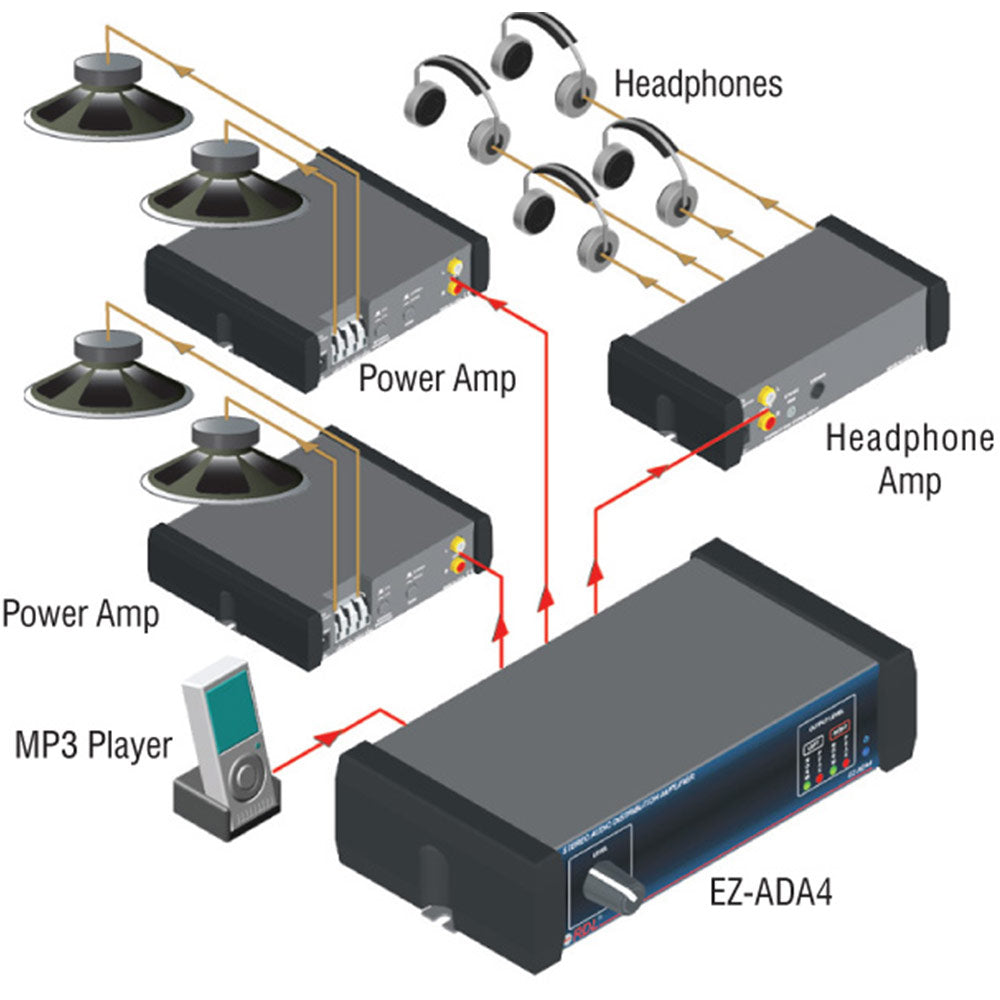

The EZ-ADA4 is a stereo audio distribution amplifier with gain adjustment and audio level metering. The input is connected through RCA jacks or a MINI jack. A front-panel knob adjusts for high or low input levels using the left and right channel LED VU meters. Four stereo outputs are provided on RCA jacks. The EZ-ADA4 is used in stores, houses of worship, restaurants, clubs, security systems and commercial A/V systems.
-
Features:
- One Stereo Input to Four Stereo Outputs
- Unbalanced Inputs on MINI or RCA Jacks
- Unbalanced Outputs on RCA Jacks
- Inputs and Outputs on Rear Panel
- Front-Panel LEVEL Control
- Dual-LED VU Meter for Each Channel
- Gold-Plated Connectors
- Front-Panel Stereo Audio Metering
- Knob for Easy Level Adjustment
Inputs (2): | Stereo on dual RCA jacks or stereo mini jack,> 10 k, dBV nominal, +22 dBV max. |
Level control: | Off to 12 dB gain above nominal |
Outputs (4): | Stereo on dual RCA jacks, dBV nominal, +16 dBV max. |
Frequency Response: | 10 Hz to 20 kHz (۪.01 dB) |
THD+N: | < 0.03% |
Crosstalk: | < dB (1 kHz) |
Metering: | Dual-LED VU Meter for Left and Right, calibrated to -10 dBV output |
Noise: | < dB (below dBV output) |
24 Vdc power supply current: | 20 mA (idle), 60 mA (max.) |

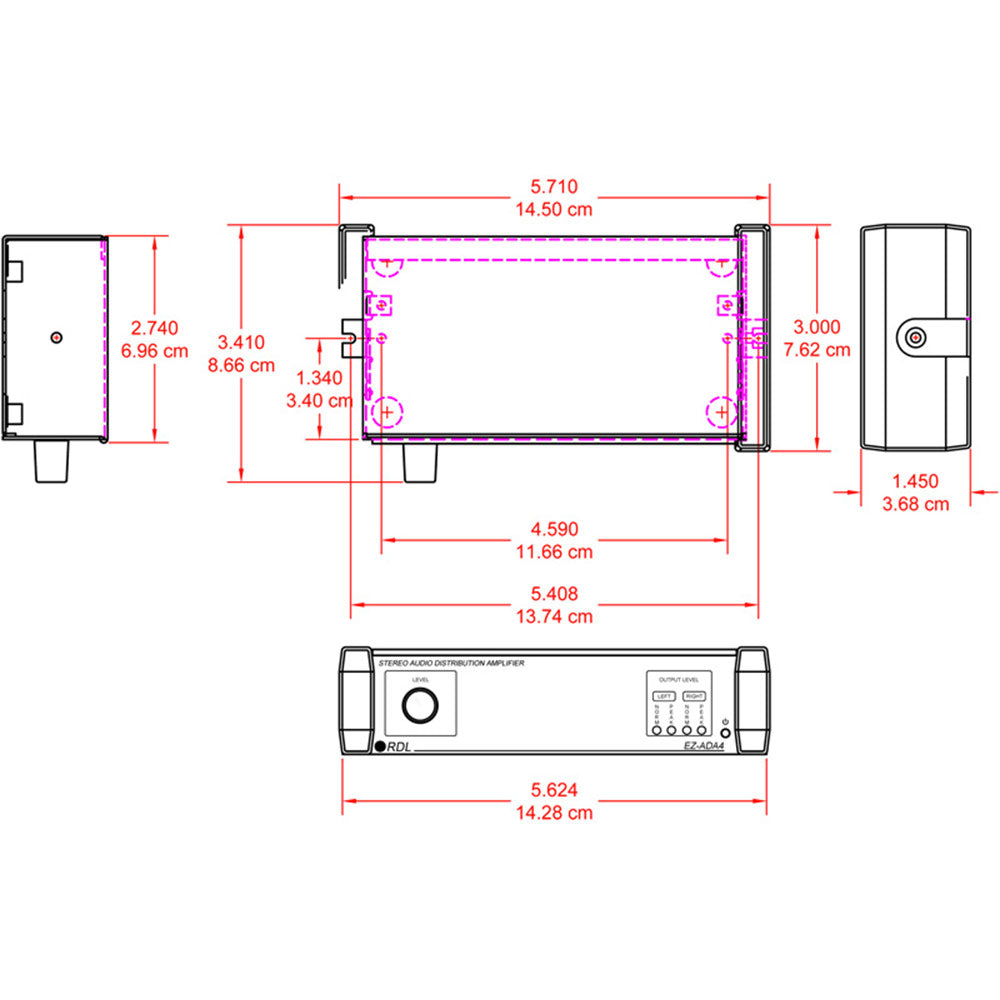

Case dimensions: | 5.75 (14.6 cm)W x 3 (7.6 cm)D |
Mounting size: | ⅓ rack width. |
The EZ-ADA4 is a stereo audio distribution amplifier with gain adjustment and audio level metering. The input is connected through RCA jacks or a MINI jack. A front-panel knob adjusts for high or low input levels using the left and right channel LED VU meters. Four stereo outputs are provided on RCA jacks. The EZ-ADA4 is used in stores, houses of worship, restaurants, clubs, security systems and commercial A/V systems.
-
Features:
- One Stereo Input to Four Stereo Outputs
- Unbalanced Inputs on MINI or RCA Jacks
- Unbalanced Outputs on RCA Jacks
- Inputs and Outputs on Rear Panel
- Front-Panel LEVEL Control
- Dual-LED VU Meter for Each Channel
- Gold-Plated Connectors
- Front-Panel Stereo Audio Metering
- Knob for Easy Level Adjustment
Inputs (2): | Stereo on dual RCA jacks or stereo mini jack,> 10 k, dBV nominal, +22 dBV max. |
Level control: | Off to 12 dB gain above nominal |
Outputs (4): | Stereo on dual RCA jacks, dBV nominal, +16 dBV max. |
Frequency Response: | 10 Hz to 20 kHz (۪.01 dB) |
THD+N: | < 0.03% |
Crosstalk: | < dB (1 kHz) |
Metering: | Dual-LED VU Meter for Left and Right, calibrated to -10 dBV output |
Noise: | < dB (below dBV output) |
24 Vdc power supply current: | 20 mA (idle), 60 mA (max.) |
Case dimensions: | 5.75 (14.6 cm)W x 3 (7.6 cm)D |
Mounting size: | ⅓ rack width. |
