RDL EZ-AFC2 Audio Format Converter - Stereo Balanced to Unbalanced
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

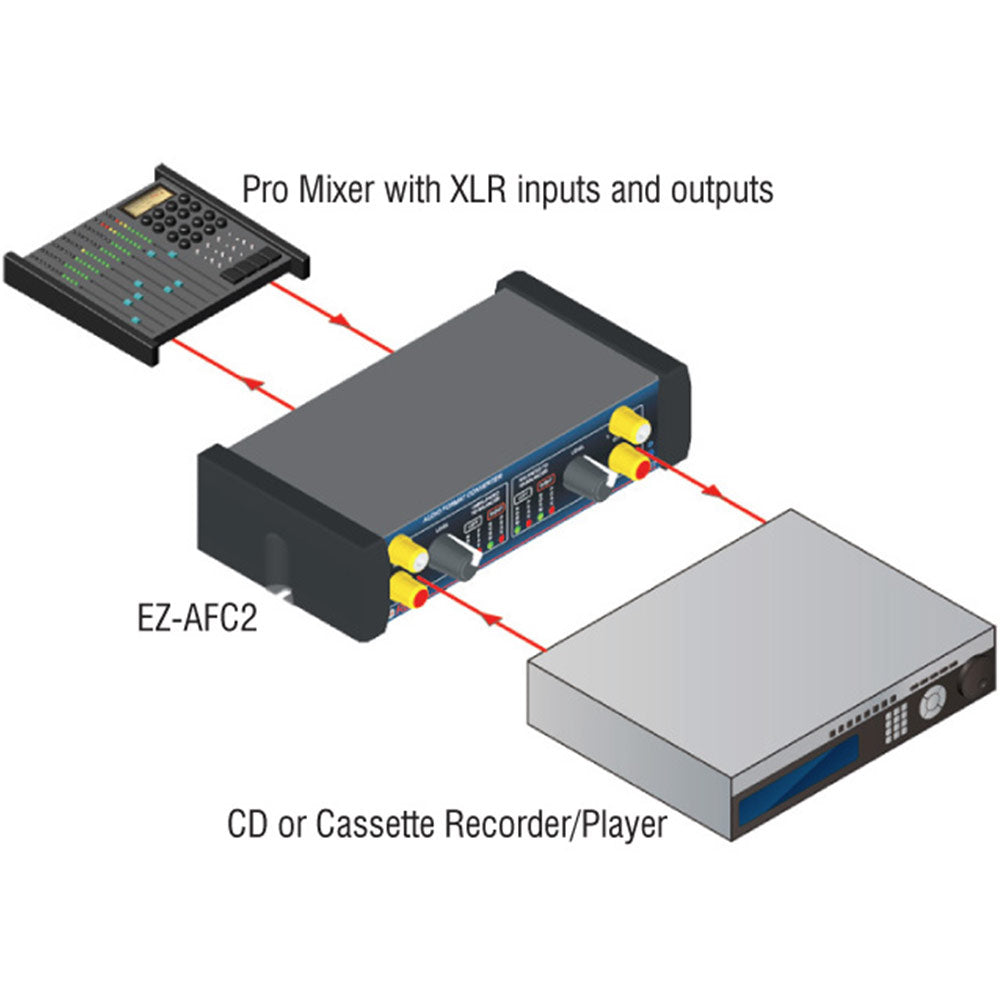

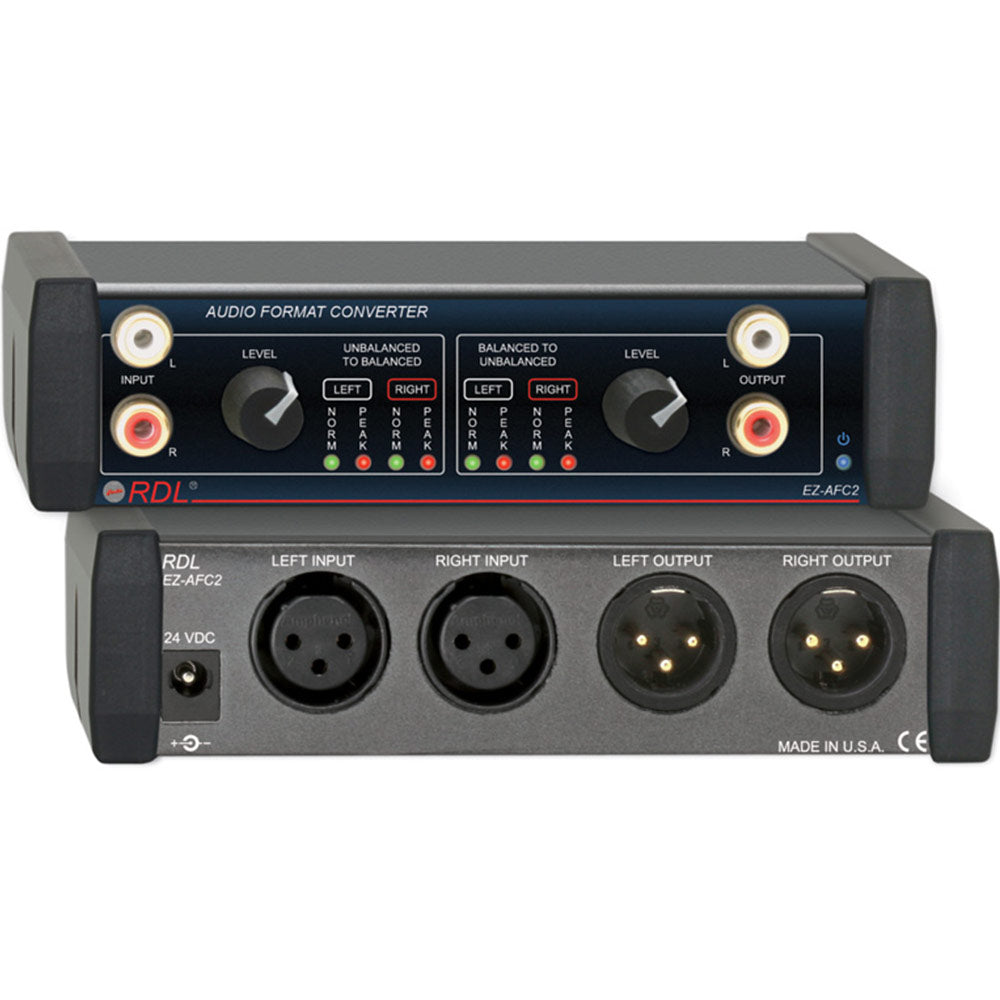

The EZ-AFC2 is a stereo bi-directional audio format converter with level controls. Conversion is provided between balanced rear-panel XLR jacks and unbalanced front-panel RCA jacks. LED VU metering is provided for all audio channels facilitating adjustment for high or low input levels. The bi-directional format allows the EZ-AFC2 to fully convert the stereo input and stereo output of a consumer audio product to professional balanced standards. The EZ-AFC2 is used in houses of worship, studios, sound booths, home component systems and commercial sound systems.
-
Features:
- Unbalanced to Balanced Audio Conversion
- Balanced to Unbalanced Audio Conversion
- Unbalanced RCA Connections on Front Panel
- Balanced XLR Connections on Rear Panel
- Front-Panel LEVEL Controls
- Gold-Plated Connectors
- Front-Panel Stereo Audio Metering
- Knob for Easy Level Adjustment
- Exceptional Headroom and Frequency Response
- Dual-LED VU Meter for Each Channel
| UNBALANCED TO BALANCED SECTION | |
| Input: | Stereo on dual RCA jacks,> 10 k, -10 dBV nominal, +16 dBV max. |
| Level control: | Off to 12 dB gain above nominal |
| Output: | Stereo on dual XLR jacks, +4 dBu nominal, +26 dBu max. |
| Frequency Response: | 10 Hz to 50 kHz (۪.01 dB) |
| THD+N: | < 0.01% |
| Metering: | Dual-LED VU Meter for Left and Right, calibrated to +4 dBu output |
| Crosstalk: | < 75 dB (1 kHz) |
| Noise: | < -85 dB (below +4 dBu output). |
| BALANCED TO UNBALANCED SECTION | |
| Input: | Stereo on dual XLR jacks, +4 dBu nominal, +26 dBu max. |
| Level control: | Off to 12 dB gain above nominal |
| Output: | Stereo on dual RCA jacks, -10 dBV nominal, +17 dBV max. |
| Frequency Response: | 10 Hz to 50 kHz (۪.01 dB) |
| THD+N: | < 0.003% |
| Crosstalk: | < 80 dB (1 kHz) |
| CMRR: | > 50 dB (50 Hz to 120 Hz) |
| Metering: | Dual-LED VU Meter for Left and Right, calibrated to -10 dBV output |
| Noise: | < -75 dB (below +4 dBu output) |
| 24 Vdc power supply current: | 45 mA (idle), 90 mA (max.) |

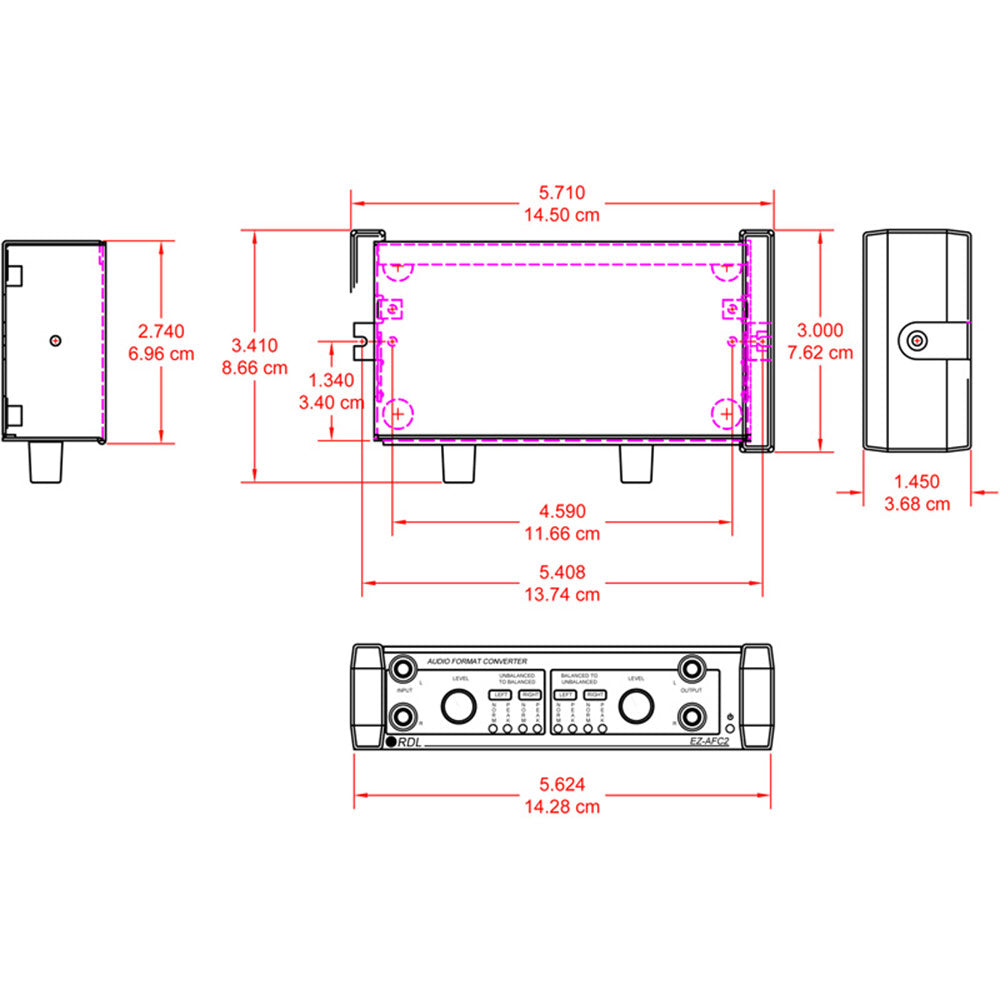

| Case dimensions: | 5.75 (14.6 cm)W x 3 (7.6 cm)D |
| Mounting size: | 1/3 rack width. |
