RDL EZ-HK1 Stereo Audio Hum Killer / Eliminator
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

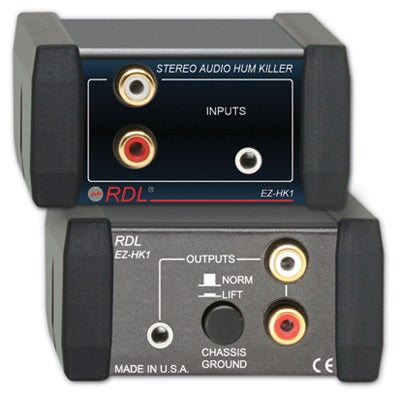

The EZHK1 is a superior-quality stereo audio transformer isolation module for use with unbalanced, high impedance audio inputs. Input and output connections are provided on gold-plated RCA jacks. The shield connection of each INPUT jack is electrically isolated from the case and from the output ground. The shield connection of each OUTPUT jack is connected to the case shield through a rear-panel ground-lift switch. The EZ-HK1 eliminates hum due to ground loops when it is installed between an unbalanced audio source, such as a computer, CD player, cassette player or other consumer audio product, and the input of a grounded amplifier in an audio system.
Features:- Audio Ground-Loop Hum Elimination
- Unbalanced Stereo Galvanic Isolation
- Inputs and Outputs on RCA and Mini Jacks
- Switch-Selectable Ground Lift for Output Jacks
- Portable Use or Permanent Installation
- Gold-Plated RCA Connectors
- Conversion between Mini-jack and RCA formats
- Ground-Lift Switch
| Inputs (2) | Stereo on RCA Phono jacks, Stereo Mini-jack, -10 dBV nominal, ground-isolated |
| Input Impedance | 10 kΩ |
| Outputs (2) | Stereo on RCA Phono jacks, Stereo Mini-jack, -10 dBV nominal |
| Output Impedance | 10 kΩ |
| Output Ground Isolation | Switch-selectable |
| Gain | Unity nominal (passive circuit) |
| Frequency Response | 20 Hz to 20 kHz (+/- 1 dB) |
| Total Harmonic Distortion | <0.05% (1 kHz) |
| Crosstalk | <-75 dB (20 Hz to 10 kHz), <-65 dB (10 kHz to 20 kHz) |

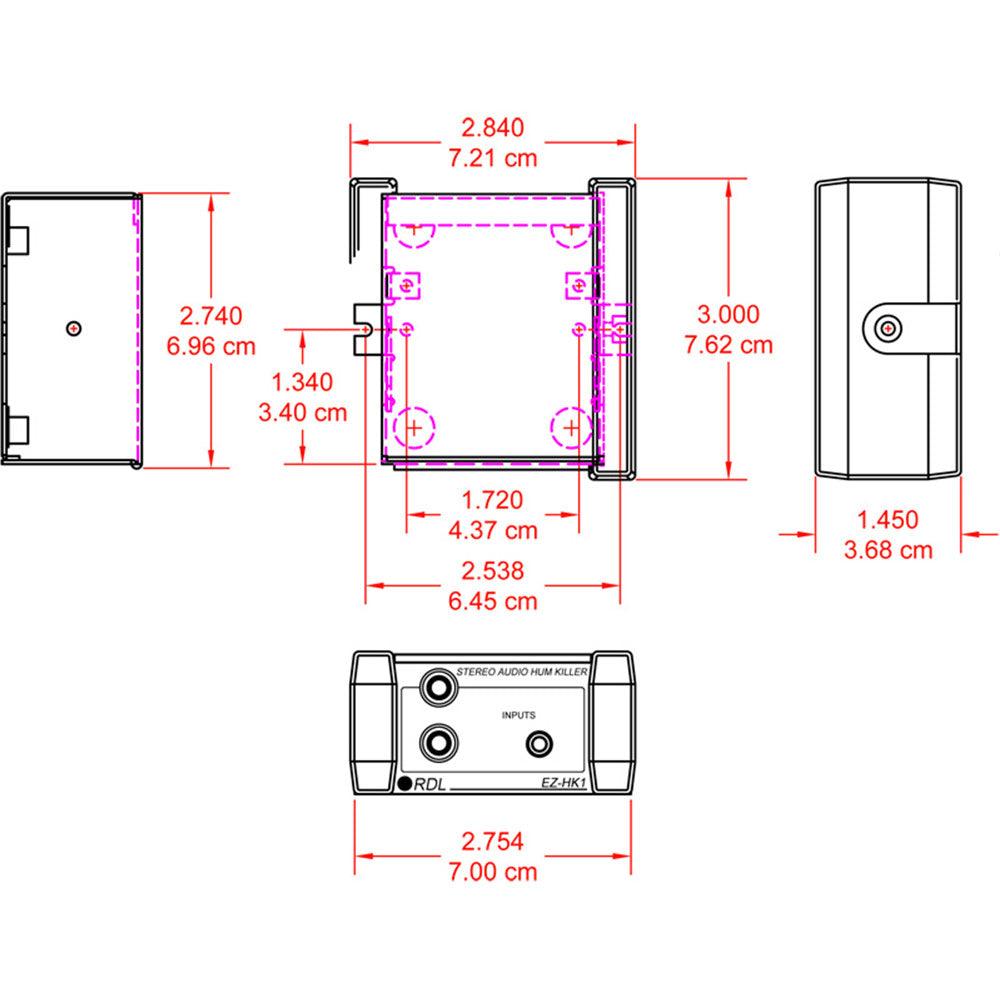

| Case dimensions | 2.9Ó (7.4 cm)W x 3Ó (7.6 cm)D |
| Mounting size | 1/6 rack width |
The EZHK1 is a superior-quality stereo audio transformer isolation module for use with unbalanced, high impedance audio inputs. Input and output connections are provided on gold-plated RCA jacks. The shield connection of each INPUT jack is electrically isolated from the case and from the output ground. The shield connection of each OUTPUT jack is connected to the case shield through a rear-panel ground-lift switch. The EZ-HK1 eliminates hum due to ground loops when it is installed between an unbalanced audio source, such as a computer, CD player, cassette player or other consumer audio product, and the input of a grounded amplifier in an audio system.
Features:- Audio Ground-Loop Hum Elimination
- Unbalanced Stereo Galvanic Isolation
- Inputs and Outputs on RCA and Mini Jacks
- Switch-Selectable Ground Lift for Output Jacks
- Portable Use or Permanent Installation
- Gold-Plated RCA Connectors
- Conversion between Mini-jack and RCA formats
- Ground-Lift Switch
| Inputs (2) | Stereo on RCA Phono jacks, Stereo Mini-jack, -10 dBV nominal, ground-isolated |
| Input Impedance | 10 kΩ |
| Outputs (2) | Stereo on RCA Phono jacks, Stereo Mini-jack, -10 dBV nominal |
| Output Impedance | 10 kΩ |
| Output Ground Isolation | Switch-selectable |
| Gain | Unity nominal (passive circuit) |
| Frequency Response | 20 Hz to 20 kHz (+/- 1 dB) |
| Total Harmonic Distortion | <0.05% (1 kHz) |
| Crosstalk | <-75 dB (20 Hz to 10 kHz), <-65 dB (10 kHz to 20 kHz) |
| Case dimensions | 2.9Ó (7.4 cm)W x 3Ó (7.6 cm)D |
| Mounting size | 1/6 rack width |
