RDL EZ-HK2 Composite Video Hum Killer / Eliminator
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The EZ-HK2 is a superior-quality video transformer isolation module for use with standard 75 ohm composite video. Input and output connections are provided on gold-plated RCA jacks
Features:
- Video Ground-Loop Hum Elimination 75 Ohm Composite Video Galvanic Isolation
- Input and Output RCA Jacks
- Switch-Selectable Ground Lift for Output Jacks
- Portable Use or Permanent Installation

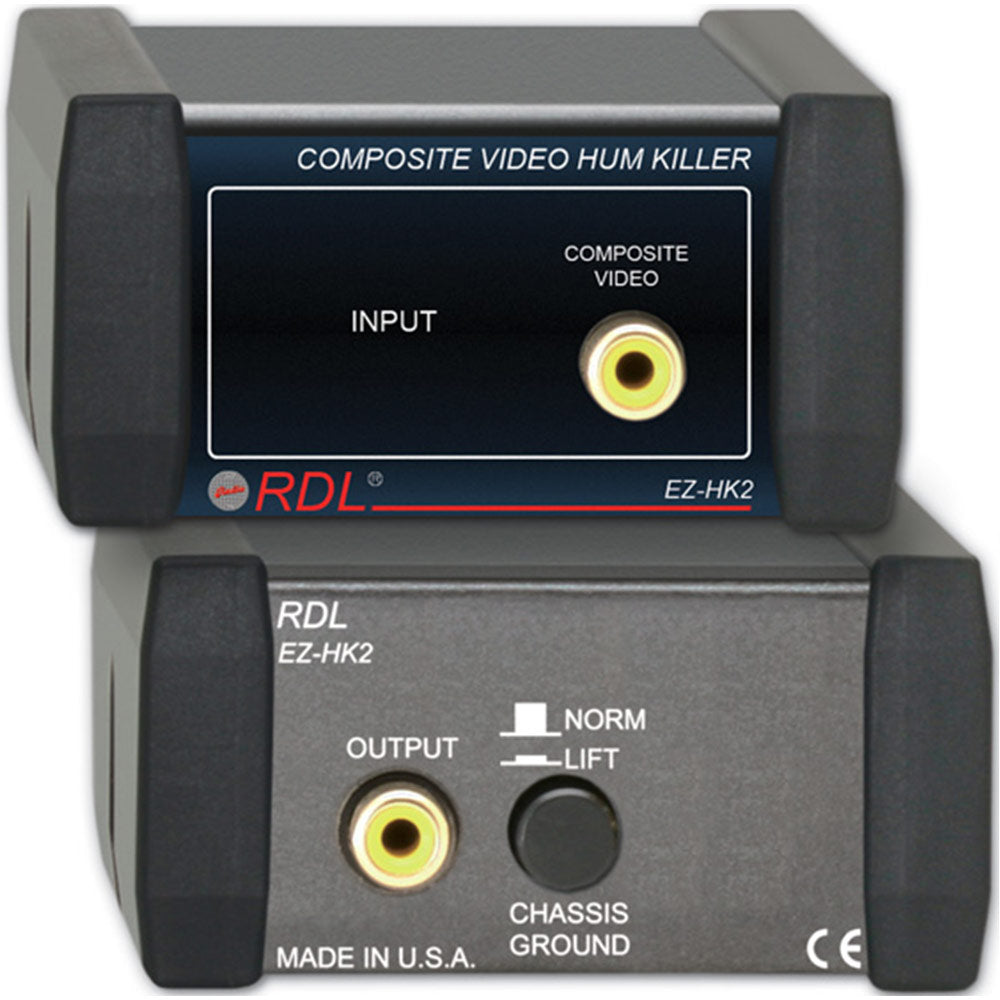

The shield connection of the INPUT jack is electrically isolated from the case and from the output ground. The shield connection of the OUTPUT jack is connected to the case shield through a rear-panel ground-lift switch.
Additional Features:
- Gold-Plated Connectors
- Ground-Lift Switch
- Excellent low and high video frequency response
| Input | Composite Video, 1 V p-p nominal, ground-isolated |
| Input Impedance | 75 Ω |
| Input / Output Connectors | RCA Phono |
| Output | Composite Video, 1 V p-p nominal |
| Output Impedance | 75 Ω |
| Output Ground Isolation | Switch-selectable |
| Gain | Unity nominal (passive circuit) |
| Video Bandwidth | 40 Hz to>5 MHz |

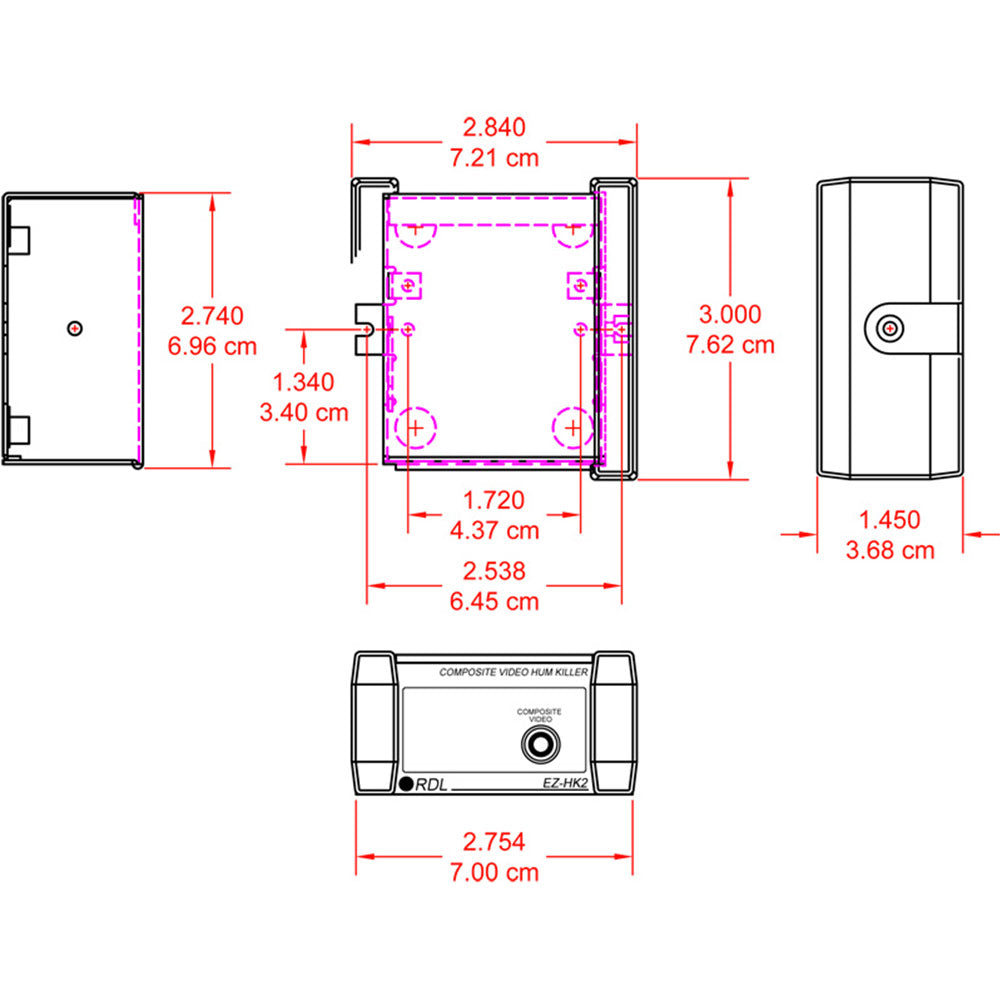

| Case dimensions | 2.9Ó (7.4 cm)W x 3Ó (7.6 cm)D |
| Mounting size | 1/6 rack width |
The EZ-HK2 is a superior-quality video transformer isolation module for use with standard 75 ohm composite video. Input and output connections are provided on gold-plated RCA jacks
Features:
- Video Ground-Loop Hum Elimination 75 Ohm Composite Video Galvanic Isolation
- Input and Output RCA Jacks
- Switch-Selectable Ground Lift for Output Jacks
- Portable Use or Permanent Installation
The shield connection of the INPUT jack is electrically isolated from the case and from the output ground. The shield connection of the OUTPUT jack is connected to the case shield through a rear-panel ground-lift switch.
Additional Features:
- Gold-Plated Connectors
- Ground-Lift Switch
- Excellent low and high video frequency response
| Input | Composite Video, 1 V p-p nominal, ground-isolated |
| Input Impedance | 75 Ω |
| Input / Output Connectors | RCA Phono |
| Output | Composite Video, 1 V p-p nominal |
| Output Impedance | 75 Ω |
| Output Ground Isolation | Switch-selectable |
| Gain | Unity nominal (passive circuit) |
| Video Bandwidth | 40 Hz to>5 MHz |
| Case dimensions | 2.9Ó (7.4 cm)W x 3Ó (7.6 cm)D |
| Mounting size | 1/6 rack width |
