Description

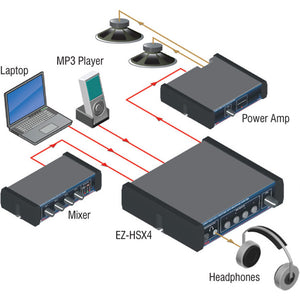

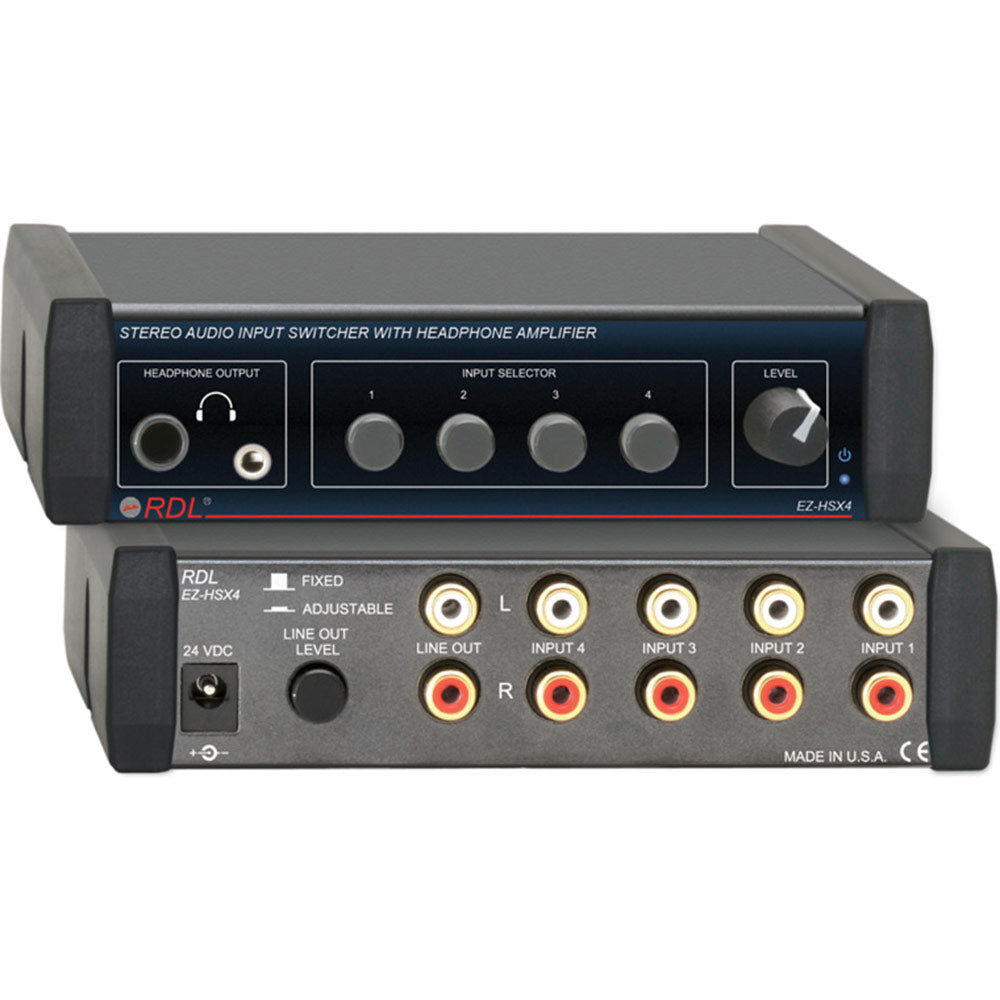

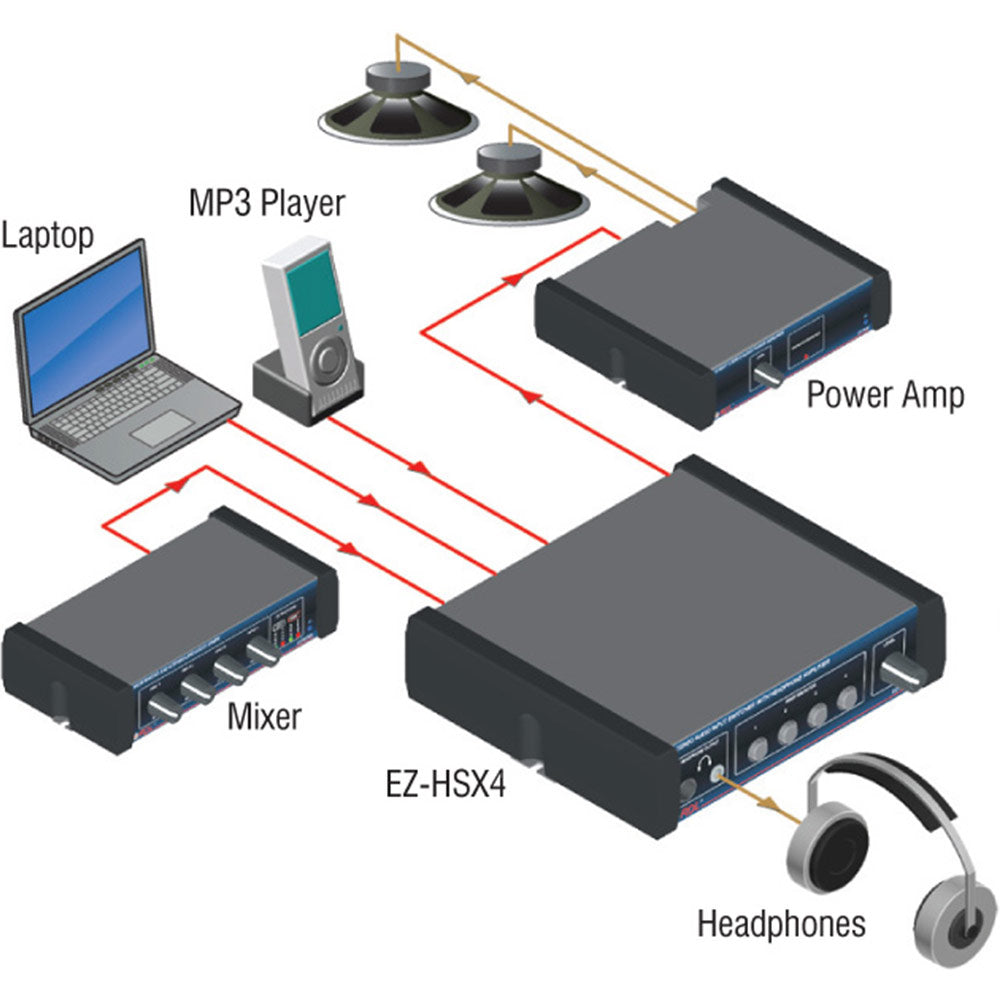

The EZ-HSX4 is a stereo audio source selector with an output volume control. Line-level and headphone outputs are provided. This unit is ideal as a four input headphone amplifier and as a source selector feeding an associated audio amplifier. The EZ-HSX4 is used in stores, houses of worship, studios, sound booths, home component systems and commercial sound systems.
-
Features:
- Four Input Source Selection
- Unbalanced Stereo Audio Inputs and Output
- Inputs and Line Output on Rear-Panel RCA Jacks
- Line Output Switchable Fixed (Unity Gain) or Variable
- Variable Output Follows Front-Panel Level Control
- Headphone Output on 1/4 (6.3 mm) and MINI Jacks
- Headphone Output Follows Front-Panel Level Control
- Full-Size Interlocking Pushbuttons on Front Panel
- Easy-to-Push Large Buttons
- Solid-State Audio Switching
- Switch Noise Cannot Affect Signal Quality
Inputs (4): | Stereo on dual RCA jacks,> 10 k, -10 dBV nominal, +10 dBV max. |
Level control: | Off to +12 dB gain |
Outputs (3): | Stereo on dual RCA jacks (line level, -10 dBV nominal, +10 dBV max. fixed, +17 dBV max. variable), 1/4 (6.3 mm) TRS or Mini jack (2 headphone, 35 mW, 100 load) |
Frequency Response: | 10 Hz to 20 kHz (line output ۪.05 dB, headphone output ۫.25 dB, 100 load) |
THD+N: | < 0.03% (line output), < 0.1% (headphone output, 10 mW, 100 load) |
Crosstalk: | < -70 dB (1 kHz) |
Noise: | < -100 dB (headphone, below 10 mW output, 100 load) |
Noise: | < -80 dB (variable output, below -10 dBV, unity gain), < -95 dB (fixed output, below -10 dBV) |
24 Vdc power supply current: | 40 mA (idle), 50 mA (max.) |

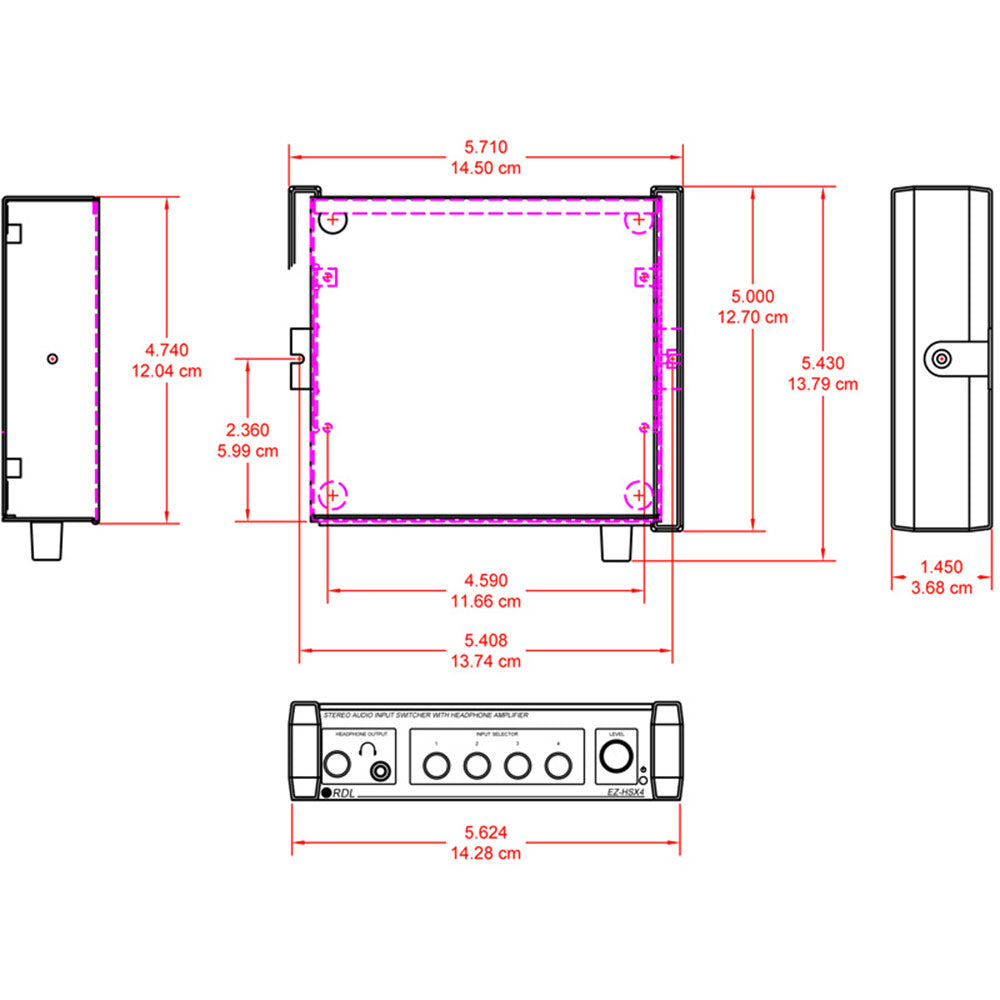

Case dimensions: | 5.75 (14.6 cm)W x 5 (12.7 cm)D |
Mounting size: | 1/3 rack width |
The EZ-HSX4 is a stereo audio source selector with an output volume control. Line-level and headphone outputs are provided. This unit is ideal as a four input headphone amplifier and as a source selector feeding an associated audio amplifier. The EZ-HSX4 is used in stores, houses of worship, studios, sound booths, home component systems and commercial sound systems.
-
Features:
- Four Input Source Selection
- Unbalanced Stereo Audio Inputs and Output
- Inputs and Line Output on Rear-Panel RCA Jacks
- Line Output Switchable Fixed (Unity Gain) or Variable
- Variable Output Follows Front-Panel Level Control
- Headphone Output on 1/4 (6.3 mm) and MINI Jacks
- Headphone Output Follows Front-Panel Level Control
- Full-Size Interlocking Pushbuttons on Front Panel
- Easy-to-Push Large Buttons
- Solid-State Audio Switching
- Switch Noise Cannot Affect Signal Quality
Inputs (4): | Stereo on dual RCA jacks,> 10 k, -10 dBV nominal, +10 dBV max. |
Level control: | Off to +12 dB gain |
Outputs (3): | Stereo on dual RCA jacks (line level, -10 dBV nominal, +10 dBV max. fixed, +17 dBV max. variable), 1/4 (6.3 mm) TRS or Mini jack (2 headphone, 35 mW, 100 load) |
Frequency Response: | 10 Hz to 20 kHz (line output ۪.05 dB, headphone output ۫.25 dB, 100 load) |
THD+N: | < 0.03% (line output), < 0.1% (headphone output, 10 mW, 100 load) |
Crosstalk: | < -70 dB (1 kHz) |
Noise: | < -100 dB (headphone, below 10 mW output, 100 load) |
Noise: | < -80 dB (variable output, below -10 dBV, unity gain), < -95 dB (fixed output, below -10 dBV) |
24 Vdc power supply current: | 40 mA (idle), 50 mA (max.) |
Case dimensions: | 5.75 (14.6 cm)W x 5 (12.7 cm)D |
Mounting size: | 1/3 rack width |
