RDL EZ-MX4L Stereo Line-Level Audio Mixer - 4X1
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

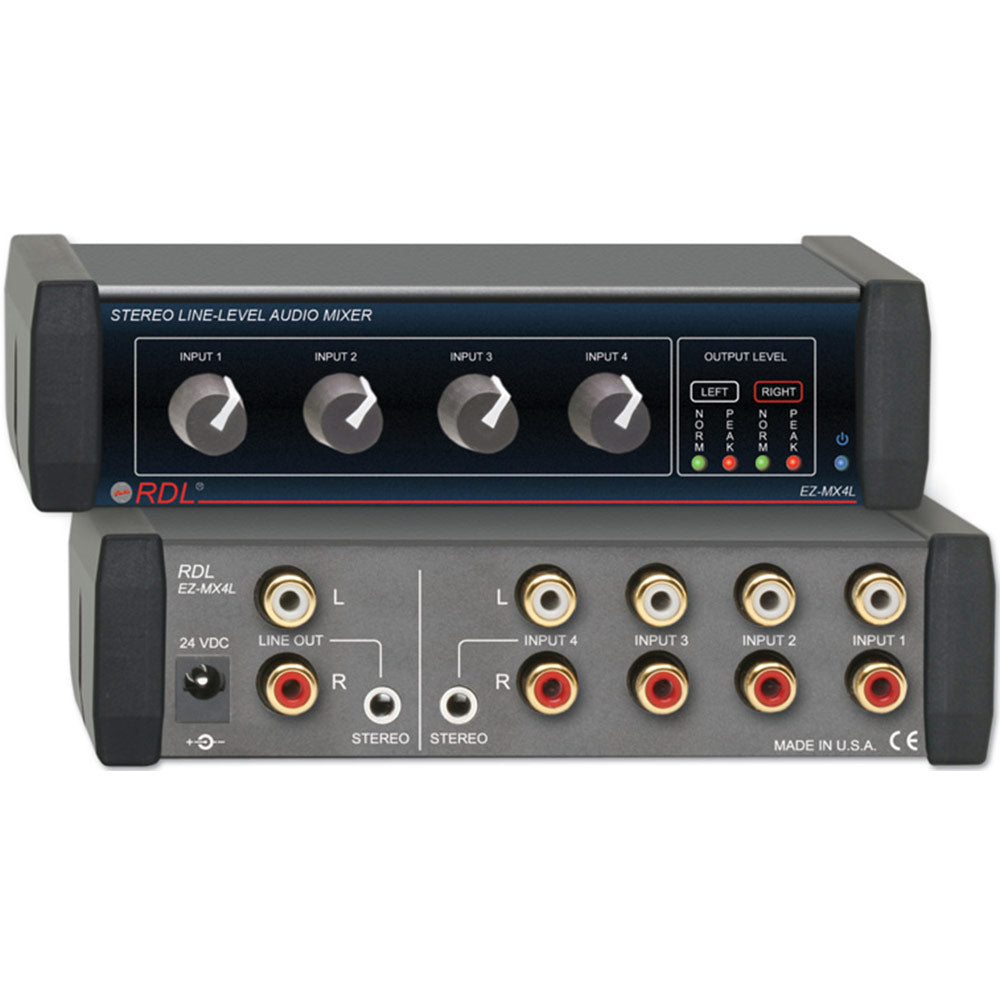

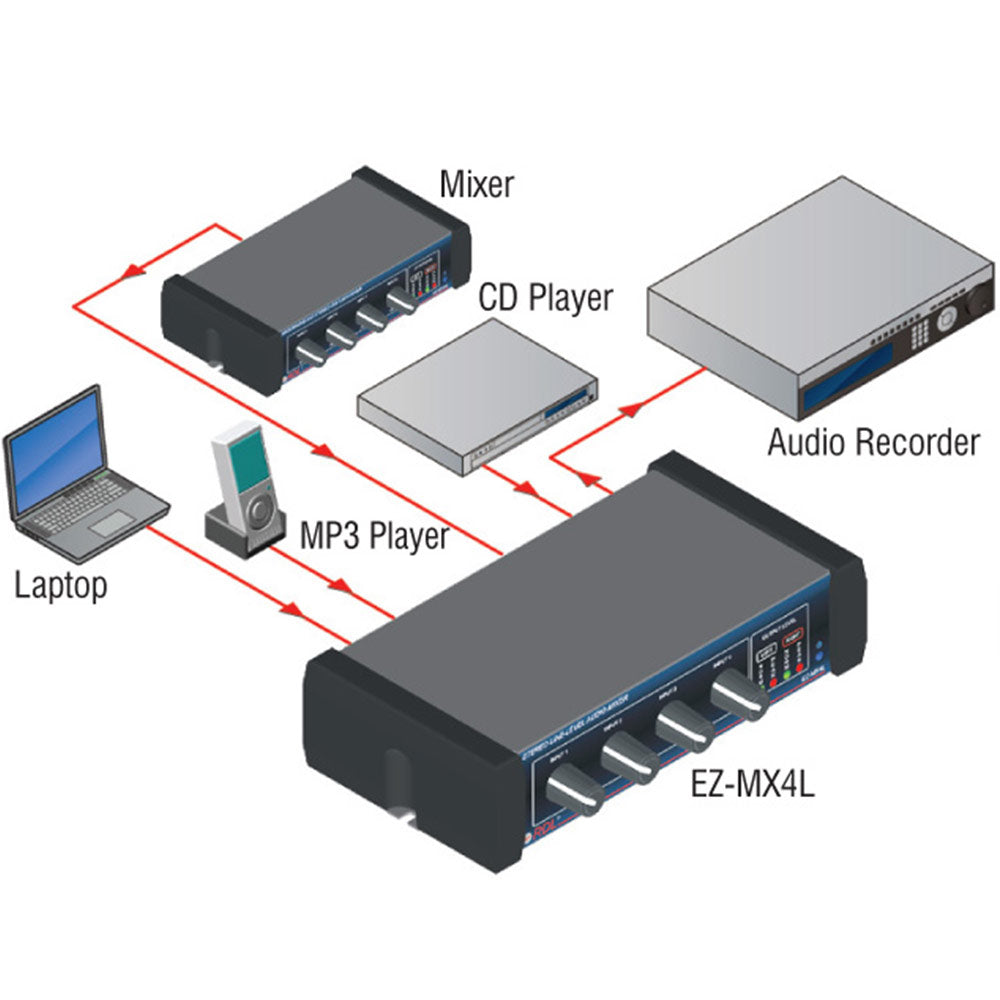

The EZ-MX4L is a stereo audio mixer with four line inputs. All line inputs connect through RCA jacks one also includes a MINI-jack input. Left and right channel LED VU metering facilitates easy level adjustment. The line output is available on stereo RCA jacks or on a MINI-jack. The EZ-MX4L is used in houses of worship, restaurants, clubs, meeting rooms, studios, home component systems and commercial sound systems.
-
Features:
- Four Channel Line-Level Audio Mixer
- Three Unbalanced Line Inputs on RCA Jacks
- One Line Input on MINI or RCA Jacks
- Unbalanced Output on MINI or RCA Jacks
- Dual-LED VU Meter for Each Channel
- Headroom Accomodates High Input Level
- Exceptional Headroom for an Unbalanced Mixer
- Gold Plated RCA Input and Output Jacks
- Audio VU Metering Facilitates Adjustment
| Inputs (5): | > 10 k, -10 dBV nominal on RCA jacks (4) or Mini Jack (1), +20 dBV max. |
| Level controls (4): | Off to 12 dB gain |
| Outputs (2): | -10 dBV nominal on RCA jacks (1) or Mini jack (1, stereo), +16 dBV max. |
| Frequency Response: | 10 Hz to 20 kHz (۪.01 dB, line) |
| THD+N: | < 0.05% |
| Crosstalk: | < -72 dB (1 kHz) |
| Metering: | Dual-LED VU Meter for Left and Right, calibrated to -10 dBV output |
| Noise: | < -85 dB (below -10 dBV output) |
| 24 Vdc power supply current: | 30 mA (idle), 60 mA (max.) |

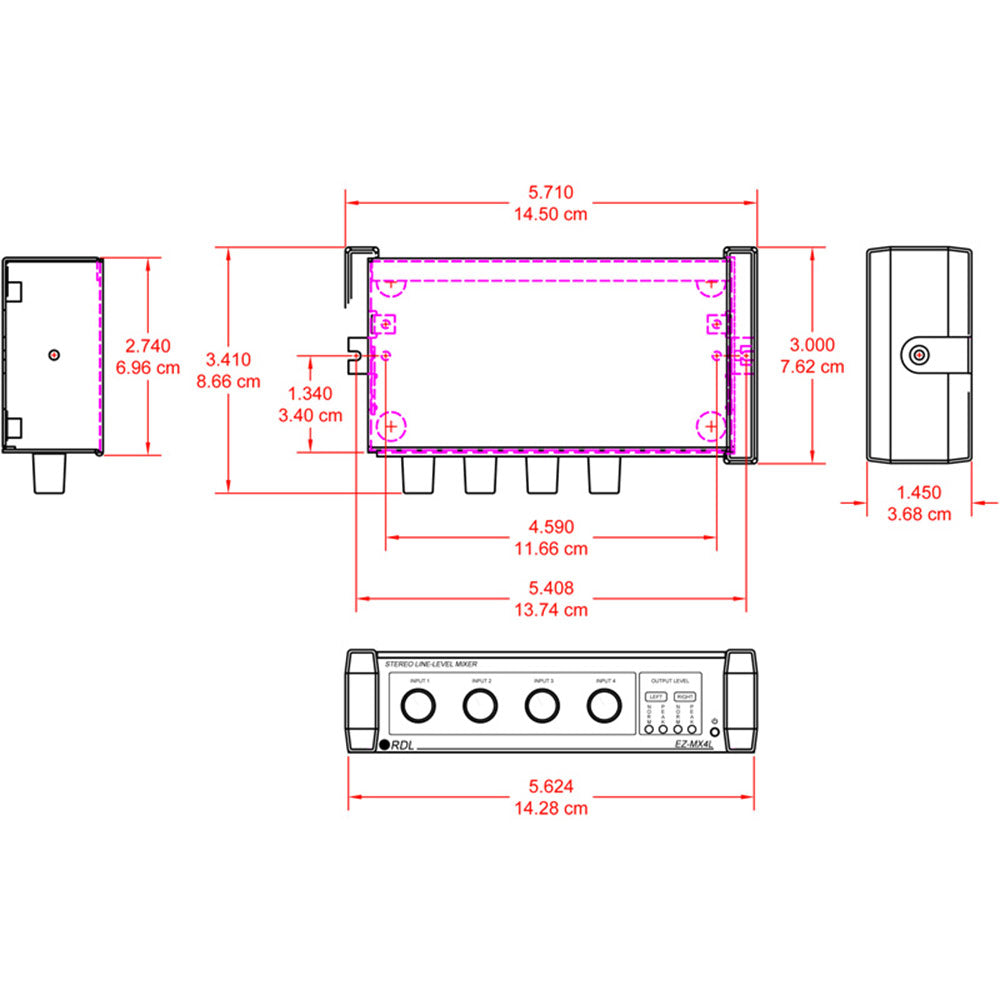

| Case dimensions: | 5.75 (14.6 cm)W x 3 (7.6 cm)D |
| Mounting size: | 1/3 rack width |
The EZ-MX4L is a stereo audio mixer with four line inputs. All line inputs connect through RCA jacks one also includes a MINI-jack input. Left and right channel LED VU metering facilitates easy level adjustment. The line output is available on stereo RCA jacks or on a MINI-jack. The EZ-MX4L is used in houses of worship, restaurants, clubs, meeting rooms, studios, home component systems and commercial sound systems.
-
Features:
- Four Channel Line-Level Audio Mixer
- Three Unbalanced Line Inputs on RCA Jacks
- One Line Input on MINI or RCA Jacks
- Unbalanced Output on MINI or RCA Jacks
- Dual-LED VU Meter for Each Channel
- Headroom Accomodates High Input Level
- Exceptional Headroom for an Unbalanced Mixer
- Gold Plated RCA Input and Output Jacks
- Audio VU Metering Facilitates Adjustment
| Inputs (5): | > 10 k, -10 dBV nominal on RCA jacks (4) or Mini Jack (1), +20 dBV max. |
| Level controls (4): | Off to 12 dB gain |
| Outputs (2): | -10 dBV nominal on RCA jacks (1) or Mini jack (1, stereo), +16 dBV max. |
| Frequency Response: | 10 Hz to 20 kHz (۪.01 dB, line) |
| THD+N: | < 0.05% |
| Crosstalk: | < -72 dB (1 kHz) |
| Metering: | Dual-LED VU Meter for Left and Right, calibrated to -10 dBV output |
| Noise: | < -85 dB (below -10 dBV output) |
| 24 Vdc power supply current: | 30 mA (idle), 60 mA (max.) |
| Case dimensions: | 5.75 (14.6 cm)W x 3 (7.6 cm)D |
| Mounting size: | 1/3 rack width |
