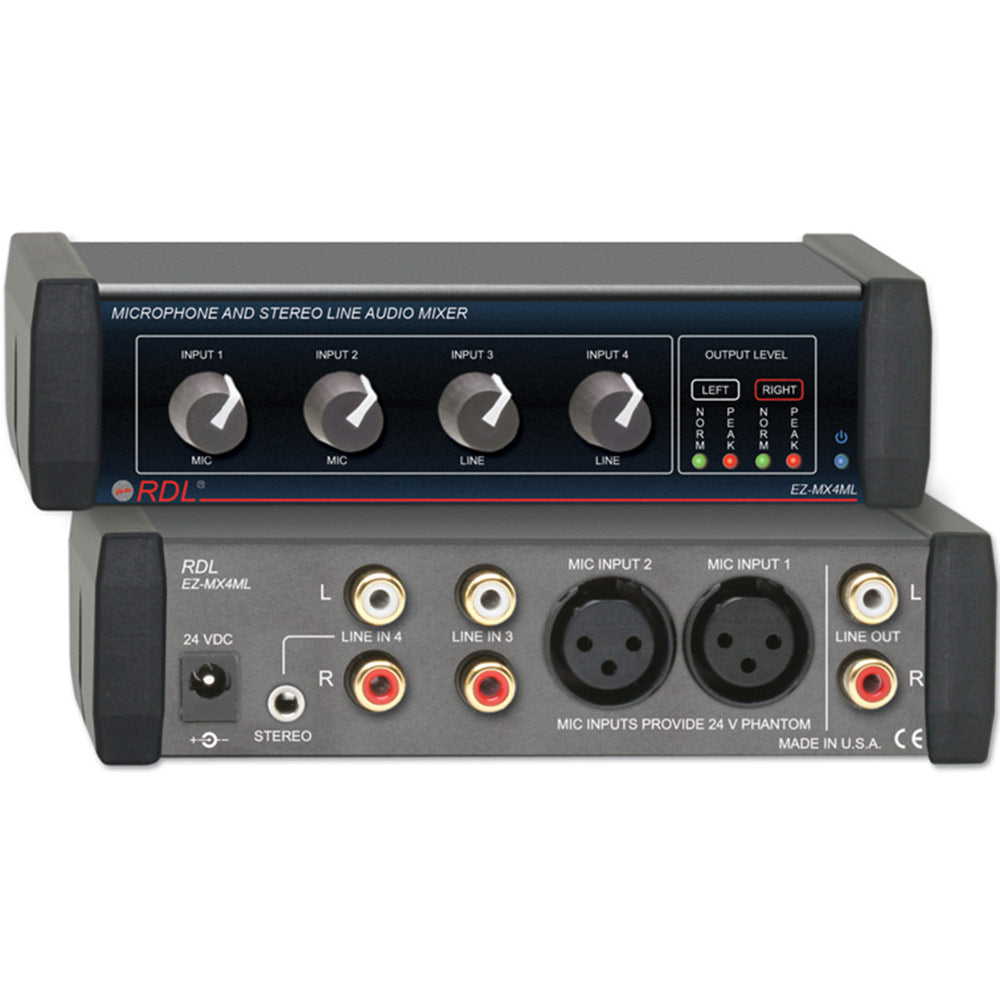

RDL EZ-MX4ML Mic and Stereo Line Audio Mixer - 4X1
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

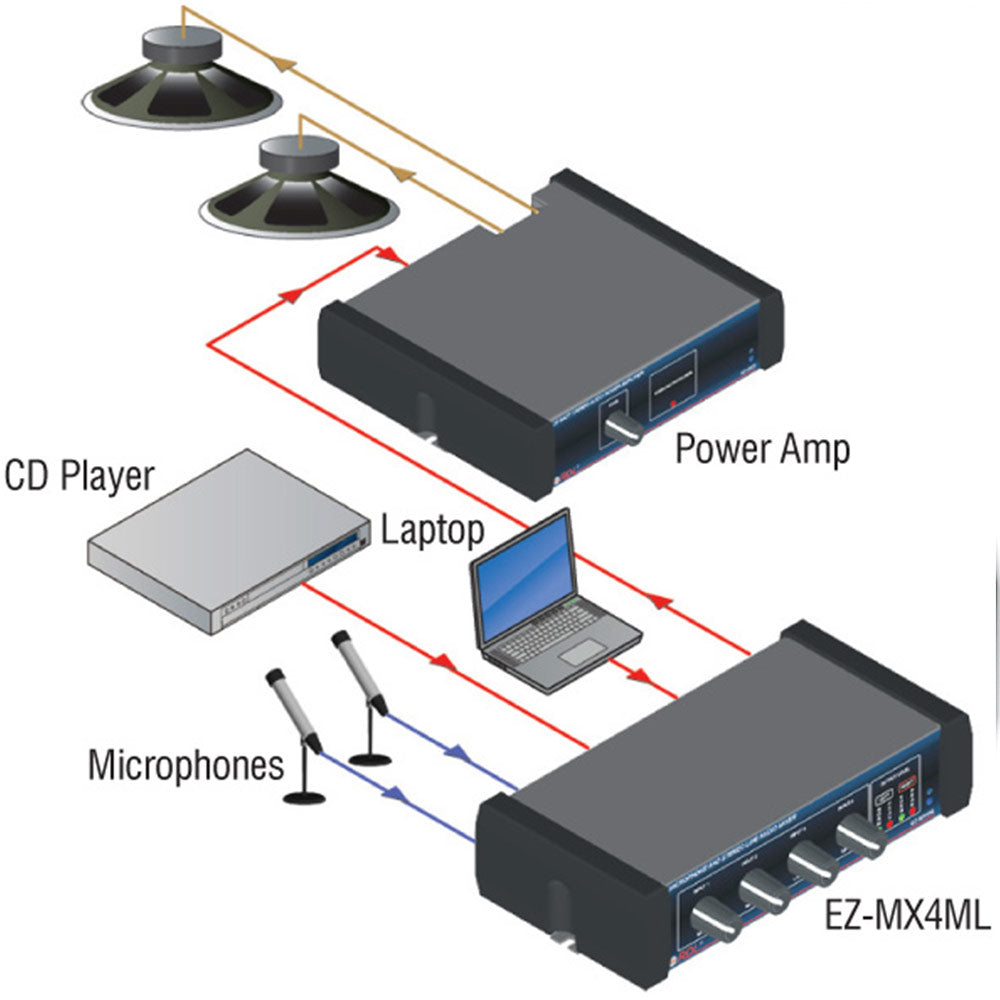

The EZ-MX4ML is a stereo audio mixer with two mic and two line inputs. Microphones connect through balanced XLR jacks that provide phantom voltage. Both line inputs connect through RCA jacks one also includes a MINI-jack input. Left and right channel LED VU metering facilitates easy level adjustment. The EZ-MX4ML is used in houses of worship, restaurants, clubs, meeting rooms, studios, broadcast and commercial sound systems.
-
Features:
- Four Input Mixer, Two Mic and Two Line Inputs
- Two Balanced Microphone Inputs on XLR
- One Unbalanced Line Input on RCA Jacks
- One Line Input on MINI or RCA Jacks
- Unbalanced Output on RCA Jacks
- Microphone Inputs Provide Phantom Voltage
- Dual-LED VU Meter for Each Channel
- Optimized for Dynamic or Condenser Mics
- Headroom Accomodates High Input Levels
- Mic Headroom Increases at Lower Gain Settings
- Gold Plated RCA Input and Output Jacks
| Mic inputs (2): | 1.2 k balanced on XLR jack, mic-level, -11 dBu max. |
| Line inputs (3): | > 10 k, -10 dBV nominal on RCA jacks, -10 dBV nominal on RCA jacks or Mini Jack, +20 dBV max. |
| Level controls (4): | Off to 50 dB gain (mic), Off to 12 dB gain (line) |
| Output: | -10 dBV nominal on RCA jacks or Mini jack (stereo), +16 dBV max. |
| Frequency Response: | 80 Hz to 40 kHz (۫ dB, mic input, -6 dB at 20 Hz with integral high-pass filter), 10 Hz to 20 kHz (۪.01 dB, line input) |
| THD+N: | < 0.1% (20 Hz to 20 kHz, -50 dBu mic input), < 0.05% (20 Hz to 20 kHz, line input) |
| Crosstalk: | < -72 dB (1 kHz) |
| CMRR: | > -55 dB (20 to 20 kHz, mic input) |
| Metering: | Dual-LED VU Meter for Left and Right, calibrated to -10 dBV output |
| Phantom: | 24 V (IEC 1938: 1996-12) |
| Noise: | < -65 dB (below -10 dBV output, -50 dBu mic input), < -75 dB (below -10 dBV output, line input) |
| 24 Vdc power supply current: | 50 mA (idle), 80 mA (max.), 100 mA (max. with phantom) |

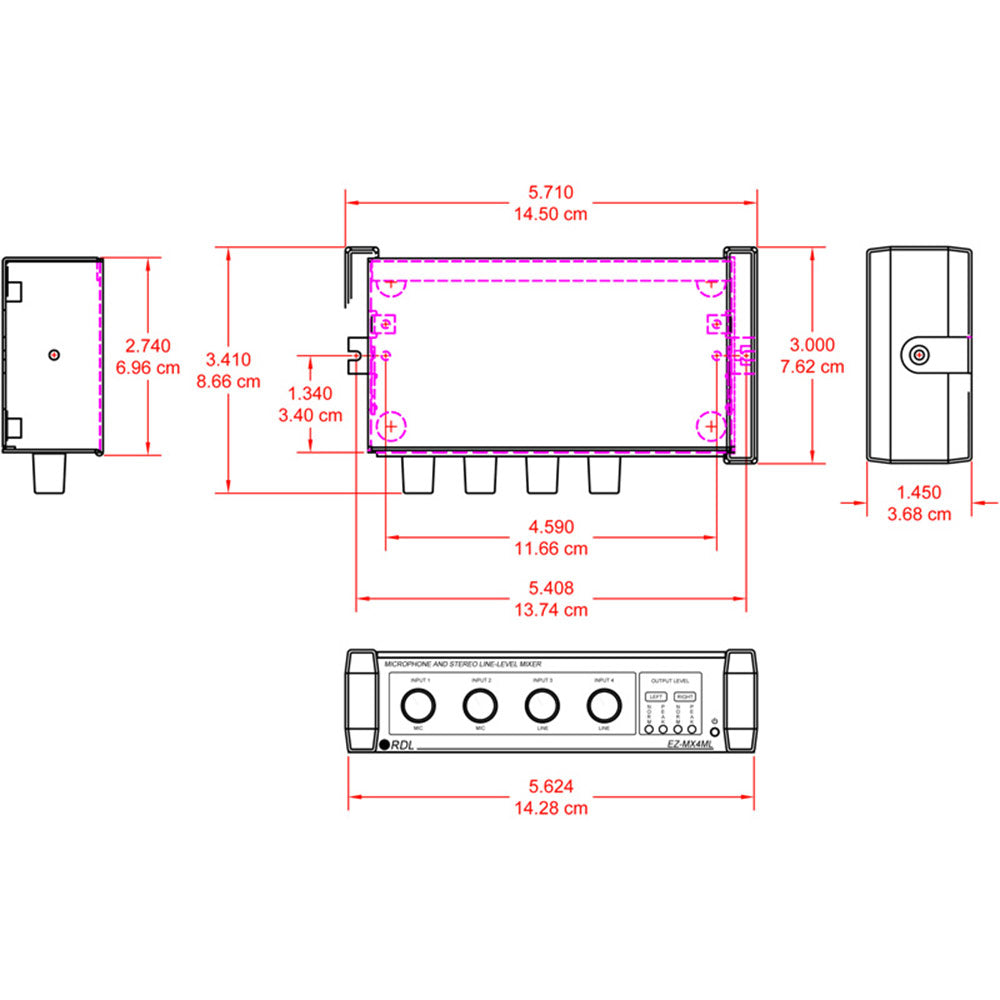

| Case dimensions: | 5.75 (14.6 cm)W x 3 (7.6 cm)D |
| Mounting size: | 1/3 rack width |
