RDL EZ-MXA20 20 Watt Stereo Audio Mixer Amplifier with EQ
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The EZ-MXA20 is a stereo mixer amplifier with one mic input and two line inputs. Bass and treble tone controls are included. An integral compressor/limiter allows a higher sound output level without clipping than is possible using a standard amplifier. The output drives 4 or 8 ohm speakers. The EZ-MXA20 is used in houses of worship, restaurants, clubs, meeting rooms and commercial sound systems.
-
Features:
- Audio Amplifier with Mic and Line Input Mixer
- 10 Watts RMS Per Channel into 8
- 8 Watts RMS Per Channel into 4
- Switch-Selectable Load Impedance on Rear Panel
- Balanced Microphone Input on XLR
- Unbalanced Line Inputs on RCA Jacks
- Switch-Selectable Phantom on Mic Input
- Bass and Treble Tone Control Equalization
- Integral Overload Limiter with LED Indicator
- Limiter Controls Overloads from Clipping
- Limiter Produces Output Level Comparable to Higher Power Amp
| Inputs (3): | 1.2 k balanced on XLR jack, mic-level, -55 dBu Min. (for 10 W out), -11 dBu max.(1)> 10 k, -10 dBV nominal on RCA jacks, -13 dBV Min. (for 10 W out), +22 dBV max. (2) |
| Gain: | Off to 74 dB (mic), Off to 32 dB (line) |
| Outputs (2): | Left and Right, 10 Watts RMS into 8 per channel or 8 Watts RMS into 4 per channel, switch-selectable output impedance |
| Equalization: | 䔮 dB @ 10 kHz, ۳ dB @ 80 Hz |
| Frequency Response: | 50 Hz to 20 kHz (۫.5 dB, mic input, 10 Watts), 35 Hz to 20 kHz (۫.5 dB, line input, 10 Watts) |
| THD+N: | < 0.25% |
| CMRR: | > -55 dB (mic) |
| Crosstalk: | < -68 dB (1 kHz, line input) |
| Phantom: | Switch-selectable 24 V (IEC 1938: 1996-12) |
| Noise: | < -70 dB (below 10 Watts, -10 dBV line input), < -65 dB (below 10 Watts, -50 dBu mic input) |
| 24 Vdc power supply current: | 170 mA (idle), 1000 mA (max.) |

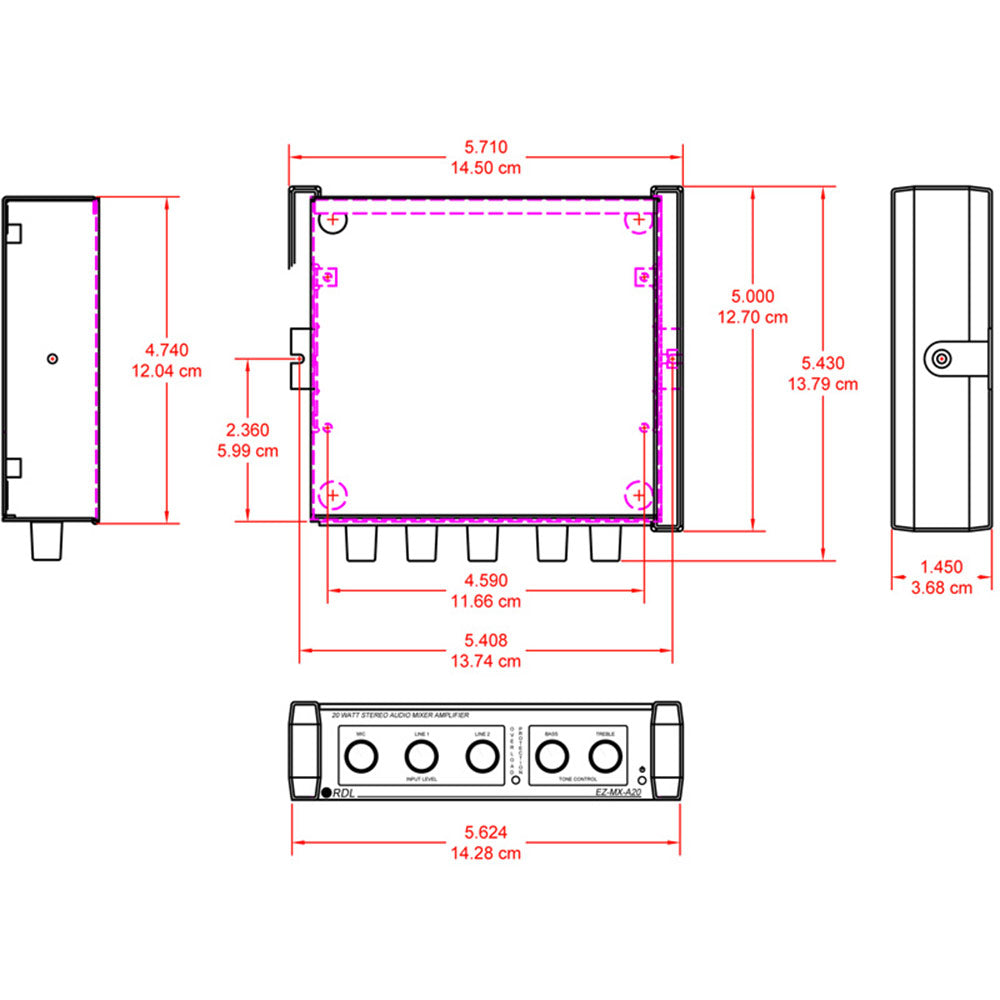

| Case dimensions: | 5.75 (14.6 cm)W x 5 (12.7 cm)D |
| Mounting size: | 1/3 rack width |
The EZ-MXA20 is a stereo mixer amplifier with one mic input and two line inputs. Bass and treble tone controls are included. An integral compressor/limiter allows a higher sound output level without clipping than is possible using a standard amplifier. The output drives 4 or 8 ohm speakers. The EZ-MXA20 is used in houses of worship, restaurants, clubs, meeting rooms and commercial sound systems.
-
Features:
- Audio Amplifier with Mic and Line Input Mixer
- 10 Watts RMS Per Channel into 8
- 8 Watts RMS Per Channel into 4
- Switch-Selectable Load Impedance on Rear Panel
- Balanced Microphone Input on XLR
- Unbalanced Line Inputs on RCA Jacks
- Switch-Selectable Phantom on Mic Input
- Bass and Treble Tone Control Equalization
- Integral Overload Limiter with LED Indicator
- Limiter Controls Overloads from Clipping
- Limiter Produces Output Level Comparable to Higher Power Amp
| Inputs (3): | 1.2 k balanced on XLR jack, mic-level, -55 dBu Min. (for 10 W out), -11 dBu max.(1)> 10 k, -10 dBV nominal on RCA jacks, -13 dBV Min. (for 10 W out), +22 dBV max. (2) |
| Gain: | Off to 74 dB (mic), Off to 32 dB (line) |
| Outputs (2): | Left and Right, 10 Watts RMS into 8 per channel or 8 Watts RMS into 4 per channel, switch-selectable output impedance |
| Equalization: | 䔮 dB @ 10 kHz, ۳ dB @ 80 Hz |
| Frequency Response: | 50 Hz to 20 kHz (۫.5 dB, mic input, 10 Watts), 35 Hz to 20 kHz (۫.5 dB, line input, 10 Watts) |
| THD+N: | < 0.25% |
| CMRR: | > -55 dB (mic) |
| Crosstalk: | < -68 dB (1 kHz, line input) |
| Phantom: | Switch-selectable 24 V (IEC 1938: 1996-12) |
| Noise: | < -70 dB (below 10 Watts, -10 dBV line input), < -65 dB (below 10 Watts, -50 dBu mic input) |
| 24 Vdc power supply current: | 170 mA (idle), 1000 mA (max.) |
| Case dimensions: | 5.75 (14.6 cm)W x 5 (12.7 cm)D |
| Mounting size: | 1/3 rack width |
