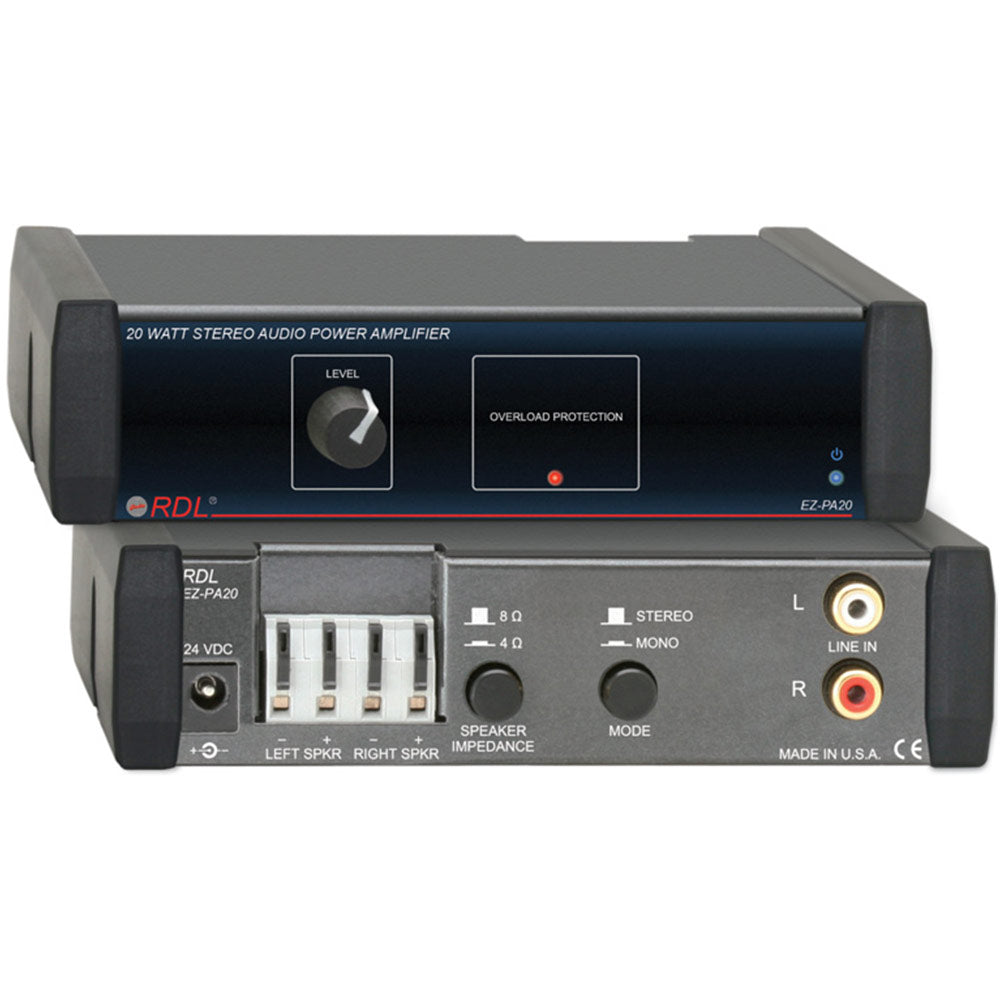

RDL EZ-PA20 20 Watt Stereo Audio Power Amplifier
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The EZ-PA20 is a stereo audio amplifier with one line input and a front-panel volume control. An integral compressor/limiter allows a higher sound output level without clipping than is possible using a standard amplifier. The output drives 4 or 8 ohm speakers. The EZ-PA20 is used in houses of worship, restaurants, clubs, meeting rooms, educational facilities, conference rooms and commercial sound systems.
-
Features:
- Audio Amplifier with Front-Panel Level Control
- 10 Watts RMS Per Channel into 8
- 8 Watts RMS Per Channel into 4
- Switch-Selectable Load Impedance on Rear Panel
- Unbalanced Line Input on RCA Jacks
- Switch-Selectable Mono or Stereo Mode
- Integral Overload Limiter with LED Indicator
- Limiter Controls Overloads from Clipping
- Limiter Produces Output Level Comparable to Higher Power Amps
- Mono Mode Switch Sums Left and Right Inputs
| Input: | > 10 k, -10 dBV nominal on RCA jacks, -13 dBV Min. (for 10 W out), +22 dBV max. |
| Gain: | Off to 32 dB |
| Outputs (2): | Left and Right, 10 Watts RMS into 8 per channel or 8 Watts RMS into 4 per channel, switchselectable output impedance |
| Frequency Response: | 35 Hz to 20 kHz (۫.5 dB, 10 Watts) |
| THD+N: | < 0.25% |
| Crosstalk: | < -68 dB (1 kHz) |
| Noise: | < -70 dB (below 10 Watts) |
| 24 Vdc power supply current: | 160 mA (idle), 1000 mA (max.) |

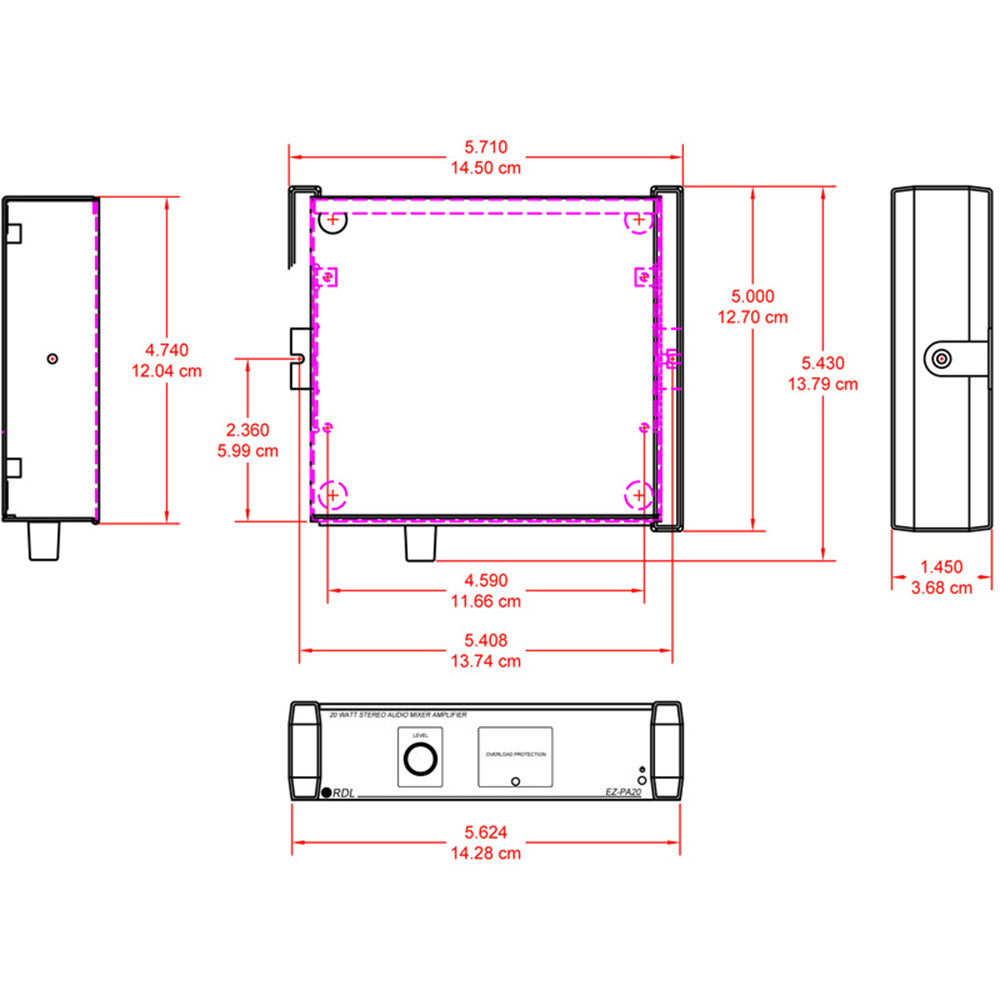

| Case dimensions: | 5.75 (14.6 cm)W x 5 (12.7 cm)D |
| Mounting size: | 1/3 rack width |
The EZ-PA20 is a stereo audio amplifier with one line input and a front-panel volume control. An integral compressor/limiter allows a higher sound output level without clipping than is possible using a standard amplifier. The output drives 4 or 8 ohm speakers. The EZ-PA20 is used in houses of worship, restaurants, clubs, meeting rooms, educational facilities, conference rooms and commercial sound systems.
-
Features:
- Audio Amplifier with Front-Panel Level Control
- 10 Watts RMS Per Channel into 8
- 8 Watts RMS Per Channel into 4
- Switch-Selectable Load Impedance on Rear Panel
- Unbalanced Line Input on RCA Jacks
- Switch-Selectable Mono or Stereo Mode
- Integral Overload Limiter with LED Indicator
- Limiter Controls Overloads from Clipping
- Limiter Produces Output Level Comparable to Higher Power Amps
- Mono Mode Switch Sums Left and Right Inputs
| Input: | > 10 k, -10 dBV nominal on RCA jacks, -13 dBV Min. (for 10 W out), +22 dBV max. |
| Gain: | Off to 32 dB |
| Outputs (2): | Left and Right, 10 Watts RMS into 8 per channel or 8 Watts RMS into 4 per channel, switchselectable output impedance |
| Frequency Response: | 35 Hz to 20 kHz (۫.5 dB, 10 Watts) |
| THD+N: | < 0.25% |
| Crosstalk: | < -68 dB (1 kHz) |
| Noise: | < -70 dB (below 10 Watts) |
| 24 Vdc power supply current: | 160 mA (idle), 1000 mA (max.) |
| Case dimensions: | 5.75 (14.6 cm)W x 5 (12.7 cm)D |
| Mounting size: | 1/3 rack width |
