RDL EZ-PD3 Power Supply Distributor for 3 EZ Series Units
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description

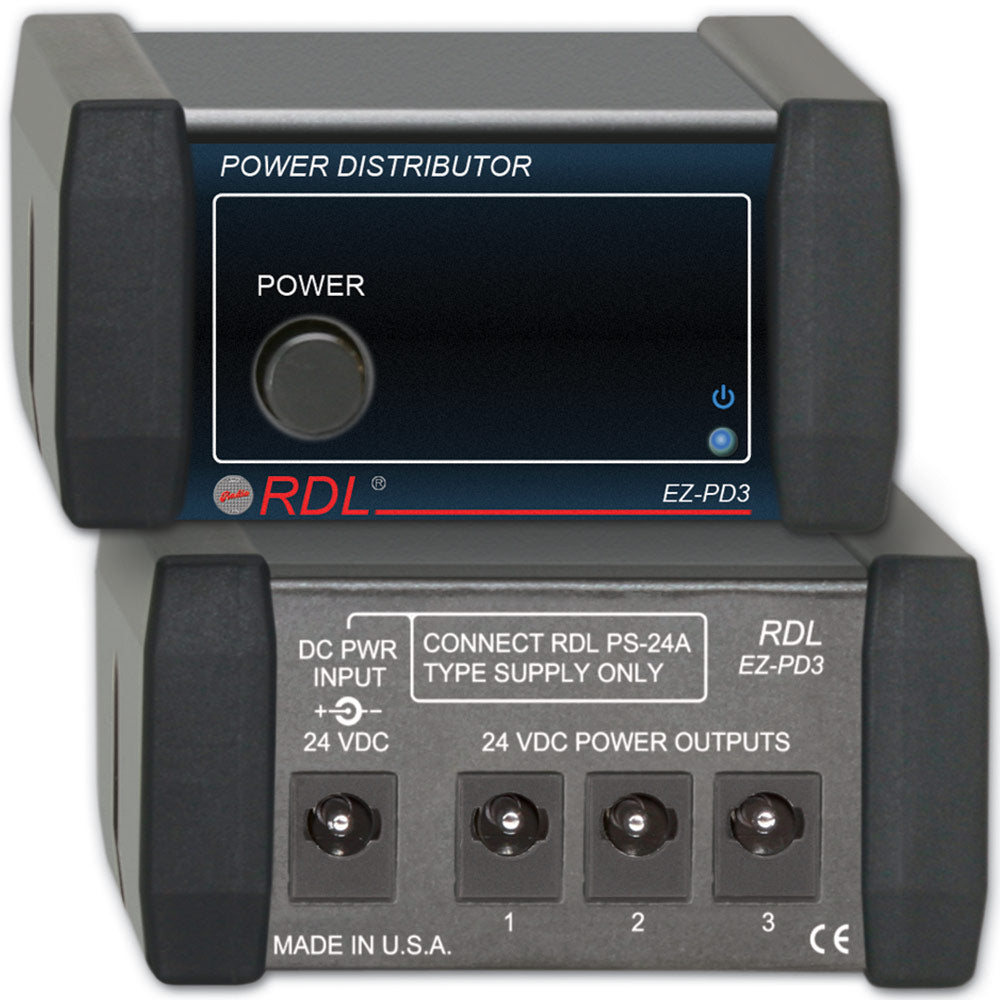

The EZ-PD3 is the ideal choice where power distribution from a current-limited switching power supply is needed. It is suitable for powering up to three EZ modules from a single power supply. Upon application of power, the EZ-PD3 ramps the voltage up, charging any load capacitance as quickly as possible, then switching full voltage to the load. A front-panel power switch is provided. The front-panel blue LED remains illuminated when the outputs are active.
Features:
- Distribution of 24 Vdc Power
- Soft-Start from Switching Supply
- Outputs may be Activated by a Front-Panel Switch
- Up to 3 Power Distribution Points
- Voltage Presence Indication
- Reverse Voltage Protection
- Energy Efficiency by Powering Multiple Products from a Single Power Supply
| Input/Output Voltage | 24 Vdc @ 600 mA (Intended for use with current limited switching supply) |
| Outputs (3) | Total load current must not exceed 600 mA |
| Indicator | POWER LED |
| Ambient Operating Environment | 0¡ C to 55¡ C |
| Power Requirement | 24 Vdc @ 20 mA plus connected loads |
| Package Type | Cardboard Box |
| Package Dimensions | 3.625 x 4.625 x 2.125 in. |
| Shipping Weight | 0.675 lbs. |
| WEEE weight | 0.41 lbs. |
| Tariff code | 8518.29.0000 |
The EZ-PD3 is the ideal choice where power distribution from a current-limited switching power supply is needed. It is suitable for powering up to three EZ modules from a single power supply. Upon application of power, the EZ-PD3 ramps the voltage up, charging any load capacitance as quickly as possible, then switching full voltage to the load. A front-panel power switch is provided. The front-panel blue LED remains illuminated when the outputs are active.
Features:
- Distribution of 24 Vdc Power
- Soft-Start from Switching Supply
- Outputs may be Activated by a Front-Panel Switch
- Up to 3 Power Distribution Points
- Voltage Presence Indication
- Reverse Voltage Protection
- Energy Efficiency by Powering Multiple Products from a Single Power Supply
| Input/Output Voltage | 24 Vdc @ 600 mA (Intended for use with current limited switching supply) |
| Outputs (3) | Total load current must not exceed 600 mA |
| Indicator | POWER LED |
| Ambient Operating Environment | 0¡ C to 55¡ C |
| Power Requirement | 24 Vdc @ 20 mA plus connected loads |
| Package Type | Cardboard Box |
| Package Dimensions | 3.625 x 4.625 x 2.125 in. |
| Shipping Weight | 0.675 lbs. |
| WEEE weight | 0.41 lbs. |
| Tariff code | 8518.29.0000 |
