RDL EZ-PH1 Stereo Phono Preamplifier

  • Dale #:

    RDL-EZPH1
  • Availability:

    Reserve Yours Now
  • This item usually ships within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Description

The EZ-PH1 is a stereo phono preamplifier with front-panel volume trimmers and audio level metering. Stereo RCA jacks and a grounding screw are provided on the rear panel for connecting a turntable tone arm. The input is preamplified with RIAA equalization to feed the line output RCA jacks. Left ... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

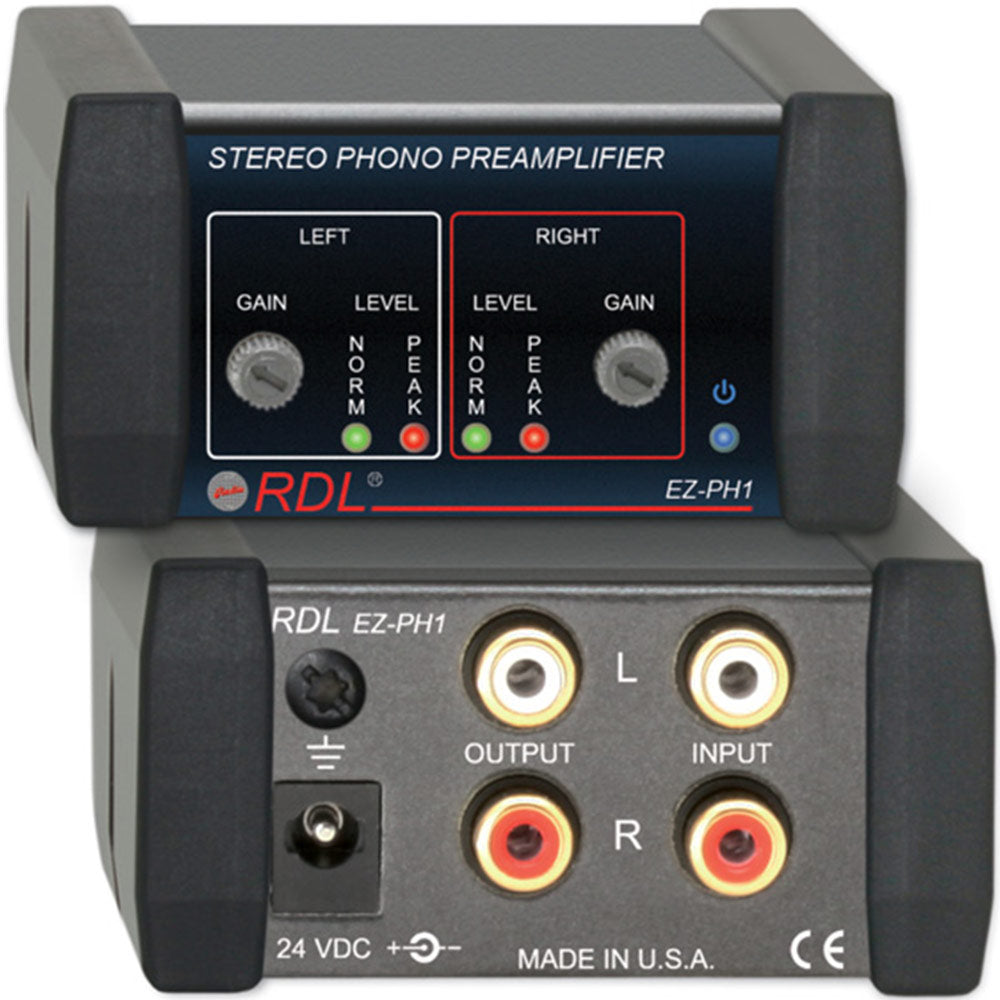

The EZ-PH1 is a stereo phono preamplifier with front-panel volume trimmers and audio level metering. Stereo RCA jacks and a grounding screw are provided on the rear panel for connecting a turntable tone arm. The input is preamplified with RIAA equalization to feed the line output RCA jacks. Left and right channel front-panel LED VU metering facilitates adjustment of the level trimmers. The EZ-PH1 is ideal to add phono inputs to mixers and amplifiers with line inputs, or for direct connection to recording decks for dubbing records onto other media. It is used in clubs, educational facilities and studios.

    Features:
  • Phono Input on Gold-Plated RCA Jacks
  • Line Output on Gold-Plated RCA Jacks
  • Front-Panel GAIN Trimmer for Each Channel
  • Dual-LED VU Meter for Each Channel
  • RIAA Equalization
  • Turntable Grounding Screw Provided
  • Gold-Plated Connectors
  • Adapt Turntable to an Amplifier Line Input
  • Feed a Turntable into a CD Recorder

More +

Product Specs

Input:47 k on stereo RCA jacks
Input Level:-18 dBV max.
Gain:OFF to +55 dB (1 kHz)
Output:-10 dBV nominal on stereo RCA jacks
Equalization:RIAA
Frequency Response:20 to 20 kHz (۪.75 dB referred to RIAA curve)
Crosstalk:< -75 dB (1 kHz)
Metering:Dual-LED VU Meter for Left and Right, calibrated to -10 dBV output
THD+N:< 0.05% (20 to 20 kHz, 36 dB gain)
Noise:< -74 dB (36 dB gain, 1 kHz), < -80 dB (36 dB gain, 1 kHz, A-weighted)
24 Vdc power supply current:30 mA (idle), 45 mA (max.)

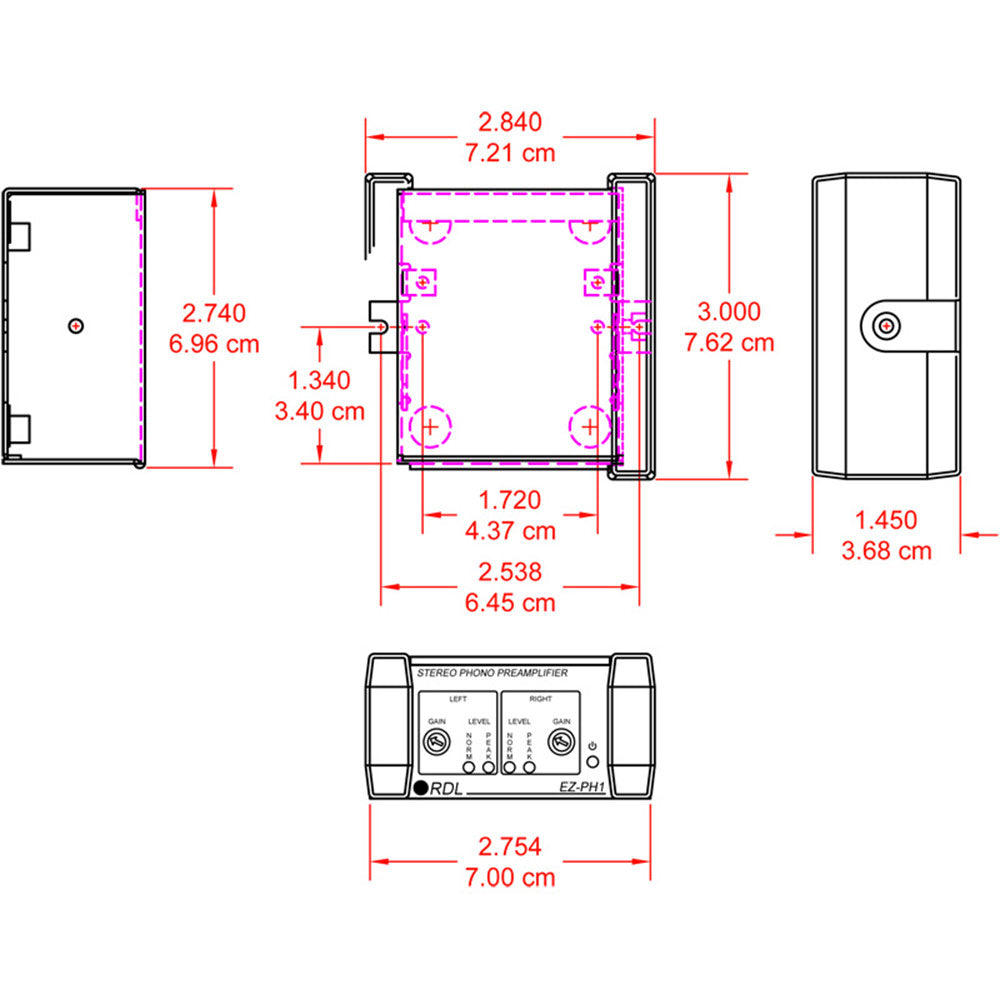

Case dimensions:2.9 (7.4 cm)W x 3 (7.6 cm)D
Mounting size:1/6 rack width
