RDL EZ-SX4 Stereo Audio Input Switcher - 4X1
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

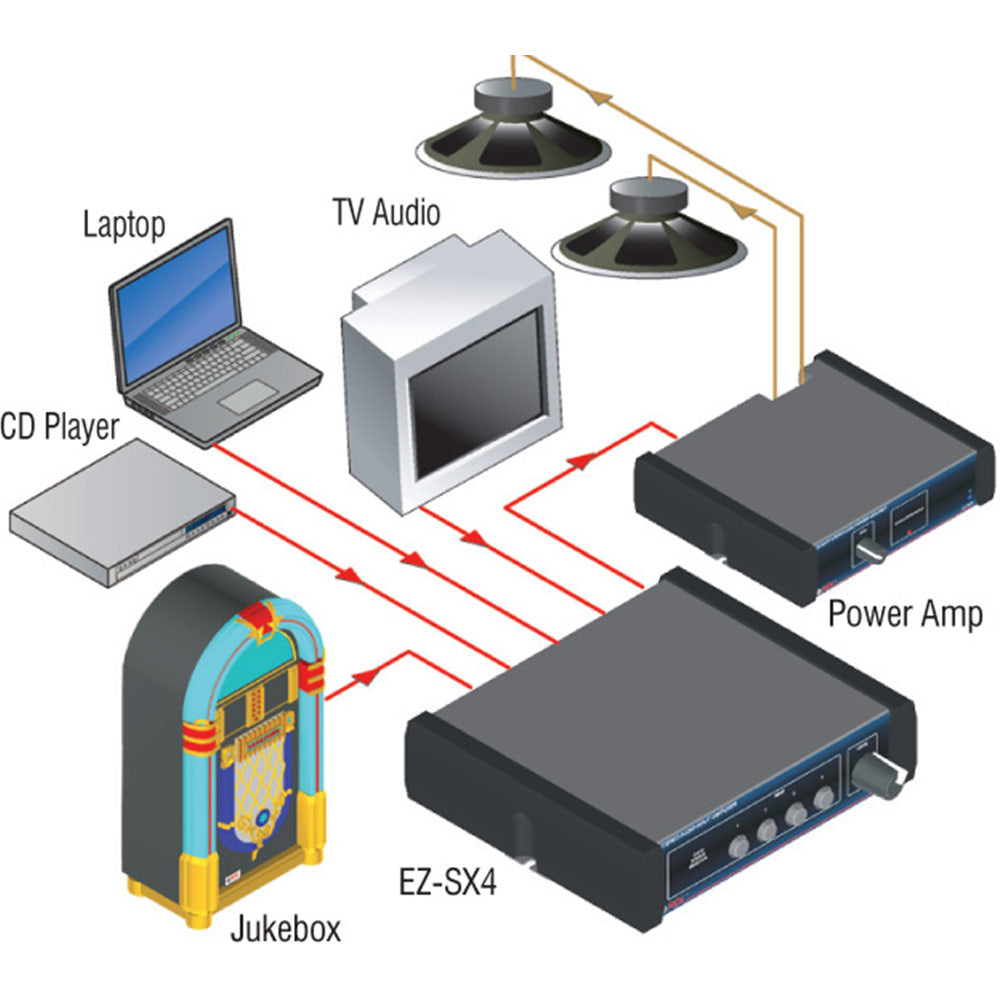

The EZ-SX4 is a stereo audio source selector with an output volume control that adjusts the line-level output. This unit is ideal as a four input source selector feeding an associated audio amplifier. The user can conveniently select an audio source and adjust the level on the front panel. The EZ-SX4 is used in stores, houses of worship, restaurants, clubs, home component systems and commercial sound systems.
-
Features:
- Four Input Source Selection
- Unbalanced Stereo Audio Inputs and Output

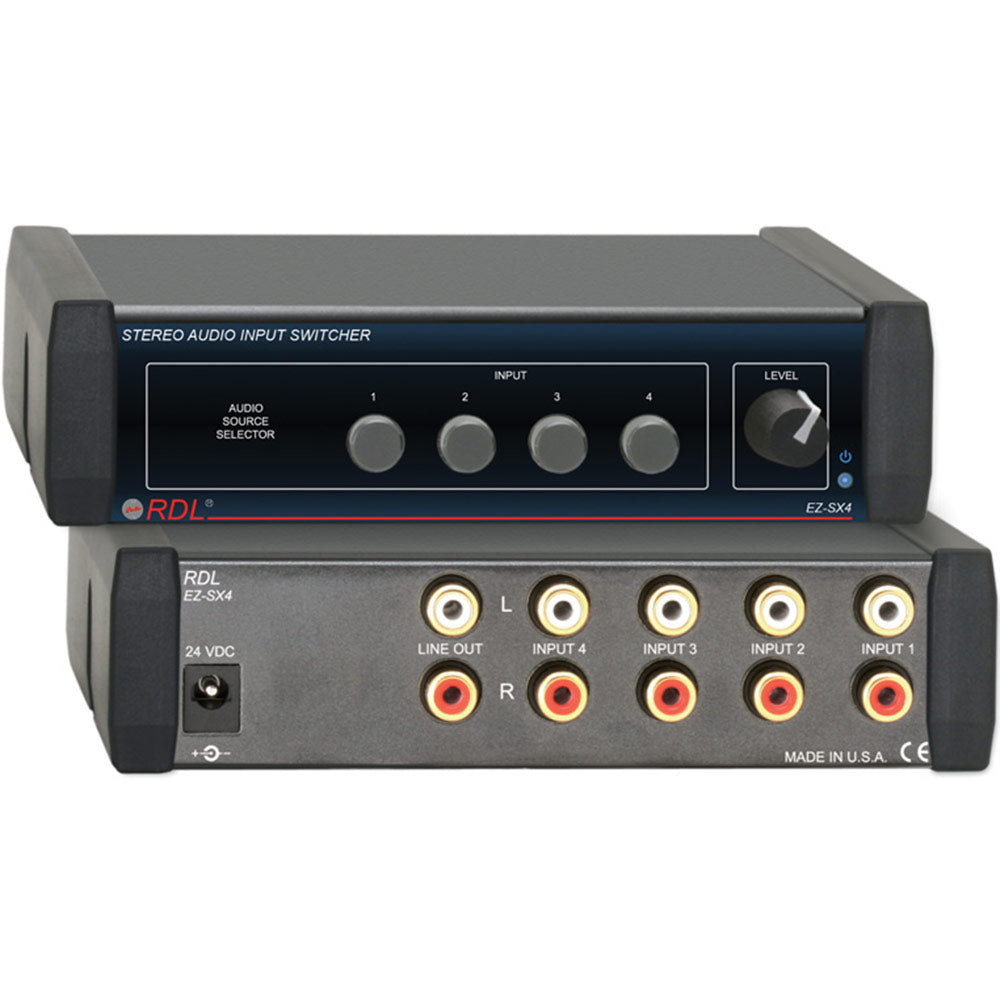

- Inputs and Line Output on Rear-Panel RCA Jacks
- Line Output Level Controlled by Front-Panel Knob
- Full-Size Interlocking Pushbuttons on Front Panel
- Easy-to-Push Large Buttons
- Solid-State Audio Switching
- Switch Noise Cannot Affect Signal Quality
- Select Source and Set Volume at One Location
- Connect Directly to a Power Amp as the User Interface
- Gold Plated RCA Input and Output Jacks
| Inputs (4): | Stereo on dual RCA jacks,> 10 k, -10 dBV nominal, +10 dBV max. |
| LEVEL control: | Off to +12 dB gain |
| Output: | Stereo on dual RCA jacks, line level, -10 dBV nominal, +17 dBV max. |
| Frequency Response: | 10 Hz to 20 kHz (۪.01 dB) |
| THD+N: | < 0.02% |
| Crosstalk: | < -70 dB (1 kHz) |
| Noise: | < -80 dB (below -10 dBV) |
| 24 Vdc power supply current: | 30 mA (idle), 60 mA (max.) |

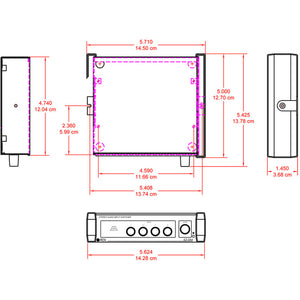

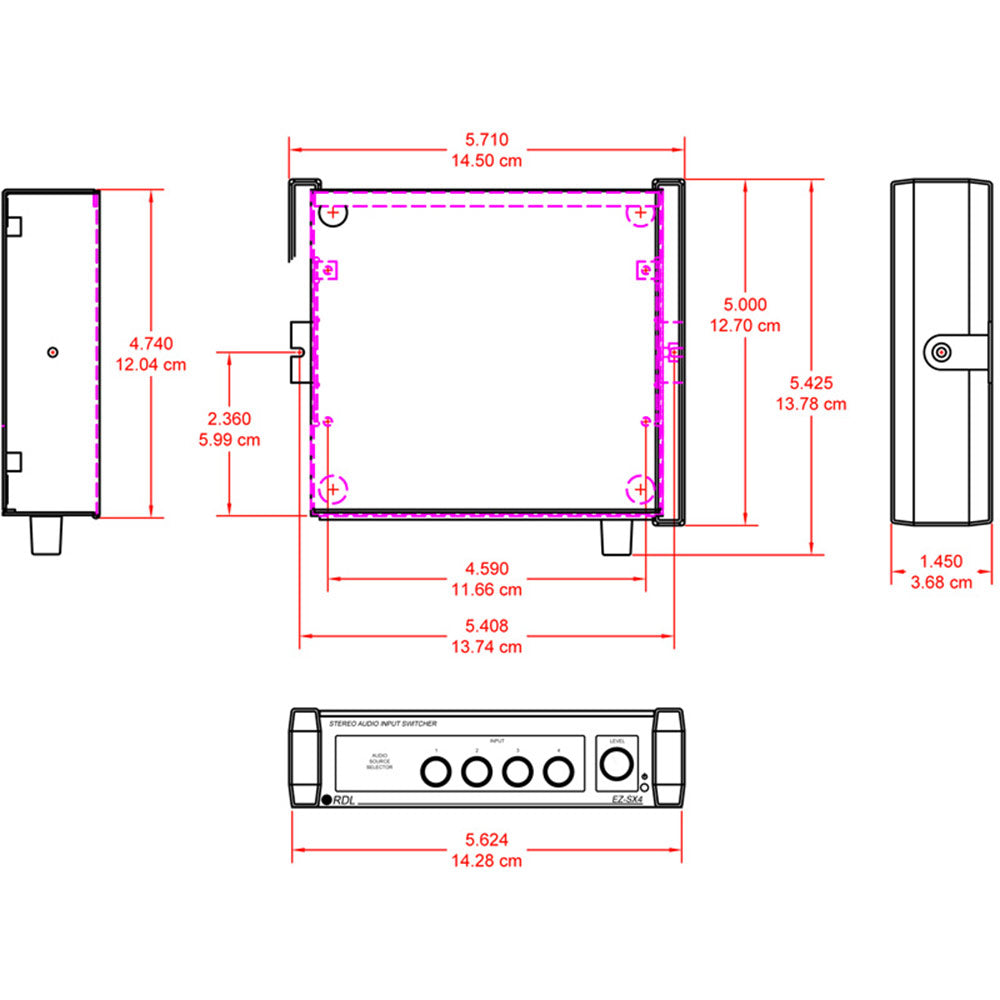

| Case dimensions: | 5.75 (14.6 cm)W x 5 (12.7 cm)D |
| Mounting size: | 1/3 rack width |
The EZ-SX4 is a stereo audio source selector with an output volume control that adjusts the line-level output. This unit is ideal as a four input source selector feeding an associated audio amplifier. The user can conveniently select an audio source and adjust the level on the front panel. The EZ-SX4 is used in stores, houses of worship, restaurants, clubs, home component systems and commercial sound systems.
-
Features:
- Four Input Source Selection
- Unbalanced Stereo Audio Inputs and Output
- Inputs and Line Output on Rear-Panel RCA Jacks
- Line Output Level Controlled by Front-Panel Knob
- Full-Size Interlocking Pushbuttons on Front Panel
- Easy-to-Push Large Buttons
- Solid-State Audio Switching
- Switch Noise Cannot Affect Signal Quality
- Select Source and Set Volume at One Location
- Connect Directly to a Power Amp as the User Interface
- Gold Plated RCA Input and Output Jacks
| Inputs (4): | Stereo on dual RCA jacks,> 10 k, -10 dBV nominal, +10 dBV max. |
| LEVEL control: | Off to +12 dB gain |
| Output: | Stereo on dual RCA jacks, line level, -10 dBV nominal, +17 dBV max. |
| Frequency Response: | 10 Hz to 20 kHz (۪.01 dB) |
| THD+N: | < 0.02% |
| Crosstalk: | < -70 dB (1 kHz) |
| Noise: | < -80 dB (below -10 dBV) |
| 24 Vdc power supply current: | 30 mA (idle), 60 mA (max.) |
| Case dimensions: | 5.75 (14.6 cm)W x 5 (12.7 cm)D |
| Mounting size: | 1/3 rack width |
