DALE SKU # RDL-EZVDA2B

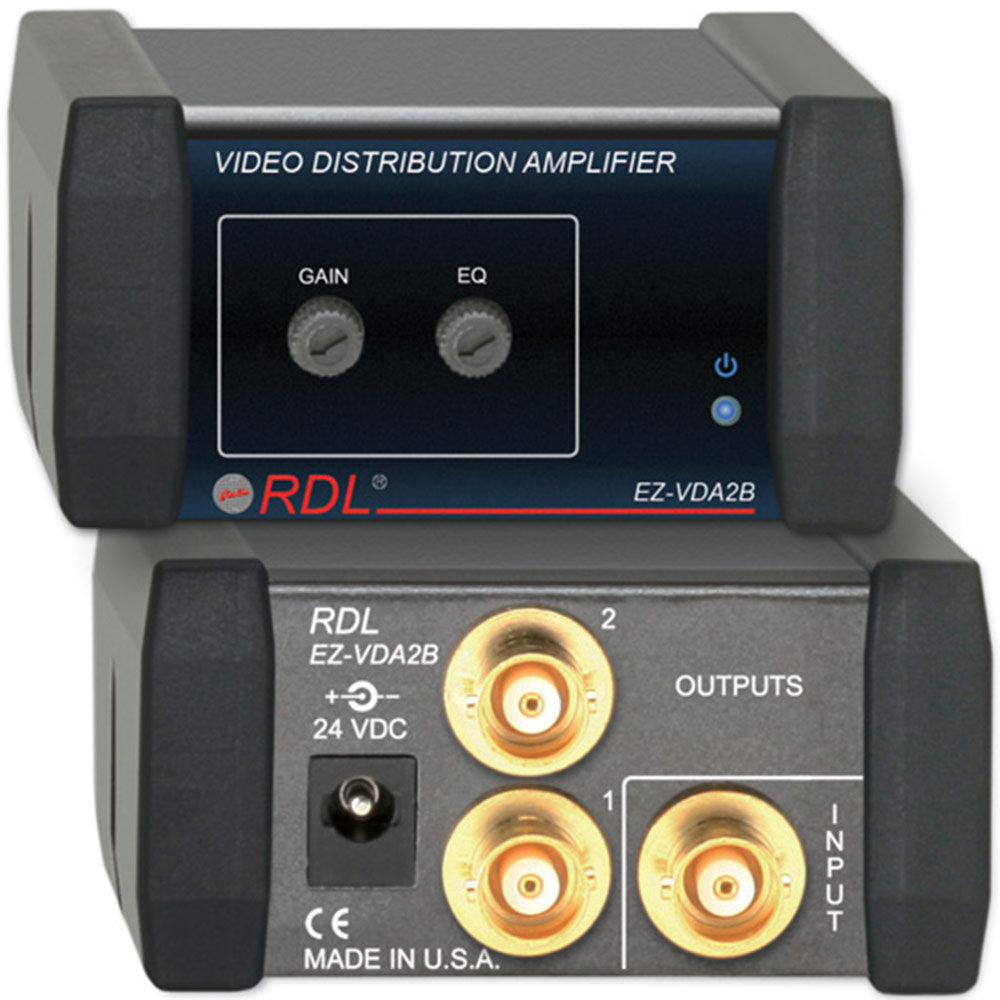

RDL EZ-VDA2B Video Distribution Amplifier - 1X2 BNC NTSC/PAL

Sale price$135.93 Regular price$181.24
Save $45.31
  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

    The EZ-VDA2B is a composite video distribution amplifier with two outputs. The input and outputs are all 75 on BNC connectors. If the outputs are connected to long coaxial cables (typically 100 to 1000 feet) the front-panel gain and equalization trimmers may be adjusted to restore picture clarity. The wide amplifier bandwidth supports high quality video distribution. The EZ-VDA2B is used in stores, houses of worship, restaurants, clubs, security and commercial sound systems.

      Features:
    • Composite Input to Two Composite Outputs
    • Front-Panel GAIN and EQ Trimmers
    • Operation with NTSC or PAL Signals
    • 75 Terminated Input
    • Input and Outputs on Gold-Plated BNC Jacks
    • Wide Bandwidth > 400 MHz
    • Gold-Plated Professional BNC Jacks
    • Wide Bandwidth Supports High Quality Video
    • Exceptional Performance in a Small Amplifier
    Input:75 on BNC jack
    Input level:1 V p-p nominal
    Gain:Unity to +6 dB (adjustable)
    Bandwidth:> 400 MHz
    Coupling:AC
    Differential Gain:< 0.1%
    Differential Phase:< 0.1 degree
    Equalization:Flat to +7 dB @ 50 MHz (adjustable)
    Residual Noise:< -90 dB (referenced to 1 V p-p)
    Outputs (2):75 source-terminated on BNC jacks, 1 V p-p nominal (terminated)
    24 Vdc power supply current:20 mA (idle), 30 mA (max.)

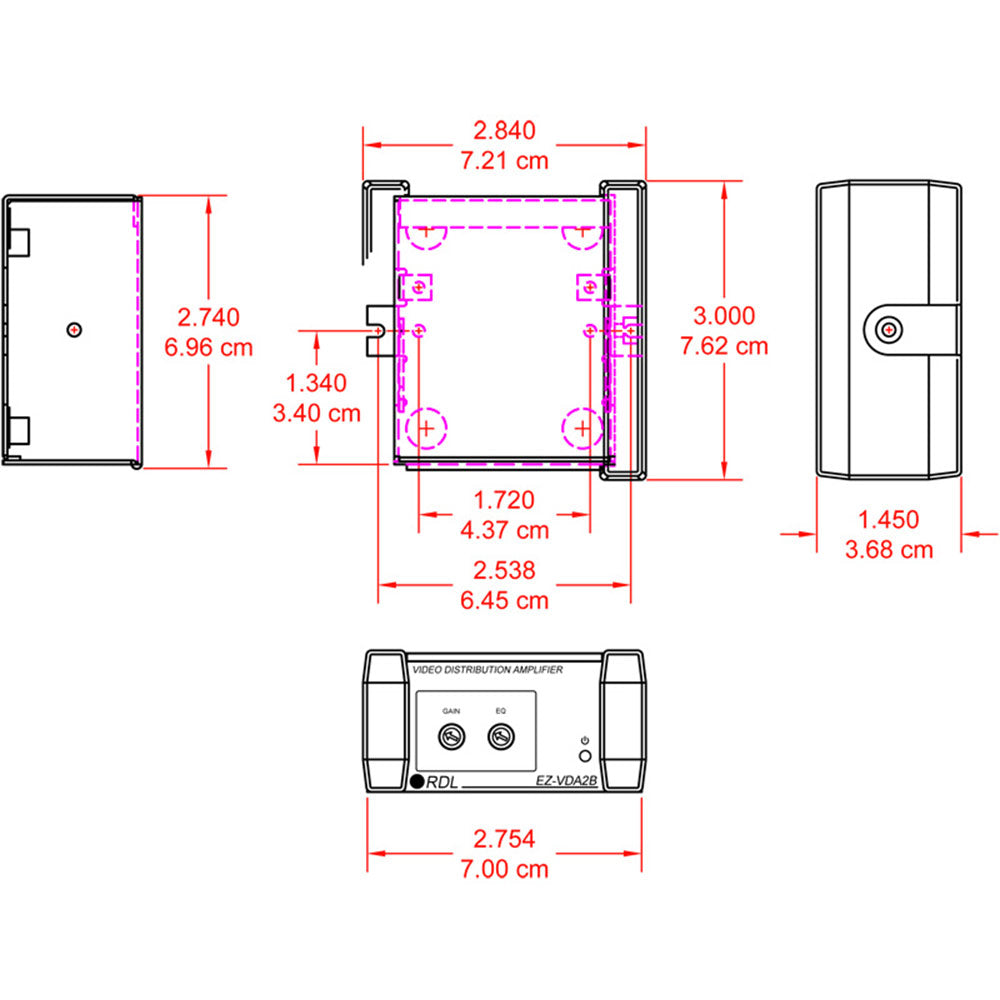

    Case dimensions:2.9 (7.4 cm)W x 3 (7.6 cm)D
    Mounting size:1/6 rack width

    The EZ-VDA2B is a composite video distribution amplifier with two outputs. The input and outputs are all 75 on BNC connectors. If the outputs are connected to long coaxial cables (typically 100 to 1000 feet) the front-panel gain and equalization trimmers may be adjusted to restore picture clarity. The wide amplifier bandwidth supports high quality video distribution. The EZ-VDA2B is used in stores, houses of worship, restaurants, clubs, security and commercial sound systems.

      Features:
    • Composite Input to Two Composite Outputs
    • Front-Panel GAIN and EQ Trimmers
    • Operation with NTSC or PAL Signals
    • 75 Terminated Input
    • Input and Outputs on Gold-Plated BNC Jacks
    • Wide Bandwidth > 400 MHz
    • Gold-Plated Professional BNC Jacks
    • Wide Bandwidth Supports High Quality Video
    • Exceptional Performance in a Small Amplifier
    Input:75 on BNC jack
    Input level:1 V p-p nominal
    Gain:Unity to +6 dB (adjustable)
    Bandwidth:> 400 MHz
    Coupling:AC
    Differential Gain:< 0.1%
    Differential Phase:< 0.1 degree
    Equalization:Flat to +7 dB @ 50 MHz (adjustable)
    Residual Noise:< -90 dB (referenced to 1 V p-p)
    Outputs (2):75 source-terminated on BNC jacks, 1 V p-p nominal (terminated)
    24 Vdc power supply current:20 mA (idle), 30 mA (max.)
    Case dimensions:2.9 (7.4 cm)W x 3 (7.6 cm)D
    Mounting size:1/6 rack width
