RDL EZ-VDA3B Video Distribution Amplifier - 1X3 BNC NTSC/PAL

  • Dale #:

    RDL-EZVDA3B
  • Availability:

    Reserve Yours Now
  • This item usually ships within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Description

The EZ-VDA3B is a composite video distribution amplifier with three outputs. The input and outputs are all 75 on BNC connectors. If the outputs are connected to long coaxial cables (typically 100 to 1000 feet) the front-panel gain and equalization trimmers may be adjusted to restore picture clari... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

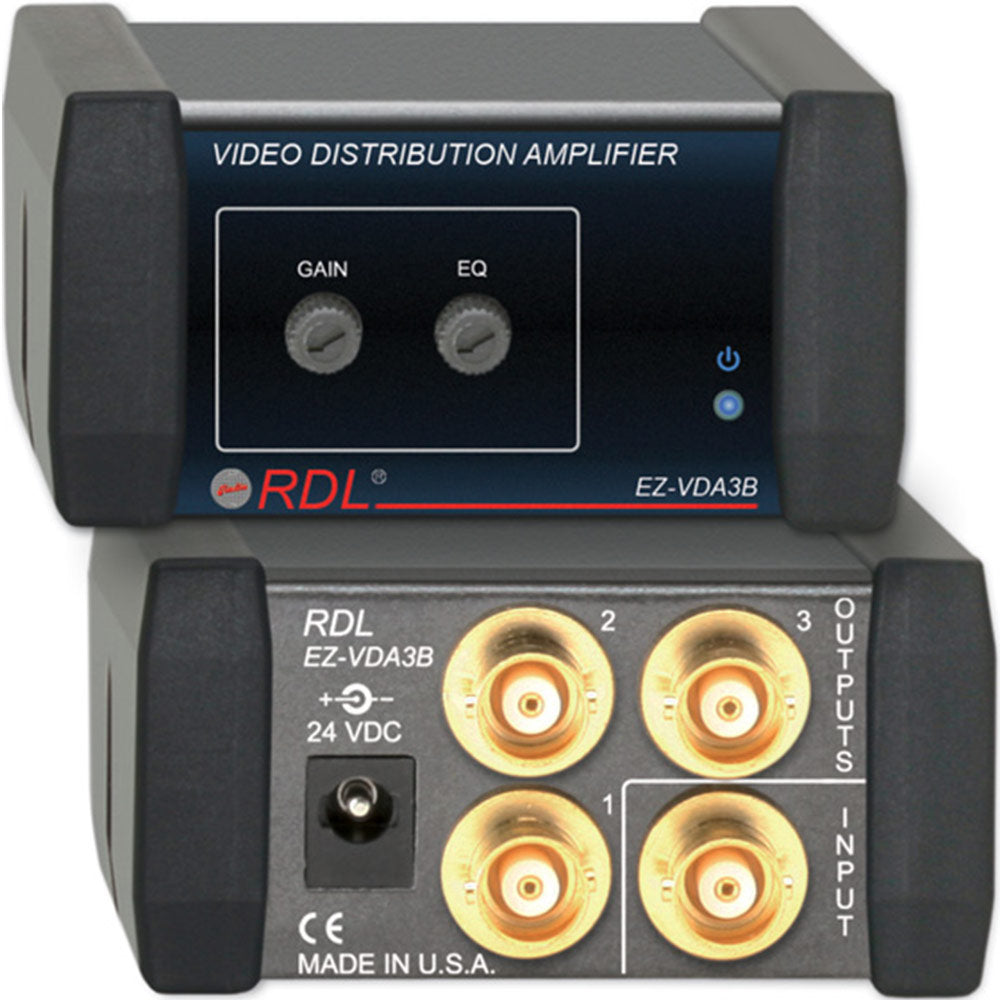

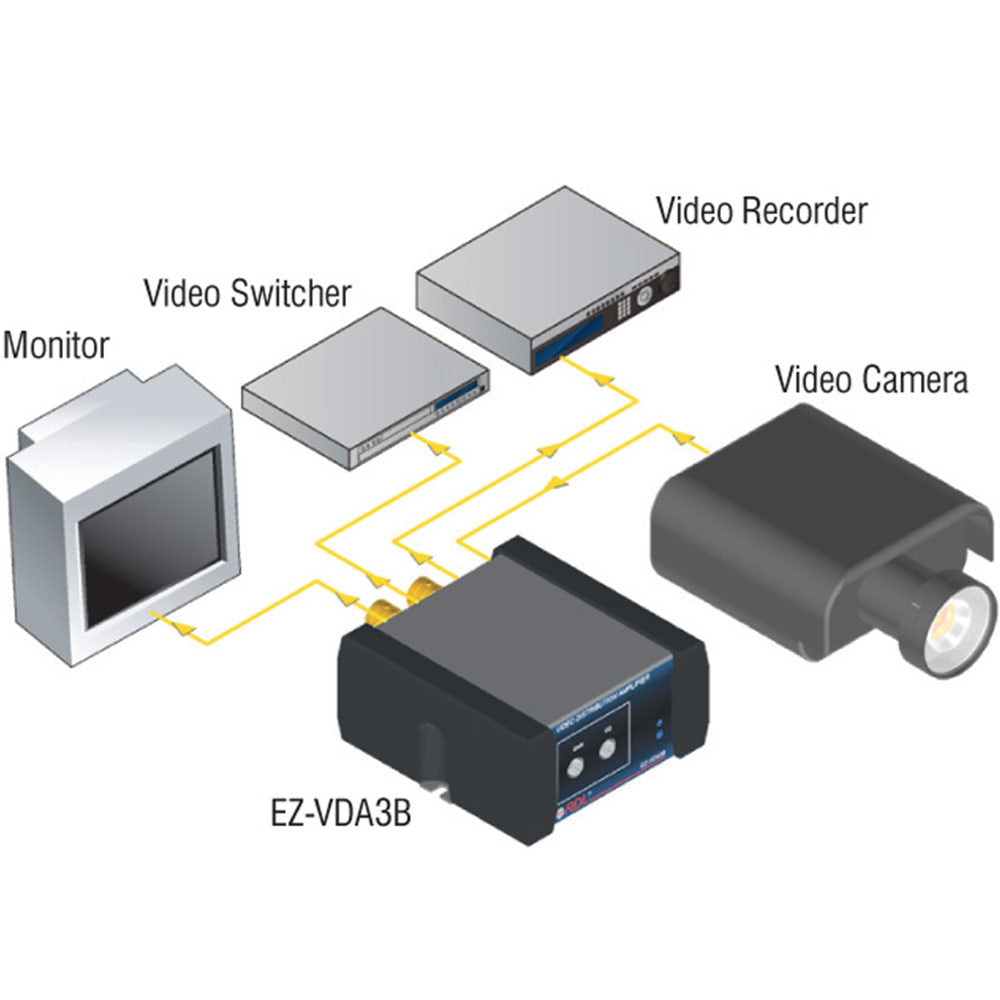

The EZ-VDA3B is a composite video distribution amplifier with three outputs. The input and outputs are all 75 on BNC connectors. If the outputs are connected to long coaxial cables (typically 100 to 1000 feet) the front-panel gain and equalization trimmers may be adjusted to restore picture clarity. The wide amplifier bandwidth supports high quality video distribution. The EZ-VDA3B is used in stores, houses of worship, restaurants, clubs, security and commercial sound systems.

    Features:
  • Composite Input to Three Composite Outputs
  • Front-Panel GAIN and EQ Trimmers
  • Operation with NTSC or PAL Signals
  • 75 Terminated Input
  • Input and Outputs on Gold-Plated BNC Jacks
  • Wide Bandwidth > 400 MHz
  • Gold Plated Professional BNC Jacks
  • Wide Bandwidth Supports High Quality Video
  • Exceptional Performance in a Small Amplifier

More +

Product Specs

Input:75 on BNC
Input level:1 V p-p nominal
Gain:Unity to +6 dB (adjustable)
Bandwidth:> 400 MHz
Coupling:AC
Differential Gain:< 0.1%
Differential Phase:< 0.1 degree
Equalization:Flat to +7 dB @ 50 MHz (adjustable)
Residual Noise:< -90 dB (referenced to 1 V p-p)
Outputs (3):75 source-terminated on BNC jacks, 1 V p-p nominal (terminated)
24 Vdc power supply current:20 mA (idle), 35 mA (max.)

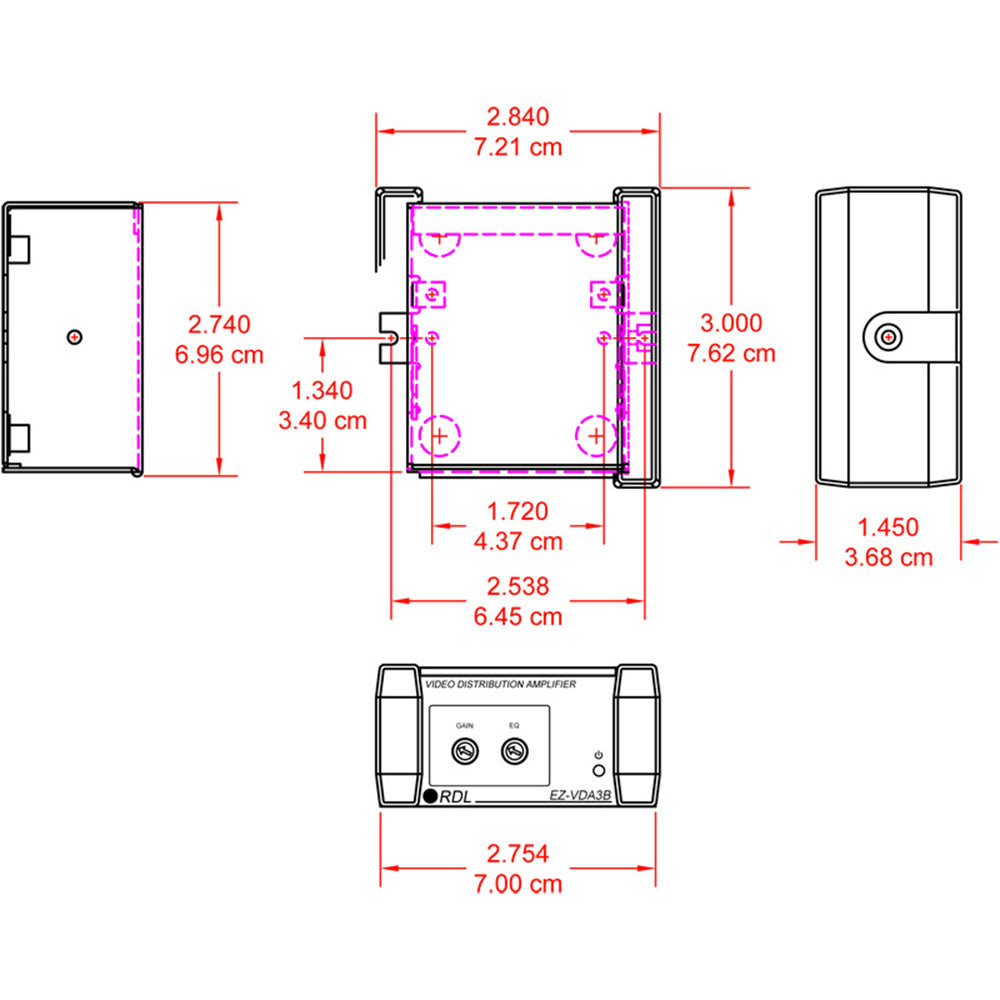

Case dimensions:2.9 (7.4 cm)W x 3 (7.6 cm)D
Mounting size:1/6 rack width
