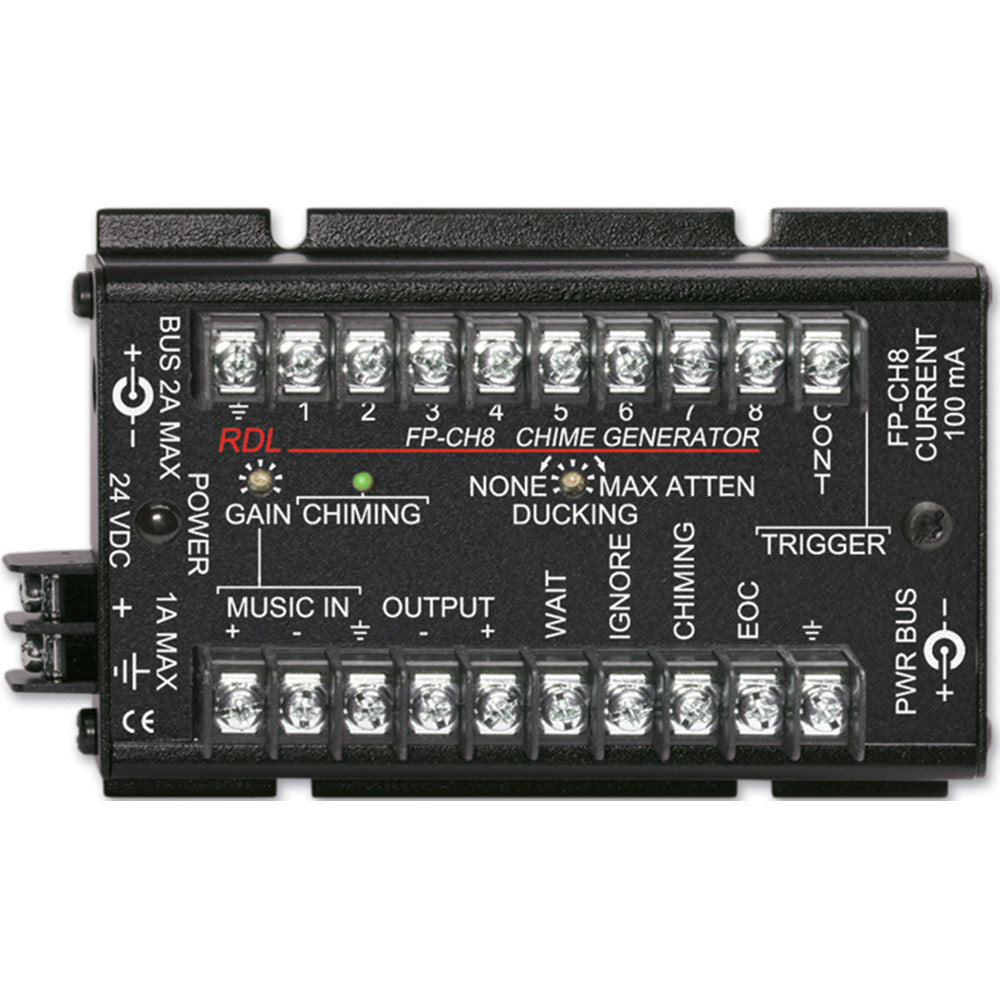

RDL FP-CH8 Chime Generator



Please Note: requires PS-24AS Power Supply (sold separately)

Have a Question? Call Toll Free: 888-462-7828

Live Chat Email Us
Dale #:RDL-FPCH8

Availability: Usually ships in 5 - 10 Days

This item usually ships within 5-10 days after your order is placed. Your payment will be charged after completing checkout.
Free Shipping (Continental US)
  • The FP-CH8 is an electronic chime generator that produces eight different synthesized chimes. Each chime can consist of up to 3 tones and 3 harmonics selected to produce sonically natural effects. Certain chimes are single tones and some are a sequence. Each of the 8 chimes is triggered by an individual external closure to ground. A momentary closure to ground is required to start a chime. A single additional CONT (continuous) terminal is also provided. Each chime plays once unless the CONT terminal is grounded. The continuous function causes a chime strike or sequence to repeat until the CONT terminal is ungrounded. This function causes tone chimes (Chimes 4 and 8) to be extended in duration until the CONT terminal is released. Background music or paging audio may be connected to the MUSIC IN input. When a chime plays, the music source will be quickly faded to a level set on the front-panel DUCKING trimmer. The ducking fade depth may be adjusted from 0 dB to fully off, allowing chimes to be mixed with the music or to interrupt the music. The front-panel CHIMING indicator illuminates while music is ducked and a chime is playing. WAIT and IGNORE terminals are provided to prevent or delay chiming action.

    Chime patterns are: single strick, double strick, triple strick, tone ring, manual strick, decending triple strick, eurosiren and multi-tone alert.
      Features:
    • 8 Individually Selectable Electronic Chimes
    • Selectable Single or Repeated Chime
    • Synthesized Bell Harmonics for Natural Sound
    • External Chime Actuation
    • Input for Background Music or Paging Audio
    • Automatic Ducking
  • Music Input: 50 k balanced or unbal, +22 dBu max.
    Frequency Response: 20 Hz to 50 kHz (+/- 0.5 dB)
    THD+N: < 0.05% (unity gain, 50 Hz to 20 kHz)
    Noise below +4 dBu: < -70 dB (unity gain)
    Headroom: > 16 dB (above +4 dBu)
    Gain: Unity to +22 dB (adjustable)
    Ducking Fade Depth: 0 dB to fully off (adjustable)
    Output: 150 balanced, + 4 dBu or 75 unbal.
    Trigger Inputs (8): Trigger on high to low transition, 0.5 mA
    Control Inputs (3): WAIT (play delay), IGNORE (no playback), CONT (continuous repeat)
    Control Outputs (2): CHIMING (Open-collector low @ 25 mA),
    EOC (low 100 mS at end of chime)
    Power Requirement: GROUND-REFERENCED
    24 to 33 Vdc @ 100 mA

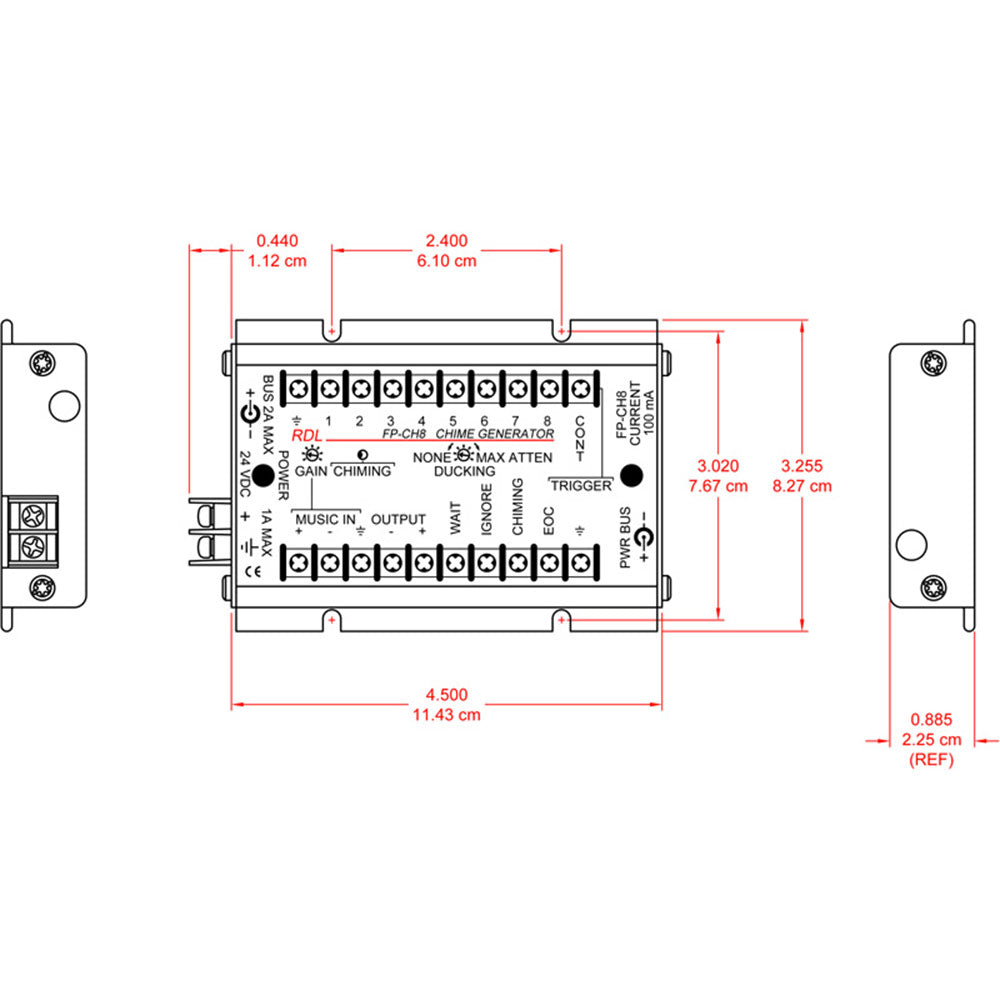

    Dimensions:
    Height:1.36 in. 3.46 cm
    Width: 3.25 in. 8.26 cm
    Length: 5.0 in. 12.7 cm
    Ambient Operating Environment:0 degrees C to 55 degrees C
