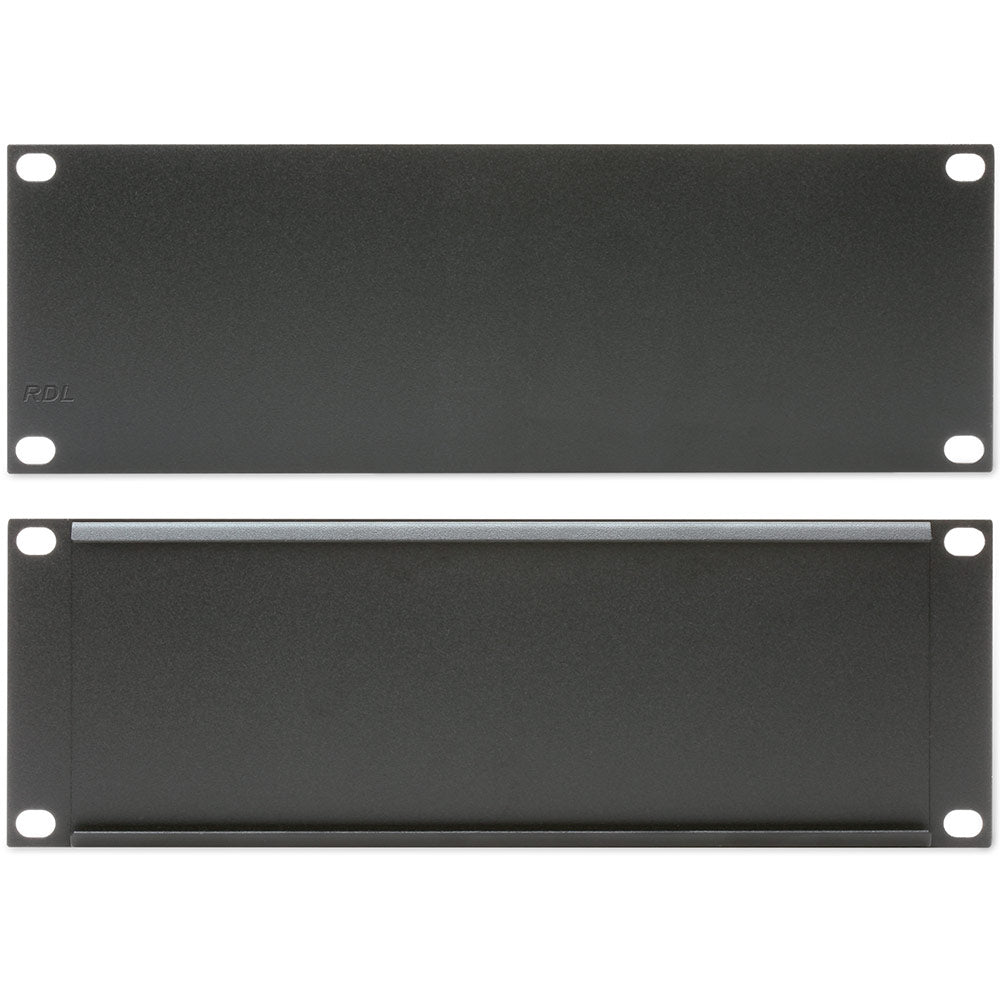

RDL FP-HRA 10.4-Inch Rack Mount for FLAT-PAK Series Units
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
RDL FP-HRA 10.4-Inch Rack Mount for FLAT-PAK Series Units
Sale price$78.49
Regular price$104.65
Description
The FP-HRA rack mounts FLAT-PAK modules. This adapter fits 10.4 racks.
| STEREO MODE, All Channels Driven Continuous Average Output Power Per Channel | ||
| 8?, 0.05% THD 20 Hz–20 kHz | 90 W | |
| 4?, 0.1% THD 20 Hz–20 kHz | 130 W | |
| Midband Ratings | All Channels | Single Channel |
| 8?, 0.1% THD 1 kHz | 100 W | 120 W |
| 4?, 0.1% THD 1 kHz | 140 W | 180 W |
| BRIDGE MONO MODE | ||
| 16?, 0.1% THD 20 Hz–20 kHz | 180 W | |
| 8?, 0.1% THD 20 Hz–20 kHz | 260 W | |
| Noise (20 Hz–20 kHz) | -107 dB | |
| Input Sensitivity (for full-rated output power) | 1.35 Vrms @ 8 ohms | |
| Voltage Gain | 20× (26 dB) | |
| Input Clipping | 6 Vrms (+18 dBu) | |
| Output Circuitry Class | Class AB+B | |
| Frequency Response | 20 Hz–20 kHz, ± 0.2 dB 8 Hz–50 kHz, +0/-3 dB | |
| Damping Factor | Greater than 200 (5 kHz and below) | |
| Input Impedance | 6 k? unbalanced, 12 k? balanced | |
| Distortion (SMPTE-IM) | Less than 0.02% | |
| Distortion (typical) 20 Hz–20 kHz: 10 dB below rated power 1.0 kHz and below: at full rated power | Less than 0.1% THD Less than 0.03% THD | |
| Connectors | Input: 3-pin Euro-style detachable terminal blocks, (one per ch.) DataPort: HD-15 Connector, (one per channel pair: Ch 1+2, 3+4, 5+6, 7+8) Output: Two 8-pin Euro-style detachable terminal blocks | |
| Cooling | Variable speed fan, rear-to-front airflow through tunnel heat sink | |
| Controls | Front: AC switch, Ch 1, 2, 3, 4, 5, 6, 7 and 8 gain knobs Rear: DIP switches for Ch. 1–Ch. 8, clip limiter on/off, LF filter on/off, LF filter freq select 33 or 70 Hz for CX168, LF filter freq select 50 or 75 Hz for CX108V, inputs parallel or stereo; bridge mode | |
| Indicators | PWR-ON: Green LED SIGNAL-35 dB: Green LED (1 per channel) CLIP: Red LED (1 per channel) | |
| Amplifier Protection | Full short circuit, open circuit, thermal, ultrasonic, and RF protection; Stable into reactive or mismatched loads | |
| Load Protection | On/off muting; Individual channel DC fault blocking | |
| Dimensions (HWD) inches | 3.5 x 19 x 14 / 2RU | |
| Dimensions (HWD) mm | 89 x 483 x 356 / 2RU | |
| Weight | 21 lb (9.5 kg) net, 27 lb (12.3 kg) shipping | |
| Power Requirements | 100, 120, 230 VAC, 50–60 Hz (configured at factory) | |
The FP-HRA rack mounts FLAT-PAK modules. This adapter fits 10.4 racks.
