RDL FP-MP1 Studio Quality Mic Preamp w/ Phantom - Terminals & XLR
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

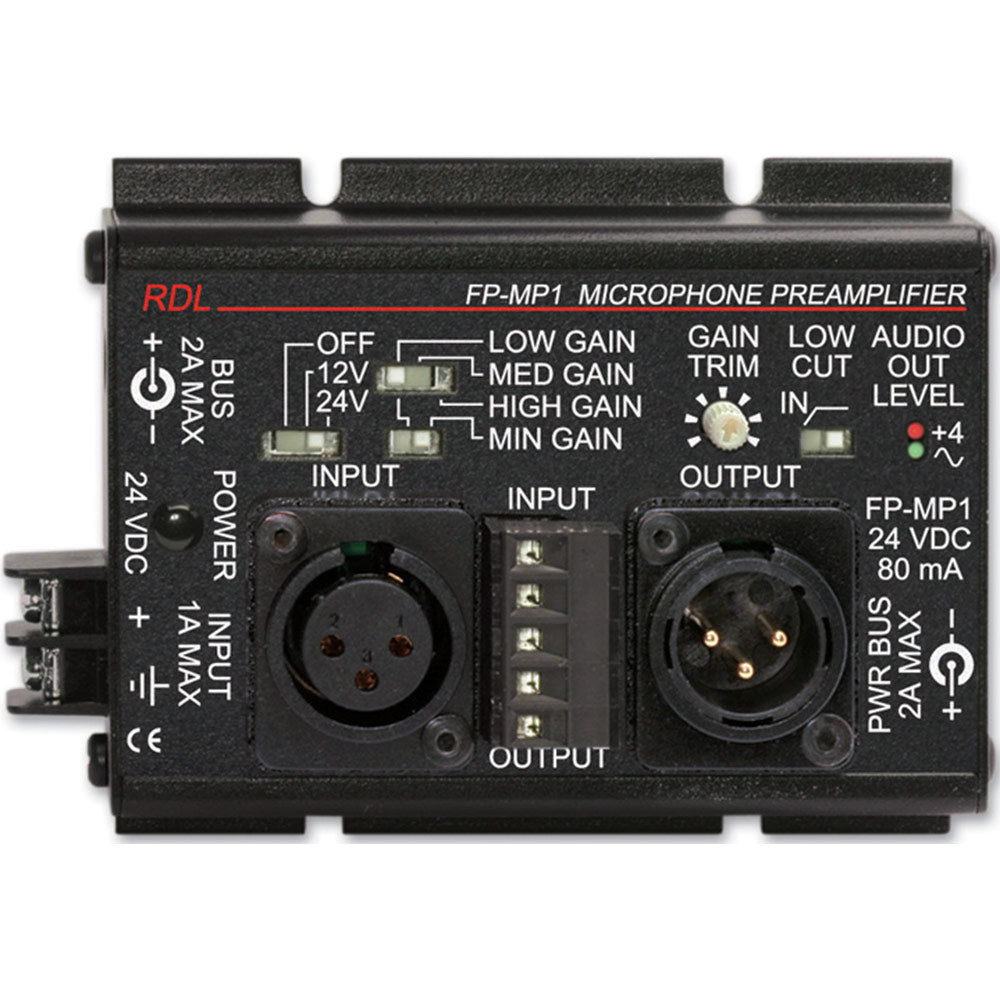

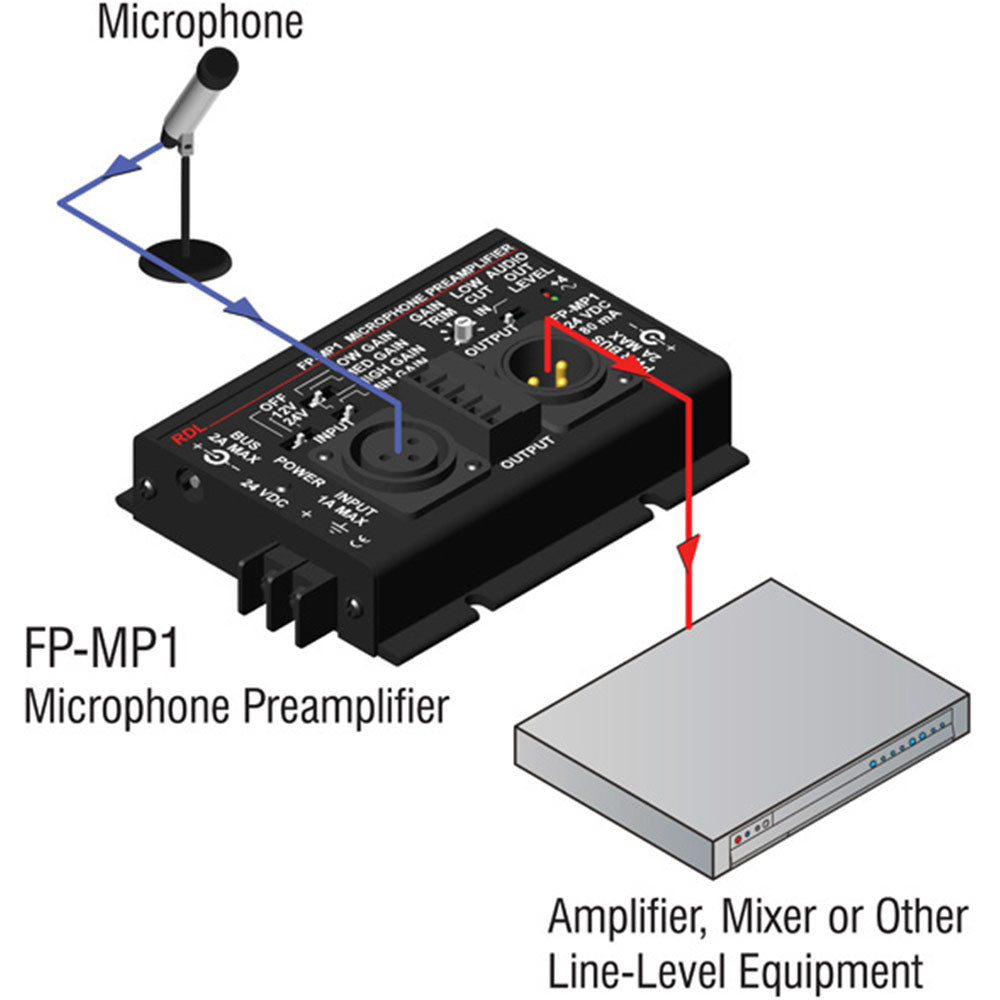

The FP-MP1 is the ideal choice in most applications requiring a preamp. RDL™s exclusive low-noise discrete circuitry produces studio quality low noise performance in an economical preamplifier. The XLR and plug-in terminal block connections make the FP-MP1 perfect for both rack-mounted hardwired installations and remote use with standard audio cables. A front-panel switch permits the installer to direct phantom voltage to the input connectors. This 3-position switch provides 24V, 12V or phantom OFF. A second switch selects the input gain range thereby permitting the connection of standard or high output level microphones.
-
Features:
- Professional Studio-Quality Low-Noise Performance
- Switchable Internal Phantom Voltage
- XLR and Terminal Block Connections
- Selectable Input Level Ranges
- Adjustable Gain with Dual-LED VU Metering
- Ultra-Compact All Metal Construction
- Convenience of RDL FLAT-PAKs
| Input Impedance: | 3 k (balanced) |
| GAIN (4 ranges): | MIN) 19 dB to 38 dB (switch-selectable) LOW: 26 dB to 45 dB (switch-selectable) MED: 36 dB to 55 dB (switch-selectable) HIGH: 46 dB to 65 dB (switch-selectable) |
| Headroom: | XLR female (input) XLR male (output) 5 position plug-in terminal block (input and output) |
| Input Clipping Level: | +4 dBu (at MIN gain) |
| Headroom: | 20 dB (above +4 dBu |
| Low-Cut Filter: | 80 Hz, 6 dB/Octave (switch-selectable) |
| Phantom Voltages: | 12 V, 24 V (switch-selectable) |
| Phantom Voltage / Buildout Standard: | IEC 1938: 1996-12 |
| CMRR: | > 60 dB |
| Frequency Response: | 20 Hz to 20 kHz (+/- 0.2 dB) |
| THD + N: | < 0.1% (+4 dBu, all gain settings) |
| Noise (below +4 dBu): | < -70 dB (60 dB gain, 20 Hz to 20 kHz) < -72 dB (60 dB gain, A-Weighted) < -80 dB (50 dB gain, 20 Hz to 20 kHz) |
| Equivalent Input Noise: | < -130 dB (gain + residual noise below +4 dBu) |
| Connector type: | XLR female (input) XLR male (output) 5 position plug-in terminal block (input and output) |
| Audio Level Indicators (2): | Red LED: Output level> +4 dBu Green: -10 to +4 dBu (variable intensity) |
| Power Requirement: | GROUND-REFERENCED, 24 Vdc @ 100 mA |

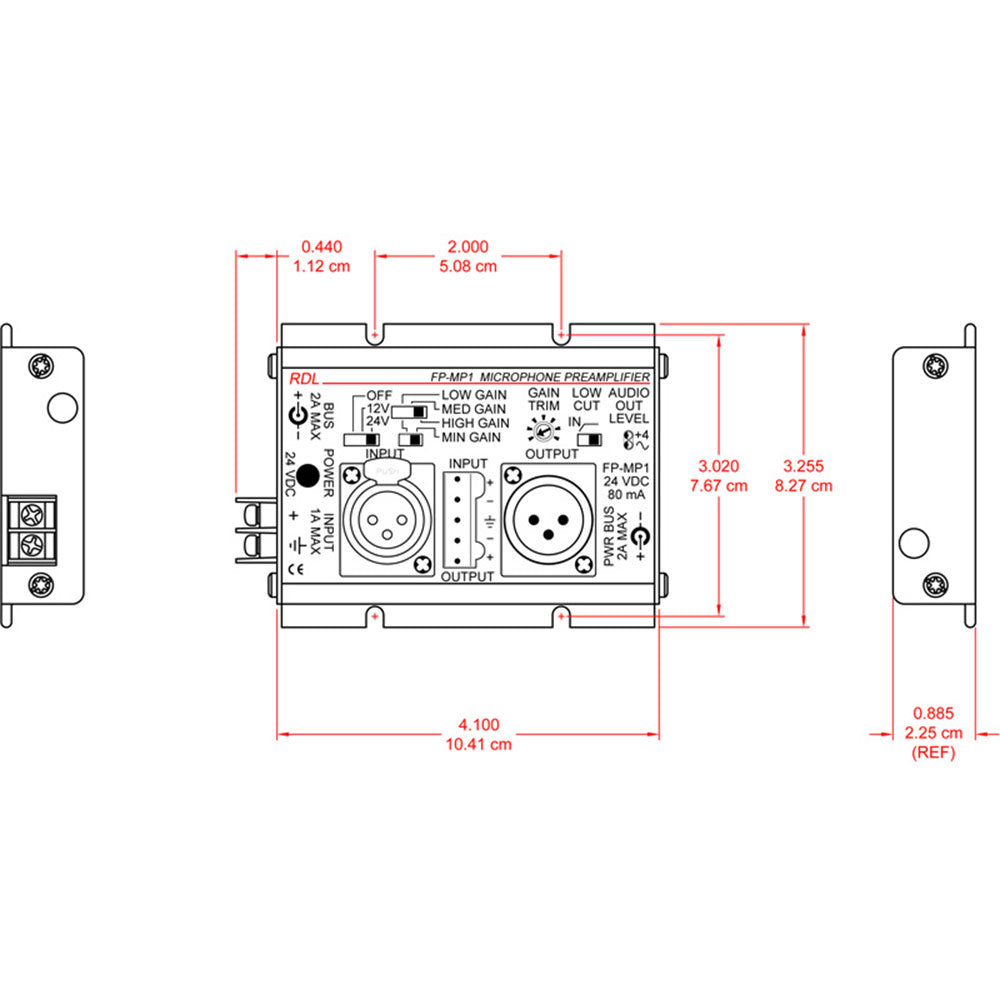

| Dimensions: | |
| Height: | 1.42 in 3.61 cm |
| Width: | 3.25 in. 8.26 cm |
| Length: | 4.64 in. 11.79 cm |
| Ambient Operating Environment: | 0 degrees C to 50 degrees C |
