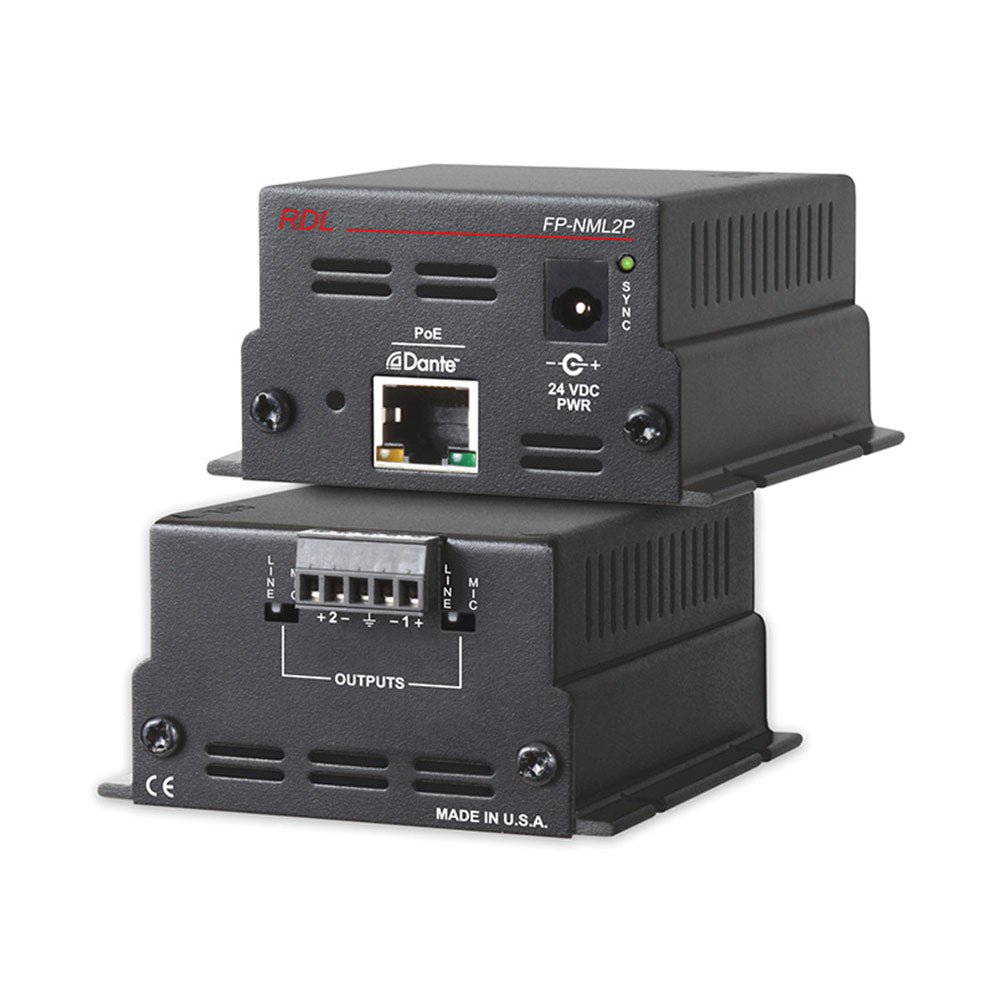

RDL FP-NML2P Dante Network to Mic/Line Interface (with PoE)


  • Dale #:

    RDL-FPNML2P
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The FP-NML2 is a high quality converter that provides professional line-level outputs from two Dante network audio channels. Each line output provides +4 dBu balanced for a network digital audio level of -18 dBFS. The professional output directly interfaces with other professional and commercial ... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The FP-NML2 is a high quality converter that provides professional line-level outputs from two Dante network audio channels. Each line output provides +4 dBu balanced for a network digital audio level of -18 dBFS. The professional output directly interfaces with other professional and commercial equipment without the need for additional gain. Crosstalk is below the noise floor between all outputs across the entire audio spectrum. The noise floor is better than 80 dB below operating level with greater than 18 dB of headroom. Each output is equipped with a recessed mic/line switch that provides 50 dB of attenuation to feed the microphone input of a mixer-amplifier or other equipment with mic inputs.

The FP-NML2P is equipped to operate from a PoE enabled network switch. The FP-NML2P will reserve power from the switch even while being powered from an external 24 Vdc supply. If PoE power and an external 24 Vdc supply are both feeding an FP-NML2P, the unit will run from the external supply and will seamlessly switch over to PoE power upon loss of the external supply.

Features:

  • Adapts Standard Audio Amplifiers to a Dante Network
  • Converts Two Dante Network Audio Signals to Professional Line Level
  • Each Output is Switch-Selectable for Mic or Line Level
  • Line-Level Outputs Provide +4 dBu with > 18 dB Headroom
  • Exceptional Low-Noise and Low-Distortion Performance
  • Crosstalk is Below the Noise Floor
  • High Resolution 24 Bit Digital to Analog Conversion
  • Legendary RDL Analog Filtering Enhances Superb Audio Performance
  • Outputs Mute when Digital Audio Inputs are Inactive
  • Normal or Hot-Standby Operation from PoE
  • Equipped for Rack Mounting or Surface Mounting

The FP-NML2 includes a dc output jack and extension cable that allows it to be operated from a common power supply with RDL FLAT-PAK amplifiers. One audio output connects to the FLAT-PAK amplifier input, and the second output may be connected to an additional amplifier.

The FP-NML2's superior performance specifications make it ideally suited to the most demanding installations, and an exceptional value in commercial networked audio systems.

The FP-NML2 is constructed in a durable, professional all-metal enclosure suitable for free-standing, surface-mounted or rack-mounted operation. This full-featured product is engineered and manufactured in the U.S.A for continuous duty in demanding installations. Built to last. Built to outperform.

More +

Product Specs

Network ConnectorRJ45 with Link and Speed indicators
Digital Audio Ethernet ProtocolDante
Transmission Rate100 Mbps
Sample Rates Supported44.1 kHz, 48 kHz (default)
Bit Depth Supported24 bits
Audio Operating Levels-18 dBFS = +4 dBu
Outputs (2)Balanced, detachable terminal block
Output Level+4 dBu (nominal)
Output Impedance150 balanced; 75 unbalanced
Frequency Response20 Hz to 20 kHz (± 0.5 dB)
THD+N< 0.1%
Noise below +4 dBu< -80 dB (output active); < -95 dB (outputs muted)
Crosstalk< 90 dB (1 kHz); < 80 dB (20 Hz to 20 kHz)
Headroom above +4 dBu> 18 dB
Indicators (3)Ethernet Link and Speed, SYNC
Power Connections (2)Power Jack; Detachable Terminal Block
Ambient Operating Environment0° C to 40° C
Power Requirement24 Vdc @ 100 mA, or PoE (FP-NML2P)
PoE (FP-NML2P)Class 0, IEEE 802.3af
Dimensions4.85" (12.3 cm) W; 1.75" (4.45 cm) H; 3.25" (8.26 cm) D
Package TypeCardboard Box
Package Dimensions4.375 x 4.8 x 2.25 in.
Shipping Weight0.791 lbs. (FP-NML2); 0.816 lbs. (FP-NML2P)
WEEE weight0.645 lbs. (FP-NML2); 0.67 lbs. (FP-NML2P)
Tariff code8517.18.0050
