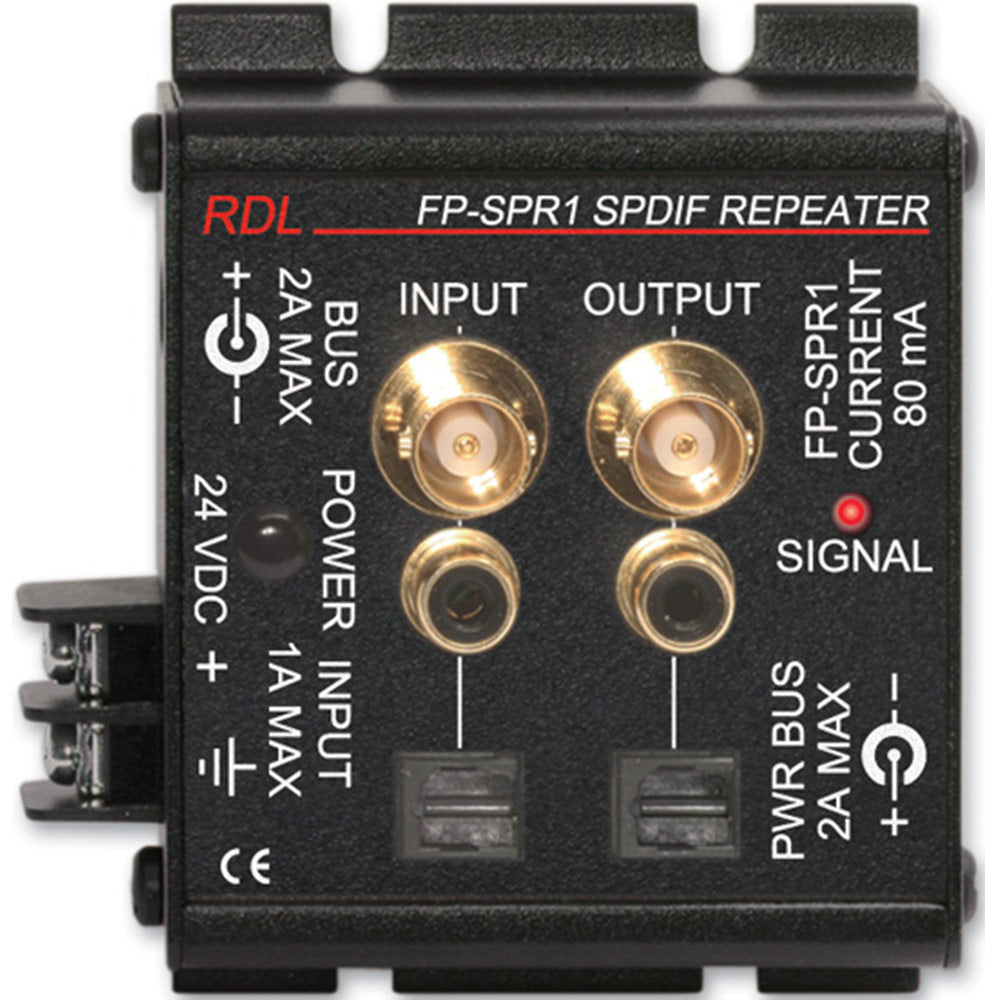

RDL FP-SPR1 SPDIF Repeater / Amplifier
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The FP-SPR1 is the ideal product for applications requiring either conversion between SPDIF connector types or recovery of low SPDIF signal levels. Power connections are made using either the full-size barrier block terminals or a dc power jack located in one end panel. A second dc power jack is provided on the other end panel for connecting additional FLAT-PAK modules.
The FP-SPR1 is a single-channel module featuring three separate inputs. An input is provided in each conventional SPDIF format: BNC, phono and optical. Any one of these inputs may be used. A coaxial input has priority over the optical input. Three output jacks are also provided: BNC, phono and optical. Either of the coaxial jacks may be used and/or the optical output may be connected. It is possible to use only one of the three outputs or use one coaxial and the optical output simultaneously. A front-panel SIGNAL LED illuminates when an input signal of sufficient amplitude is received to produce the correct output from the module.-
Features:
- Correct SPDIF Signal Level from Long Line
- Conversion Between SPDIF Connector Types
- BNC, Phono and Optical Inputs
- BNC, Phono and Optical Outputs
- Reshape SPDIF Waveforms
- Virtually Jitter-Free Performance
- Convenience of RDL FLAT-PAKs
| Inputs (3): | 75 BNC coaxial, 75 phono coaxial, optical |
| Input Level: | 100 mV to 2.5 V p-p (coaxial) |
| Outputs (3): | 75 BNC coaxial, 75 phono coaxial, optical |
| Output Level: | 500 mV p-p (coaxial) |
| Frequency Range: | 28 kHz to 48 kHz |
| Indicator (1): | Signal present LED |
| Jitter: | < 200 pS (input signal 200 mV p-p or greater), < 1 nS (input signal 100 mV p-p) |
| Power Requirement: | GROUND-REFERENCED, 24 Vdc @ 80 mA Note: May operate from 12 Vdc in standalone installations |

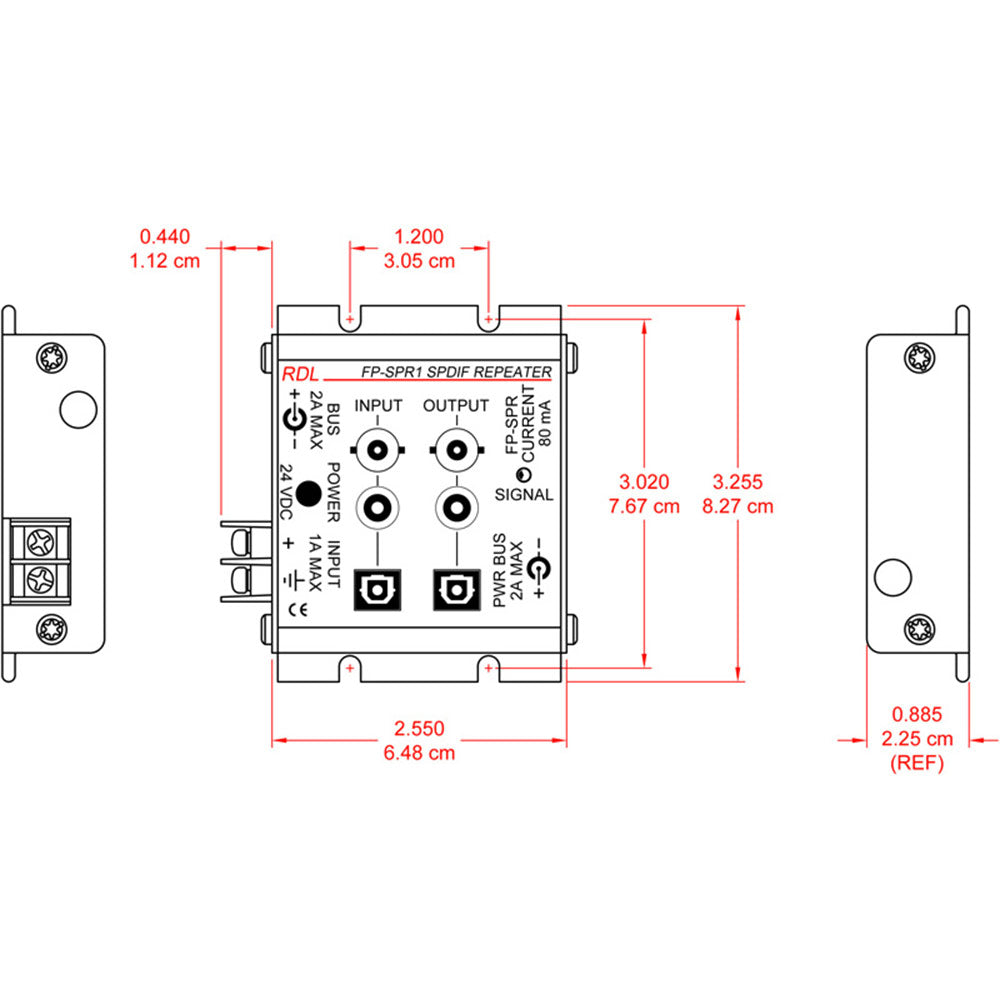

| Dimensions: | Height: 1.34 in. 3.40 cm |
| Width: 3.25 in. 8.26 cm | |
| Length: 2.82 in. 7.16 cm | |
| Ambient Operating Environment: | -10 degrees C to 55 degrees C |
The FP-SPR1 is the ideal product for applications requiring either conversion between SPDIF connector types or recovery of low SPDIF signal levels. Power connections are made using either the full-size barrier block terminals or a dc power jack located in one end panel. A second dc power jack is provided on the other end panel for connecting additional FLAT-PAK modules.
The FP-SPR1 is a single-channel module featuring three separate inputs. An input is provided in each conventional SPDIF format: BNC, phono and optical. Any one of these inputs may be used. A coaxial input has priority over the optical input. Three output jacks are also provided: BNC, phono and optical. Either of the coaxial jacks may be used and/or the optical output may be connected. It is possible to use only one of the three outputs or use one coaxial and the optical output simultaneously. A front-panel SIGNAL LED illuminates when an input signal of sufficient amplitude is received to produce the correct output from the module.-
Features:
- Correct SPDIF Signal Level from Long Line
- Conversion Between SPDIF Connector Types
- BNC, Phono and Optical Inputs
- BNC, Phono and Optical Outputs
- Reshape SPDIF Waveforms
- Virtually Jitter-Free Performance
- Convenience of RDL FLAT-PAKs
| Inputs (3): | 75 BNC coaxial, 75 phono coaxial, optical |
| Input Level: | 100 mV to 2.5 V p-p (coaxial) |
| Outputs (3): | 75 BNC coaxial, 75 phono coaxial, optical |
| Output Level: | 500 mV p-p (coaxial) |
| Frequency Range: | 28 kHz to 48 kHz |
| Indicator (1): | Signal present LED |
| Jitter: | < 200 pS (input signal 200 mV p-p or greater), < 1 nS (input signal 100 mV p-p) |
| Power Requirement: | GROUND-REFERENCED, 24 Vdc @ 80 mA Note: May operate from 12 Vdc in standalone installations |
| Dimensions: | Height: 1.34 in. 3.40 cm |
| Width: 3.25 in. 8.26 cm | |
| Length: 2.82 in. 7.16 cm | |
| Ambient Operating Environment: | -10 degrees C to 55 degrees C |
