RDL FP-TP4PW Power Inserter - Twisted Pair - four sets of outputs - signal loop-through

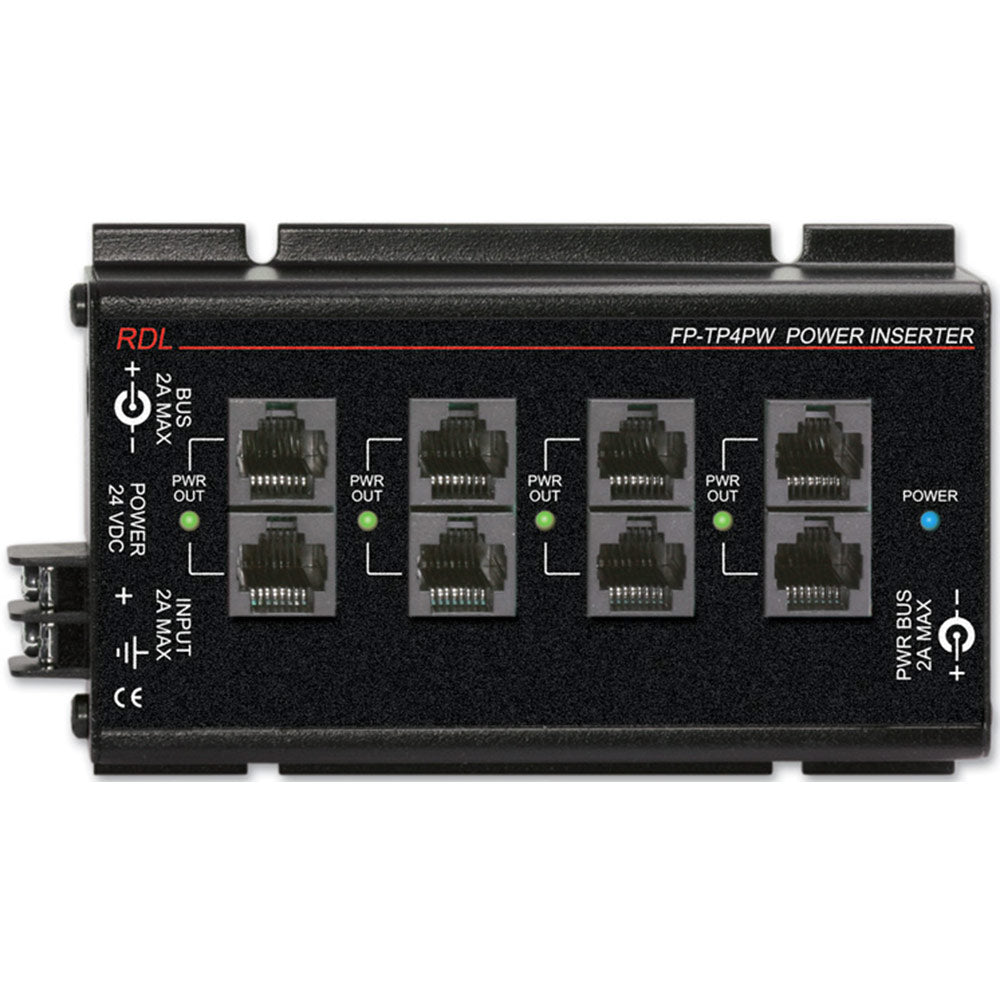

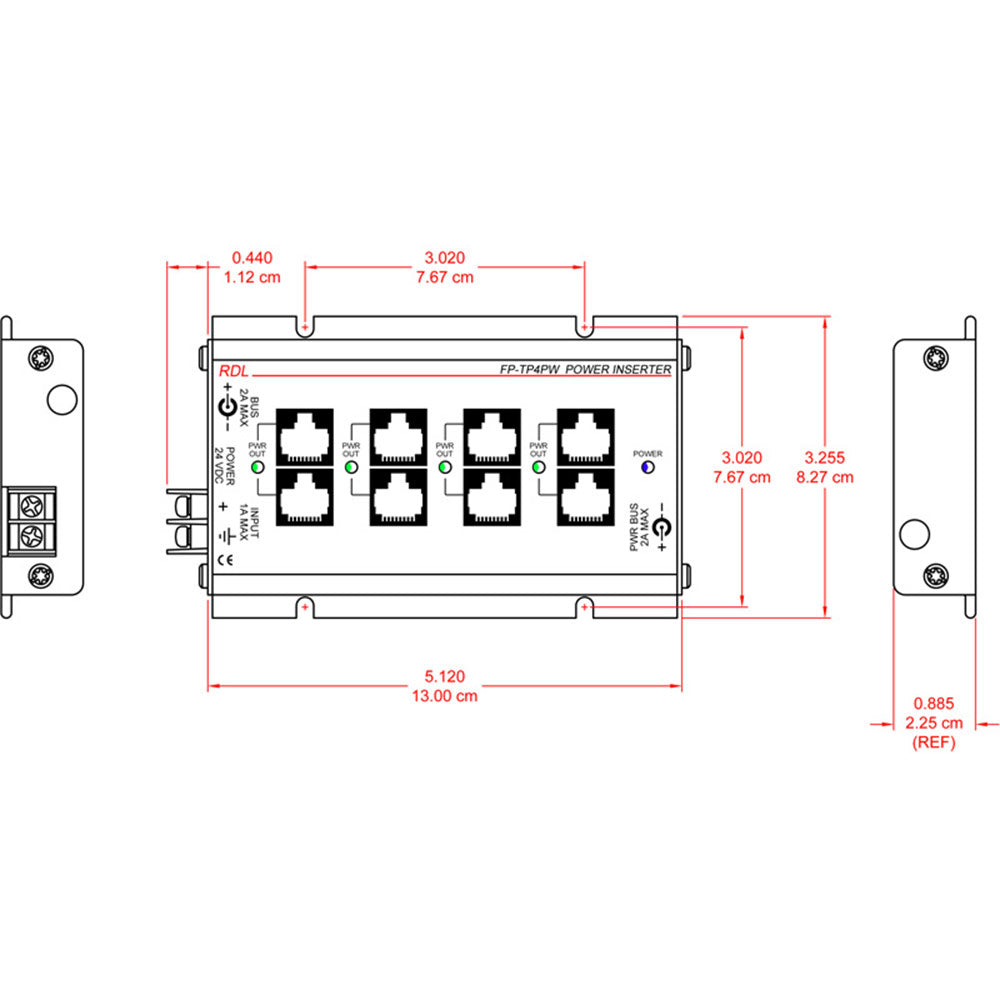

The FP-TP4PW is a four output power inserter compatible with RDL twisted pair products. It is powered from a 24 Vdc power supply using either one of the power jacks or the terminal block. Power jacks are provided at each end of the module to facilitate chaining multiple FP-TP4PWs from a single power supply. Four dual-RJ45 jack sets are provided to connect remote twisted pair senders and receivers. Power is provided to all modules connected to the RJ45 jacks. Signal pairs feed through the associated RJ45s. The voltage feeding each dual-RJ45 jack set is separately protected by an automatically resetting fuse. A power LED is associated with each dual-RJ45 jack set, facilitating identification of wiring faults. Module power is indicated by a front-panel LED.

Features:
• Power Four Sets of Remote Senders and Receivers from a Convenient Location
• 24 Vdc Input on dc Power Jack or Full-Size Terminal Block
• Power Bus Provides Expansion to Adjacent Power Inserters
• Blue Power LED Shows Module is Receiving Power
• Green LEDs Indicate Correct dc Output Voltage on RJ45s
• Two Associated RJ45s Provided for Each Power Output
• One Associated RJ45 may Power Receivers
• The Other Associated RJ45 may Power Senders
