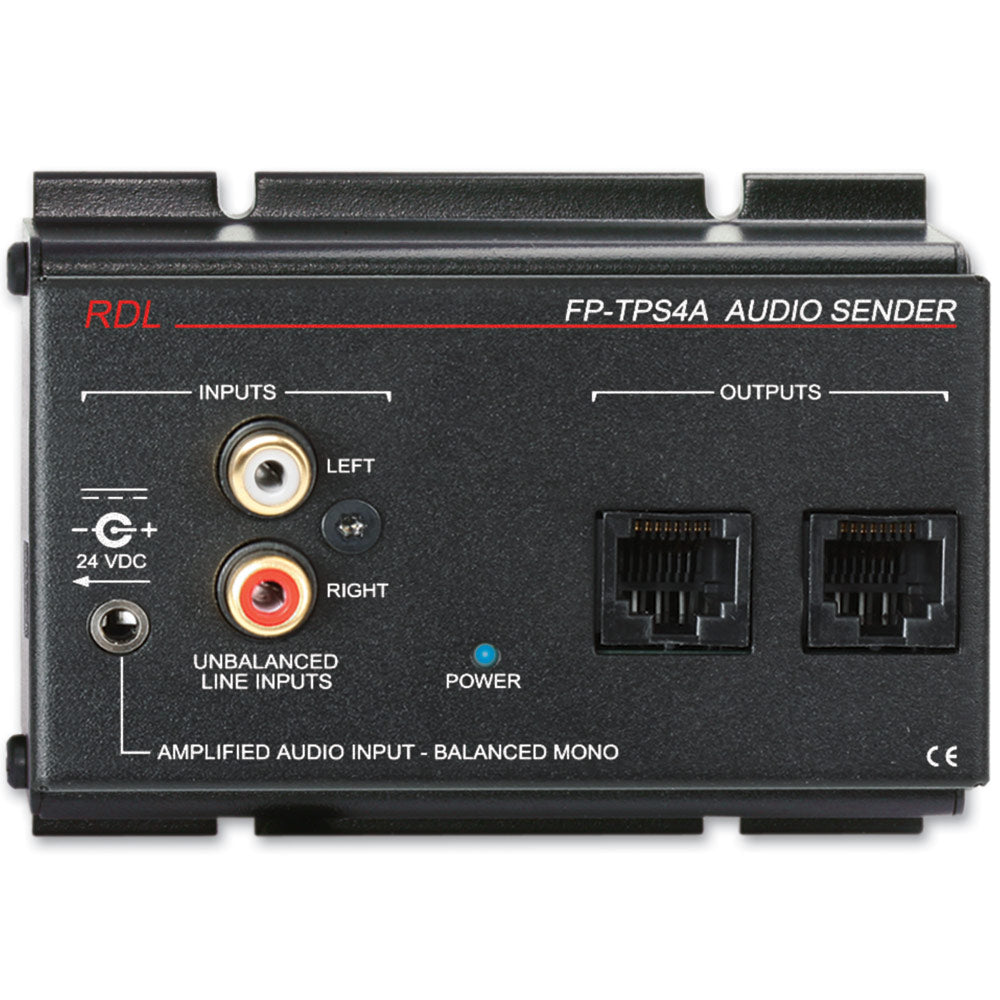

RDL FP-TPS4A Format-A Two-Pair Audio Sender - RCA/Mini Inputs


  • Dale #:

    RDL-FPTPS4A
  • Availability:

    Reserve Yours Now
  • This item usually ships within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Please Note: requires PS-24AS Power Supply (sold separately)

Description

The FP-TPS4A is an RDL Format-A Audio Sender that accepts either a stereo line-level or 1 to 3 Watt mono amplified fixed-level signal, usually from a commercial hospitality equipped TV. The FP TPS4A distributes the source signal to two Format-A output jacks to feed multiple Format-A receivers. Fe... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The FP-TPS4A is an RDL Format-A Audio Sender that accepts either a stereo line-level or 1 to 3 Watt mono amplified fixed-level signal, usually from a commercial hospitality equipped TV. The FP TPS4A distributes the source signal to two Format-A output jacks to feed multiple Format-A receivers.

Features:

  • Format-A Sender from TV Fixed Audio Output
  • Sends Left and Right Audio Channels
  • Unbalanced Stereo Input from Fixed Level Audio Source
  • Balanced Audio Input from Mono Amplifier
  • High Quality Audio Distributed to Each RJ45 Output
  • Two Format-A Outputs on RJ45
  • Distributes Power to Connected Receivers
  • Automatically Resetting Fuse for Output Voltage
  • Ultra-Compact All Metal Construction

The input accepts either an unbalanced stereo or an amplified mono input. The FP-TPS4A sends the unbalanced Left and Right sources over balanced twisted-pair cables on pairs B and C. If a mono amplified signal is connected, the mono source is fed to both pairs B and C. Audio circuitry is active balanced for superior audio fidelity and low-noise performance.

The FP-TPS4A is normally mounted behind a TV where AC power is available. A 24 Vdc power supply, available separately, provides power to the FP-TPS4A and to the connected receiving modules. It is not necessary to connect power supplies to the connected receivers, facilitating installation. A front-panel blue LED is illuminated when the FP-TPS4A is receiving and distributing 24 Vdc to both RJ45 jacks. The distributed output dc voltage is short-circuit protected by an automatically resetting fuse. A power fault on either output jack causes the blue LED to extinguish.

The FP-TPS4A is ideally suited to guest room installations with bedside and restroom listening stations. The outputs are fully compatible with all RDL Format-A receivers.

RDL FORMAT-A features superior audio performance that rivals or exceeds shielded wiring. Design simplicity, ease of installation, unsurpassed flexibility, automatic fused power, exceptional hum rejection, low noise, and low distortion provide designers and installers the optimum choice in economical twisted pair products.

More +

Product Specs

Inputs (3) 20 k unbalanced (2, left and right); 100 k balanced (mono amplified)
Input Connection Phono Jack (Unbal.); Mini-jack (Bal.)
Input Level -10 dBV unbalanced; 1 W (8 Ohms) to 10 W (8 Ohms) balanced, 2 W nominal
Format-A Signal Pairs Used (2) B, C
Output RDL TP Format-A
Output Connection RJ45
Frequency Response 10 Hz to 50 kHz (± 0.1 dB)
THD+N < 0.05%
Noise below +4 dBu < -85 dB
Crosstalk < -85 dB (10 Hz to 10 kHz); < -80 dB (10 kHz to 20 kHz)
Headroom above +4 dBu > 18 dB
Indicator Power (Input and outputs active)
Power Connection Power Jack (locking)
Maximum Load Current 500 mA
Power Requirement 24 Vdc @ 30 mA plus connected load

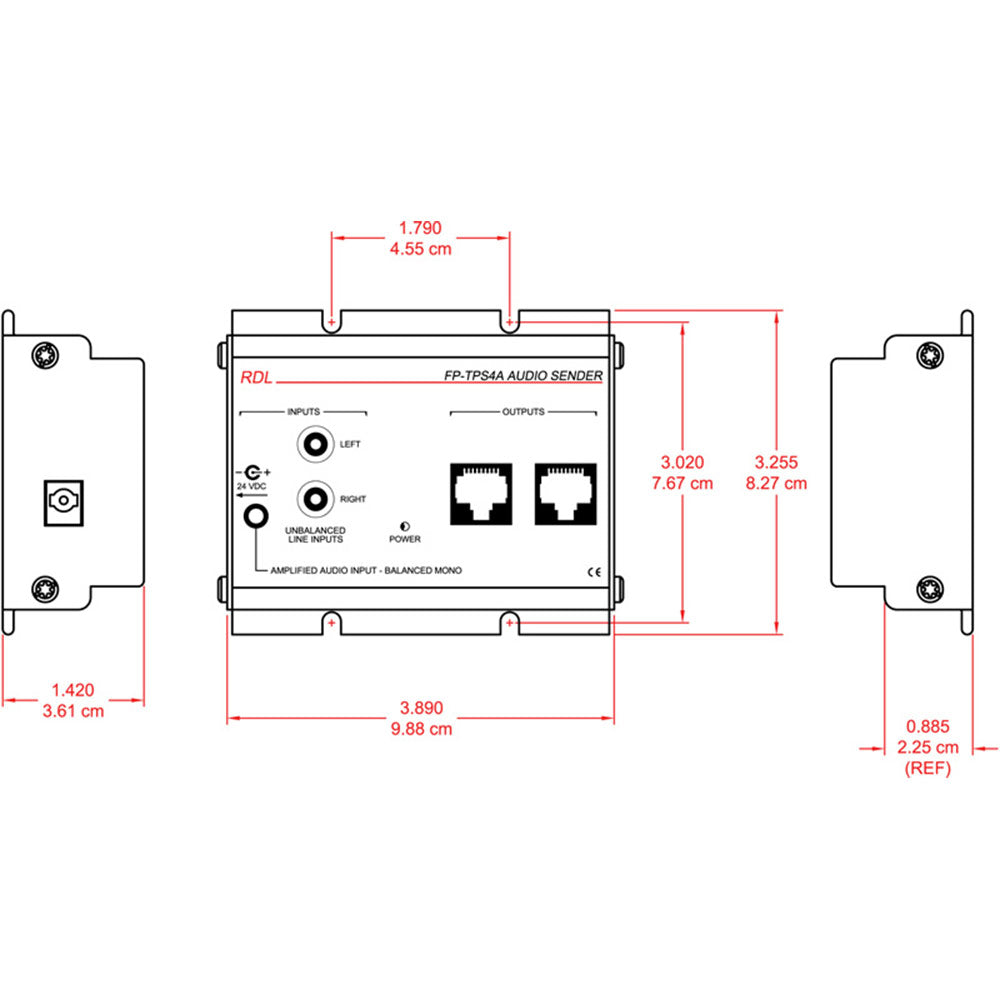

Dimensions 4.15" (10.5 cm) L; 3.25" (8.6 cm) W; 1.68" (4.27 cm) H
Package Type Cardboard Box
Package Dimensions 3.625 x 4.625 x 2.125 in.
Shipping Weight 0.665 lbs.
