RDL FP-UBC2 2-Channel Unbalanced to Balanced Audio Converter
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The FP-UBC2 is the ideal choice for connectorized conversion from unbalanced to balanced audio. This module features two identical channels. Gold-plated phono jacks are utilized for each unbalanced input channel. Each output is balanced, connected through an XLR jack. A gain trim potentiometer is provided for each channel.
The normal gain setting is indicated for the trimming potentiometer. This setting produces a +4 dBu balanced output for a "10 dBV unbalanced input. The gain is adjustable "5 dB to +10 dB from the normal gain. Therefore, a +4 dBu output signal is possible from input signals ranging from "20 dBV to "5 dBV.-
Features:
- Stereo Unbalanced to Balanced Audio Conversion
- Connectorized Audio Converter
- Output Level Trim
- Low-Noise and Low-Distortion Conversion
- Cabinet, Shelf or Rack Mounting
- Convenience of RDL FLAT-PAKs
| Amps per FP-UBC2: | 2 identical circuits (stereo or dual mono operation) |
| Gain: | -5 dB to +10 dB (adjustable relative to +4 dBu output for Ò10 dBV input) (separate controls for each channel) |
| Input Level: | -20 dBV to -5 dBV (for +4 dBu output) |
| Input Impedance: | 10 k |
| Input Configuration: | Unbalanced |
| Output Impedance: | 150 balanced, drives 600 or 10 k lines |
| Output Configuration: | Balanced or unbalanced |
| Frequency Response: | 20 Hz to 40 kHz (+/- 0.25 dB) |
| THD+N: | < 0.05% typ. 0.01% (1 kHz) |
| IMD: | < 0.02% |
| Output Level: | +4 dBu |
| Headroom: | > 18 dB (at rated output level of +4 dBu) |
| Noise: | < -85 dB referred to +4 dBu (20 Hz to 20 kHz) |
| Crosstalk: | Better than 70 dB (20 Hz to 20 kHz) < -80 dB (typ. 1 kHz) |
| Power Requirement: | GROUND-REFERENCED, 24 Vdc @ 50 mA |

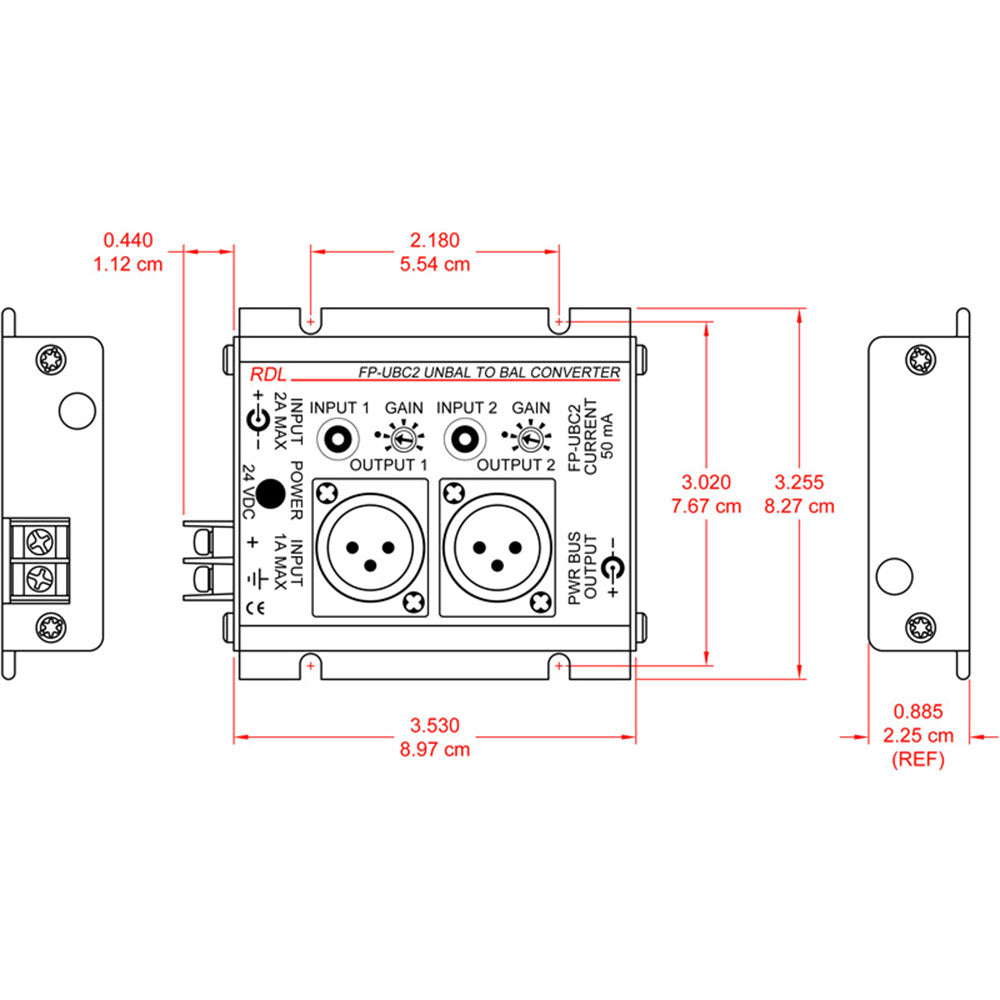

| Dimensions: | |
| Height: | 1.29 in. 3.28 cm |
| Width: | 3.25 in. 8.26 cm |
| Length: | 4.07 in. 10.34 cm |
| Ambient Operating Environment: | 0 degrees C to 55 degrees C |
The FP-UBC2 is the ideal choice for connectorized conversion from unbalanced to balanced audio. This module features two identical channels. Gold-plated phono jacks are utilized for each unbalanced input channel. Each output is balanced, connected through an XLR jack. A gain trim potentiometer is provided for each channel.
The normal gain setting is indicated for the trimming potentiometer. This setting produces a +4 dBu balanced output for a "10 dBV unbalanced input. The gain is adjustable "5 dB to +10 dB from the normal gain. Therefore, a +4 dBu output signal is possible from input signals ranging from "20 dBV to "5 dBV.-
Features:
- Stereo Unbalanced to Balanced Audio Conversion
- Connectorized Audio Converter
- Output Level Trim
- Low-Noise and Low-Distortion Conversion
- Cabinet, Shelf or Rack Mounting
- Convenience of RDL FLAT-PAKs
| Amps per FP-UBC2: | 2 identical circuits (stereo or dual mono operation) |
| Gain: | -5 dB to +10 dB (adjustable relative to +4 dBu output for Ò10 dBV input) (separate controls for each channel) |
| Input Level: | -20 dBV to -5 dBV (for +4 dBu output) |
| Input Impedance: | 10 k |
| Input Configuration: | Unbalanced |
| Output Impedance: | 150 balanced, drives 600 or 10 k lines |
| Output Configuration: | Balanced or unbalanced |
| Frequency Response: | 20 Hz to 40 kHz (+/- 0.25 dB) |
| THD+N: | < 0.05% typ. 0.01% (1 kHz) |
| IMD: | < 0.02% |
| Output Level: | +4 dBu |
| Headroom: | > 18 dB (at rated output level of +4 dBu) |
| Noise: | < -85 dB referred to +4 dBu (20 Hz to 20 kHz) |
| Crosstalk: | Better than 70 dB (20 Hz to 20 kHz) < -80 dB (typ. 1 kHz) |
| Power Requirement: | GROUND-REFERENCED, 24 Vdc @ 50 mA |
| Dimensions: | |
| Height: | 1.29 in. 3.28 cm |
| Width: | 3.25 in. 8.26 cm |
| Length: | 4.07 in. 10.34 cm |
| Ambient Operating Environment: | 0 degrees C to 55 degrees C |
