RDL FP-VDA4 NTSC/PAL Video Distribution Amp - 1x4 - BNC


Have a Question? Call Toll Free: 888-462-7828

Live Chat Email Us

Please Note: requires PS-24AS Power Supply (sold separately)

Availability: Usually ships in 5 - 10 Days

This item usually ships within 5-10 days after your order is placed. Your payment will be charged after completing checkout.
Free Shipping (Continental US)

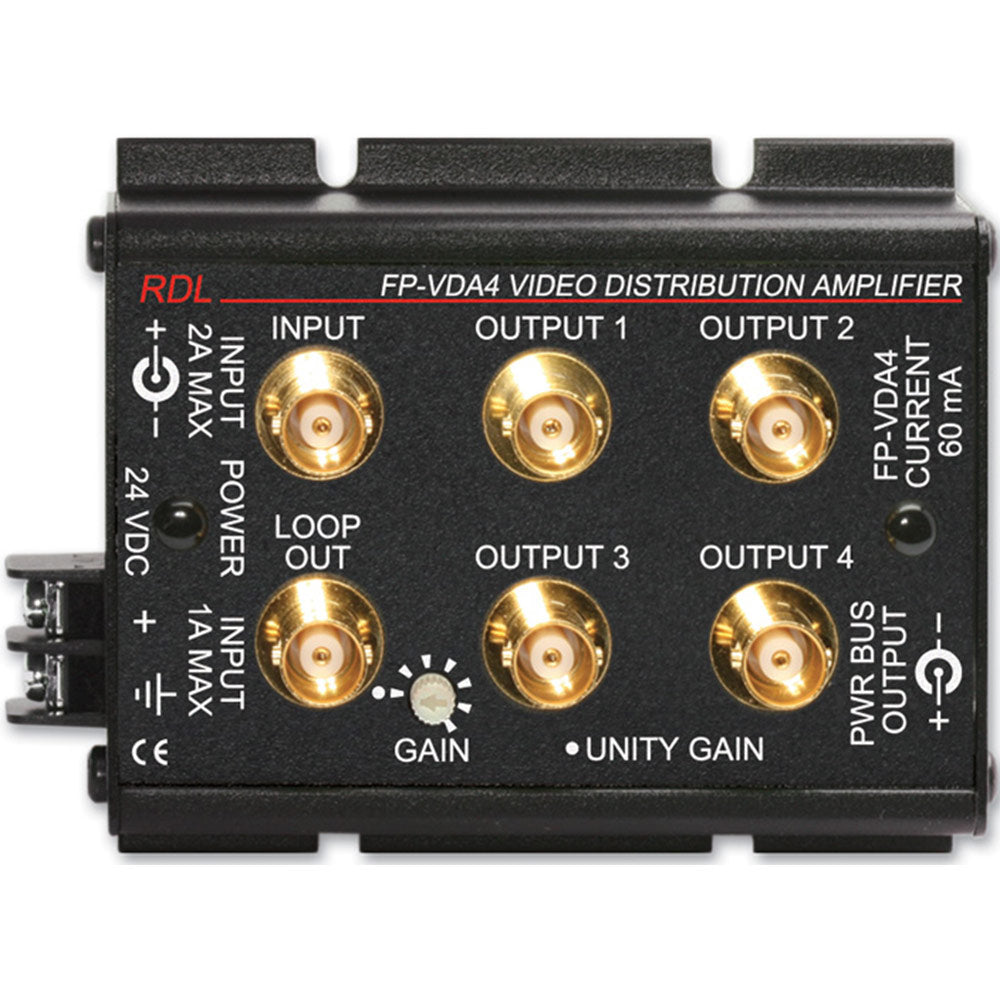

  • The FP-VDA4 is the ideal choice in many applications where video signals need to be distributed. Video input and output connections are made on the top-panel BNC jacks. Power connections are made using either the full-size barrier block terminals or a dc power jack located in one end panel. A second dc power jack is provided on the other end panel for connecting additional FLAT-PAK modules.

    The FP-VDA4 has two jacks in the bridging input stage. One jack is for the input signal the other is a loop-through output of the source signal. If 75 ohm termination of the input signal is required, the terminator (provided) is plugged onto the LOOP OUT jack. Gain is user adjustable from the top panel. The GAIN potentiometer allows adjustment from unity to +6 dB. Four source-terminated outputs are provided through the BNC output jacks. Unused outputs need not be terminated.
    • Video Distribution with Four Outputs
    • Adjustable Gain
    • Input LOOP OUT Jack
    • Wide Bandwidth “ Flat to 10 MHz
    • NTSC or PAL Operation
    • Ultra-Compact All Metal Construction
    • Convenience of RDL FLAT-PAKs
  • Input Impedance:1 k (Bridging 75 Line)
    Gain:Unity to +6 dB (adjustable)
    Load Impedance:75
    Outputs (5):1 LOOP OUT from Input Signal 4 amplified outputs
    Output Level:1 V p-p (into 75 )
    Frequency Response:10 Hz to 10 MHz (+/- 0.2 dB)
    Noise:< -75 dB (below 1 V p-p)
    Output Isolation:> 45 dB
    Differential Gain:0.1%
    Differential Phase:0.1 degree (measured at 10% and 90% APL)
    Connector Type:BNC
    Power Requirement:GROUND-REFERENCED, 24 Vdc @ 60 mA

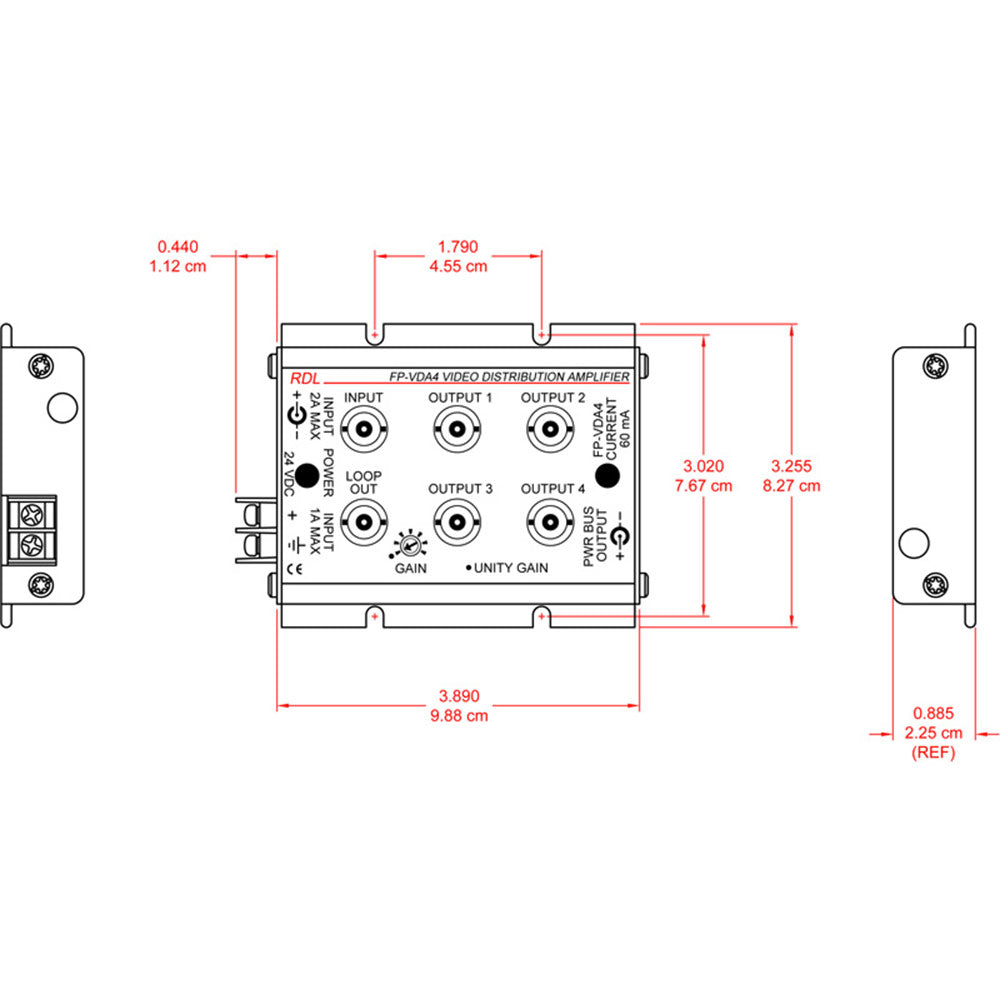

    Height: 1.34 in   3.40 cm
    Width: 3.25 in   8.26 cm
    Length: 4.43 in   11.25 cm
    Ambient Operating Environment:-10 degrees C to 55 degrees C
