RDL GB6 Grounding Bar for TS-1D Modules


  • Dale #:

    RDL-GB6
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The TS-1D is intended to protect audio input and output circuits from the effects of transients induced on the audio lines. Features:Immunity from Electrostatic Discharge Immunity from Induced Transient Voltage Immunity from RF Interference Immunity from Electromagnetic Pulse CE Compliance Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The TS-1D is intended to protect audio input and output circuits from the effects of transients induced on the audio lines.

    Features:
  • Immunity from Electrostatic Discharge
  • Immunity from Induced Transient Voltage
  • Immunity from RF Interference
  • Immunity from Electromagnetic Pulse
  • CE Compliance

More +

Product Specs

AUDIO
Frequency Response: 10 Hz to 50 kHz (+/- 0.25 dB)
Insertion Loss: <0.3 dB (into balanced bridging input)
<1.0 dB (into 150 or 600 balanced< input)
< 6 dB (600 balanced source into 600 load)
ELECTRICAL
Number of Circuits: 4, independent (for connection as 4 unbalanced or 2 balanced audio lines)
Equivalent Series Resistance,  Input to Output: 20
Equivalent Circuit: 300 kHz LP filter, 6 dB/octave, integral shunt high-voltage switch
Maximum Working Signal: 30 Vp, 60 V p-p
HV Switch Clamp: 24 V actuation 48 V maximum
Transient Energy: 0.1 joule
PHYSICAL
Case Material: Electromagnetically inert plastic composition
Size: 1.75 in. W x 2.5 in. L x 0.9 in. H (4.45 cm x 6.35 cm x 2.29 cm) (including terminal strip)
Ground Bus (integral): 110 alloy copper, 0.25 W x 1.6 L (.64 cm x 4.1 cm) with 2 mounting holes, #6 (.37 cm) clearance, mounting hardware included
Input/Output Termination: #6 (.35 cm) captive screw terminals

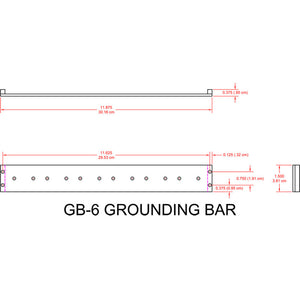

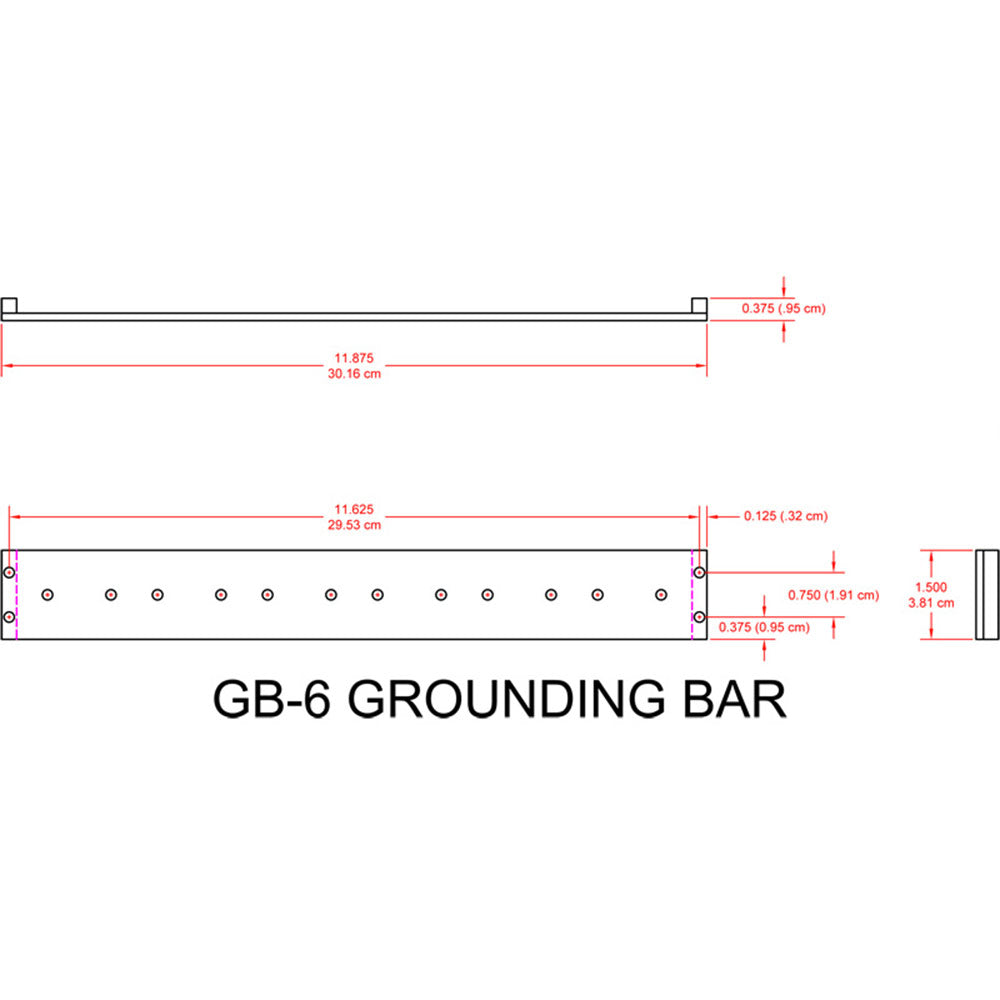

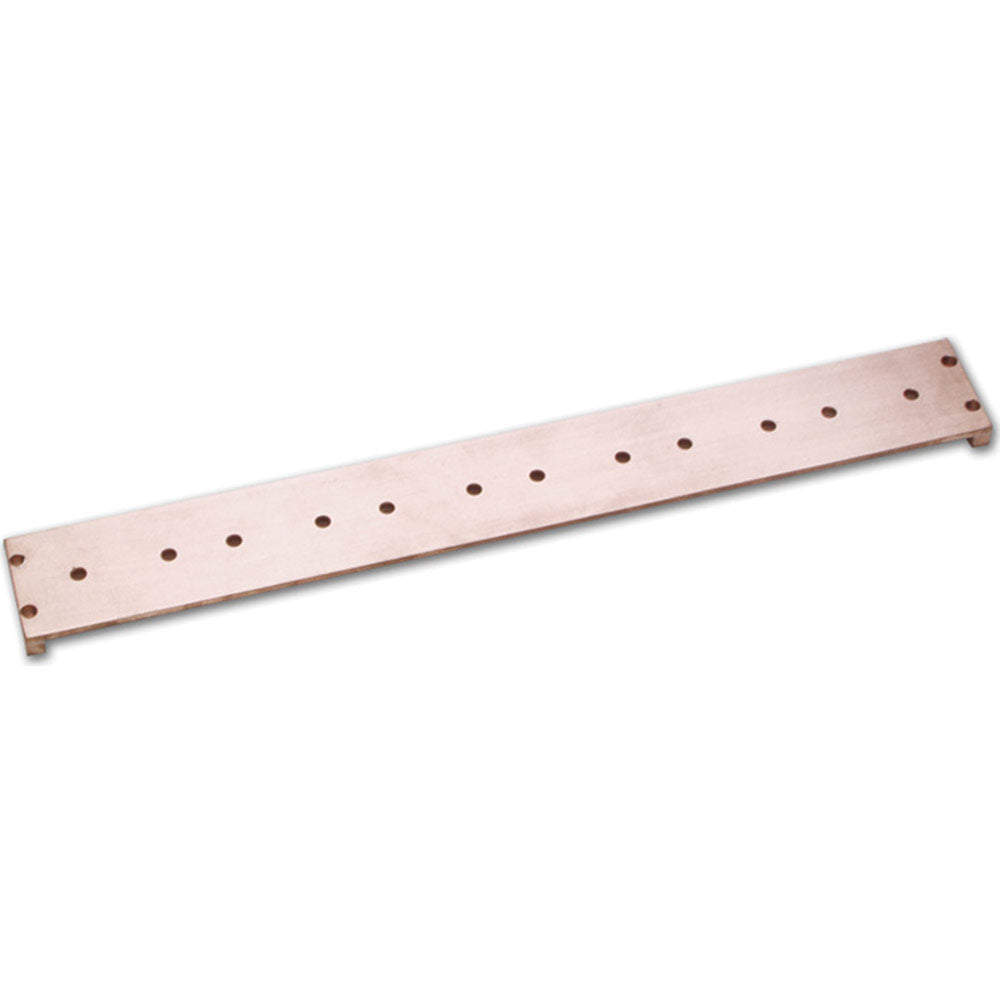

GB6 GROUND BAR
Size: 1.5 in. W x 11.87 in. L x .378 in. H (3.81 cm x 30.2 cm x .96 cm)
Material: 110 Alloy Copper
EMC Suppression: IEC 1000-4-2 levels 1 through 3 < 1 V
IEC 1000-4-3 levels 1 through 3 < 1 V
IEC 1000-4-4 levels 1 through 4 < 1 V
Ambient Operating Environment:-10 degrees C to 55 degrees C

More +
