RDL HD-MA35A HD Series 35 Watt Mixer Amplifier (25/70/100 Volt)


  • Dale #:

    RDL-HDMA35A
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The HD-MA35A is a three input audio mixer amplifier for systems demanding a broad range of features and high energy efficiency. Two output power amplifier zones are provided, 35 W (Zone 1) and 2 W (Zone 2). The Zone 1 output is driven from a high-efficiency Class D amplifier stage. The Zone 1 amp... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The HD-MA35A is a three input audio mixer amplifier for systems demanding a broad range of features and high energy efficiency. Two output power amplifier zones are provided, 35 W (Zone 1) and 2 W (Zone 2). The Zone 1 output is driven from a high-efficiency Class D amplifier stage. The Zone 1 amplifier output level may be VCA controlled using various optional RDL remote controls, or by industry standard 0 to 10 Vdc or 0 to 10 kOhm controls. This output provides a constant voltage (25 V, 70 V or 100 V). The Zone 2 amplifier output drives an 8 Ohm speaker and/or 600 Ohm telephone equipment. The HD-MA35A is engineered and manufactured in the U.S.A.

Features:

  • Three inputs with individual front-panel volume controls
  • Bass and Treble tone controls
  • Designed for background music with paging and music-on-hold
  • Master volume VCA controlled with remote adjustment capability
  • Manual or automatic (VOX) priority ducking
  • Balanced inputs and amplified outputs on detachable terminal blocks
  • Unbalanced inputs and outputs on RCA jacks
  • Includes power supply
  • High-efficiency Class D operation

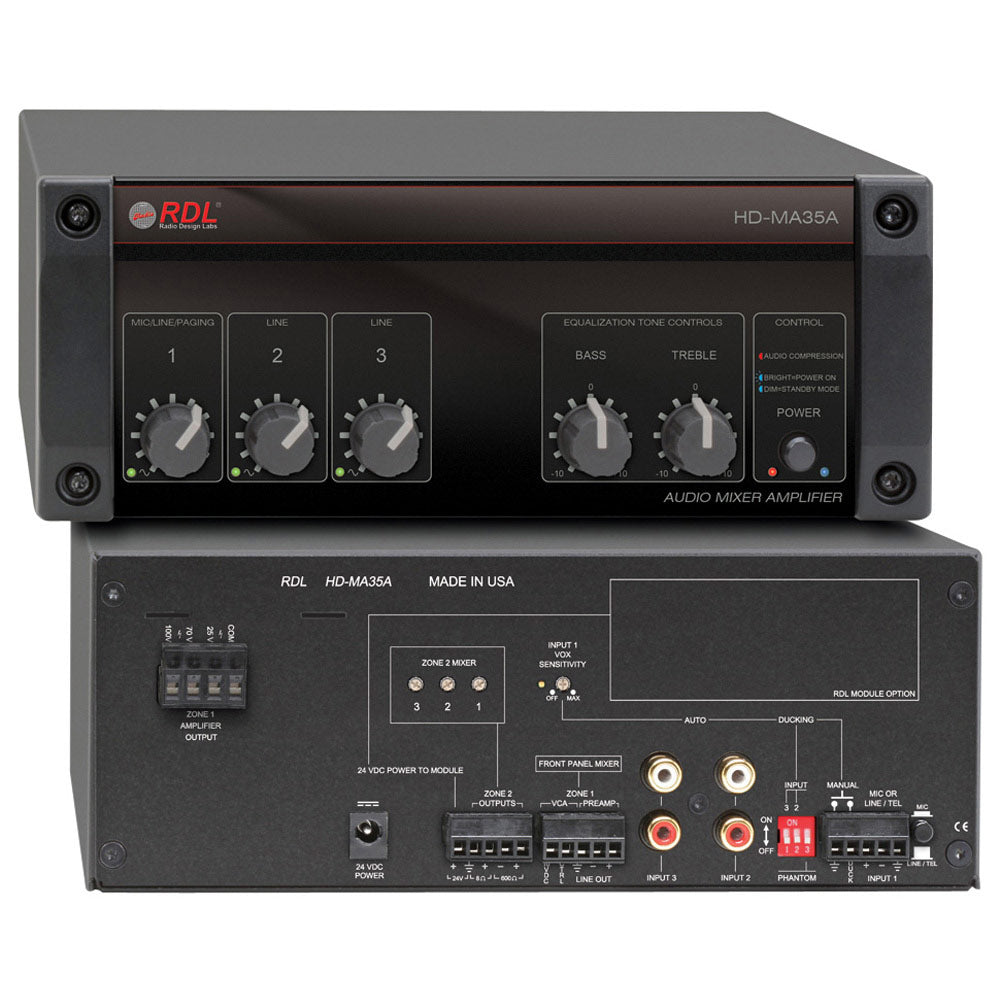

The HD-MA35A features two mixers. The Zone 1 mixer is located on the front-panel providing user level and tone controls for the 35 W amplifier output. The tone controls adjust the equalization at the Zone 1 amplifier output. The Zone 2 mixer on the rear panel provides level trimmers normally set by the installer to provide music-on-hold and/or for background music in a small zone equipped with an 8 Ohm speaker. The Zone 2 section includes a 2 W amplifier and a 600 Ohm transformer-balanced MOH output. The HD-MA35A is equipped with a master VCA for remote adjustment of the Zone 1 amplifier output. A detachable terminal block is provided for direct connection of an optional RDL remote level control.

The HD-MA35A has three inputs that are common to both mixers. Input 1 accepts a balanced mic or line level source. Inputs 2 and 3 accept unbalanced mono or stereo line-level sources. Input 1 is switch-selectable MIC or LINE. Phantom voltage (IEC standard 24 Vdc) is switch-selectable for the microphone input. The line input is transformer isolated and accepts balanced or unbalanced, high or low impedance audio sources. A paging source is normally connected to Input 1. This input is equipped with push-to-talk terminals and with an adjustable threshold VOX circuit with LED threshold indicator, either (or both) of which may be set to duck ("fade down" or "mute") inputs 2 and/or 3 by 25 dB when a paging signal is active on Input 1. The attenuated inputs fade up to normal volume when the paging message is finished.  Inputs 2 and 3 each provide unbalanced stereo RCA input jacks, summed to mono.

More +

Product Specs

Amplifier Zones (2):Zone 1 (Main): 35 W RMS, front-panel mixer (user controls); Zone 2: 2 W RMS (8 Ohms), rear-panel mixer (trimmers)
Audio Inputs (3):Balanced, mic or line switch selectable on terminal block; 2, unbalanced stereo summing inputs on RCA jacks
Maximum Input Level:Mic Input: -11.5 dBu; Balanced line input: + 19 dBu; Unbalanced Inputs: + 9 dBV (+15.5 dBV, one input); (for 1% THD+N at output)
Phantom Voltage:24 Vdc (IEC 1938: 1996-12), switch-selectable for the mic input
Ducking/Muting Actuation:Automatic (Input 1 VOX: rear-panel adjustable signal threshold with LED indicator) or Manual (contact closure to ground)
Ducking/Muting Release Delay:4 seconds, nominal
Ducking/Muting:Switch-selectable for inputs 2 and/or 3, 25 dB ducking attenuation, nominal
External RDL Module Power Output:24 Vdc, 100 mA maximum, ground-referenced
Input level:(to cross compressor threshold equaling 23 W amplified output)
Mic Input: -50 dBu (2.5 mV), (front panel gain at max.)
Balanced line input: -21 dBu (70 mV), (front panel gain at max.)
Unbalanced Inputs: -15 dBV (180 mV, front panel gain at max., both inputs driven)
Noise (line output):Mic input: -68 dB, Balanced line input: -72 dB (below compressor threshold at max gain); Unbalanced Inputs: <-85 dB (max gain)
Noise (amplified outputs):Mic input: -68 dB, Balanced line input: -72 dB (below compressor threshold at max gain); Unbalanced Inputs: <-75 dB (max gain)
THD+N:< 0.5% (1 kHz at compressor threshold, main amp output); < 0.25% (line output, main)
CMRR: Mic input:> 50 dB (50 Hz to 120 Hz); Balanced line input: > 80 dB (50 Hz to 120 Hz, transformer-coupled input)
Compressor:Threshold 2 dB below rated output, automatically adjusting attack and release times
Frequency Response (mixer):Mic to line output: ±1.5 dB (40 Hz to 25 kHz); Balanced line input to line output: ±1 dB (20 Hz to 20 kHz); Unbalanced line input to line output: ±0.5 dB (20 Hz to 20 kHz)
Frequency Response (Zone 1 amplifier):Constant voltage: ±3 dB (50 Hz to 18 kHz); 4/8 Ohm: ±1 dB (50 Hz to 20 kHz)
Frequency Response (Zone 2 amplifier):8 Ohm: ±1.5 dB (50 Hz to 20 kHz); 600 Ohm: ±1.5 dB (30 Hz to 18 kHz)
Tone Controls:±10 dB @ 10 kHz, ±9 dB @ 100 Hz (front-panel) with center detent
Audio Outputs (2):+4 dBu nominal (1.23 V), balanced, terminal block (FLAT); 0 dBu nominal balanced, terminal block (zone 2 mixer, 600 Ohm output)
MOH Output:0 dBu nominal (775 mV), 600 Ohm transformer-isolated, >16 dB headroom
Power Amplifier Outputs (2):Zone 1 (main): 35 W RMS (25, 70 or 100 V); Zone 2: 2 W (8 Ohms, on detachable terminal block)
Indicators (6):Front-panel: Signal present (3; 1 per input, green), Compressor activity (red), Power (bright=on, dim=standby, blue); Rear-panel: Ducking/muting threshold (yellow)
VCA:Zone 1 (main) master level, 0 to 10 Vdc control, detachable terminal block (compatible with RDL VCA wall controls)
Front-panel controls (6):Zone 1 (main) mixer level controls (3, inputs 1 through 3), EQ (2, bass and treble), Power (latching pushbutton, on/standby)
Rear-panel controls (9):Mic/Line switch (Input 1), Input 1 ducking/muting detector sensitivity trimmer, Phantom voltage switch (Input 1), Ducking control switches (2, to duck inputs 2 and/or 3), Zone 2 mixer level controls (3, inputs 1 through 3), HD-MA35: Output impedance switch 4 or 8 Ohms
Ambient Operating Environment:0° C to 50° C Maximum; 20° C Recommended
Power Supply (included):100 to 240 Vac, 50-60 Hz, 50 W; 24 Vdc output to amplifier chassis
Dimensions and Weight:Height: 3.5 in.(8.89 cm); Width: 8.5 in.(21.6 cm); Depth: 6.75 in.(17.1 cm);
Weight: 4.5 lb.(2 kg)
