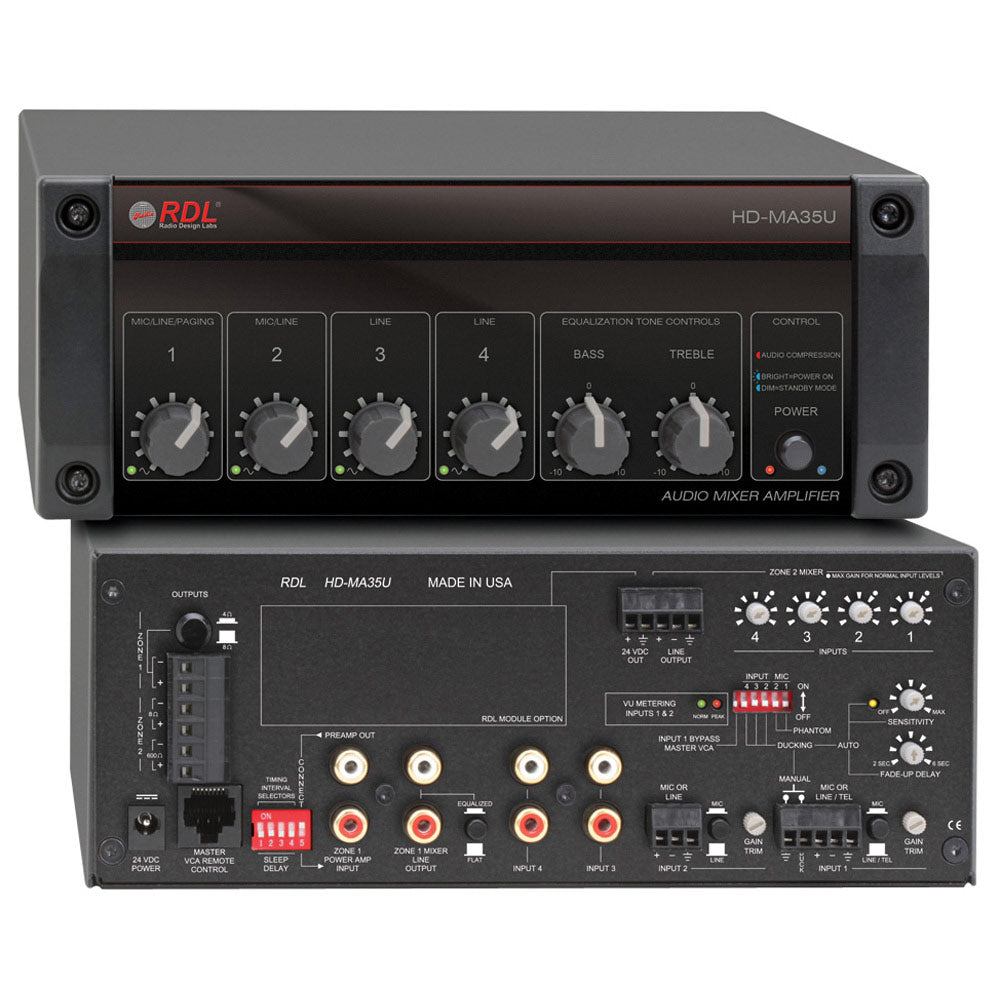

RDL HD-MA35U HD Series 35 Watt Mixer Amplifier (4 or 8 Ohm)


  • Dale #:

    RDL-HDMA35U
  • Availability:

    Reserve Yours Now
  • This item usually ships within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Description

The HD-MA35U is a four input audio mixer amplifier for systems demanding the broadest range of features and the highest energy efficiency. Two output power amplifier zones, 35 watts (Zone 1) and 4 watts (Zone 2), are driven from high-efficiency Class D amplifier stages. The mixer and amplifier se... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The HD-MA35U is a four input audio mixer amplifier for systems demanding the broadest range of features and the highest energy efficiency. Two output power amplifier zones, 35 watts (Zone 1) and 4 watts (Zone 2), are driven from high-efficiency Class D amplifier stages. The mixer and amplifier sections all normally shut down (standby “sleep” mode) when audio is absent and automatically turn on when needed. The Zone 1 amplifier output level may be VCA controlled using various optional RDL remote controls, or by industry standard 0 to 10 Vdc or 0 to 10k ohm controls. This output drives 4 ohm or 8 ohm speakers. The output impedance is switch-selectable on the rear panel. The Zone 2 amplifier output drives an 8 ohm speaker and/or 600 ohm telephone equipment.

The HD-MA35U is engineered, tested and manufactured in the U.S.A. to strict energy conservation standards. The unit consumes less than 1 watt of mains power in standby mode, and meets power amplifier efficiency specifications with analog-filtered Class-D digital output stages for both power amplifier output zones and for the 600 ohm output.

Features:

  • Four inputs with individual front-panel volume controls
  • Bass and Treble tone controls
  • Designed for background music with paging and music-on-hold
  • Master volume VCA controlled with remote adjustment capability
  • Manual or automatic (VOX) priority ducking
  • Balanced inputs and amplified outputs on detachable terminal blocks
  • Unbalanced inputs and outputs on RCA jacks
  • Includes power supply
  • Automatic sleep mode meets strictest energy saving standards

The HD-MA35U features two mixers. The Zone 1 mixer is located on the front-panel providing user level and tone controls for the 35 watt amplifier output. The tone controls adjust the equalization at the Zone 1 amplifier output and can be switch selected on the rear panel to also adjust the equalization at the line-level output. The Zone 2 mixer on the rear panel provides level trimmers normally set by the installer to provide music-on-hold and/or for background music in a small zone equipped with an 8 ohm speaker. The Zone 2 section includes a 4 watt amplifier, a 600 ohm transformer-balanced MOH output, and an active balanced line-level output that may be used to feed another audio power amplifier.

The HD-MA35U has four inputs that are common to both mixers. Inputs 1 and 2 accept balanced mic or line level sources. Inputs 3 and 4 accept unbalanced mono or stereo line-level sources. Input 1 is switch-selectable MIC or LINE. Phantom voltage (IEC standard 24 Vdc) is switch-selectable for the microphone input. The line input is transformer isolated and accepts balanced or unbalanced, high or low impedance audio sources. A gain trimmer is provided to set the input preamplifier to the optimum gain for the installation. A paging source is normally connected to Input 1. This input is equipped with push-to-talk terminals and with an adjustable threshold VOX circuit with LED threshold indicator, either (or both) of which may be set to duck (“fade down” or “mute”) inputs 2, 3 and/or 4 by 25 dB when a paging signal is active on Input 1. The attenuated inputs fade up to normal volume when the paging message is finished. A rear-panel trimmer allows the start of the fade-up to be delayed from 2 to 6 seconds. Input 2 is switch-selectable MIC or LINE. Phantom voltage (IEC standard 24 Vdc) is switch-selectable for the microphone input. The line input is active balanced and accepts balanced or unbalanced, high or low impedance sources. A gain trimmer is provided to set the input preamplifier to the optimum gain for the installation.An RDL Dual-LED VU meter is provided on the rear panel to indicate proper gain adjustment for Inputs 1 and 2. Correct input gain adjustment insures adequate mixer stage headroom. Inputs 3 and 4 each provide unbalanced stereo RCA input jacks, summed to mono.

The HD-MA35U is equipped with a master VCA for remote adjustment of the Zone 1 amplifier output. An RJ45 jack is provided for direct connection of an optional RDL remote level control. Certain installations require the paging source to be audible even if the remote control is turned down. A rear-panel switch is provided to cause the paging input to bypass the master VCA and the tone controls, allowing pages to be heard at the level set by the Level 1 input control on the front panel regardless of the VCA remote control volume setting. If this bypass switch is not enabled, the paging source level is controlled by the master VCA.

More +

Product Specs

Amplifier Zones (2):Zone 1 (Main): 35 W RMS, front-panel mixer (user controls); Zone 2: 4 W RMS (8 Ohms), rear-panel mixer (trimmers)
Audio Inputs (5):2, balanced, mic or line switch selectable on terminal blocks; 2, unbalanced stereo summing inputs on RCA jacks; 1, unbalanced amp in on RCA jack
Gain Adjustments (2):Inputs 1 and 2: Rear-panel single-turn trimmer
Maximum Input Level:Mic Inputs: -9 dBu; Balanced line inputs: + 20 dBu; Unbalanced Inputs: + 5 dBV (+11 dBV, one input); (for 1% THD+N at output)
Phantom Voltage:24 Vdc (IEC 1938: 1996-12), switch-selectable for each mic input
Ducking/Muting Actuation:Automatic (Input 1 VOX: rear-panel adjustable signal threshold with LED indicator) or Manual (contact closure to ground)
Ducking/Muting Release Delay:Rear-panel single-turn trimmer, adjustable 2 to 6 seconds
Ducking/Muting:Switch-selectable for inputs 2, 3 and/or 4, 25 dB ducking attenuation, nominal
Effects Loop:Unbalanced RCA jacks (preamp output from main mixer, input to power amplifier)
External RDL Module Power Output:24 Vdc, 100 mA maximum, ground-referenced
Input level (to cross compressor threshold equaling 23 W amplified output):Mic Inputs: -50 dBu (2.5 mV), (front panel and rear trimmer at max.)
Balanced line inputs: -21 dBu (70 mV), (front panel and rear trimmer at max.)
Unbalanced Inputs: -15 dBV (180 mV), (front panel and rear trimmer at max., both inputs driven)
Noise (line or amplified outputs):Mic or Balanced line inputs: -70 dB (below compressor threshold at max gain); Unbalanced Inputs: <-75 dB (max gain)
THD+N:< 0.5% (1 kHz at compressor threshold, main amp output); < 0.1% (line output, main)
CMRR:Mic inputs: > 50 dB (50 Hz to 120 Hz); Balanced line inputs: > 80 dB (50 Hz to 120 Hz, transformer-coupled input
Compressor:Threshold 2 dB below rated output, automatically adjusting attack and release times
Frequency Response (mixer):Mic to line output: ±1.5 dB (40 Hz to 25 kHz); Balanced line input to line output: ±1 dB (20 Hz to 20 kHz); Unbalanced line input to line output: ±0.5 dB (20 Hz to 20 kHz)
Frequency Response (amplifiers):± dB (50 Hz to 20 kHz)
Tone Controls:±10 dB @ 10 kHz, ±9 dB @ 100 Hz (front-panel) with center detent
Audio Outputs (2):-10 dBV nominal (316 mV), dual mono unbalanced RCA (main mixer; FLAT or EQUALIZED, switch-selectable on rear panel); 0 dBu nominal balanced, terminal block (zone 2 mixer)
MOH Output:0 dBu nominal (775 mV), 600 Ohm transformer-isolated, 16 dB headroom
Power Amplifier Outputs (2):Zone 1 (main, <1% THD+N): 35 W RMS (4 Ohms), 32 W (8 Ohms) on detachable terminal block (switch-selectable 4 or 8 Ohm impedance); Zone 2: 4 W (8 Ohms, on detachable terminal block)
Indicators (9):Front-panel: Signal present (4; 1 per input, green), Compressor activity (red), Power (bright=on, dim=standby, blue); Rear-panel: dual-LED VU meter (for inputs 1 and 2, green/red), Ducking/muting threshold (yellow)
VCA:Zone 1 (main) master level (with switch-selectable input 1 bypass), 0 to 10 Vdc control, RJ45 (compatible with RDL VCA wall controls)
Front-panel controls (7):Zone 1 (main) mixer level controls (4, inputs 1 through 4), EQ (2, bass and treble), Power (momentary pushbutton, toggle on/standby)
Rear-panel controls (22):Gain trimmers (2, input 1 and 2), Mic/Line switch (2, input 1 and 2), Zone 1 line output pre/post-EQ switch, Effects loop bypass switch, Sleep (standby) mode delay (4 binary switches), Input 1 ducking/muting detector sensitivity trimmer, Phantom voltage switches (2, input 1 and 2), Ducking control switches (3, to duck inputs 2, 3, and/or 4), VCA paging bypass (includes or excludes input 1 from master VCA control), Zone 2 mixer level controls (4, inputs 1 through 4)
Efficiency Standard:“Energy Star® Program Requirements for Audio/Video” Version 2.0
Sleep Mode Power Consumption:< 1 W (amplifier and included power supply)
Sleep Mode Delay:10 minutes to 2 hours (switch-selectable in 10 minute increments)
Sleep Mode Disable:Selectable
Active Mode Delay:2 seconds (nominal) after input audio detected
Audio Detector Threshold:-80 dBu mic (at max input gain), -55 dBu balanced line (at max input gain), -42 dBV unbalanced
Ambient Operating Environment:0° C to 50° C Maximum; 20° C Recommended
Power Supply (included):100 to 240 Vac, 50-60 Hz, 50 W; 24 Vdc output to amplifier chassis
Dimensions and Weight:Height: 3.5 in.(8.89 cm); Width: 8.5 in.(21.6 cm); Depth: 10 in.(25.4 cm); Weight: 5.6 lb.(2.5 kg)
