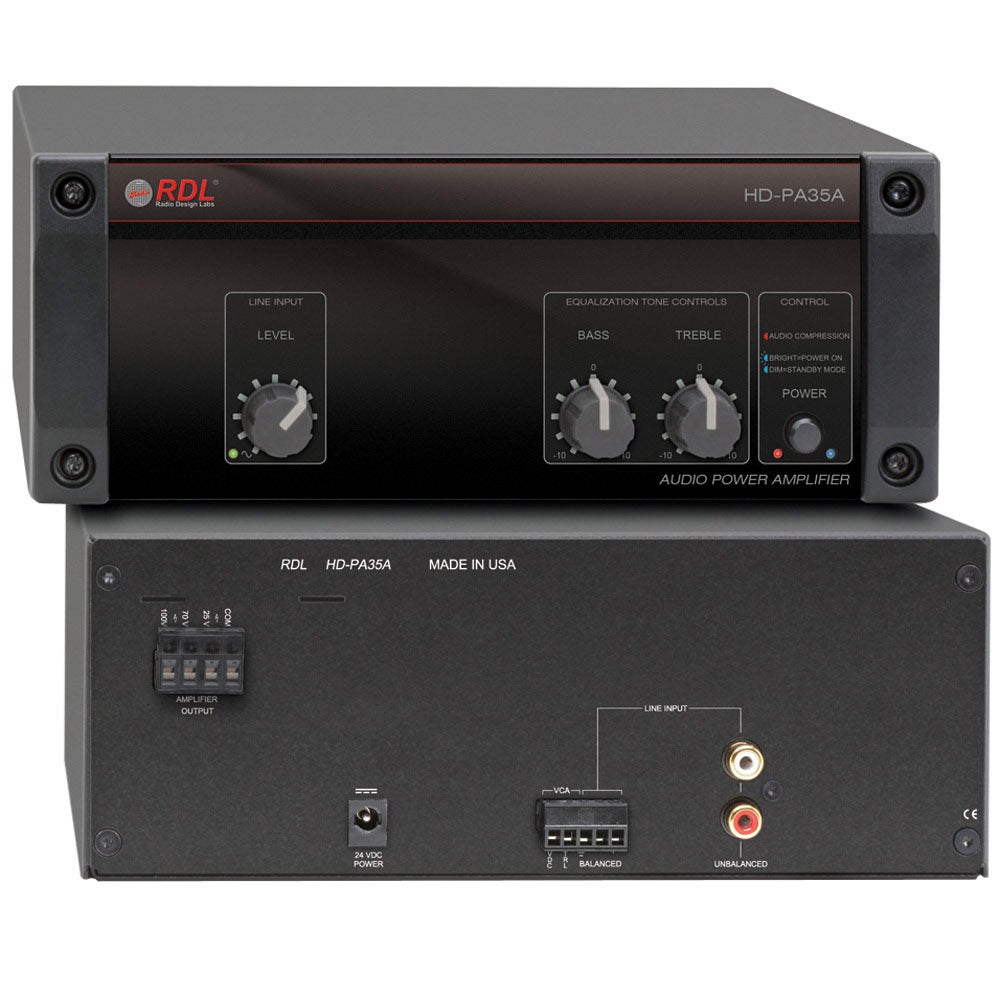

RDL HD-PA35A HD Series 35 Watt Power Amplifier (25/70/100 Volt)


  • Dale #:

    RDL-HDPA35A
  • Availability:

    Reserve Yours Now
  • This item usually ships within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Description

Features One input with front-panel volume control Bass and Treble tone controls Designed as a single zone amplifier Master volume VCA controlled with remote adjustment capability Amplifier output on detachable terminal block Unbalanced summing inputs on RCA jacks Includes power supply High-effic... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

Features

  • One input with front-panel volume control
  • Bass and Treble tone controls
  • Designed as a single zone amplifier
  • Master volume VCA controlled with remote adjustment capability
  • Amplifier output on detachable terminal block
  • Unbalanced summing inputs on RCA jacks
  • Includes power supply
  • High-efficiency Class D operation

More +

Product Specs

Rated Power:35 W RMS
Audio Input:Unbalanced stereo summing input on RCA jacks
Maximum Input Level:+ 9 dBV (+15.5 dBV, one input); (for 1% THD+N at output)
Input level:-15 dBV (180 mV, to cross compressor threshold equaling 23 W amplified output, both input jacks driven)
Noise:<-75 dB (max gain)
THD+N:< 0.5% (1 kHz at compressor threshold)
Compressor:Threshold 2 dB below rated output, automatically adjusting attack and release times
Frequency Response:Constant voltage: +/- 3 dB (50 Hz to 18 kHz)
Tone Controls:±10 dB @ 10 kHz, ±9 dB @ 100 Hz (front-panel) with center detent
Power Amplifier Output:35 W RMS (25, 70 or 100 V); <1% THD+N
Indicators (3):Front-panel: Signal present (green), Compressor activity (red), Power (bright=on, dim=standby, blue)
VCA:Output level, 0 to 10 Vdc control, detachable terminal block (compatible with RDL VCA wall controls)
Front-panel controls (4):Input, EQ (2, bass and treble), Power (latching pushbutton, on/standby)
Ambient Operating Environment:0° C to 50° C Maximum; 20° C Recommended
Power Supply (included):100 to 240 Vac, 50-60 Hz, 50 W; 24 Vdc output to amplifier chassis
Dimensions and Weight:Height: 3.5 in.(8.89 cm); Width: 8.5 in.(21.6 cm); Depth: 6.75 in.(17.1 cm); Weight: 6 lb.(2.7 kg)

More +
