RDL HR-ADC1 Analog to Digital Converter


  • Dale #:

    RDL-HRADC1
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Please Note: requires PS-24AS Power Supply (sold separately)

Description

The HR-ADC1 is a broadcast quality A/D converter that provides exceptional audio accuracy and clarity with any audio source or style. Superior analog performance fine tuned through audiophile listening practices produces very low distortion (0.0006%), exceedingly low noise (-135 dB) and remarkabl... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

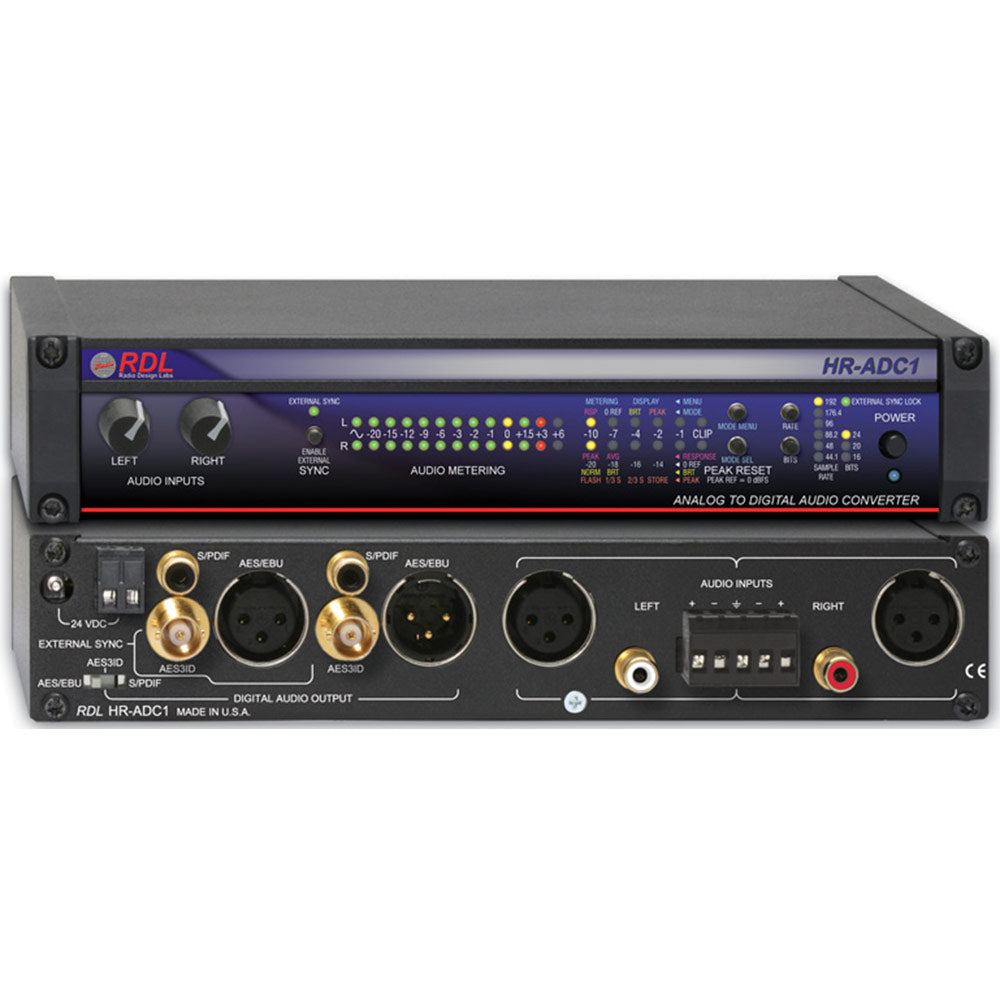

The HR-ADC1 is a broadcast quality A/D converter that provides exceptional audio accuracy and clarity with any audio source or style. Superior analog performance fine tuned through audiophile listening practices produces very low distortion (0.0006%), exceedingly low noise (-135 dB) and remarkably flat frequency response (+/- 0.05 dB). This performance is coupled with unparalleled metering flexibility and programmability with average mastering level monitoring and peak value storage. With external sync capability plus front-panel settings up to 24 bits and up to 192 kHz sample rate, the HR-ADC1 is the single instrument needed for A/D conversion in demanding applications.

The HR-ADC1 accepts balanced +4 dBu or unbalanced -10 dBV stereo audio through rear panel XLR or RCA jacks or through a detachable terminal block. An external AES/EBU, AES-3ID or S/PDIF sync source may be connected through a rear-panel XLR, RCA or BNC jack. Digital audio outputs are provided in AES/EBU, AES-3ID or S/PDIF formats. The rear-panel switch-selected output format is available on the corresponding XLR, RCA or BNC jack.Front panel LEFT and RIGHT controls permit input gain adjustment to produce the desired average signal level for the digital conversion. The zero decibel (0 dB) reference level of the audio metering string may be set to -14, -16, -18 or -20 dBFS. The meter may also be set to display peak or VU average audio levels. Audio peaks between -10 dBFS and 0 dBFS (clipping) are displayed separately to the right of the standard audio level meter. The peak display may be set to either flash or store the peak values. Flash duration settings provide for instantaneous, 1/3 second hold or 2/3 second hold. If the peak display is set to STORE then the highest peak recorded remains displayed until the PEAK RESET button is pushed.
    Features:
  • Broadcast Quality Analog to Digital Audio Conversion
  • Inputs: Balanced and Unbalanced Stereo Audio
  • Output: AES/EBU, Coaxial S/PDIF, AES-3ID
  • External Sync Inputs: AES/EBU, Coaxial S/PDIF, AES-3ID
  • Adjustable Audio Input Gain Trim
  • Peak or Average Ballistic Metering with Selectable 0 dB Reference
  • Peak Metering with Selectable Hold or Peak Store Modes
  • Operation Up to 24 bits, 192 kHz
  • Selectable Internally Generated Sample Rate and Bit Depth
  • Front-Panel External Sync Enable Selector and Indicator
  • Sample Rate, Bit Depth, External Sync Lock Indicators
  • Transformer Isolated AES/EBU Output

The HR-ADC1 provides rear-panel inputs for an external sync source. If valid external sync is connected, the EXTERNAL SYNC LOCK LED illuminates. The front-panel SYNC button sets the converter to synchronize to the external source. When external sync is not used, the HR-ADC1 converts at the sample rate selected using the front-panel RATE button. The number of BITS is user-selectable on the front panel. The peak LEDs double as the programming indicators during setup. The MODE MENU has four selection categories: METERING RSP (peak or average response) for the main audio meter; METERING 0 REF (sets meter scaling to -14, -16, 18 or -20 dBFS for a 0 dB reading); DISPLAY BRT (sets LED display brightness for ambient light); DISPLAY PEAK (sets peak LED string to FLASH, hold 1/3 second, hold 2/3 second, or STORE the maximum peak reading. Programming selections are automatically stored after five seconds and are retained in memory when the HR-ADC1 is re-powered.

The HR-ADC1 is powered from 24 Vdc, which may be connected through the detachable terminal block or through the dc power jack. A front-panel power switch is provided. For installations requiring fixed, calibrated input levels, the HR-ADC1 front-panel knobs may be removed and replaced with security covers, available separately (RDL SC-2 Kit of two security caps with tightening tool).

More +

Product Specs

Audio Inputs (5):Balanced (2): 30 k XLR Balanced terminal block Unbalanced (2): 30 k RCA jacks
Input Level:Left and Right front-panel user controls, Balanced: +4 dBu nominal +2 dBu to +26 dBuUnbalanced: -10 dBV nominal -11 dBV to +11 dBV (for 0 dBFS)
External Sync Inputs (3):110 AES/EBU XLR, xfmr isolated 75 S/PDIF RCA jack 75 AES-3ID BNC
Outputs (3):110 AES/EBU XLR, transformer isolated 75 S/PDIF RCA jack 75 AES-3ID BNC (selectable)
Sample Rates:44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
Resolution:16, 20 or 24 bits (front-panel selectable)
Frequency Response:10 Hz to 20 kHz (+/- 0.125 dB) 20 Hz to 20 kHz (+/- 0.05 dB)
THD+N:< -105 dBFS (0.0006%, 20 Hz to 20 KHz, internal sample rate)
Crosstalk:< -115 dB (50 to 60 Hz) < -105 dB (15 kHz)
Residual Noise:< -135 dB (10 Hz to 20 kHz)
Dynamic Range:> 114 dB (resolution 24-bit unweighted)
Programmable Features Menus (4):Metering Ballistic Meter 0 Reference Peak hold/store Display intensity
Indicators (49):Power External sync lock Sample rate (6) BITS (3): Audio metering (26) Peak metering (12)
Power Requirement:24 to 33 Vdc @ 300 mA, Ground-referenced

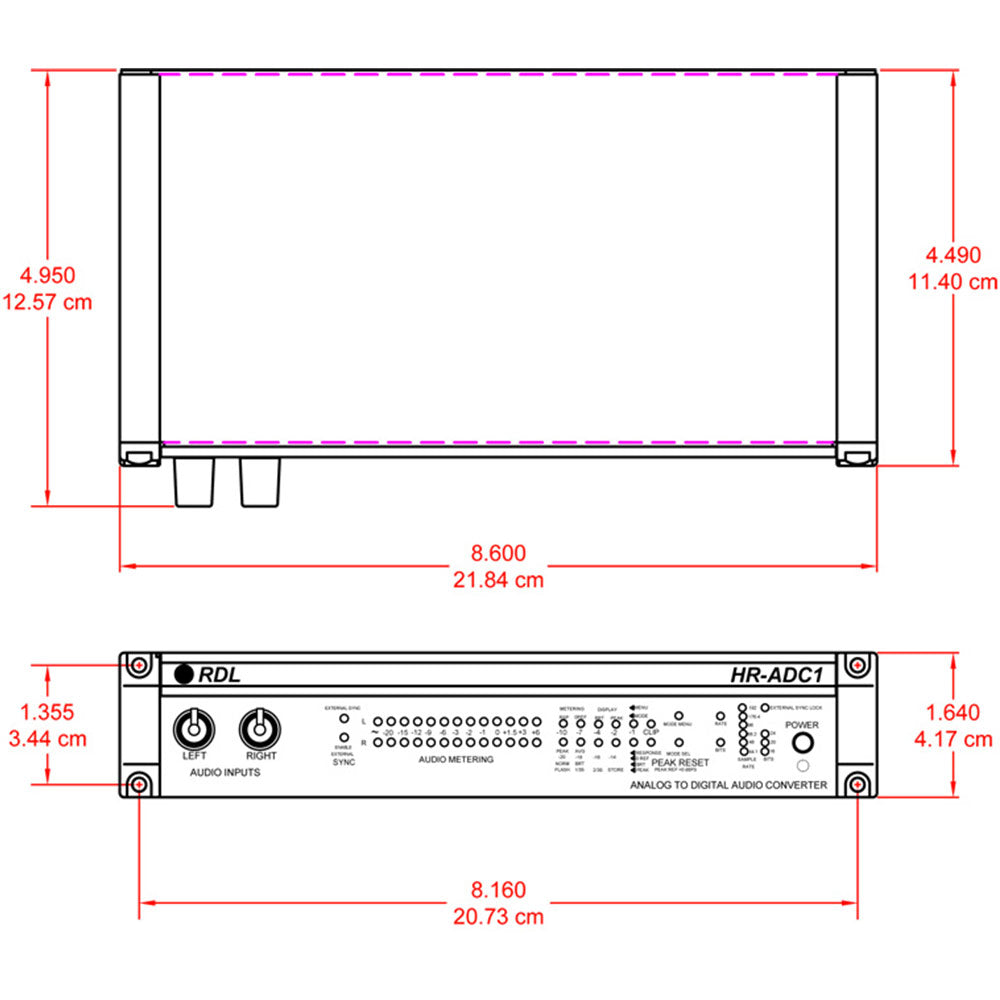

Dimensions:Height: 1.7 in, 4.3 cm Length: 8.6 in, 20.6 cm Depth: 4.59 in, 11.66 cm
